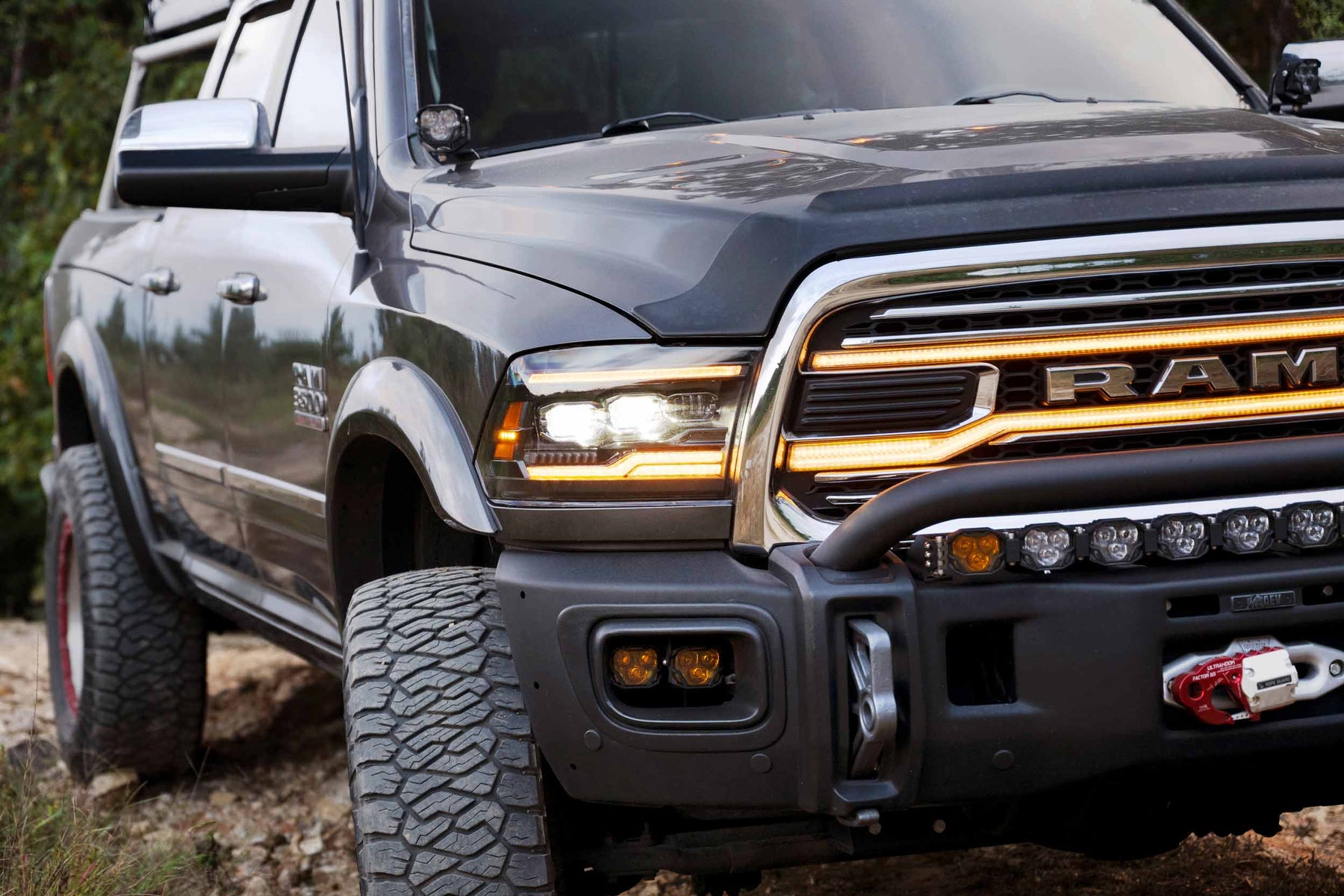

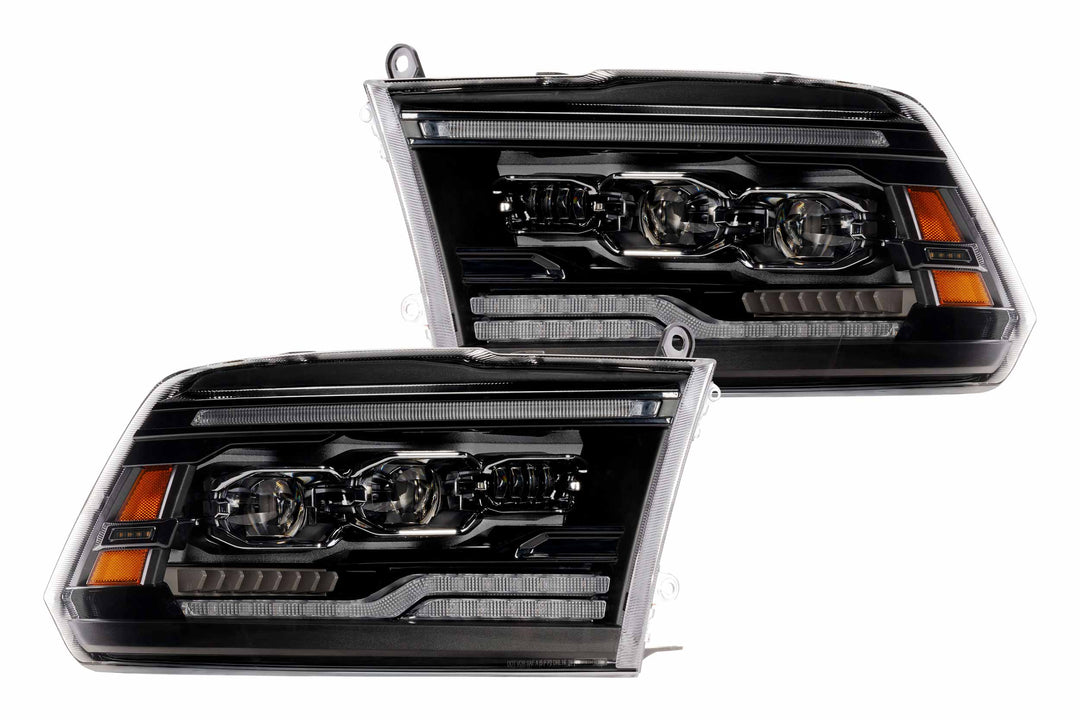

The all-new XB Evo LED headlights are a showcase of everything Morimoto is made of — the latest in technology, compliance, quality, and styling — purpose-built for the 2019–2024 Ram 1500 Classic. A patent-pending lens-heating system minimizes frost buildup in wet and snowy conditions, while the signal-swap system lets you personalize how the DRLs and turn signals behave through a simple plug-and-play key. On startup, the optics illuminate in a multi-stage welcome sequence.

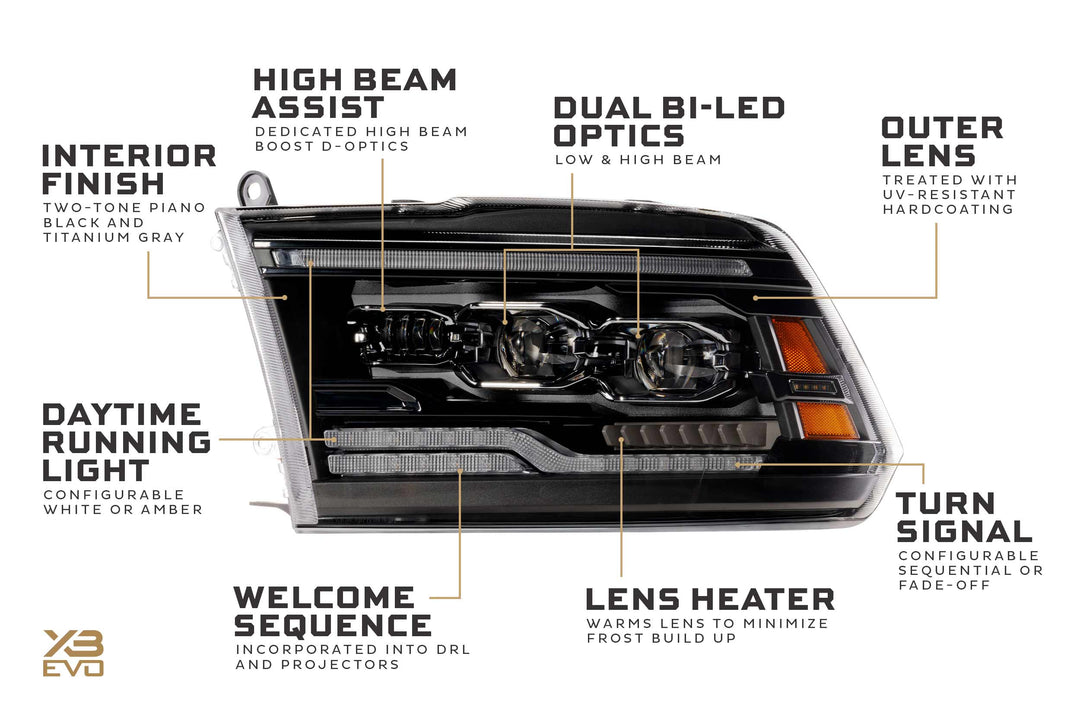

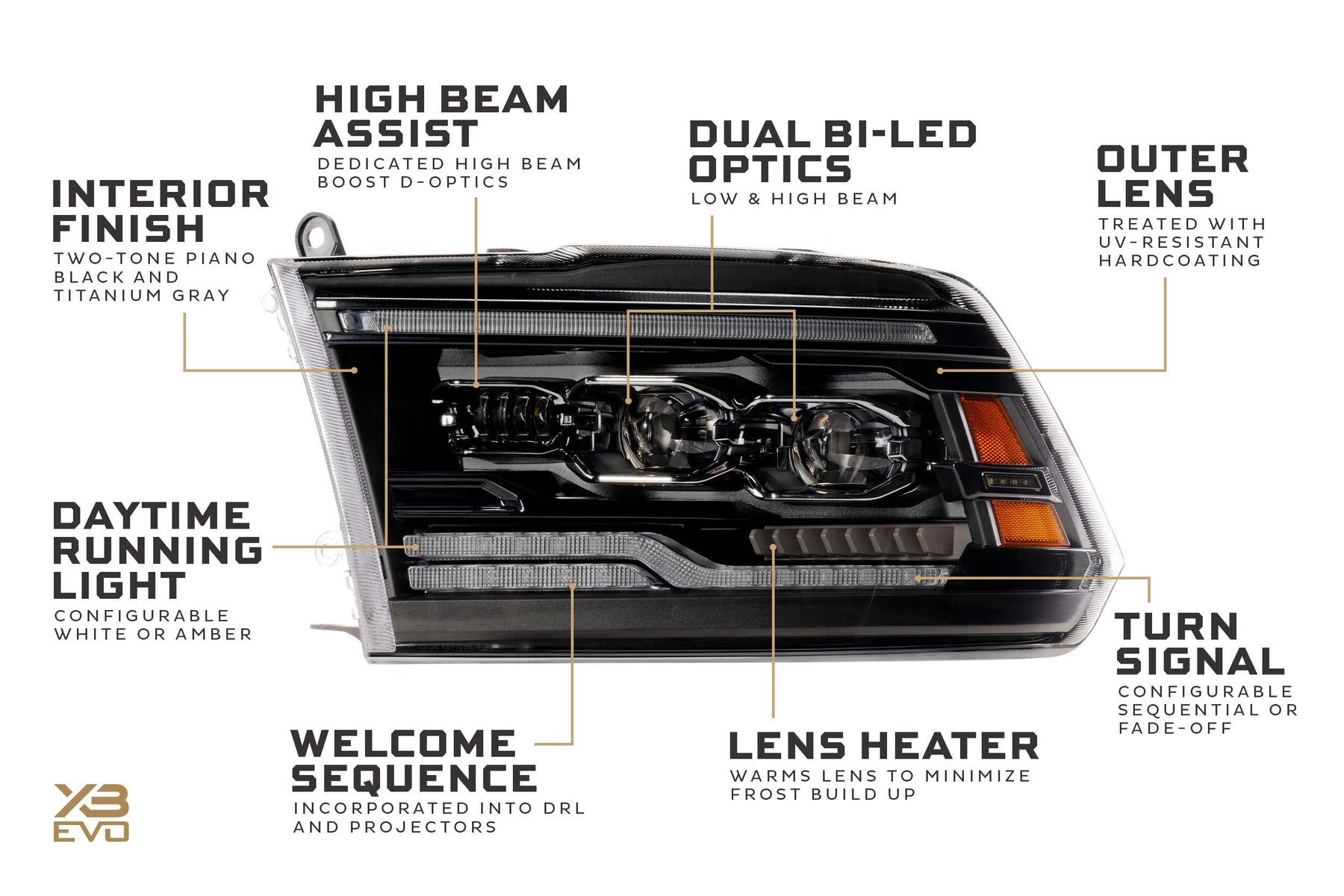

Features & Benefits
-

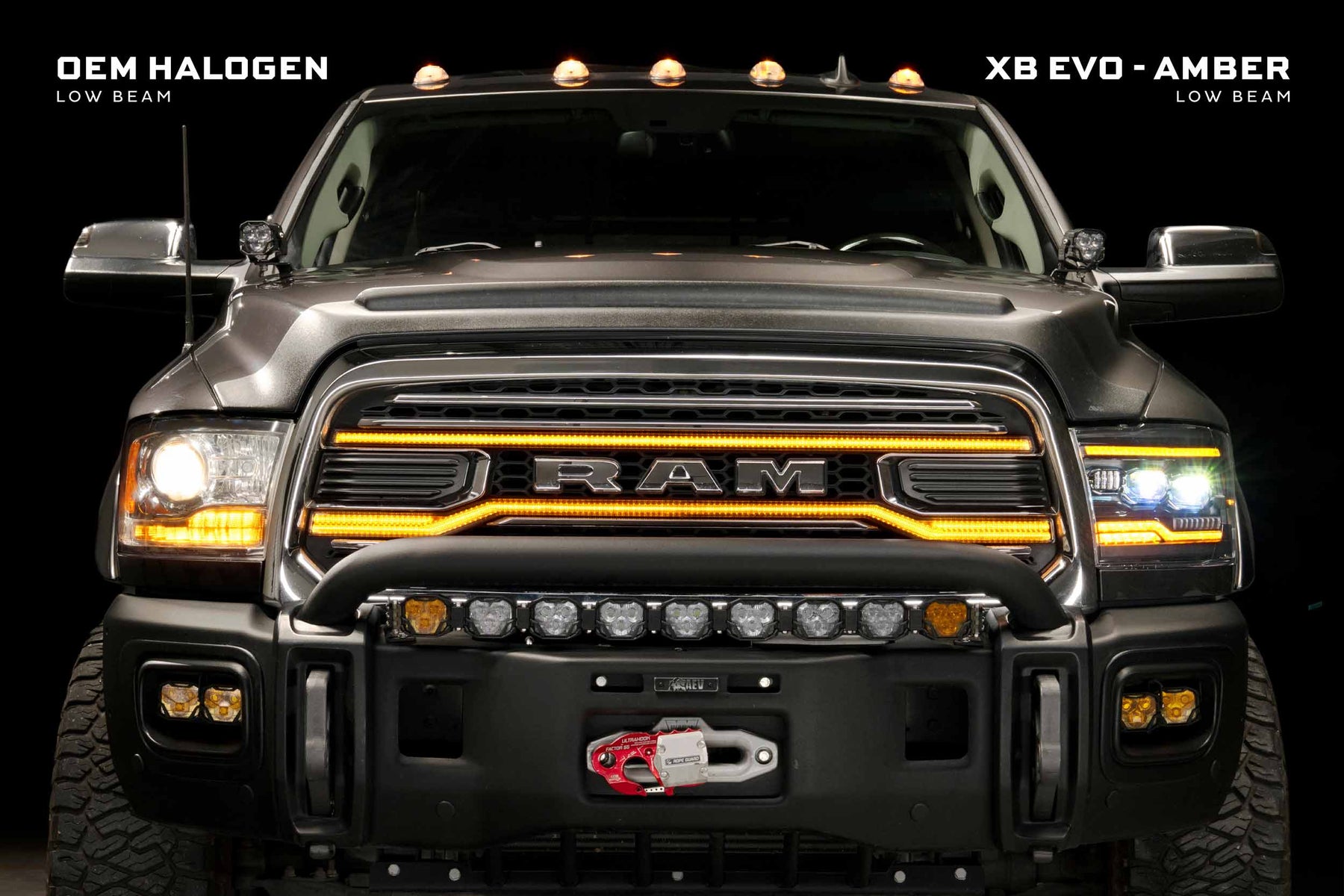

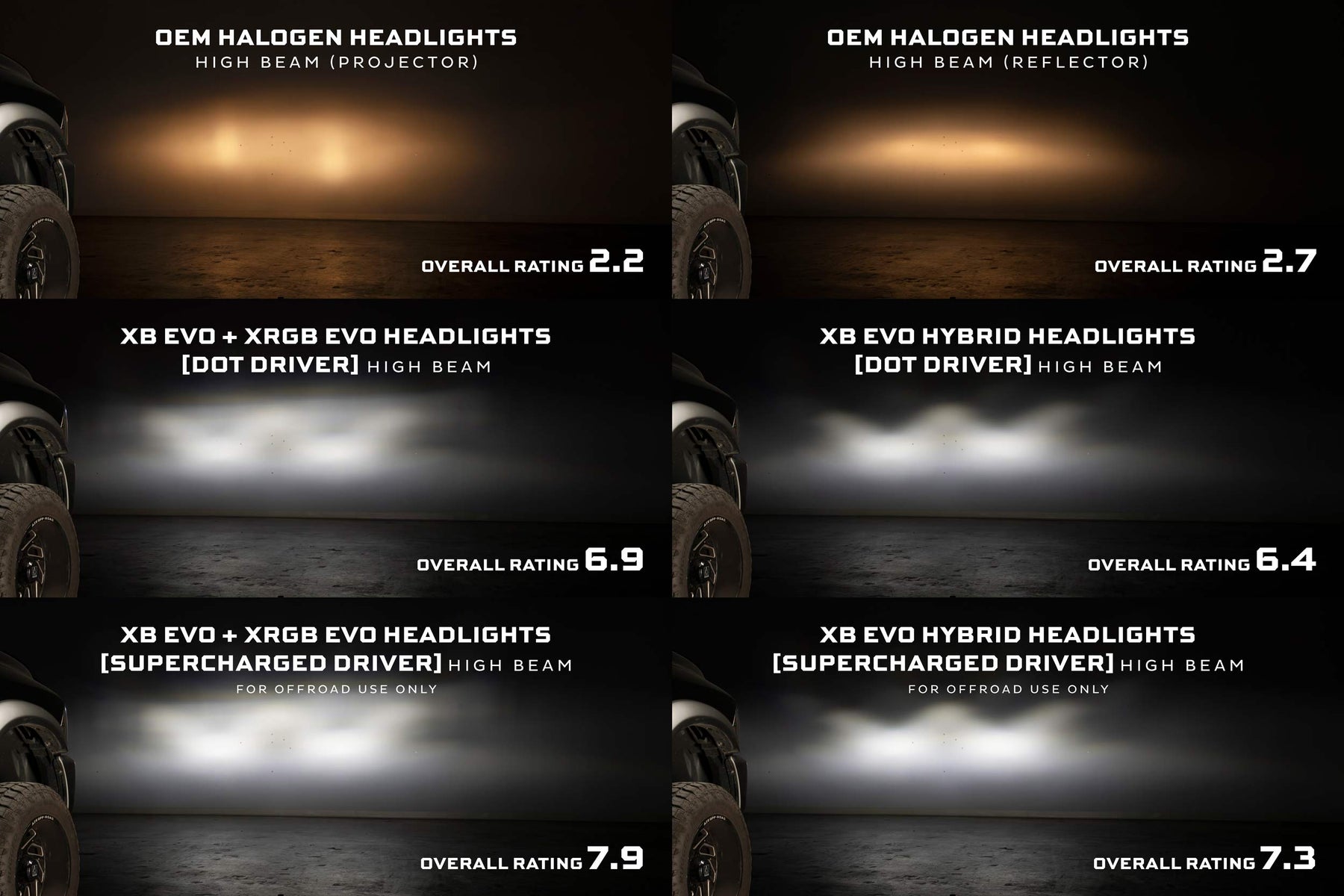

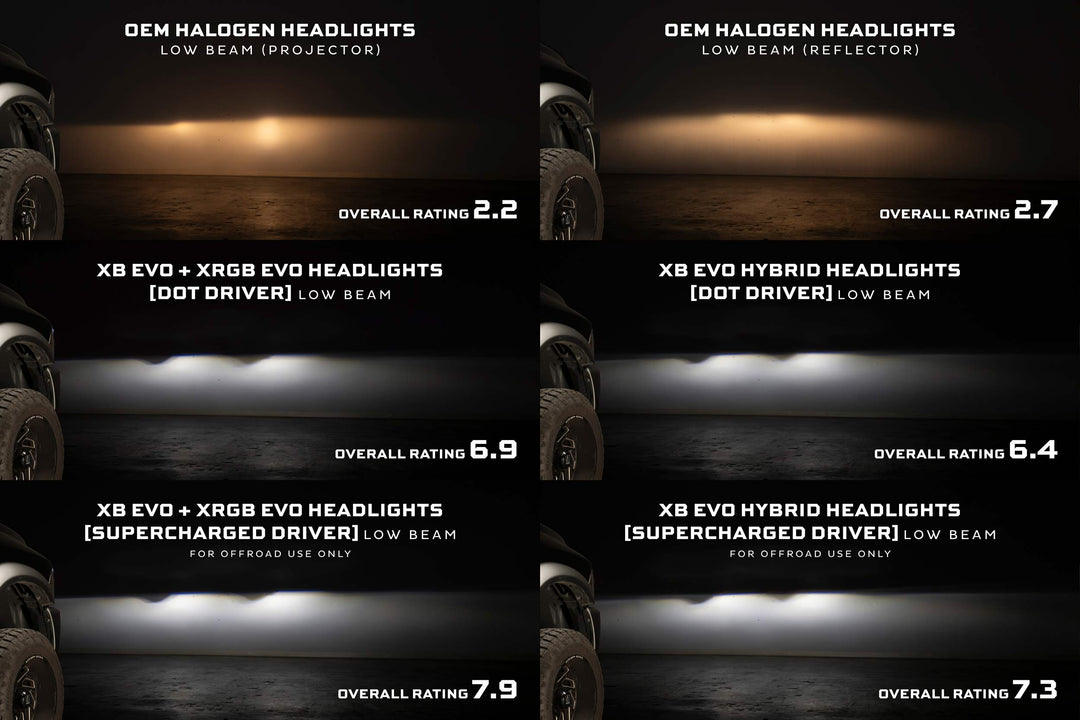

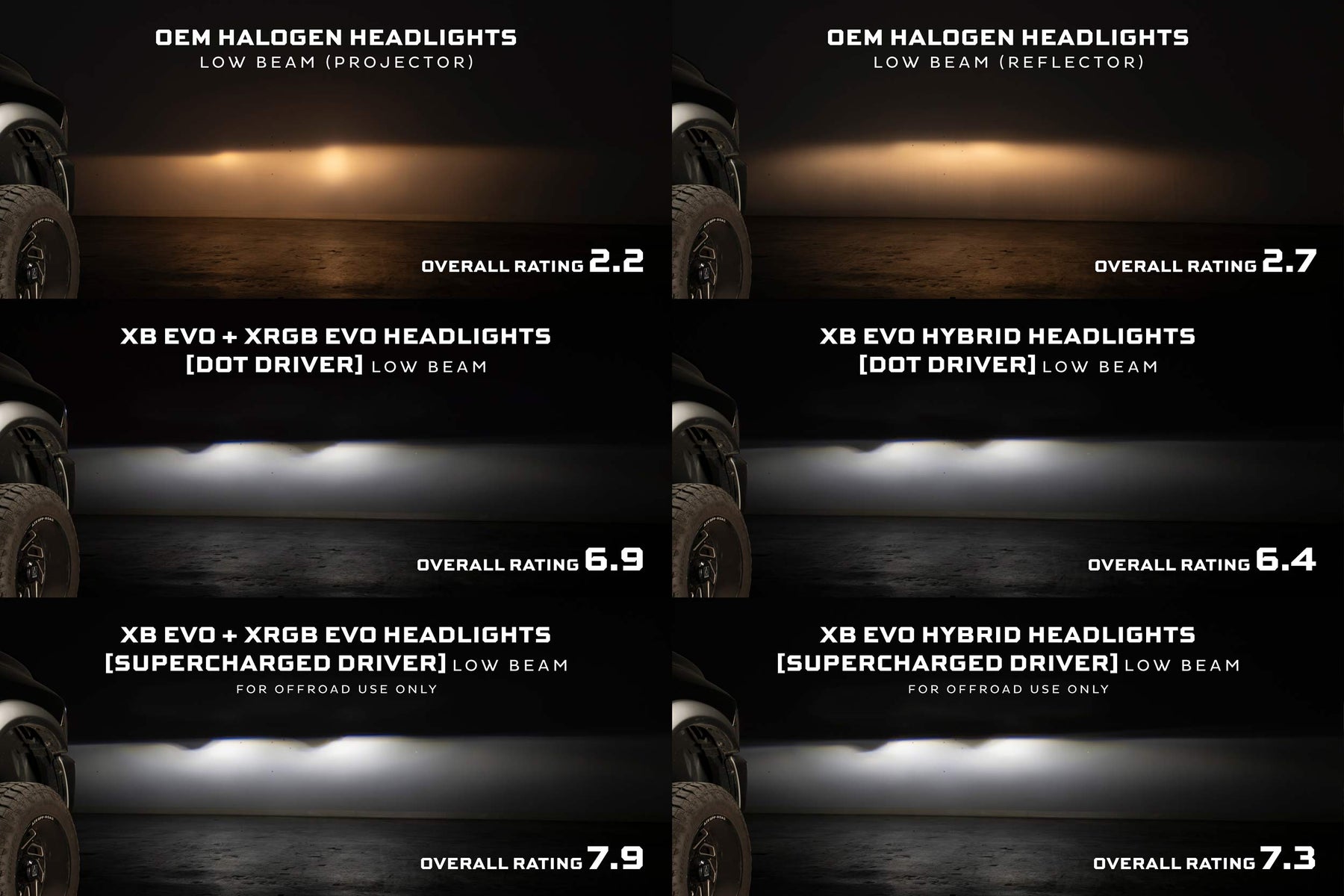

All-New Optics: Dual Bi-LED projectors powered by Nichia's latest automotive LEDs — output that exceeds rigorous IIHS standards with exceptional intensity and distribution.
-

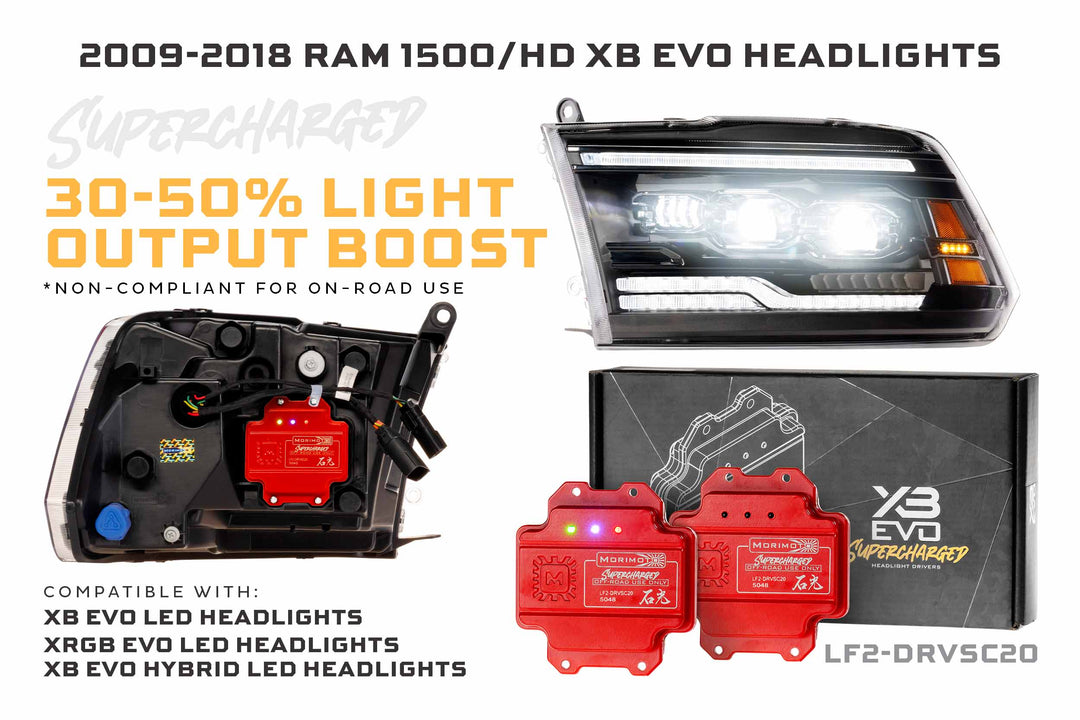

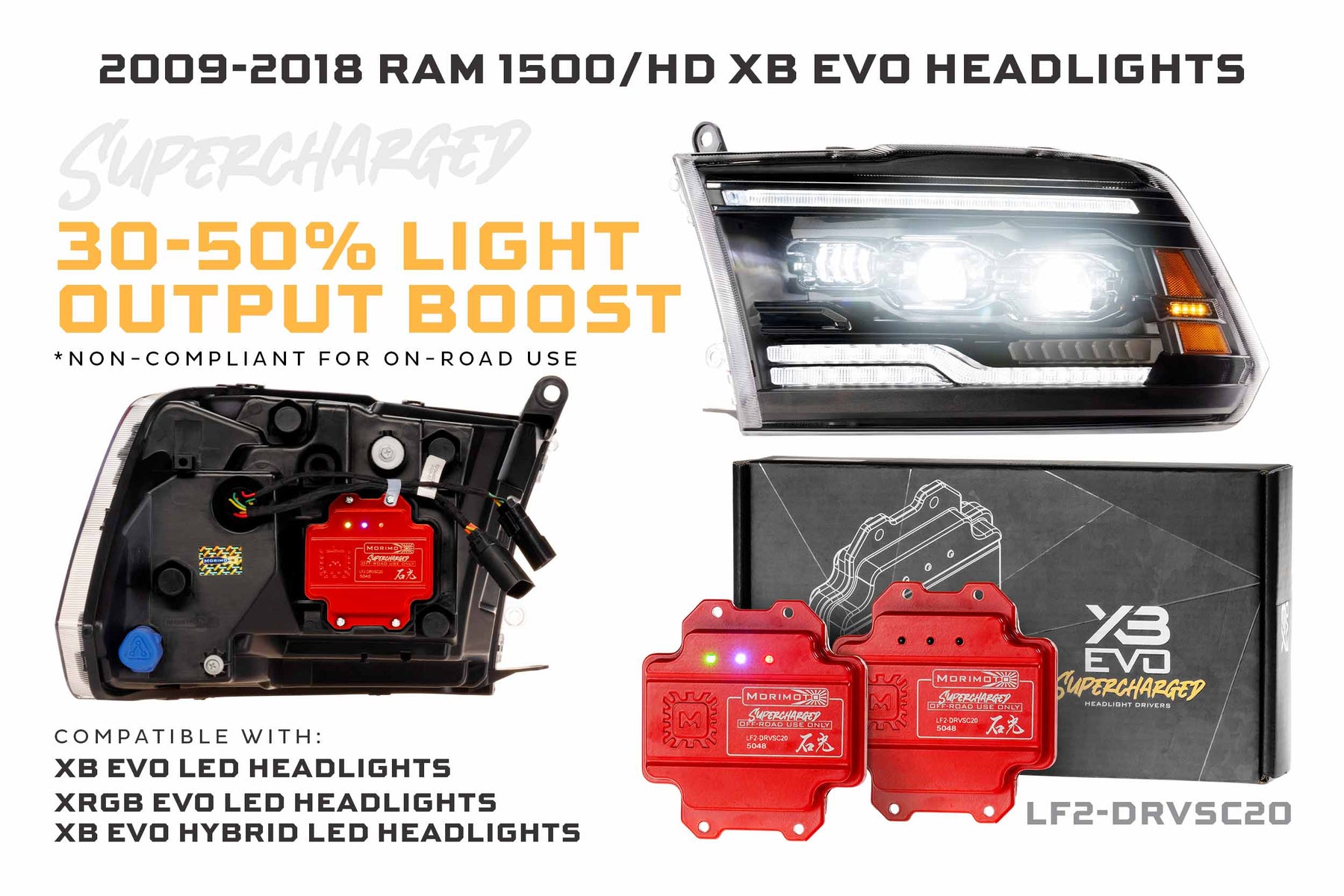

On & Off Road: DOT / FMVSS108 compliant for public roads in the USA in standard form. Optional Supercharged LED drivers boost intensity 30–50% for maximum off-road output.
-
Frost-Free System: Warms the lens surface to prevent frost buildup in winter — activated by flashing the high beams four times below 5°C / 41°F.
-

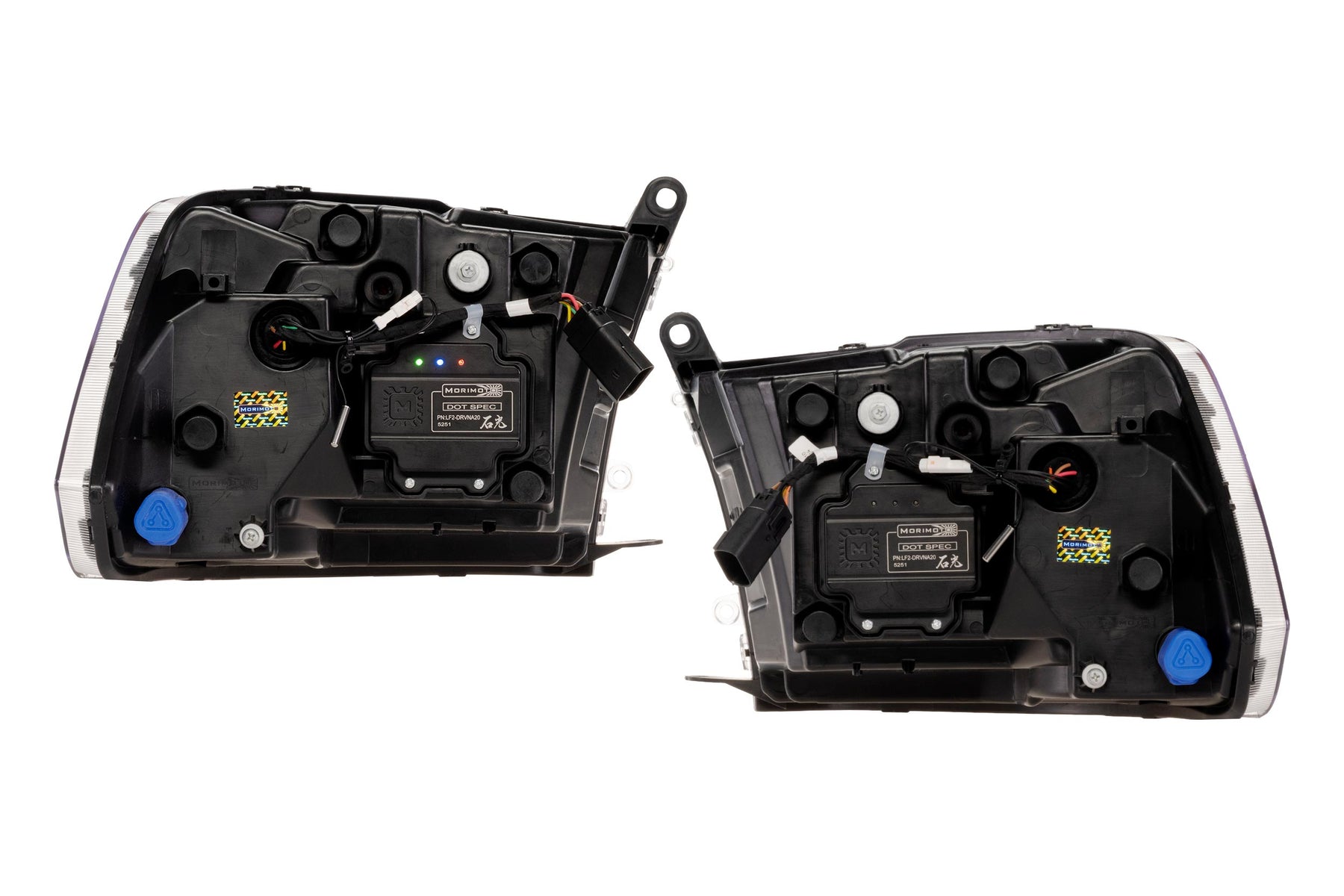

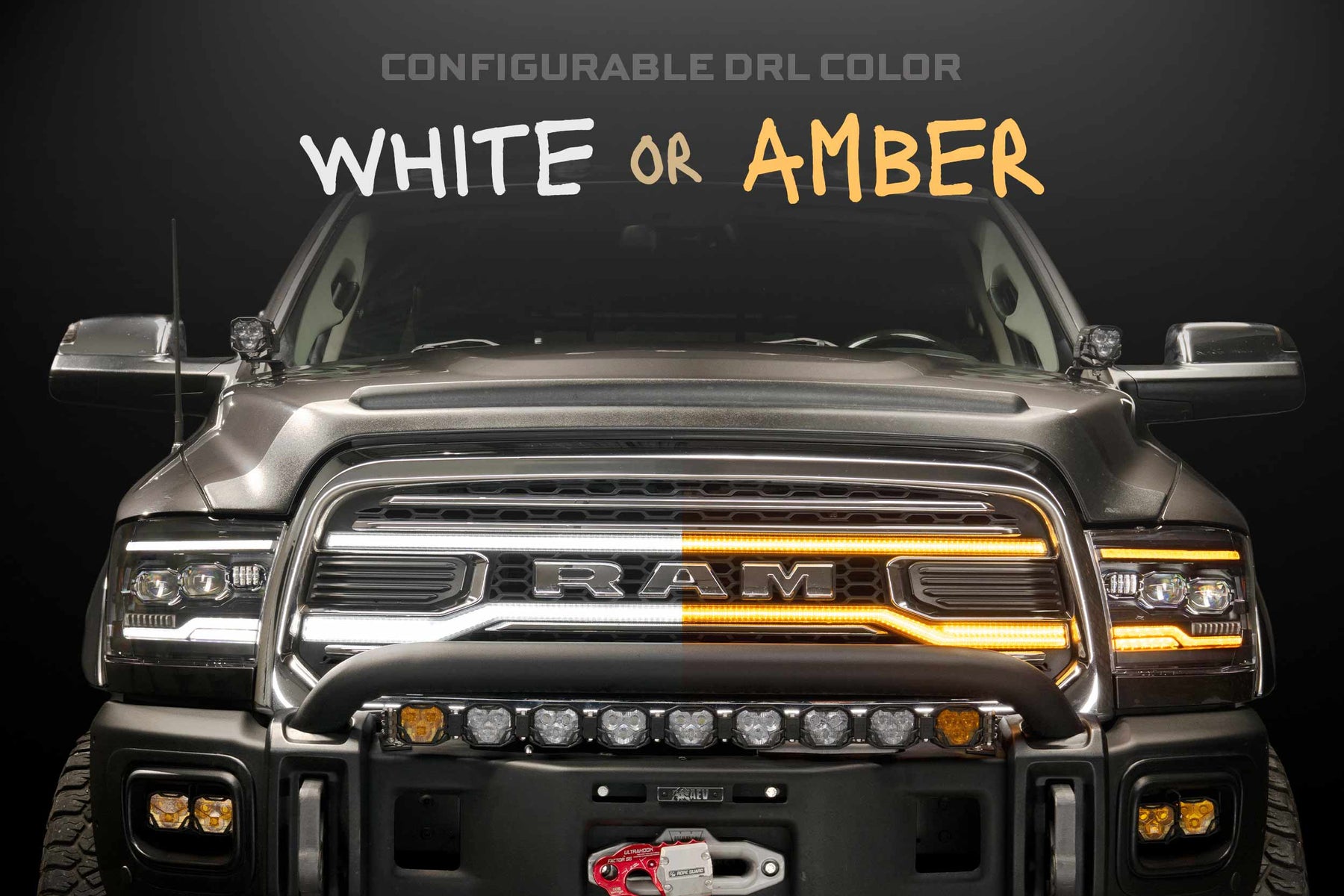

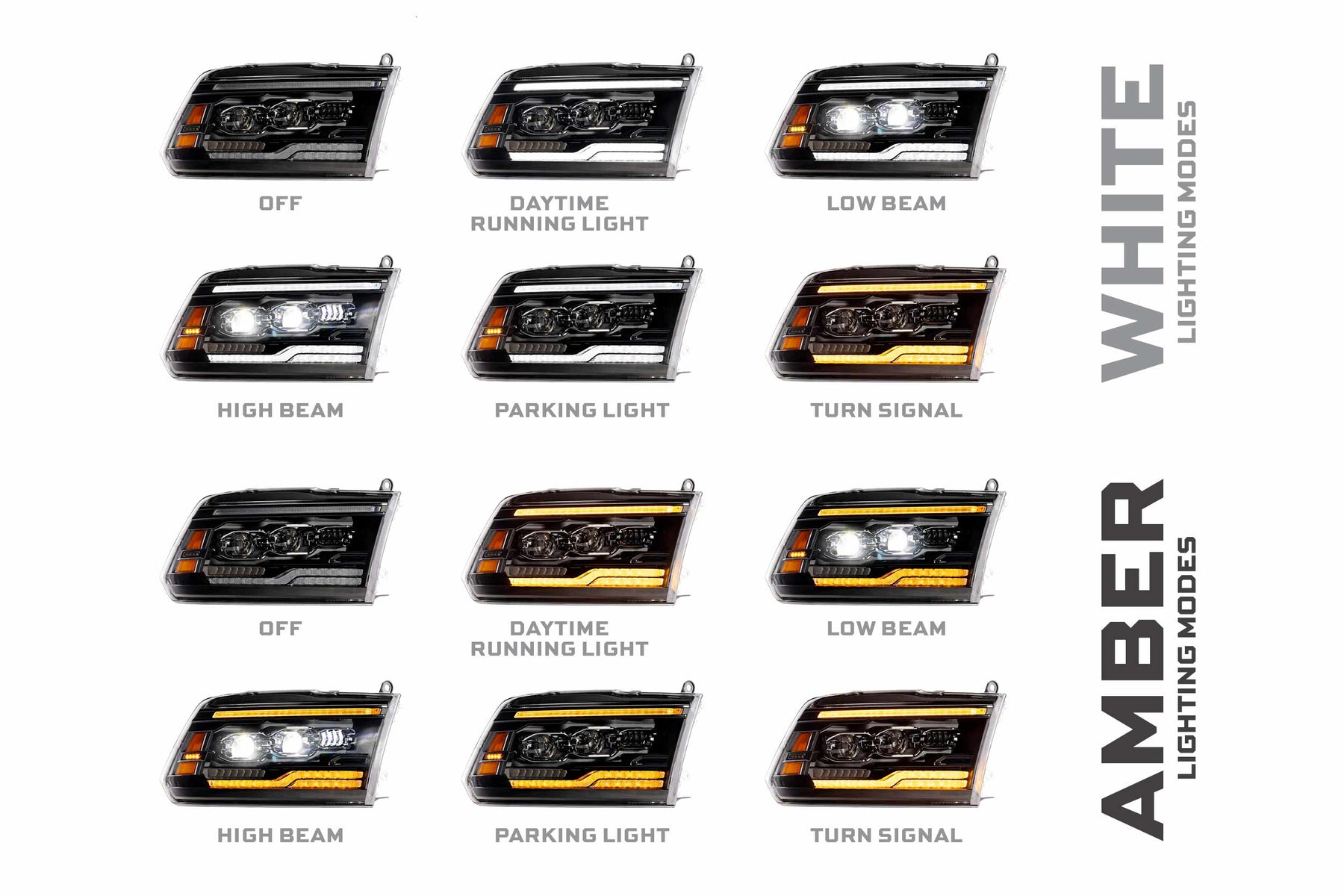

Signal-Swap Keys: Configure white or amber DRLs and sequential or standard turn signals via a plug-and-play key on the back of each headlight.
-
Designed, engineered & tested in the USA by Morimoto.

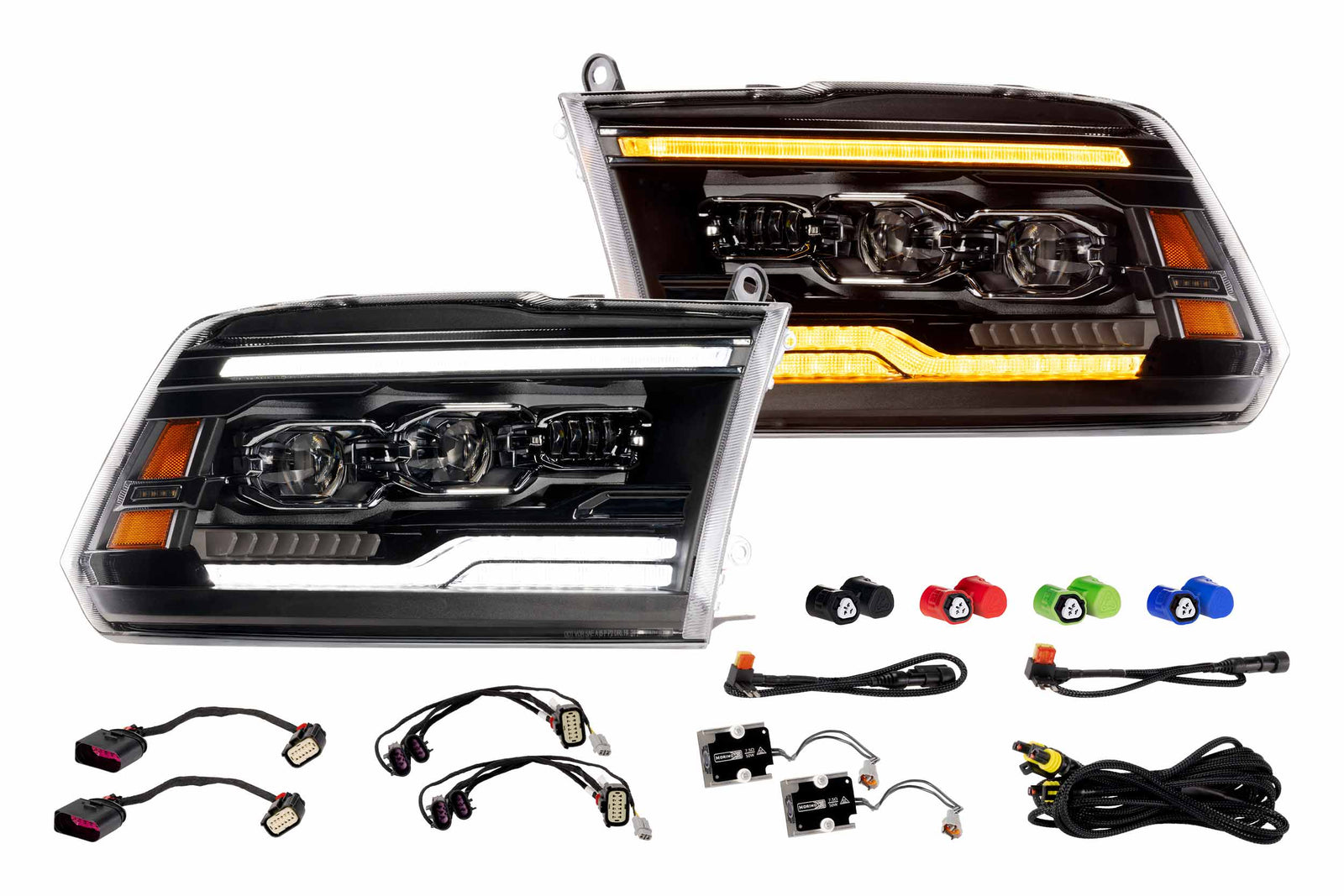

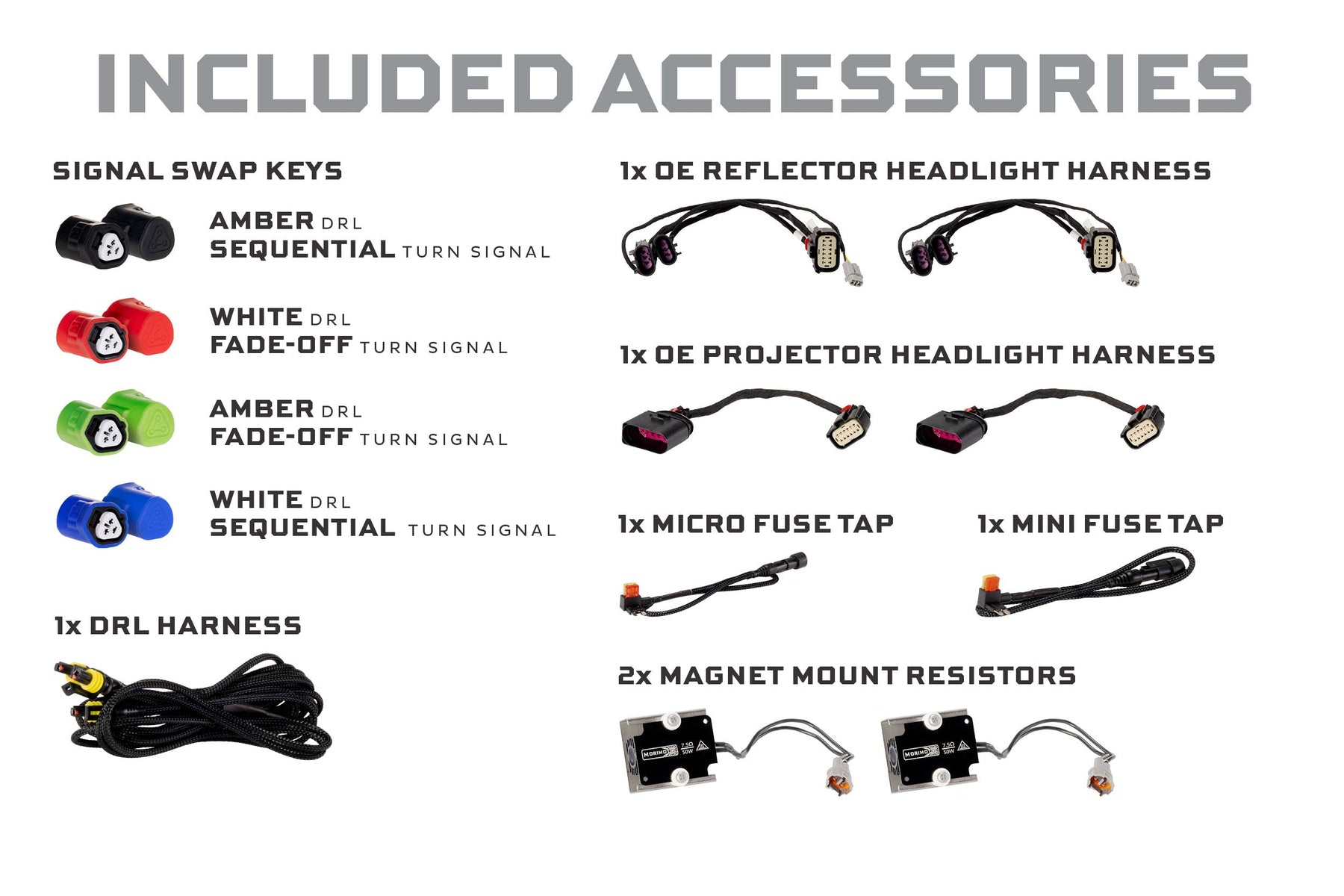

What's Included

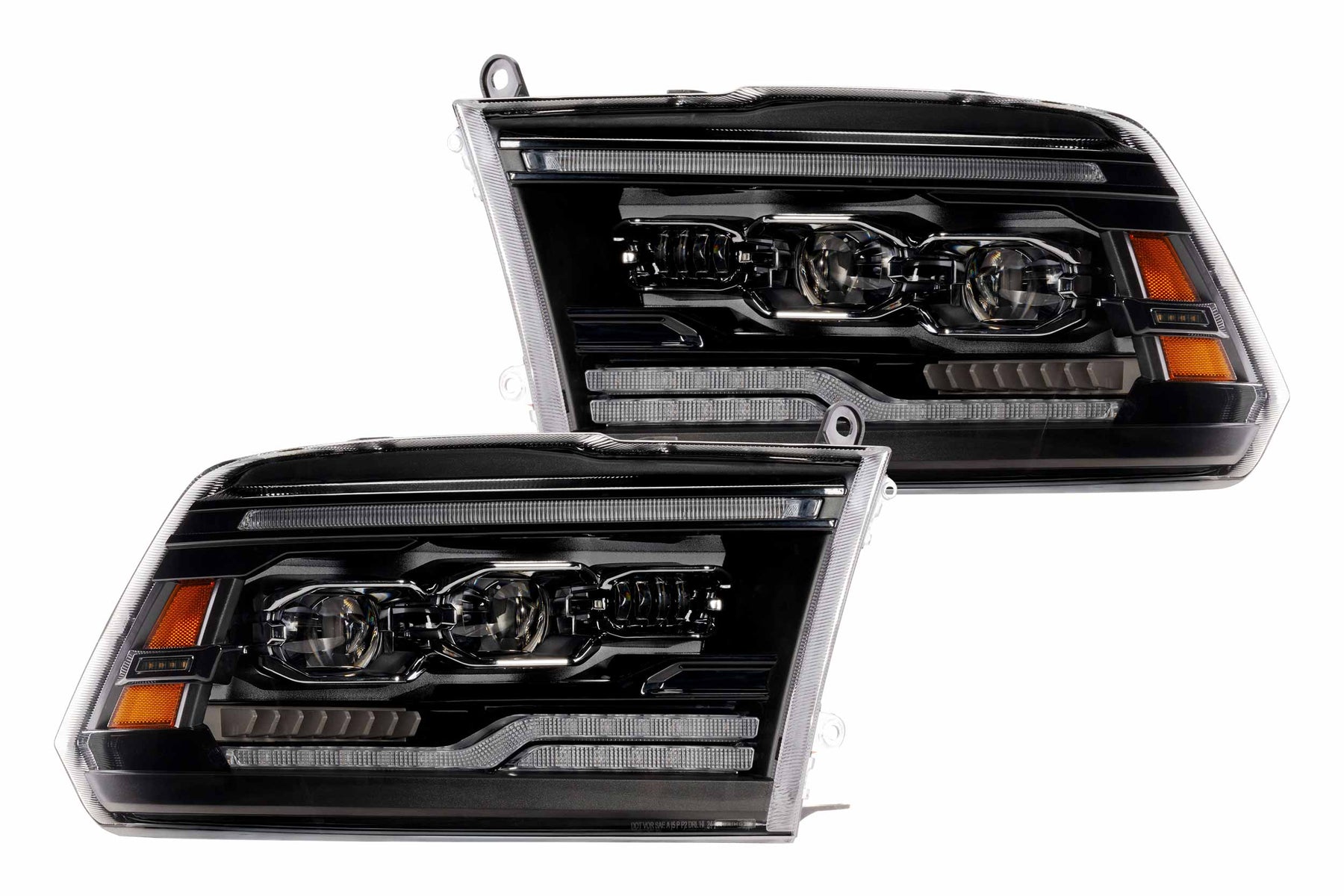

- One pair of headlights (1× driver / left, 1× passenger / right)
- 1× Mini fuse tap, 1× Micro fuse tap, 1× DRL harness
- 2× Magnet-mount resistors
- 2× OE reflector headlight harnesses, 2× OE projector headlight harnesses
- 8× (4 pairs) DRL / signal mode selectors
Fitment
Direct fit for the 2019–2024 Ram 1500 Classic (also fits 2009–2018 Ram 1500 and 2009–2018 Ram HD). Canadian trucks require the LF2-520HCA adapter harness — add it with the Canadian Adapters option. Replaces OEM part numbers 55277409AD/AE/AF, 55277410AD/AE/AF, 68001485AG, 68001484AG, 68096439AC.
Warranty
Backed by Morimoto's industry-leading five-year limited warranty, serviced and supported from Atlanta, GA. Document any install issues via photo/video before removing the lights.
Part #: LF2-520 · sold as a pair.
