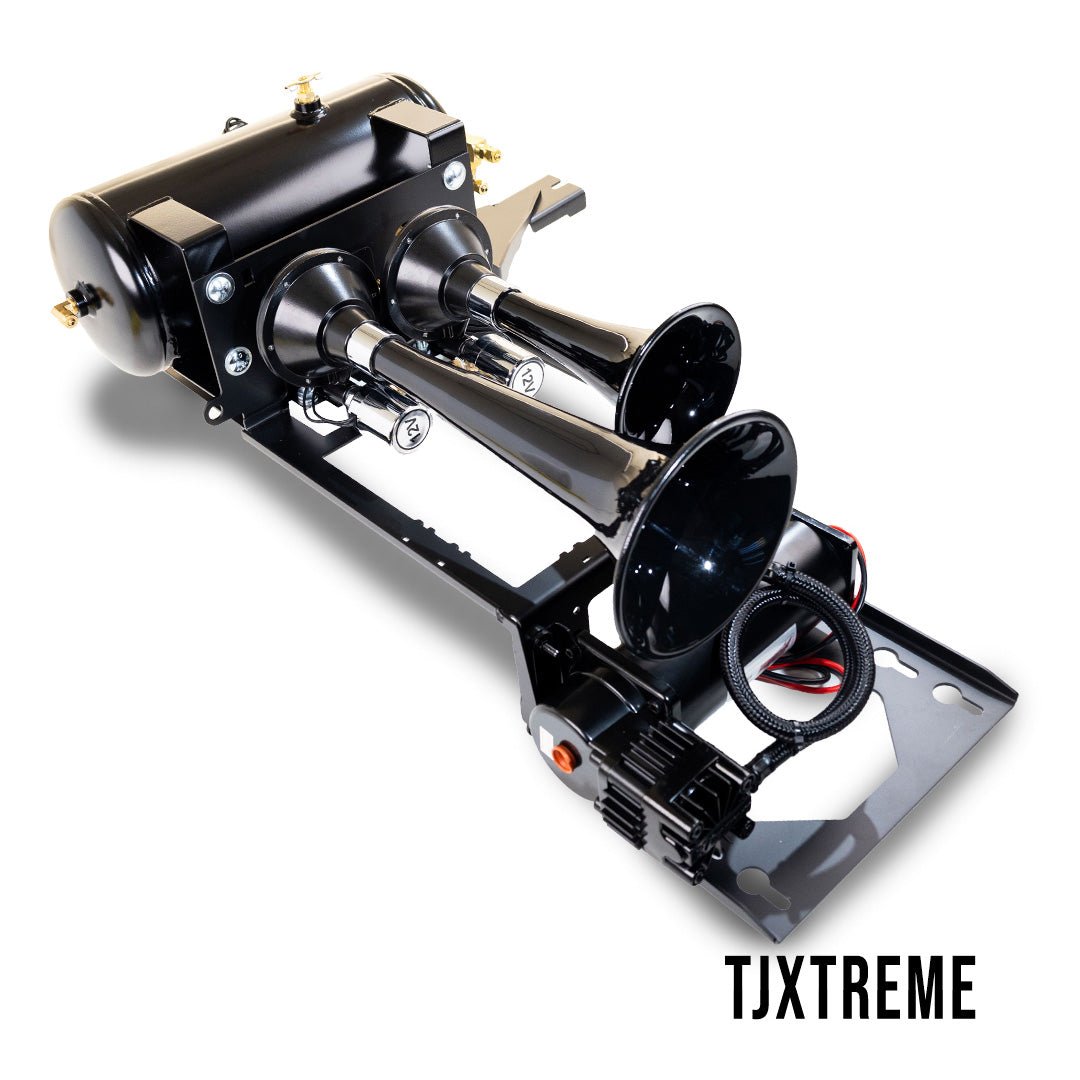

A complete Mini Beast 220 train horn and onboard air system engineered specifically for the 1997-2006 Jeep Wrangler TJ/LJ. Vehicle-specific brackets mean it bolts on with hand tools. Driven by the Model 6450RC compressor at 150 (200) PSI with a 1.5 gal tank.
Key Features

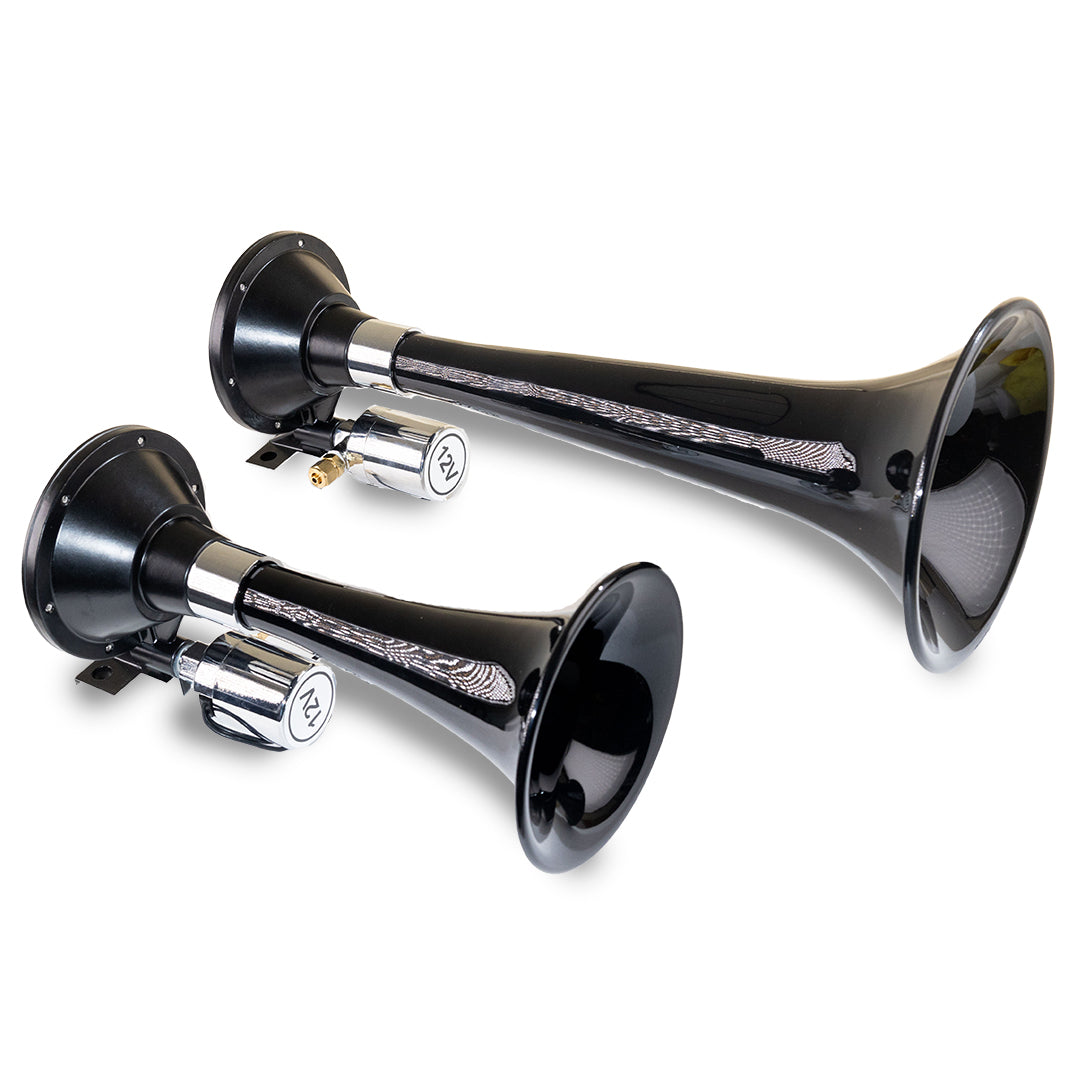

- Model 220 Horn

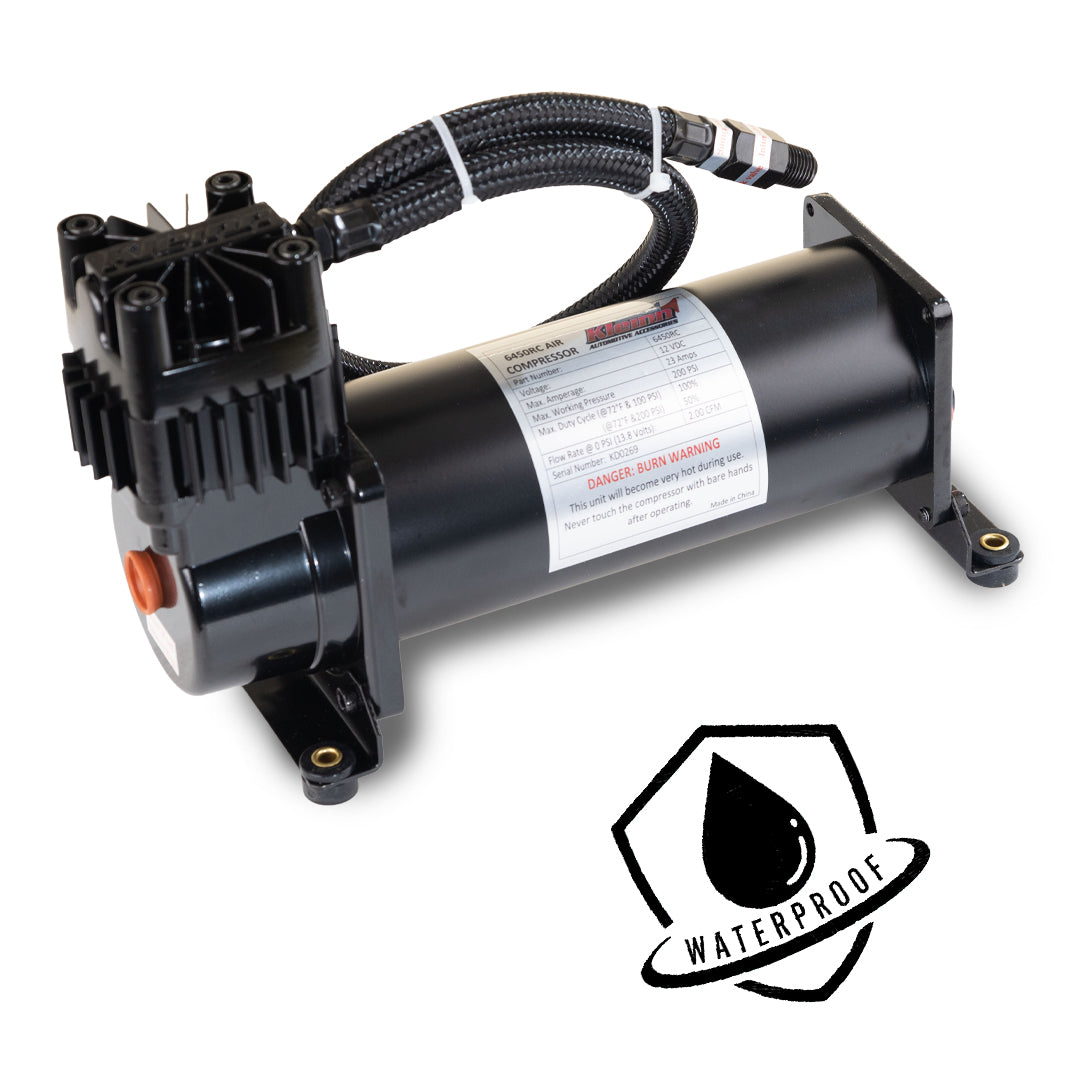

- Model 6450RC Air Compressor

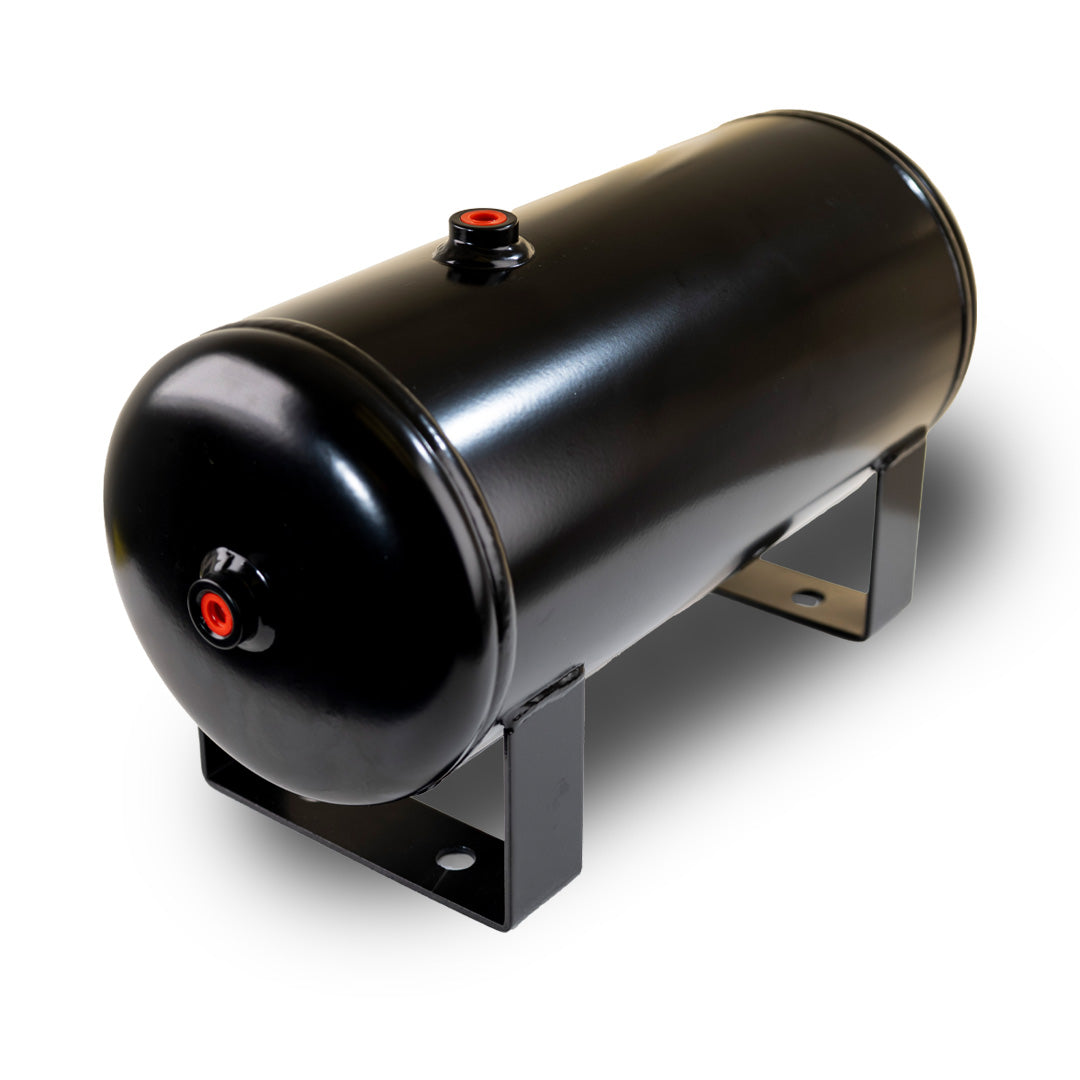

- Model 6275RT Air Tank
- 16.25", 11.5" Total Horn Lengths
- Air Compressor Max PSI: 150 (200)
- Air Tank Capacity: 1.5 gal
- Trumpet lengths: 2- 13 / 8 (3.5" Base)
- High Impact ABS Trumpet, Zinc Alloy Base
- 100% duty cycle compressor
Fits
1997-2006 Wrangler TJ / 2004-2006 Wrangler LJ (TJ Unlimited with longer wheelbase). Will not work with long-arm lift kits
Specifications
| Part Number |
TJXTREME |
| Horn Model |
220 |
| Compressor Model |
6450RC |
| Air Tank Model |
6275RT |
| Trumpet Lengths (in) |
2- 13 / 8 (3.5" Base) |
| Horn Construction |
High Impact ABS Trumpet, Zinc Alloy Base |
| Assembled Horn Dimensions (in) |
16.5 x 6.5 x 6.5 / 11.5 x 5 x 5 |
| Horn Solenoid |
307 |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 (200) |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
23 A |
| Air Tank Capacity |
1.5 gal |
| Air Tank Dimensions (in) |
15 x 6 x 8 |
| Color |
Black |
| Estimated Installation Time |
4-8 Hours |
| Mounting Location |
Horns, Tank, Compressor: Driver Side Undebody, In Front of Rear Axle |
| Shipping Weight |
48 lbs |
| Warranty |
12 Months |
| UPC |
819147012186 |
| Country of Origin |
China / Mexico |
Part Number: TJXTREME
