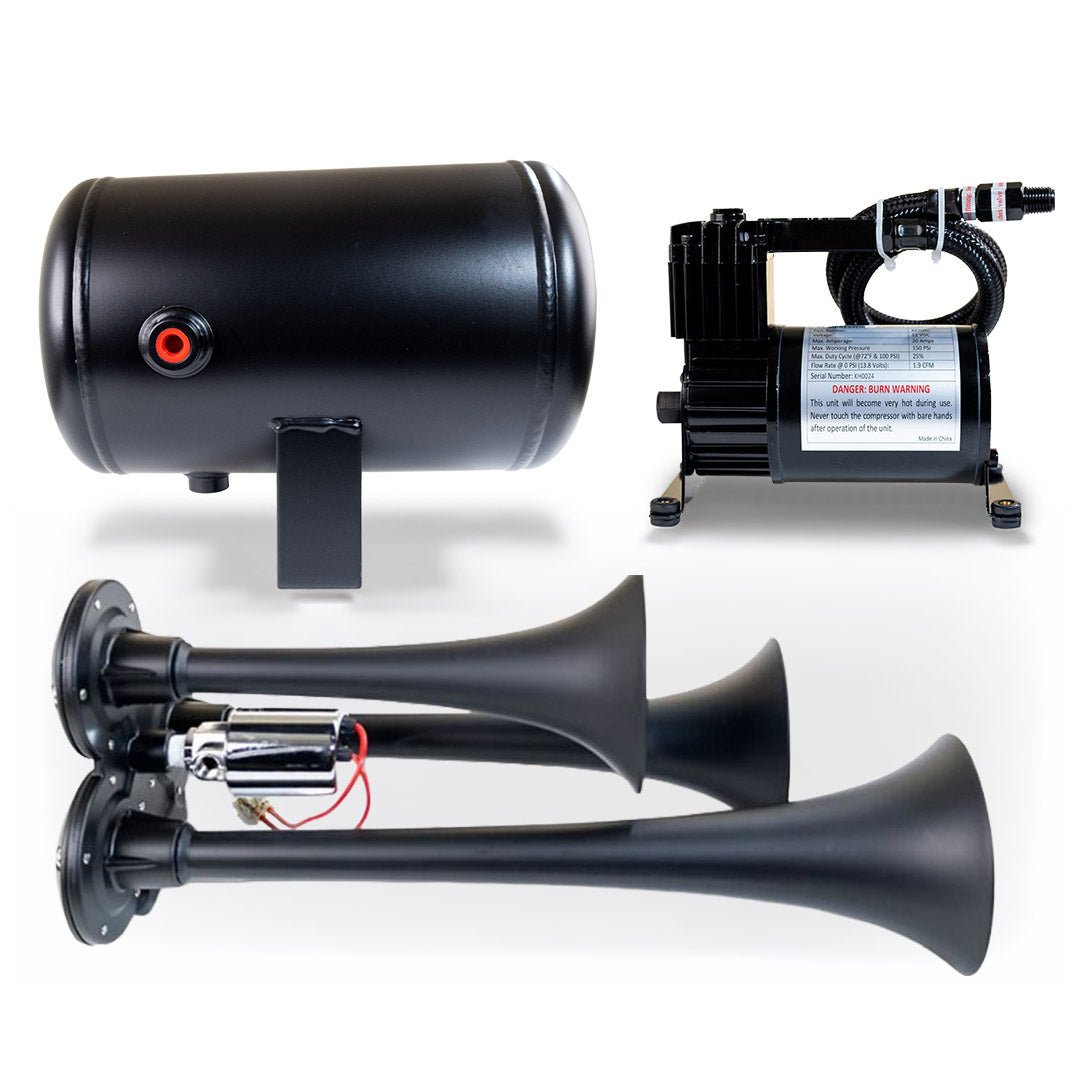

A complete air horn kit — Model 130-1 horn, Model 6270RC compressor, Model 6270RT air tank, and every fitting, wire and bracket needed to install it. Driven by the Model 6270RC compressor at 130 PSI with a 1 gal tank. Rated output 130 dB.
Key Features

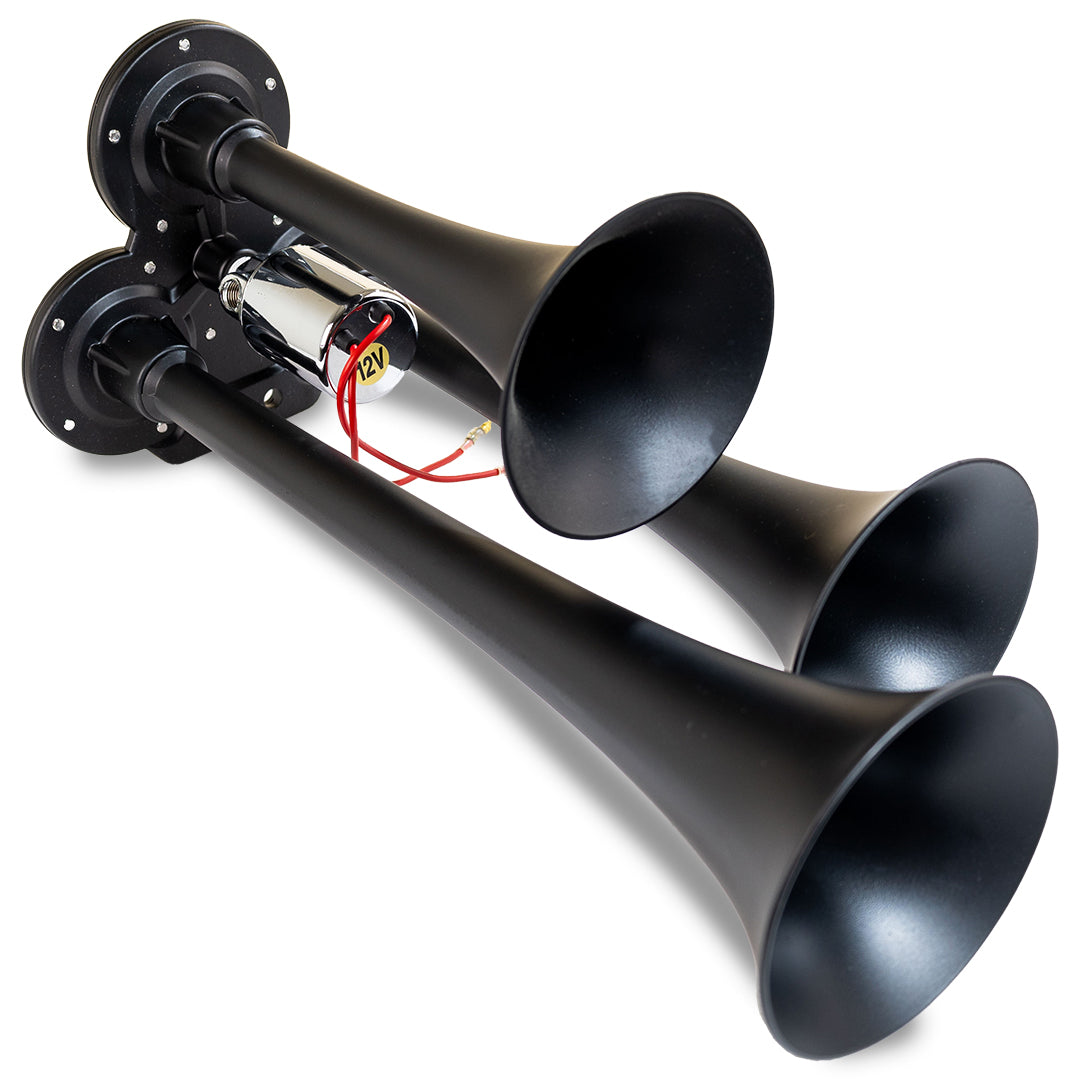

- Model 130-1 Horn

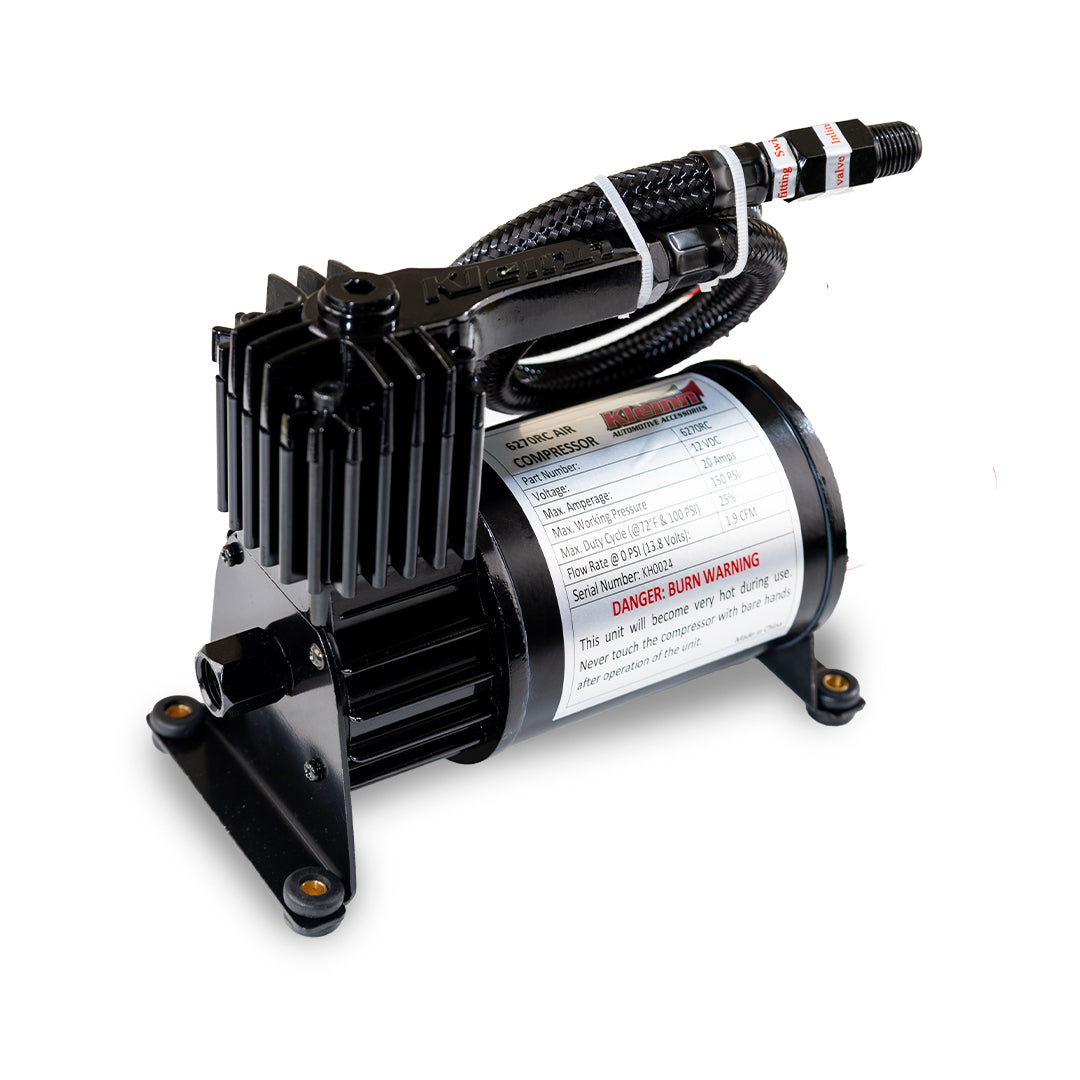

- Model 6270RC Air Compressor

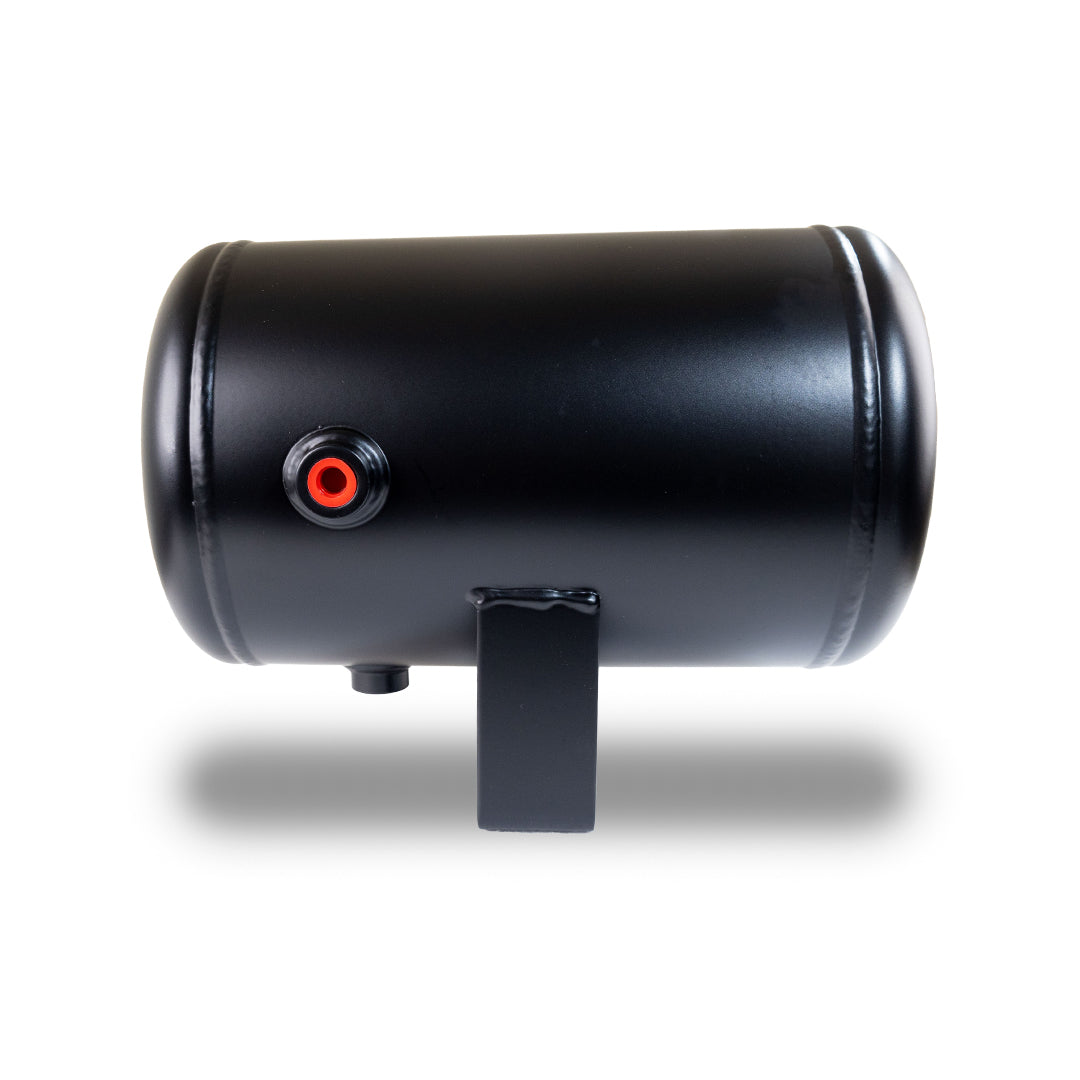

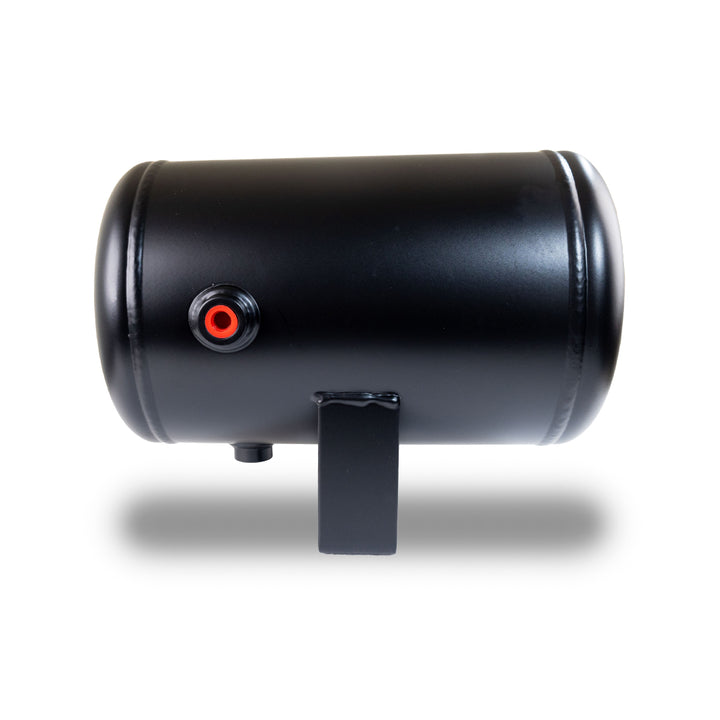

- Model 6270RT Air Tank
- Three Trumpets. 12.5", 10", 7.5"
- Air Compressor Max PSI: 130
- Air Tank Capacity: 1 gal
- Trumpet lengths: 3- 12.5 / 10 / 7.5
- XCR2.0 Coated Zinc Alloy
- All wiring, fittings, air line and mounting hardware included
Fits
Universal fitment.
Specifications
| Part Number |
HK3-1 |
| Horn Model |
130-1 |
| Compressor Model |
6270RC |
| Air Tank Model |
6270RT |
| Trumpet Lengths (in) |
3- 12.5 / 10 / 7.5 |
| Horn Construction |
XCR2.0 Coated Zinc Alloy |
| Assembled Horn Dimensions (in) |
14.25 x 6 x 6 |
| Horn Solenoid |
307 |
| Pressure Switch |
2131 |
| Compressor Max PSI |
130 |
| Compressor Duty Cycle |
25% |
| Compressor CFM |
1.38 |
| Compressor Waterproof |
No |
| Compressor Amp Draw |
20 A |
| Air Tank Capacity |
1 gal |
| Air Tank Dimensions (in) |
11 x 6 x 8 |
| Color |
Black |
| Mounting Location |
Universal |
| Shipping Weight |
22 lbs |
| Warranty |
12 Months |
| UPC |
819147010144 |
| Country of Origin |
China / Mexico |
Part Number: HK3-1
