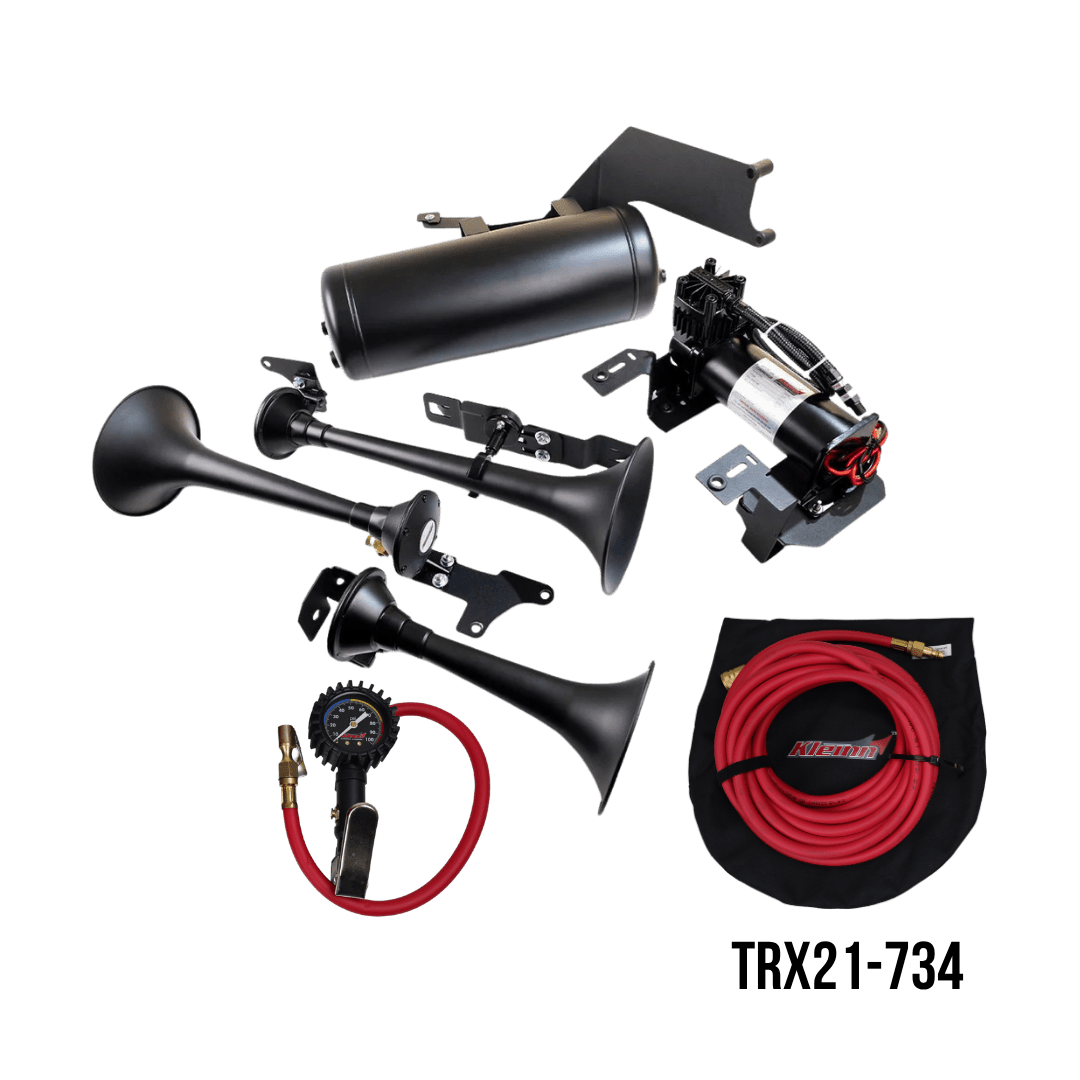

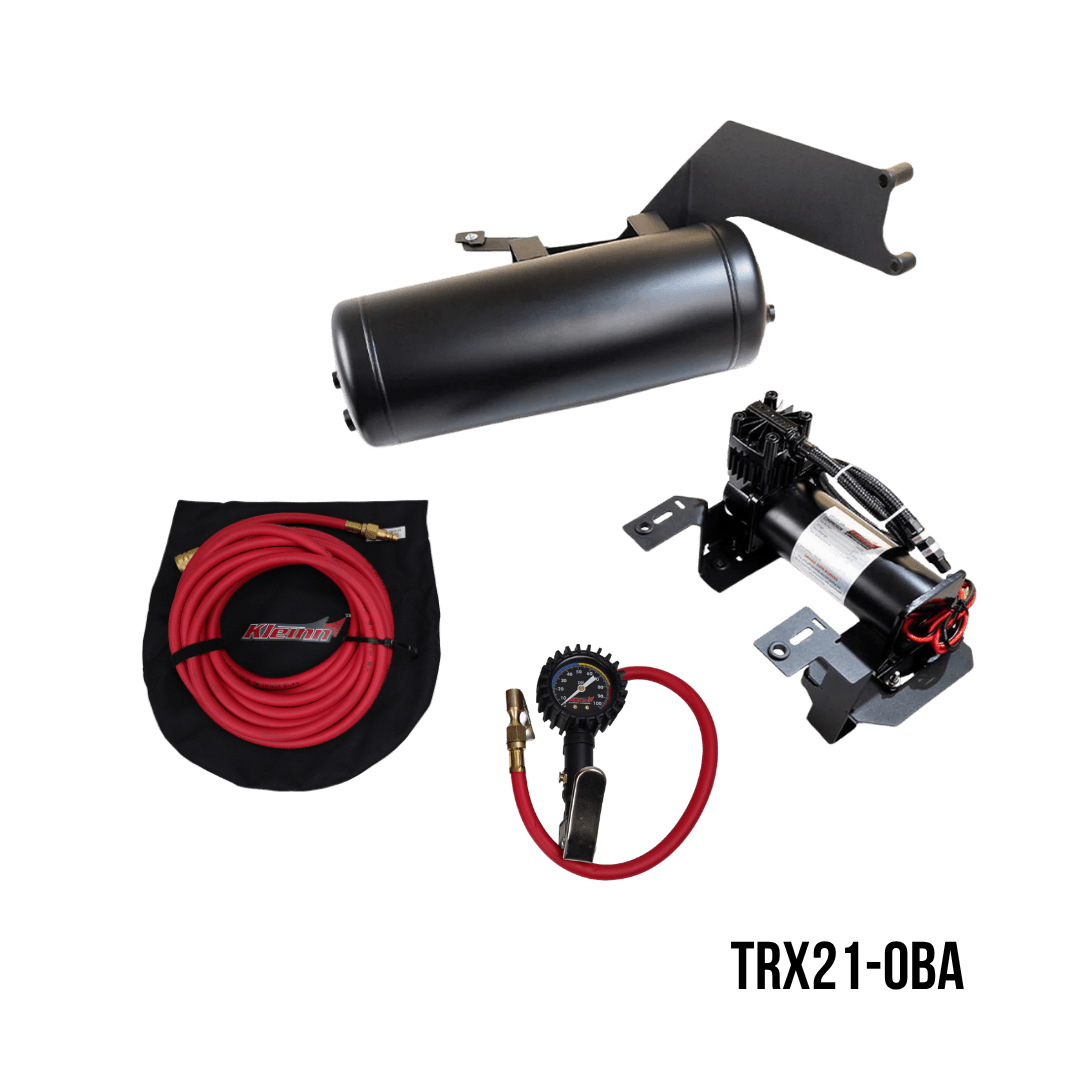

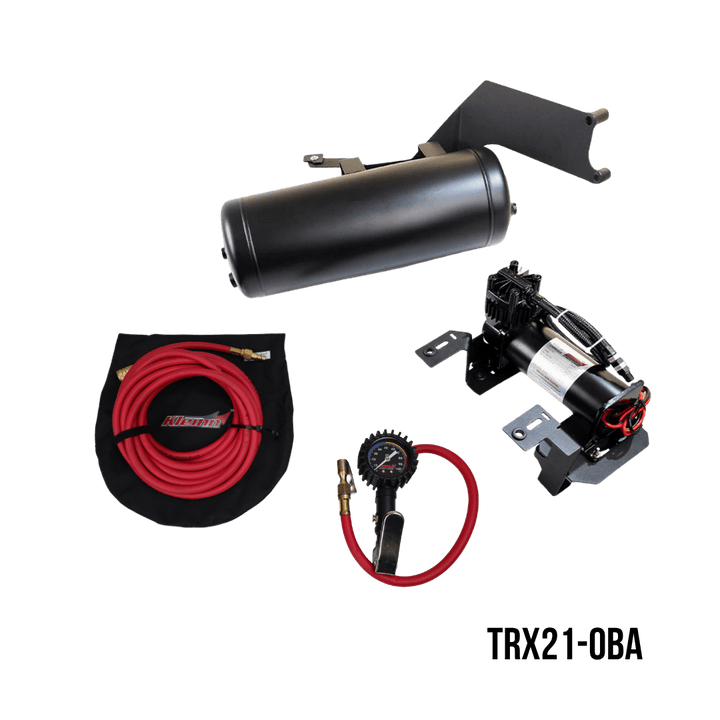

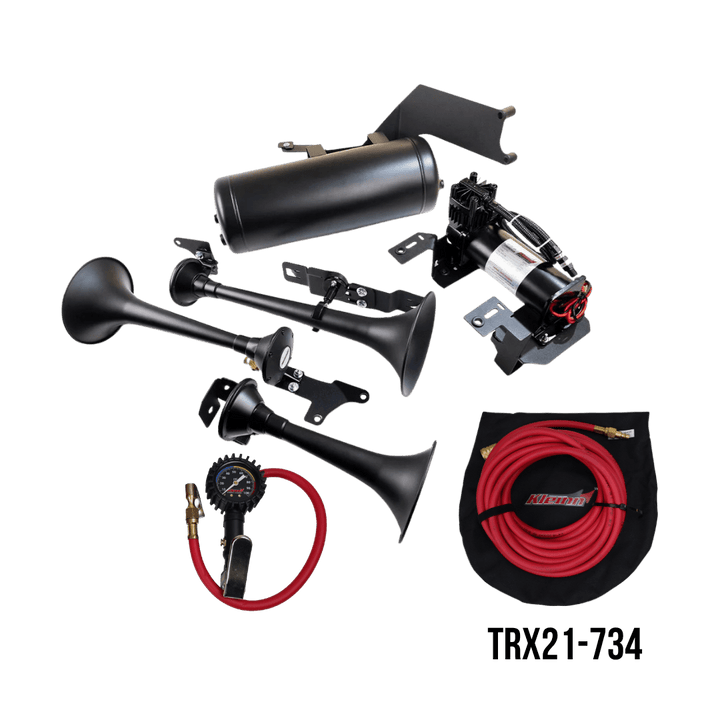

A direct-fit onboard air system for the 2021-2024 RAM 1500 TRX ā tire inflation, air lockers and air suspension from a 150 (200) PSI waterproof compressor.
Key Features
- Model 6450RC Air Compressor
- Model 6355RT Air Tank
- Air Compressor Max PSI: 150 (200)
- Air Tank Capacity: 3.3 gal
- 100% duty cycle compressor
- Waterproof sealed compressor
- 12 Months manufacturer warranty
Fits
2021-2024 1500 RAM TRX (Excludes Trucks with OEM Power Steps, Quad Cab)
Specifications
| Part Number |
TRX21-OBA |
| Compressor Model |
6450RC |
| Air Tank Model |
6355RT |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 (200) |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2.11 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
23 A |
| Air Tank Capacity |
3.3 gal |
| Air Tank Dimensions (in) |
21 x 7 x 8.75 |
| Color |
Black |
| Estimated Installation Time |
8-12 Hours |
| Mounting Location |
Tank: Below front skid plate Compressor: In Engine bay passenger side |
| Shipping Weight |
43 lbs |
| Warranty |
12 Months |
| UPC |
819147013190 |
| Country of Origin |
China/Mexico |
Video
Watch the TRX21-OBA in action
Part Number: TRX21-OBA
