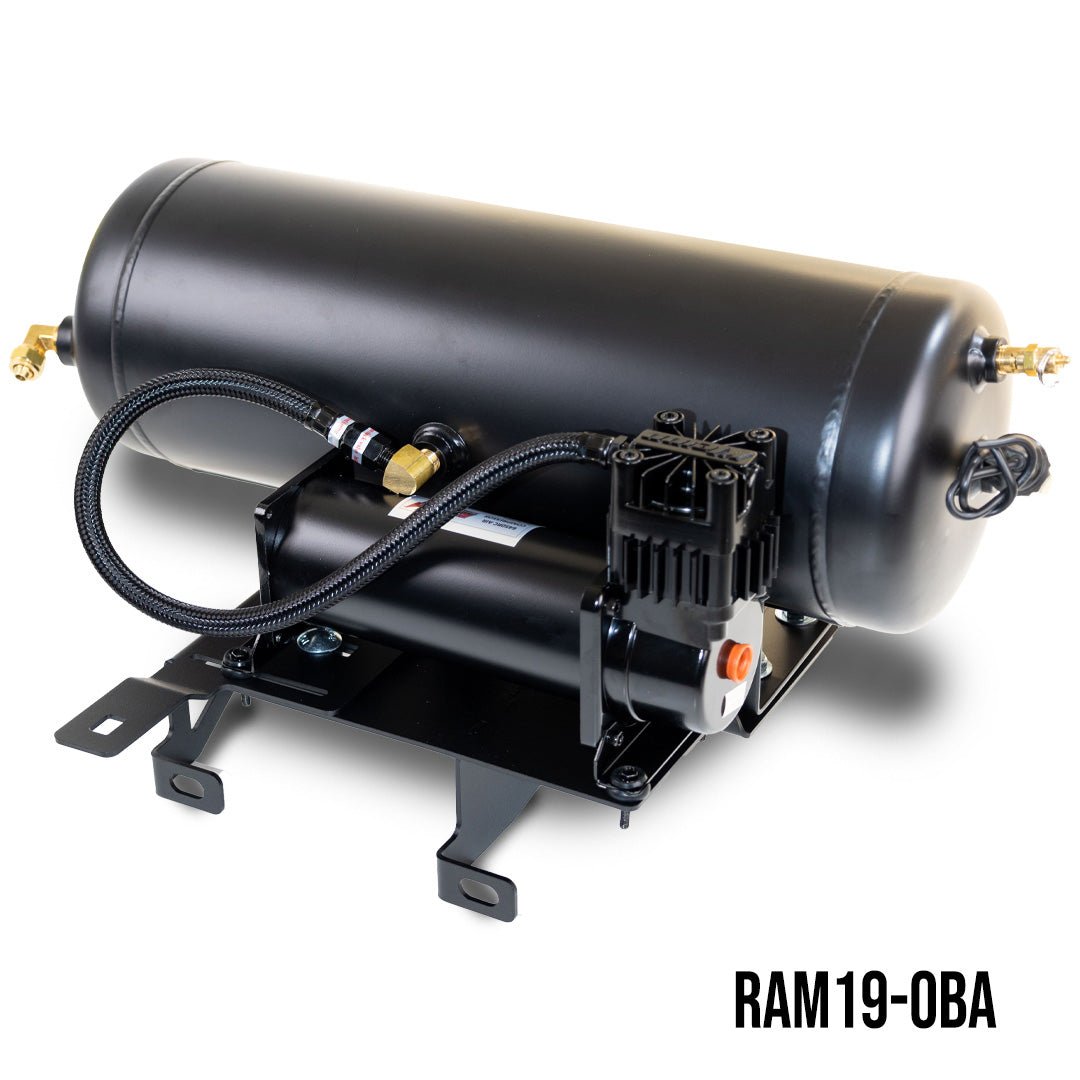

A direct-fit onboard air system for the 2019-2024 RAM 1500 ā tire inflation, air lockers and air suspension from a 150 (200) PSI waterproof compressor.
Key Features
- Model 6450RC Air Compressor
- Model 6355RT Air Tank
- Air Compressor Max PSI: 150 (200)
- Air Tank Capacity: 3.3 gal
- 100% duty cycle compressor
- Waterproof sealed compressor
- 12 Months manufacturer warranty
Fits
2019-2024 RAM 1500 (Excludes 2019+ RAM 1500 CLASSIC)
Specifications
| Part Number |
RAM19-OBA |
| Compressor Model |
6450RC |
| Air Tank Model |
6355RT |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 (200) |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2.11 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
23 A |
| Air Tank Capacity |
3.3 gal |
| Air Tank Dimensions (in) |
21 x 7 x 8.75 |
| Color |
Black |
| Estimated Installation Time |
5-9 Hours |
| Mounting Location |
Tank and Compressor: Attached to & In-front of crossmember |
| Shipping Weight |
38 lbs |
| Warranty |
12 Months |
| UPC |
819147013114 |
| Country of Origin |
China/Mexico |
Part Number: RAM19-OBA
ā WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
