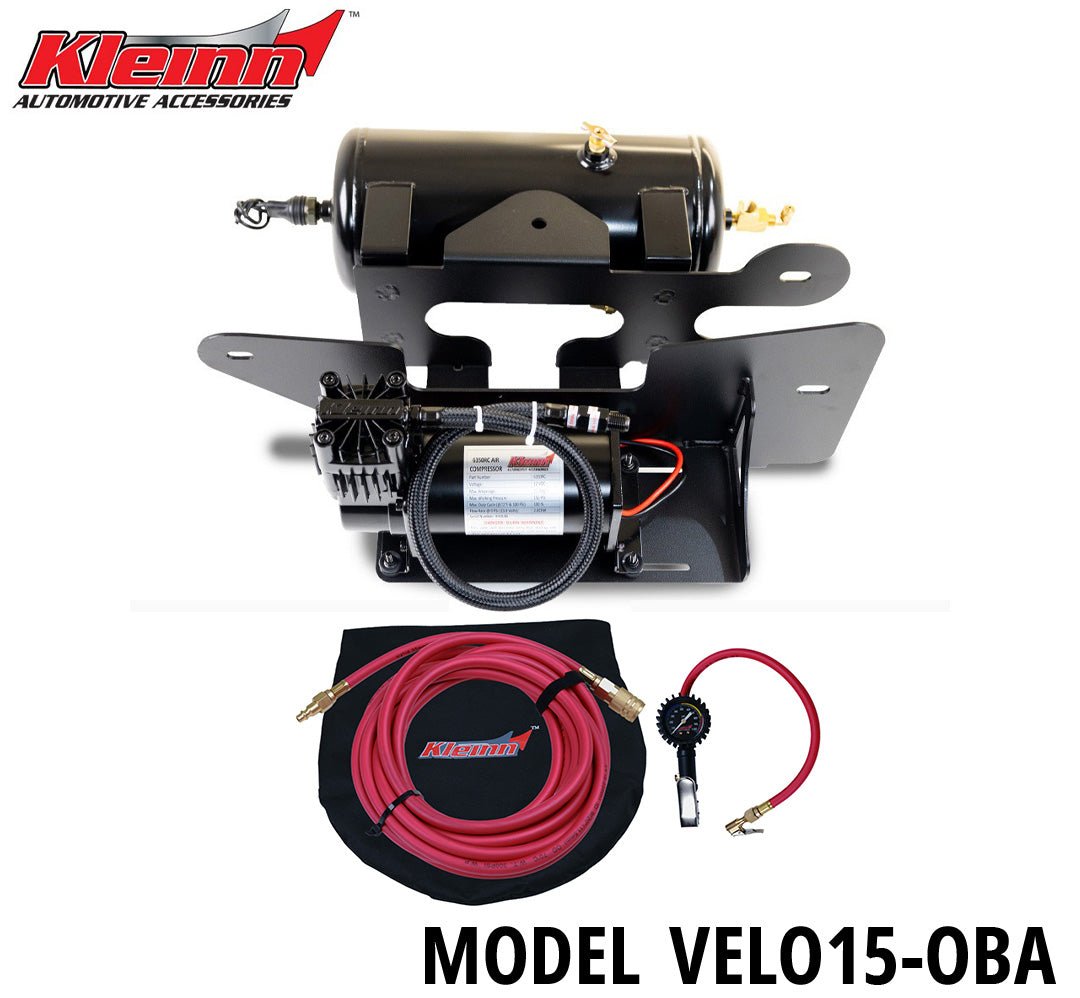

A direct-fit onboard air system for the 2015-2020 Ford F-150 — tire inflation, air lockers and air suspension from a 150 PSI waterproof compressor.
Key Features
- Model 6350RC Air Compressor
- Model 6275RT Air Tank
- Air Compressor Max PSI: 150
- Air Tank Capacity: 1.5 gal
- 100% duty cycle compressor
- Waterproof sealed compressor
- 12 Months manufacturer warranty
Fits
2015-2020 F-150 (Except Raptor and Single Cab)
Specifications
| Part Number |
VELO15-OBA |
| Compressor Model |
6350RC |
| Air Tank Model |
6275RT |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2.11 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
21 A |
| Air Tank Capacity |
1.5 gal |
| Air Tank Dimensions (in) |
15 x 6 x 8 |
| Color |
Black |
| Estimated Installation Time |
4-8 Hours |
| Mounting Location |
Tank: Passenger Side Inside Frame Rail. Compressor: Passenger Side Outside Frame Rail |
| Shipping Weight |
40 lbs |
| Warranty |
12 Months |
| UPC |
819147011417 |
| Country of Origin |
China / Mexico |
Video
Watch the VELO15-OBA in action
Part Number: VELO15-OBA
