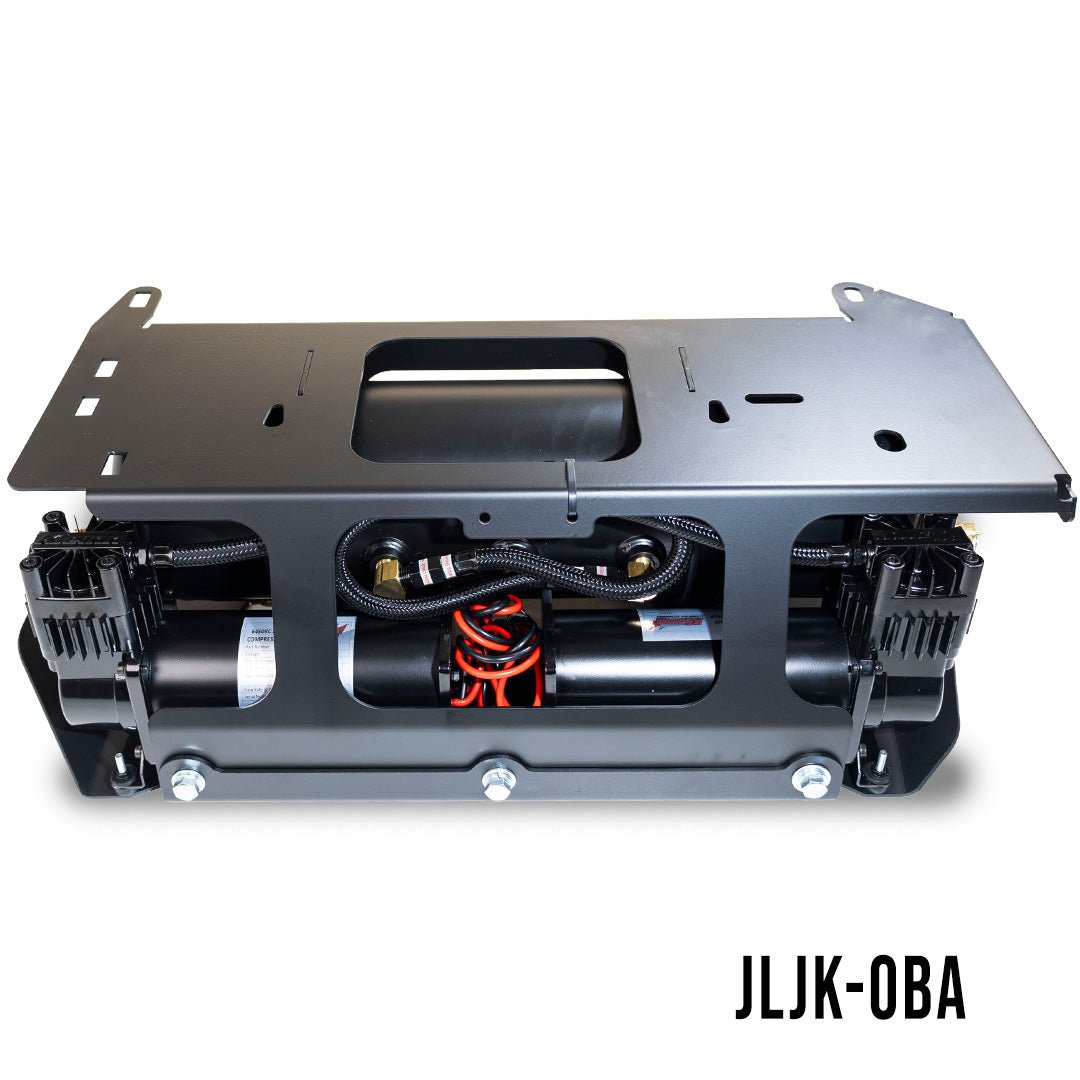

A direct-fit onboard air system for the 2007-2026 Jeep Wrangler JK & JL ā tire inflation, air lockers and air suspension from a 150 (200) PSI waterproof compressor.
Key Features
- Model 6450RC Air Compressor
- Model 6353RT Air Tank
- Air Compressor Max PSI: 150 (200)
- Air Tank Capacity: 2.6 gal
- 100% duty cycle compressor
- Waterproof sealed compressor
- 12 Months manufacturer warranty
Fits
2007-2026 Wrangler JKU & JLU 4dr Only (Excludes Diesel, 392, Hybrid, & JLU with bottom skid plate, )
Specifications
| Part Number |
JL-JK-OBA |
| Compressor Model |
6450RC |
| Air Tank Model |
6353RT |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 (200) |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2.11 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
23 A |
| Air Tank Capacity |
2.6 gal |
| Air Tank Dimensions (in) |
22 x 6 x 6.5 |
| Color |
Black |
| Estimated Installation Time |
3-5 Hours |
| Mounting Location |
Tank and Compressor: Mid Jeep Between Drive Shaft and Exhaust |
| Shipping Weight |
65 lbs |
| Warranty |
12 Months |
| UPC |
819147011738 |
| Country of Origin |
China / Mexico |
Video
Watch the JL-JK-OBA in action
Part Number: JL-JK-OBA
