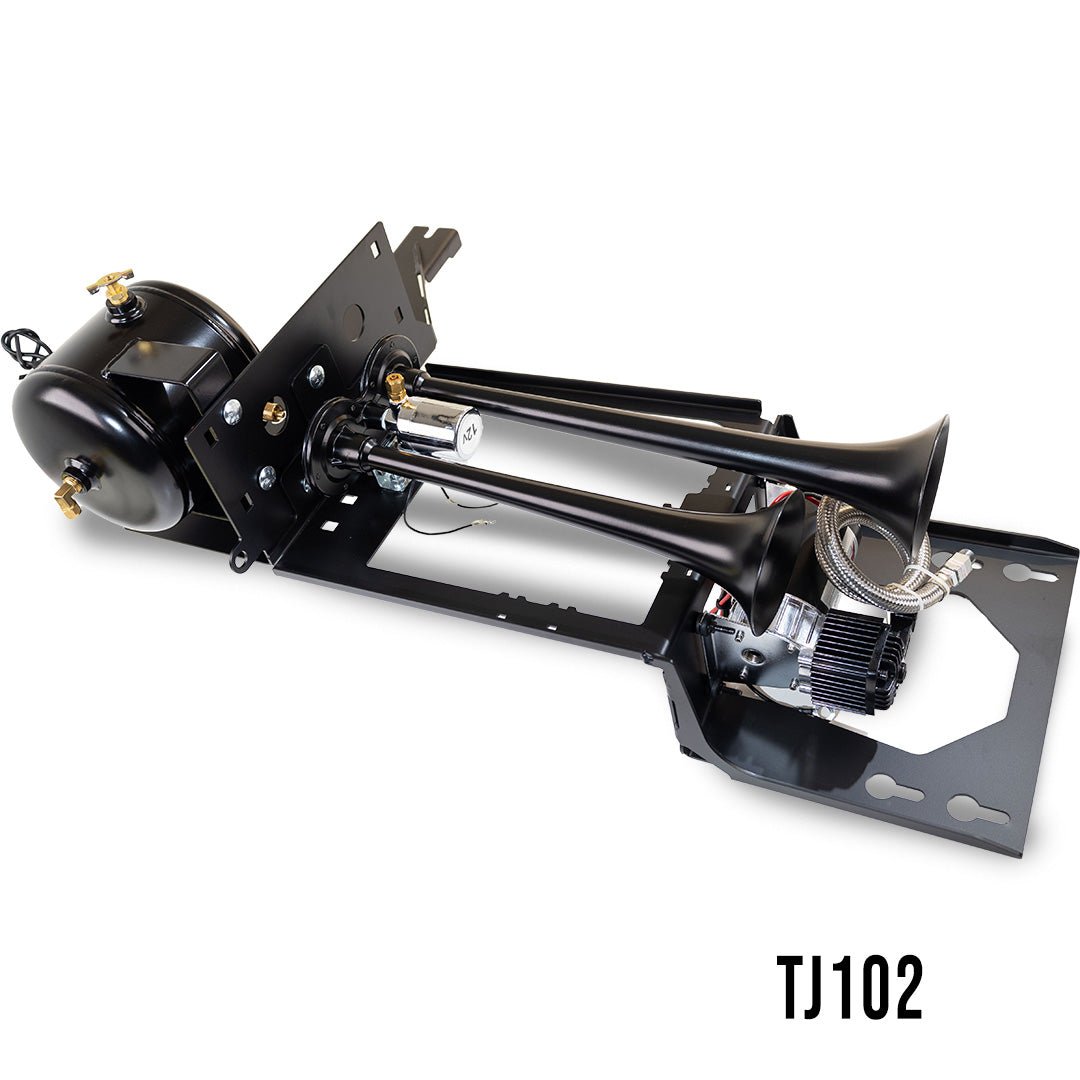

A complete Model 102-1 air horn and onboard air system engineered specifically for the 1997-2006 Jeep Wrangler TJ/LJ. Vehicle-specific brackets mean it bolts on with hand tools. Driven by the Model 6270RC compressor at 120 PSI with a 0.5 gal tank. Rated output 130 dB.
Key Features

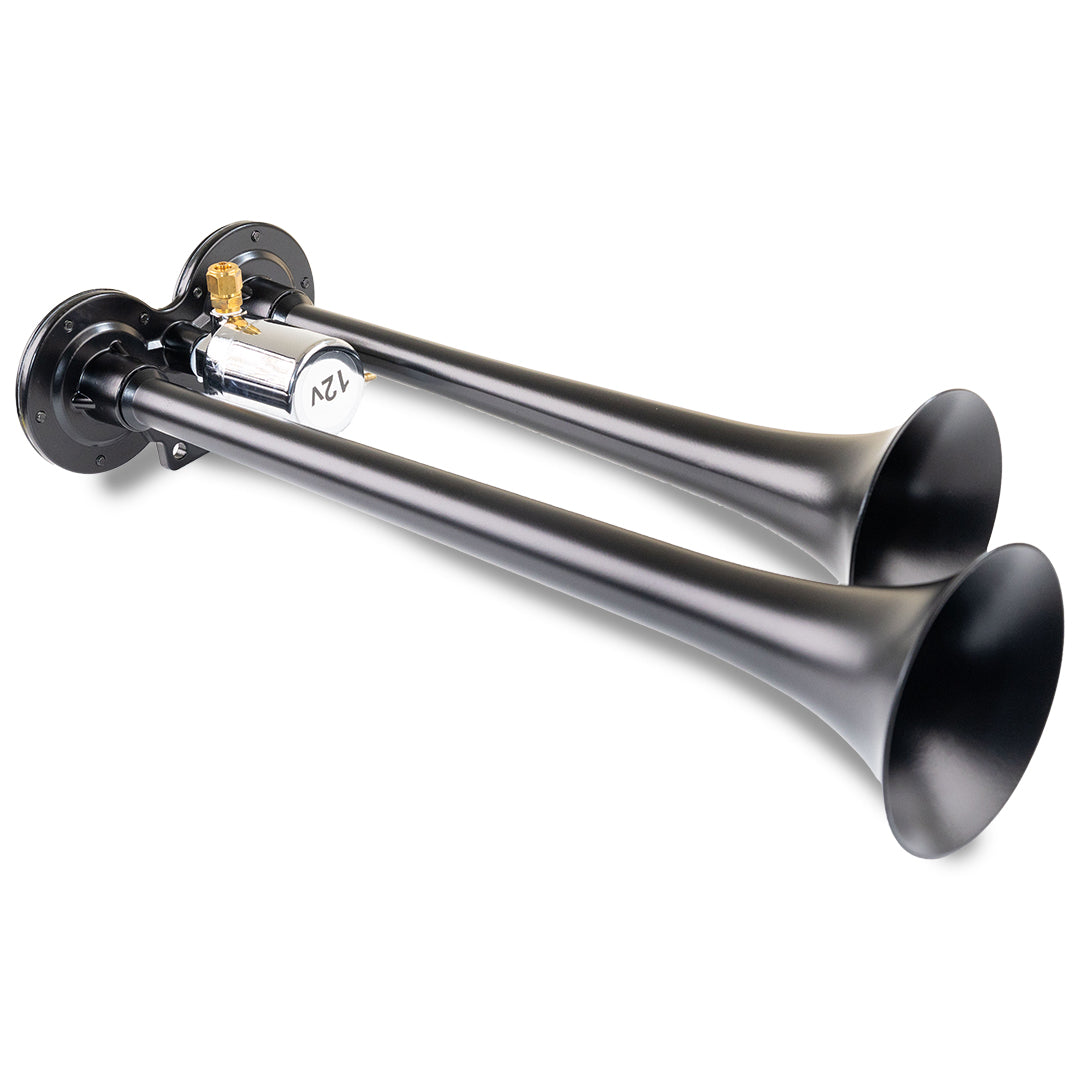

- Model 102-1 Horn

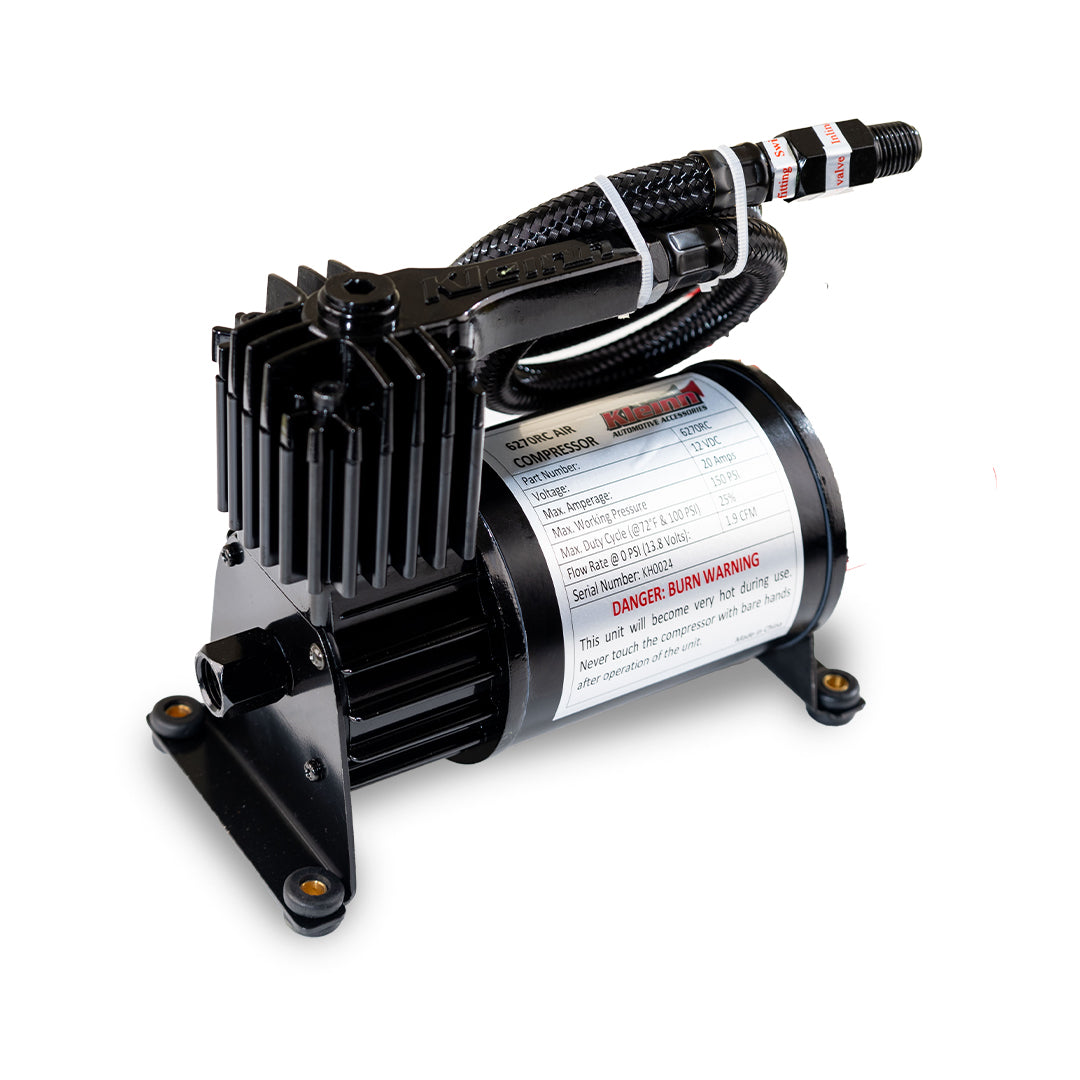

- Model 6270RC Air Compressor

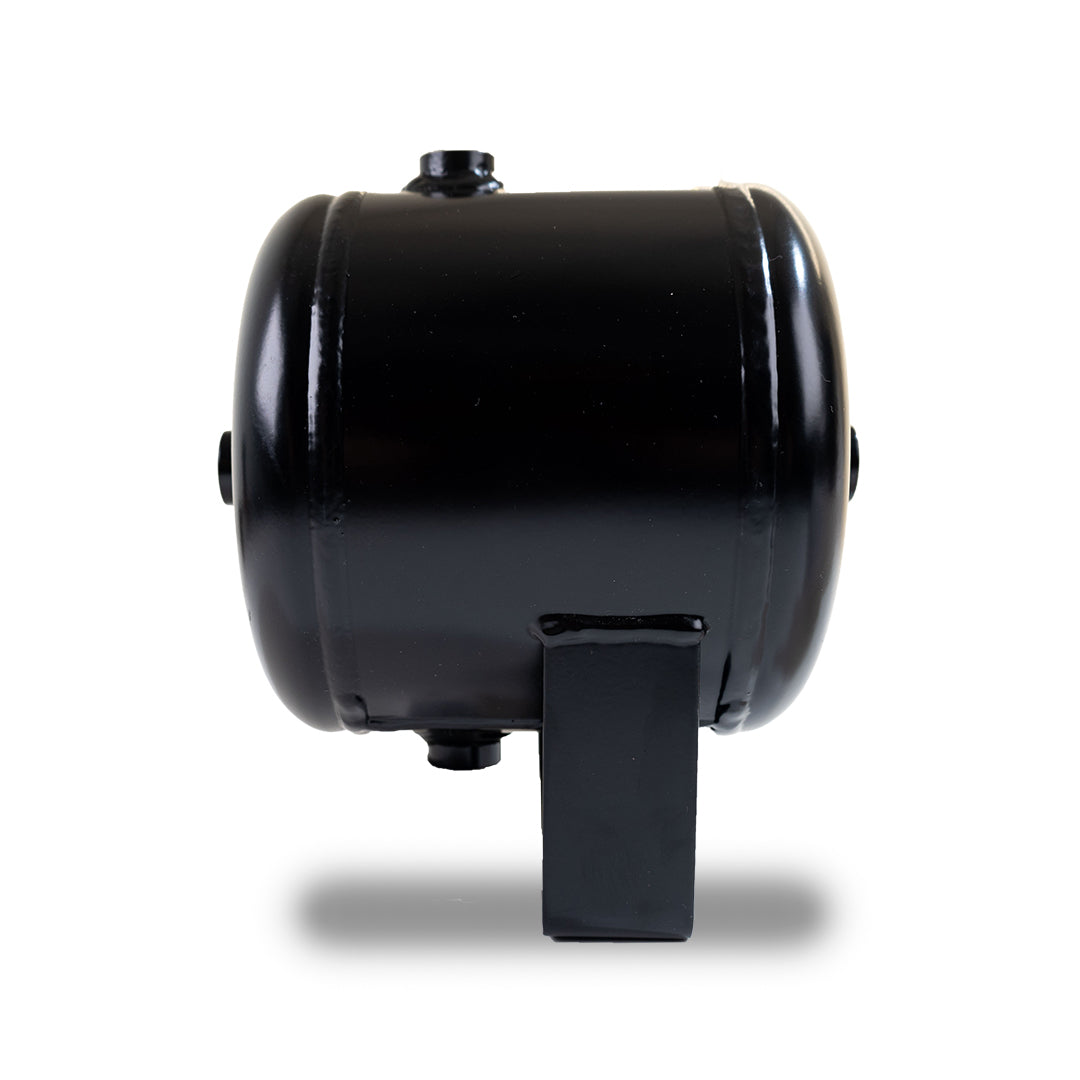

- Model 6260RT Air Tank
- 16.5", 13.75" Total Horn Lengths
- Air Compressor Max PSI: 130
- Air Tank Capacity: 0.5 gal
- Trumpet lengths: 2- 15 / 12.25
- XCR2.0 Coated Zinc Alloy
- All wiring, fittings, air line and mounting hardware included
Fits
1997-2006 Wrangler TJ / 2004-2006 Wrangler LJ (TJ Unlimited with longer wheelbase). Will not work with long-arm lift kits
Specifications
| Part Number |
TJ102 |
| Horn Model |
102-1 |
| Compressor Model |
6270RC |
| Air Tank Model |
6260RT |
| Trumpet Lengths (in) |
2- 15 / 12.25 |
| Horn Construction |
XCR2.0 Coated Zinc Alloy |
| Assembled Horn Dimensions (in) |
16.5 x 7.25 x 3.75 |
| Horn Solenoid |
307 |
| Pressure Switch |
2121 |
| Compressor Max PSI |
120 |
| Compressor Duty Cycle |
25% |
| Compressor CFM |
1.38 |
| Compressor Waterproof |
No |
| Compressor Amp Draw |
20 A |
| Air Tank Capacity |
0.5 gal |
| Air Tank Dimensions (in) |
8 x 6 x 8 |
| Color |
Black |
| Estimated Installation Time |
4-8 Hours |
| Mounting Location |
Horns, Tank, Compressor: Driver Side Undebody, In Front of Rear Axle |
| Shipping Weight |
31 lbs |
| Warranty |
12 Months |
| UPC |
819147012193 |
| Country of Origin |
China / Mexico |
Part Number: TJ102
