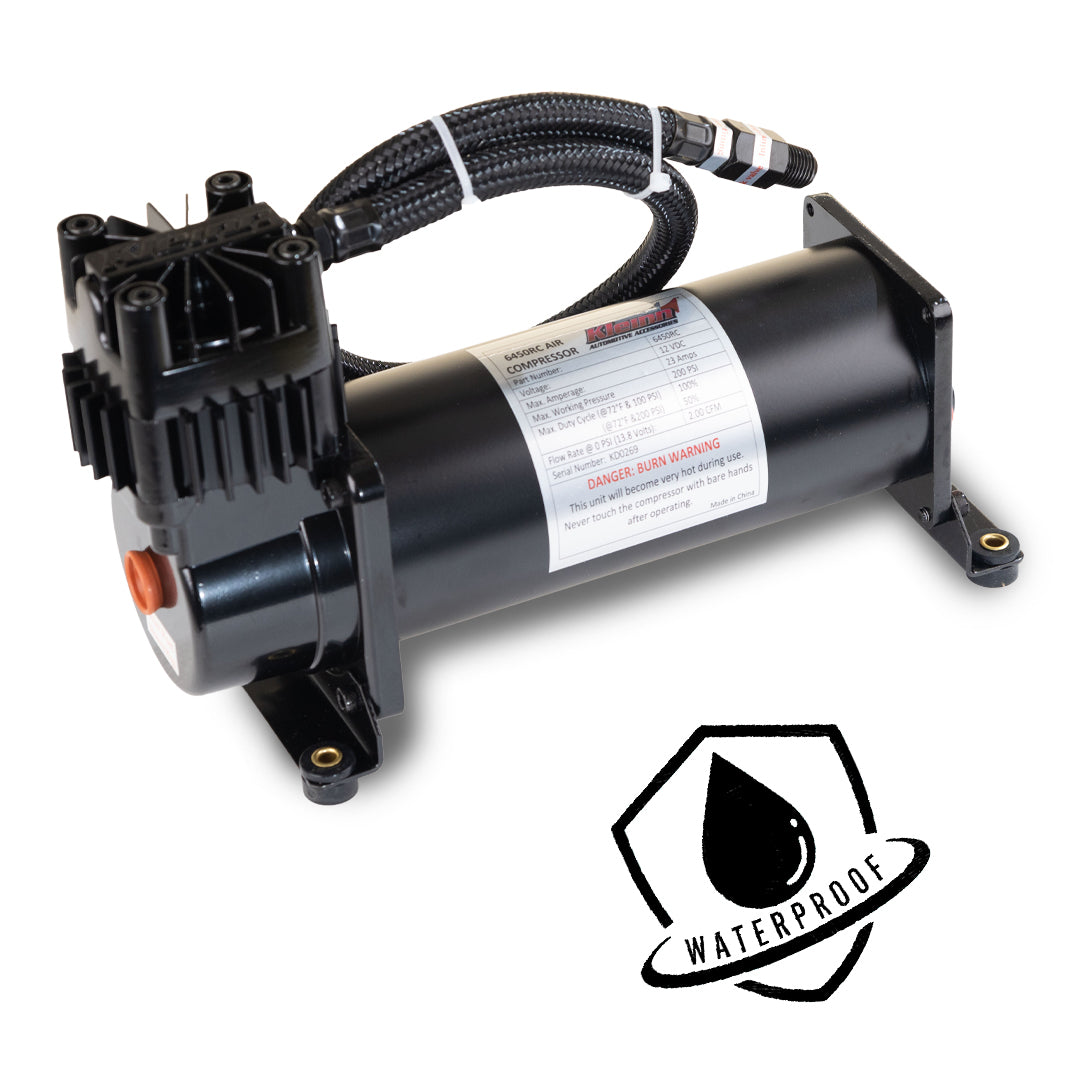

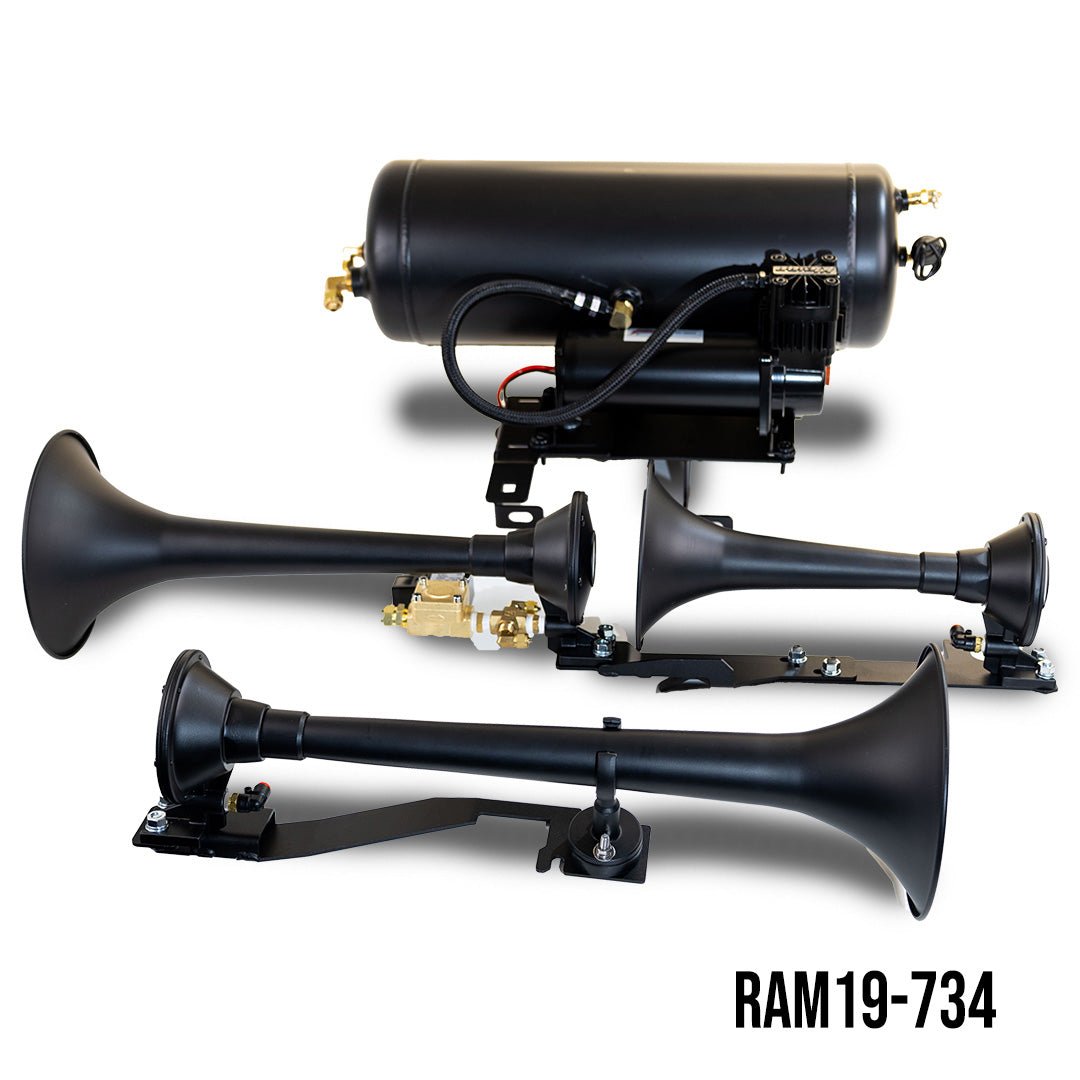

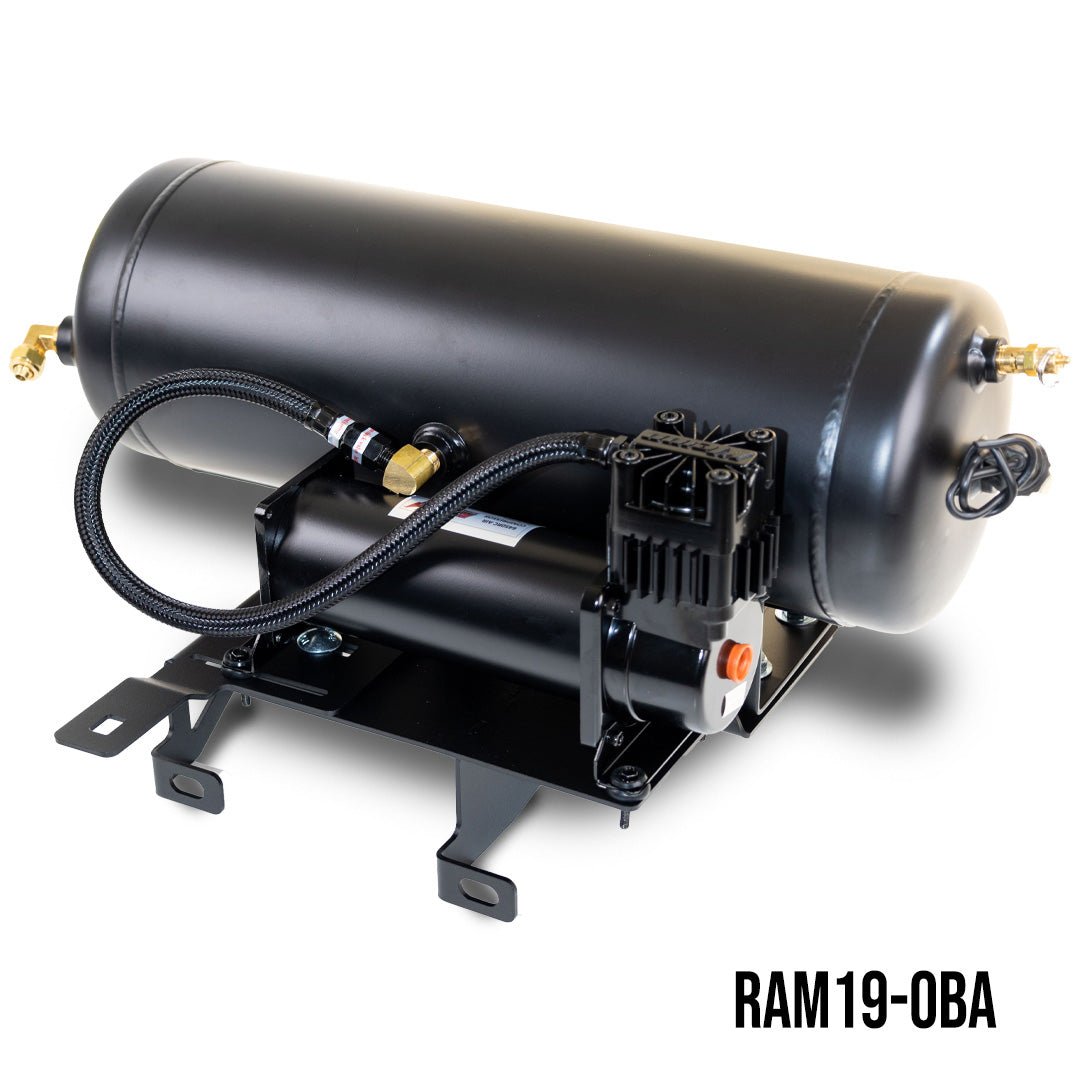

A complete Demon 730 train horn and onboard air system engineered specifically for the 2019-2024 RAM 1500. Vehicle-specific brackets mean it bolts on with hand tools. Driven by the Model 6450RC compressor at 150 (200) PSI with a 3.3 gal tank.
Key Features

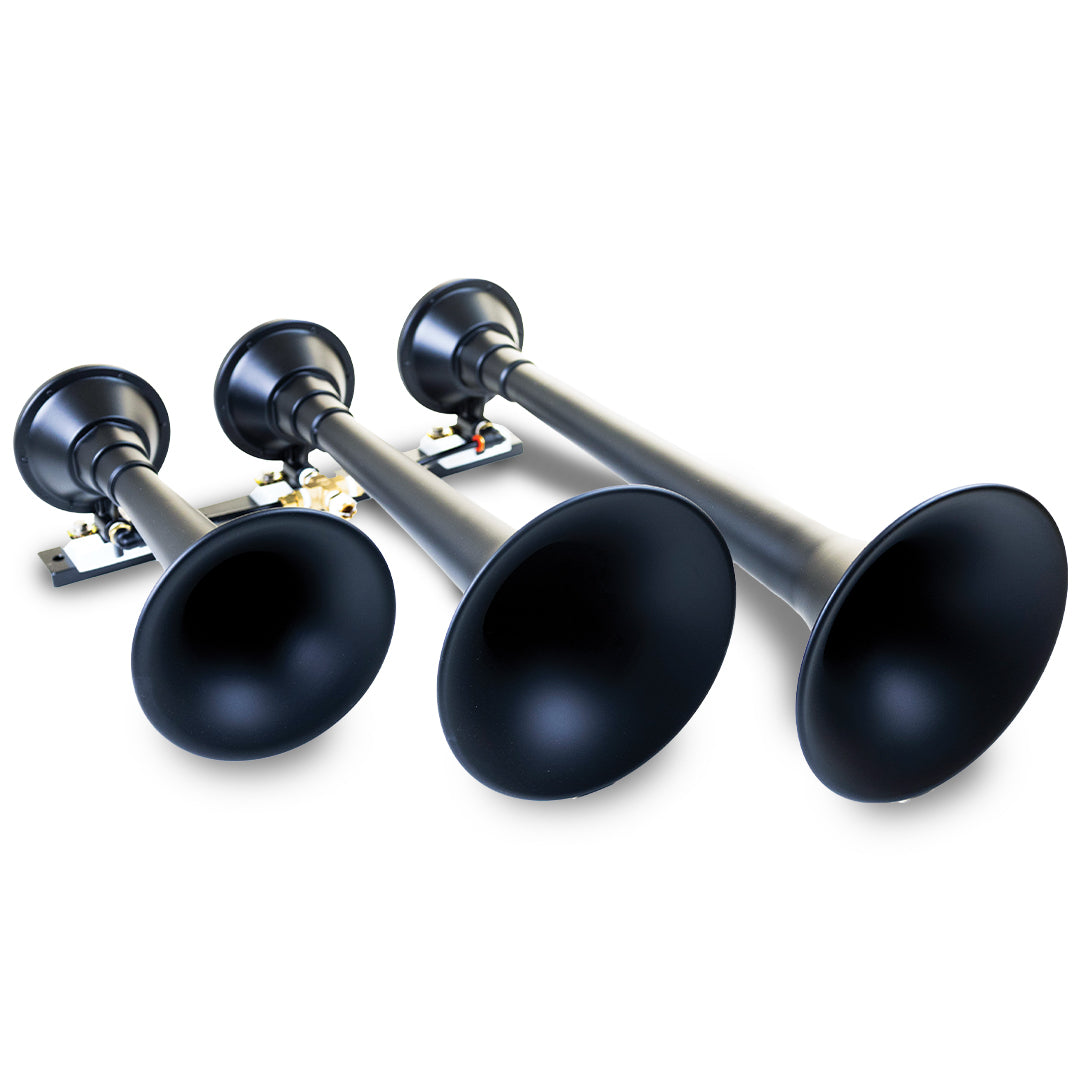

- Model 730 Horn

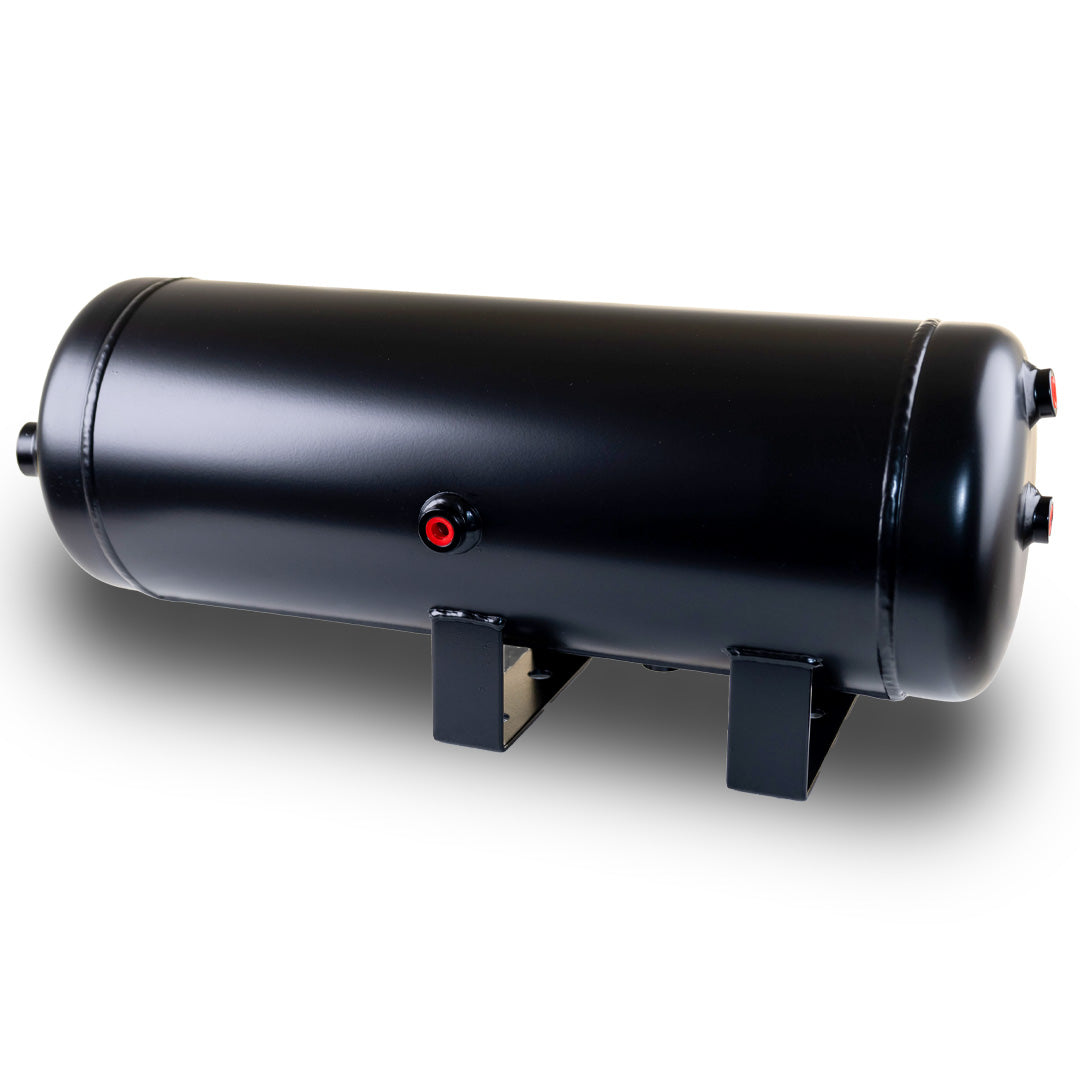

- Model 6355RT Air Tank
- Air Compressor Max PSI: 150 (200)
- Three Trumpets. 18.25", 14.25", 11"
- Air Tank Capacity: 3.3 gal
- Trumpet lengths: 3- 18.25 / 14.25 / 11 (3.5" Base)
- XCR2.0 Coated Spun Steel, Zinc Alloy Base
- 100% duty cycle compressor
- Waterproof sealed compressor
Fits
2019-2024 RAM 1500 ((Excludes Quad Cab, OEM Power Steps, Running boards that use 3+ mounts would require removal of 1 mount)
Specifications
| Part Number |
RAM19-734 |
| Horn Model |
730 |
| Compressor Model |
6450RC |
| Air Tank Model |
6355RT |
| Trumpet Lengths (in) |
3- 18.25 / 14.25 / 11 (3.5" Base) |
| Horn Construction |
XCR2.0 Coated Spun Steel, Zinc Alloy Base |
| Assembled Horn Dimensions (in) |
21.75 x 18.25 x 7.5 |
| Horn Solenoid |
VX6003 |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 (200) |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2.11 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
23 A |
| Air Tank Capacity |
3.3 gal |
| Air Tank Dimensions (in) |
21 x 7 x 8.75 |
| Color |
Black |
| Estimated Installation Time |
8-12 Hours |
| Mounting Location |
Tank and Compressor: Attached to & In-front of crossmember, Horns: Along the driver side frame rail |
| Shipping Weight |
62 lbs |
| Warranty |
12 Months |
| UPC |
819147013138 |
| Country of Origin |
China/Mexico |
Part Number: RAM19-734
