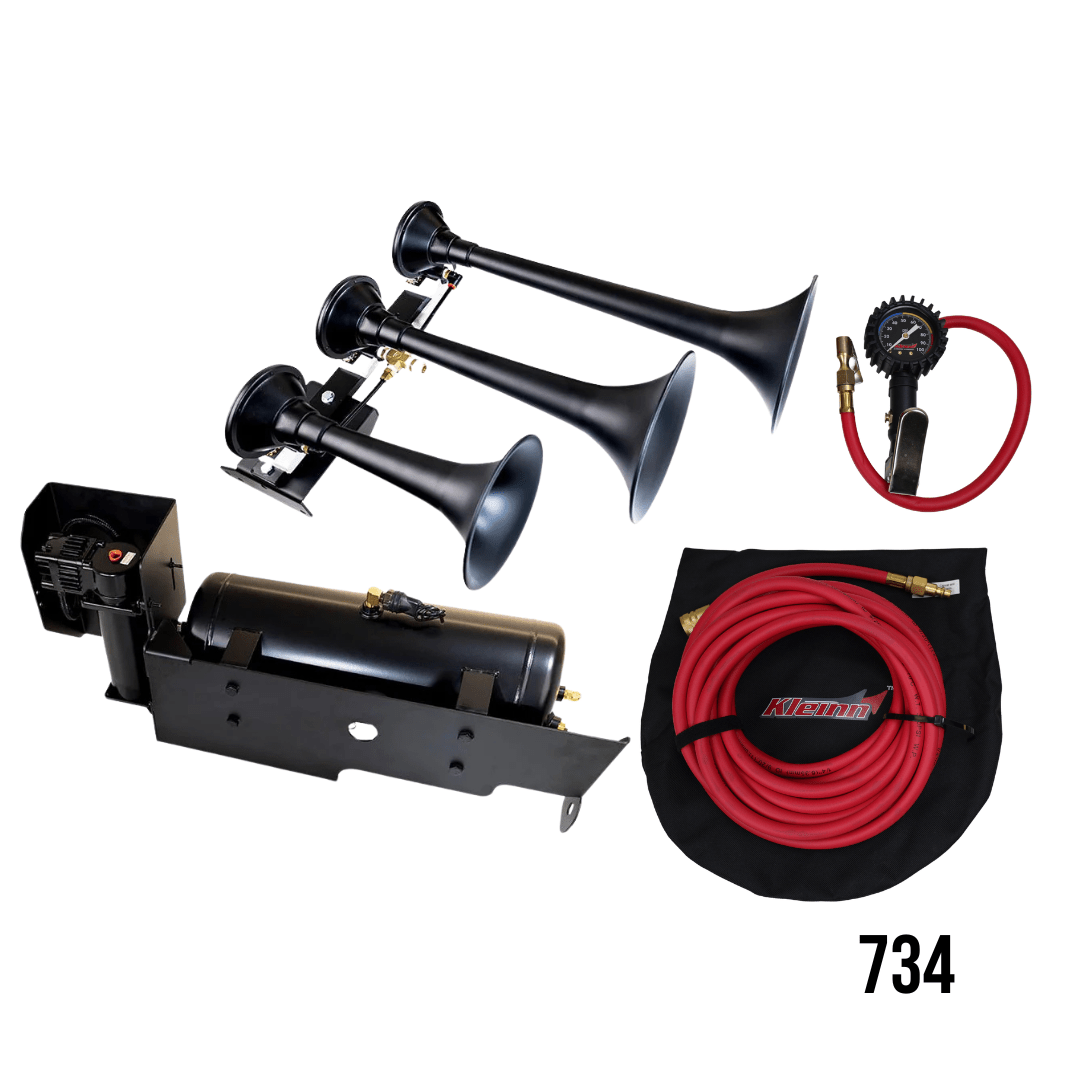

A complete Demon 730 train horn and onboard air system engineered specifically for the 2011-2016 Ford Super Duty F-250/F-350/F-450. Vehicle-specific brackets mean it bolts on with hand tools. Driven by the Model 6450RC compressor at 150 (200) PSI with a 3 gal tank.
Key Features

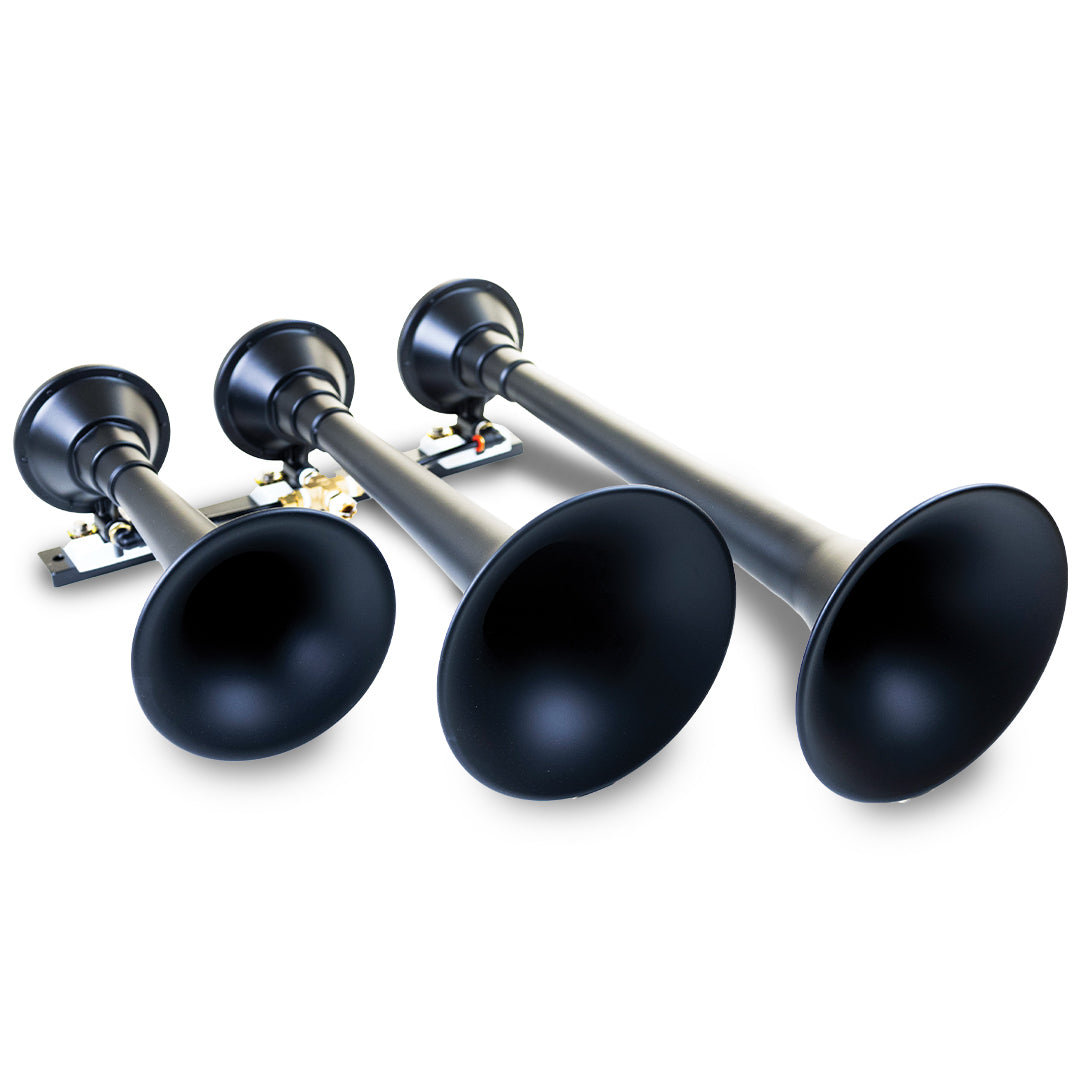

- Model 730 Horn

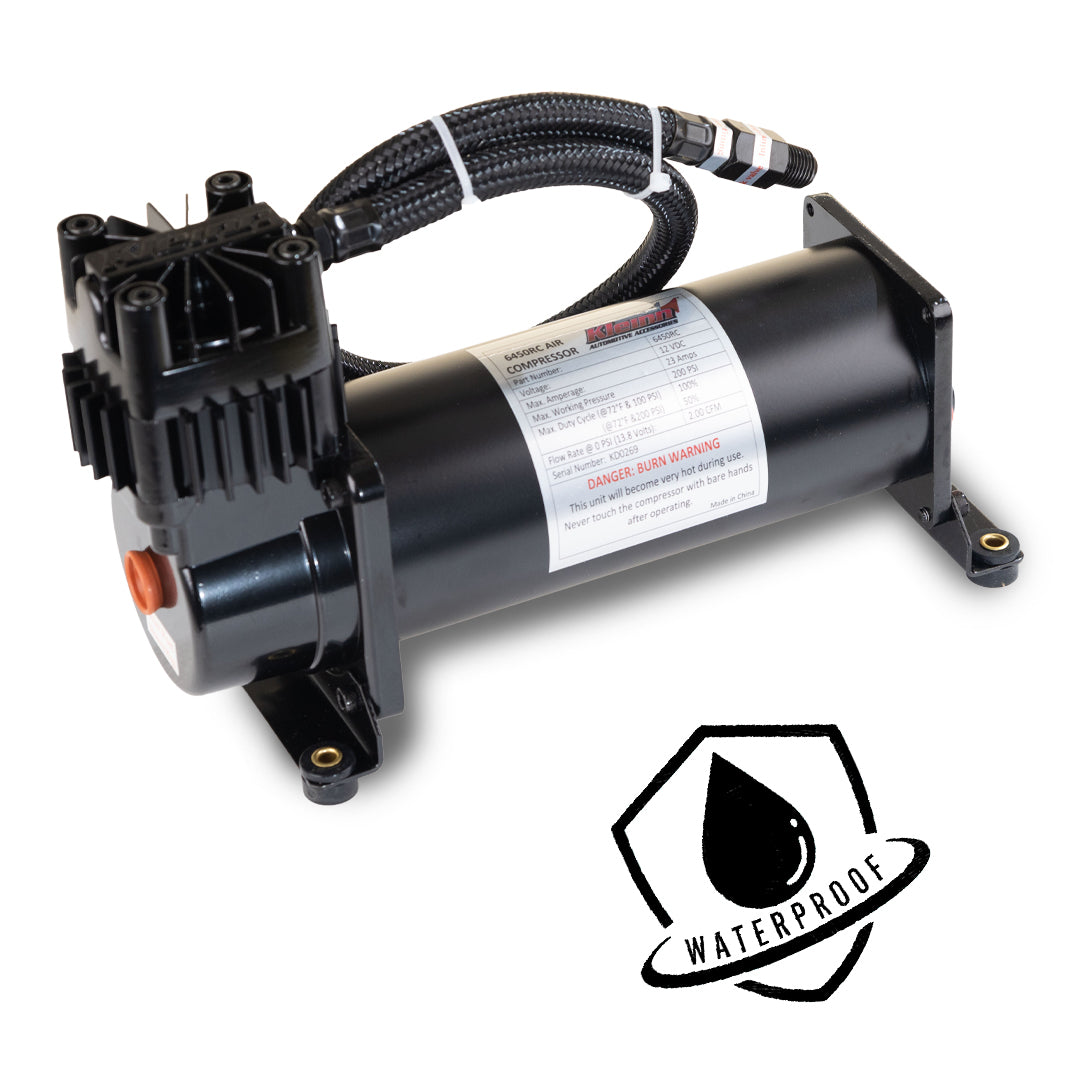

- Model 6450RC Air Compressor

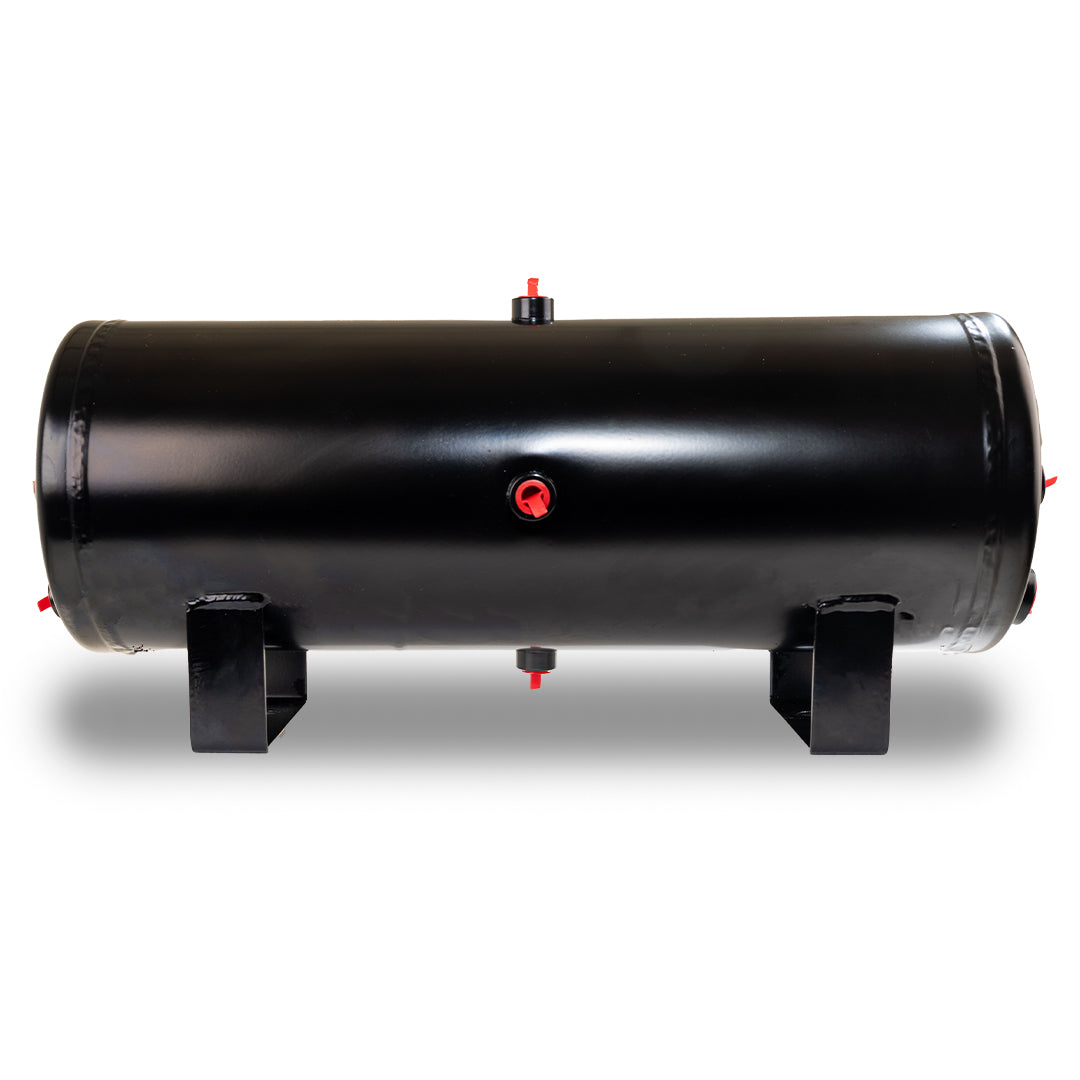

- Model 6350RT Air Tank
- Three Trumpets. 18.25", 14.25", 11"
- Air Compressor Max PSI: 150 (200)
- Air Tank Capacity: 3 gal
- Trumpet lengths: 3- 18.25 / 14.25 / 11 (3.5" Base)
- XCR2.0 Coated Stainless Steel
- 100% duty cycle compressor
Fits

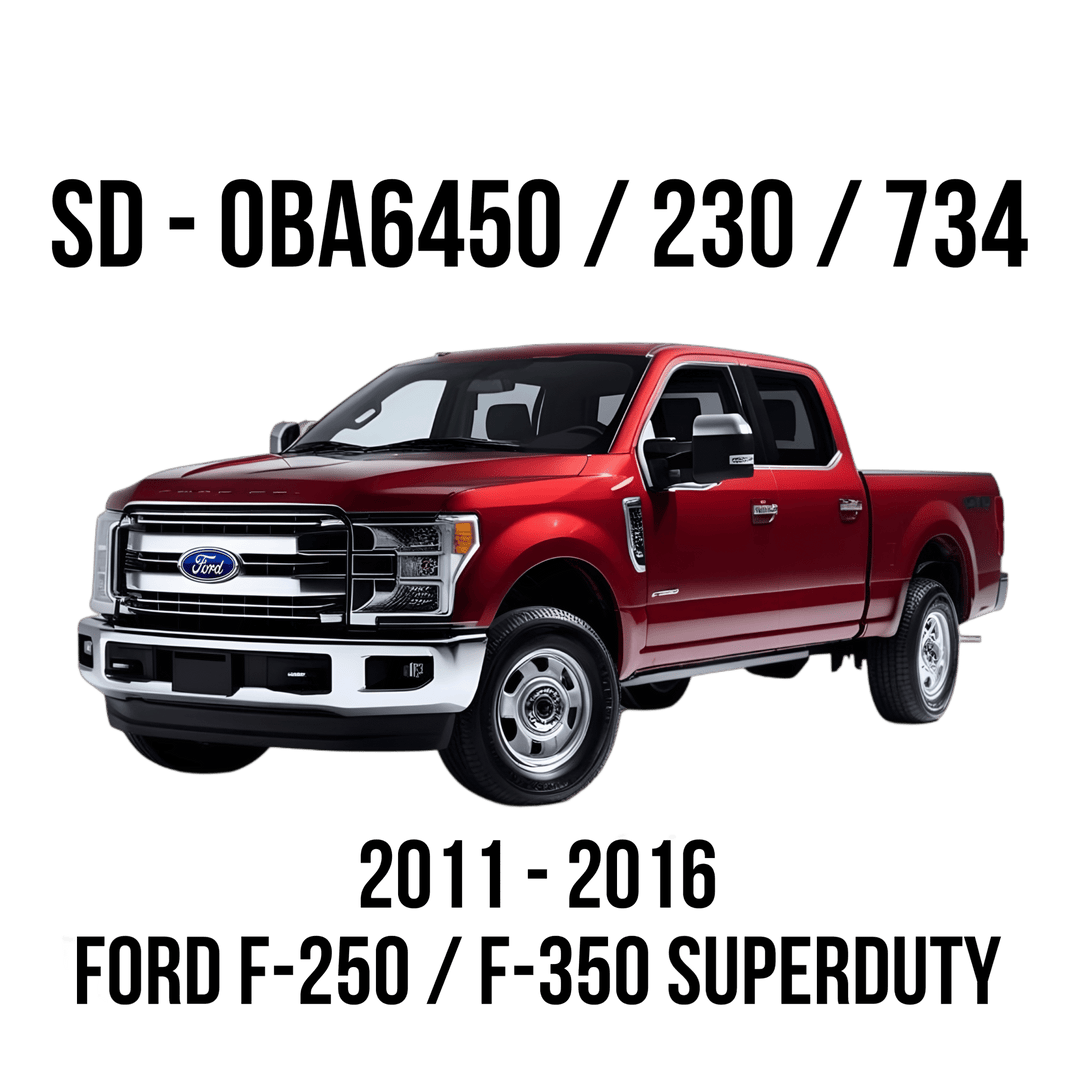

2011-2016 F-250, F-350, F-450 (Excludes Single Cab, OEM & Aftermarket powered side steps, 2016 F-350 requires some drilling)
Specifications
| Part Number |
SDKIT-734 |
| Horn Model |
730 |
| Compressor Model |
6450RC |
| Air Tank Model |
6350RT |
| Trumpet Lengths (in) |
3- 18.25 / 14.25 / 11 (3.5" Base) |
| Horn Construction |
XCR2.0 Coated Stainless Steel |
| Assembled Horn Dimensions (in) |
21.75 x 18.25 x 7.5 |
| Horn Solenoid |
VX6003 |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 (200) |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2.11 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
23 A |
| Air Tank Capacity |
3 gal |
| Air Tank Dimensions (in) |
21 x 7 x 10 |
| Color |
Black |
| Estimated Installation Time |
5-10 Hours |
| Mounting Location |
Horns: Between Spare and Rear Differential. Tank and Compressor: Passenger Side Frame Rail |
| Shipping Weight |
66 lbs |
| Warranty |
12 Months |
| UPC |
819147011097 |
| Country of Origin |
China / Mexico |
Video
Watch the SDKIT-734 in action
Part Number: SDKIT-734
