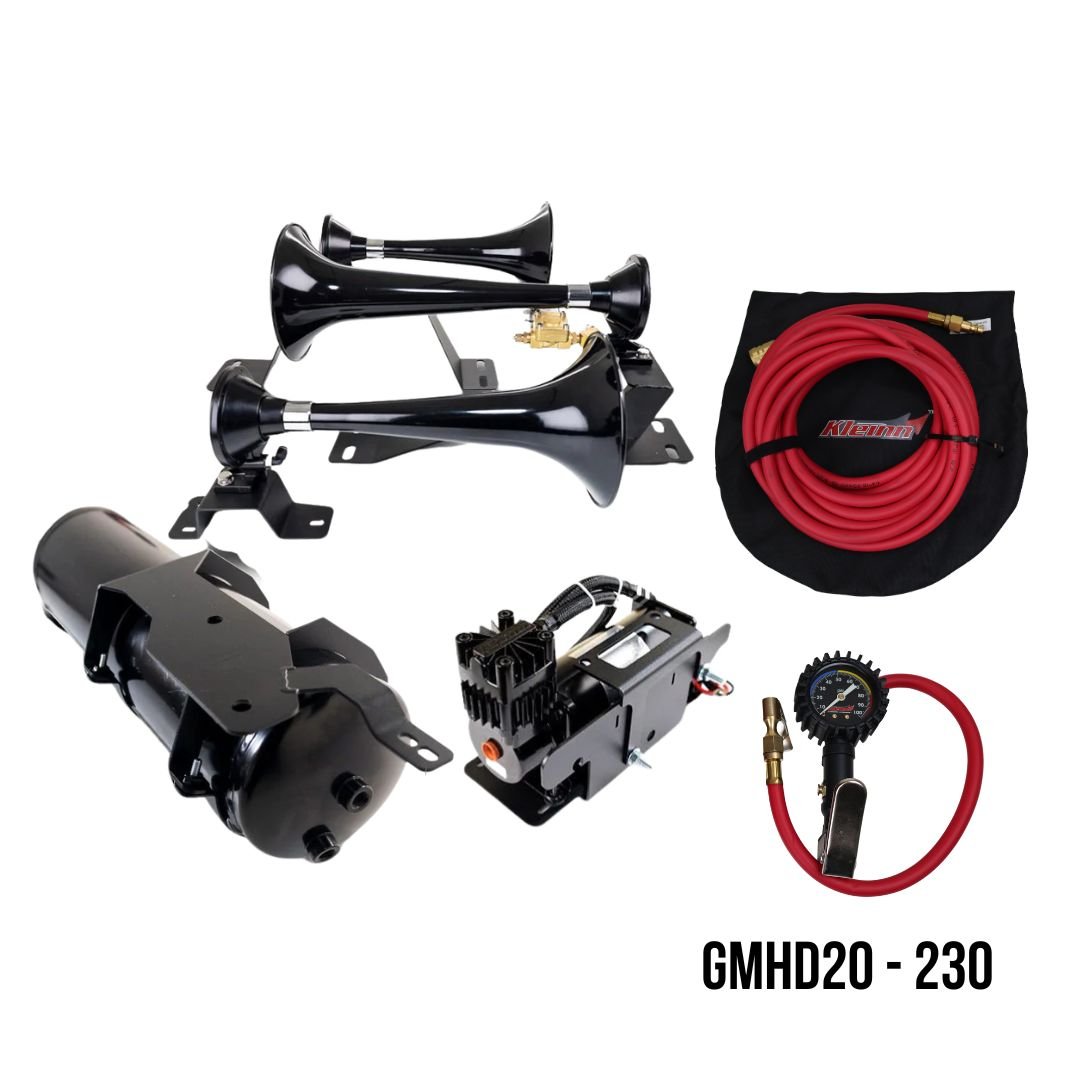

The Beast™ Model 230 triple train horn paired with a 150 PSI waterproof onboard air system, engineered to fit the 2020-2026 Silverado and Sierra 2500HD/3500HD. Two horns tuck inside the bedside step cavities and the third sits between the fuel tank and exhaust — completely hidden until you use it.
Key Features
- Direct-fit brackets — horns hide inside the bedside step cavities

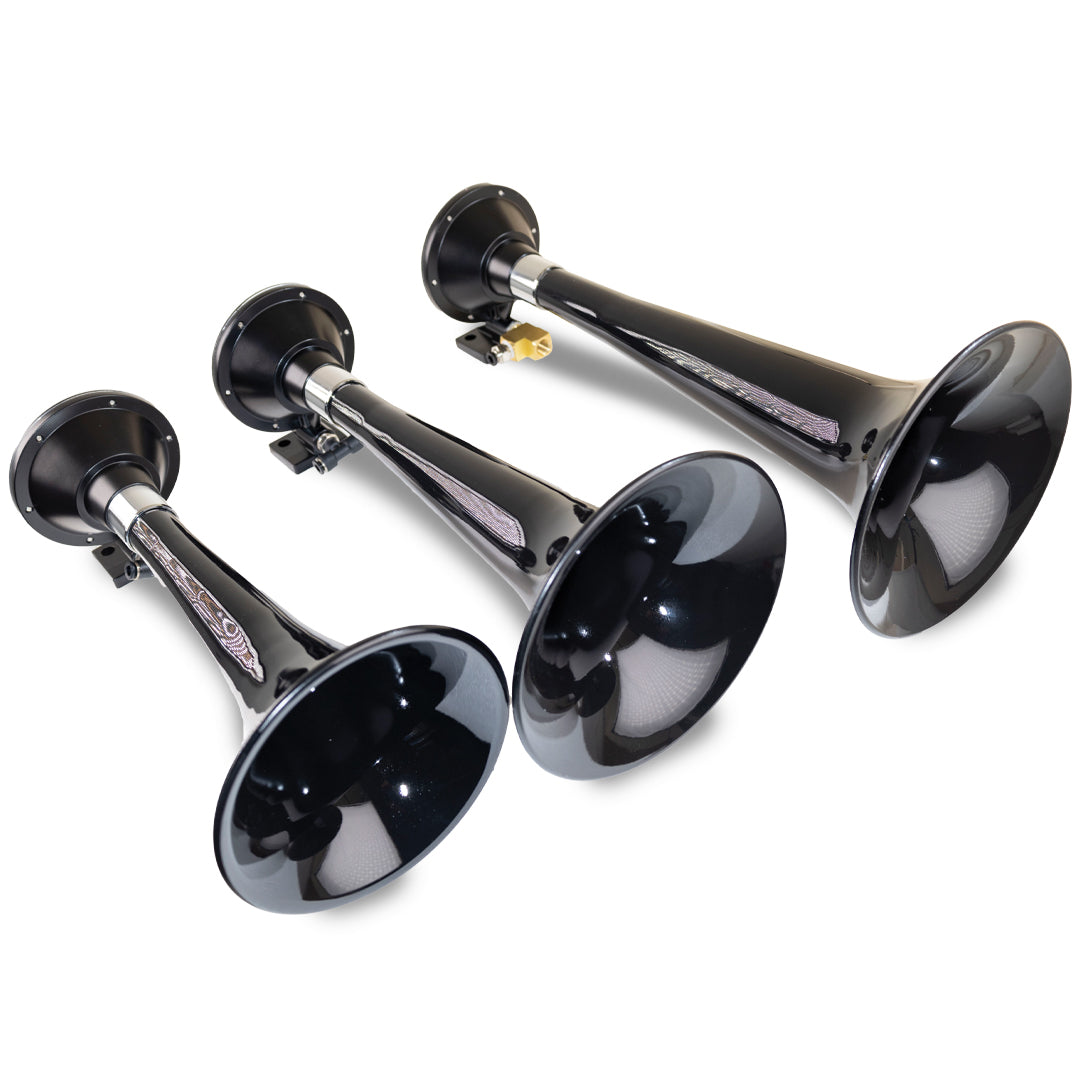

- The Beast™ Model 230 triple train horn, high-impact ABS trumpets
- VX6003 all-brass high-flow solenoid for instant response

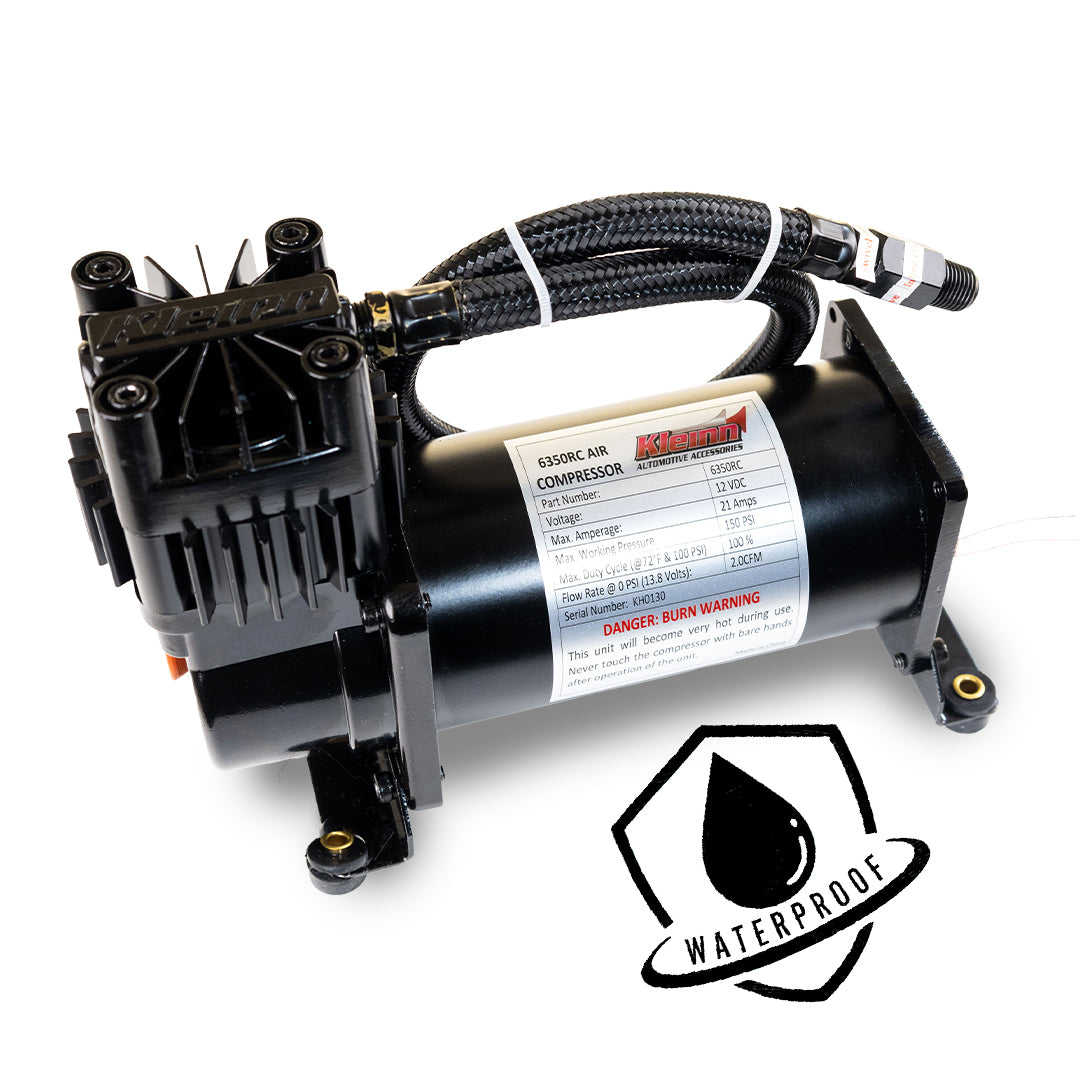

- 6350RC waterproof compressor, 100% duty cycle, 150 PSI

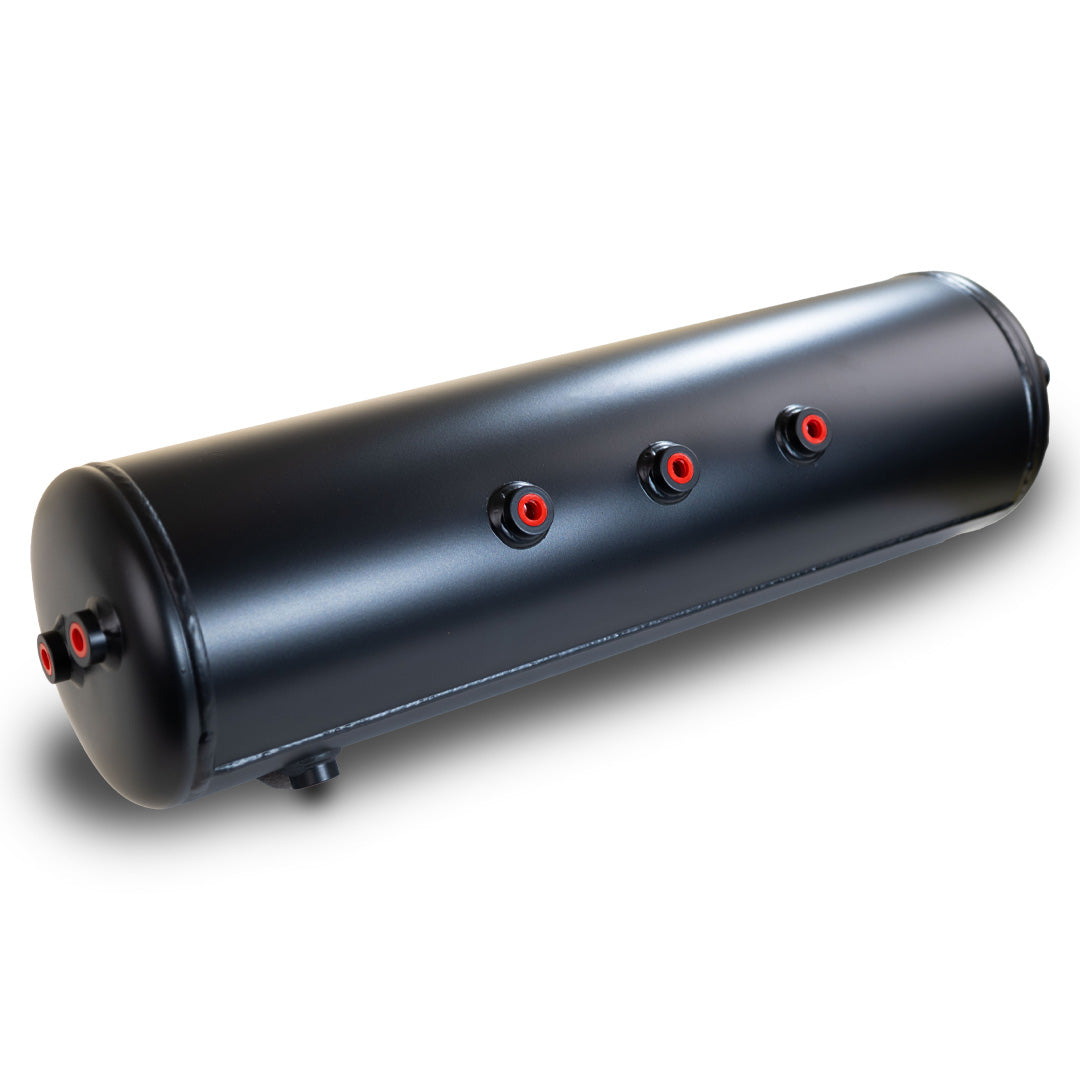

- 2.6 gallon inner-coated air tank
- Powers tire inflation, air lockers and air bags
- All wiring, fittings, air line and hardware included
Fits
2020-2026 Silverado, Sierra 2500, 3500HD (Running boards that use 4 mounts would require removal of 1 mount)
Specifications
| Part Number |
GMHD20-230 |
| Horn Model |
230 |
| Compressor Model |
6350RC |
| Air Tank Model |
6353RT |
| Trumpet Lengths (in) |
3- 15 / 13 / 11 (3.5" Base) |
| Horn Construction |
High Impact ABS Trumpet, Zinc Alloy Base |
| Assembled Horn Dimensions (in) |
18.5 x 16.25 x 6 |
| Horn Solenoid |
VX6003 |
| Pressure Switch |
2151 |
| Compressor Max PSI |
150 |
| Compressor Duty Cycle |
100% |
| Compressor CFM |
2 |
| Compressor Waterproof |
Yes |
| Compressor Amp Draw |
21 A |
| Air Tank Capacity |
2.6 gal |
| Air Tank Dimensions (in) |
22 x 6 x 6.5 |
| Color |
Black |
| Estimated Installation Time |
6-12 Hours |
| Mounting Location |
Horns:(2) Inside cavity of bedside steps, (1) between fuel tank and exhaust system. Tank: Mid driver side frame rail. Compressor:Mid Passenger side frame rail |
| Shipping Weight |
58 lbs |
| Warranty |
12 Months |
| UPC |
819147013046 |
| Country of Origin |
China / Mexico |
Video
Watch the GMHD20-230 in action
Part Number: GMHD20-230
