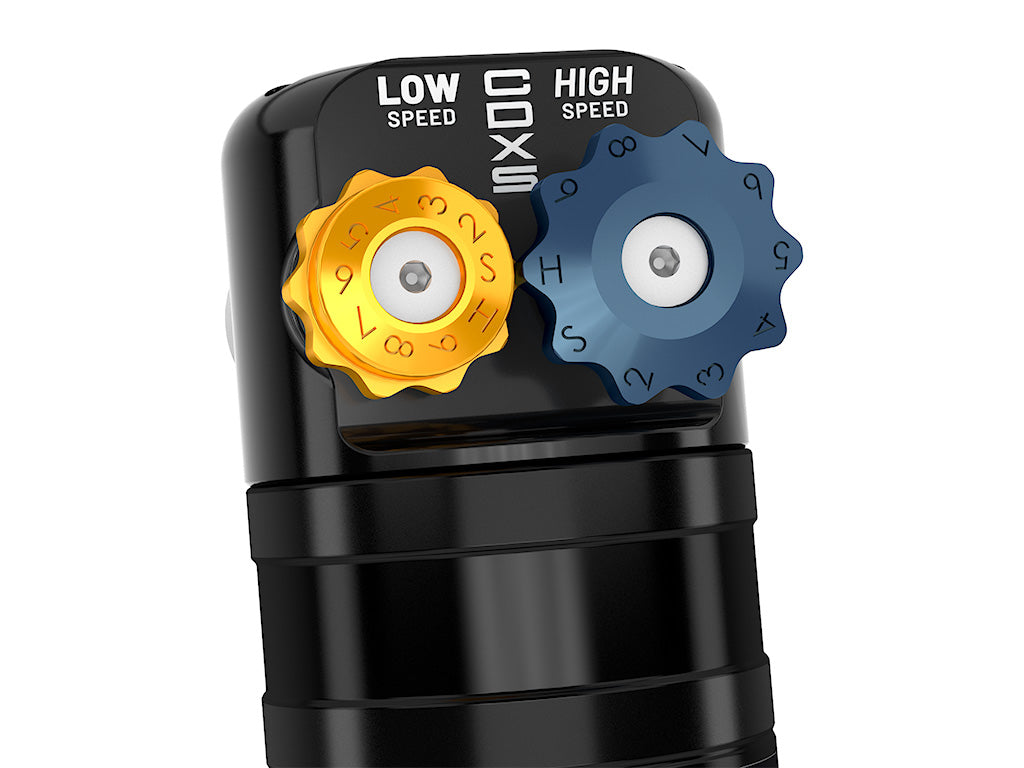

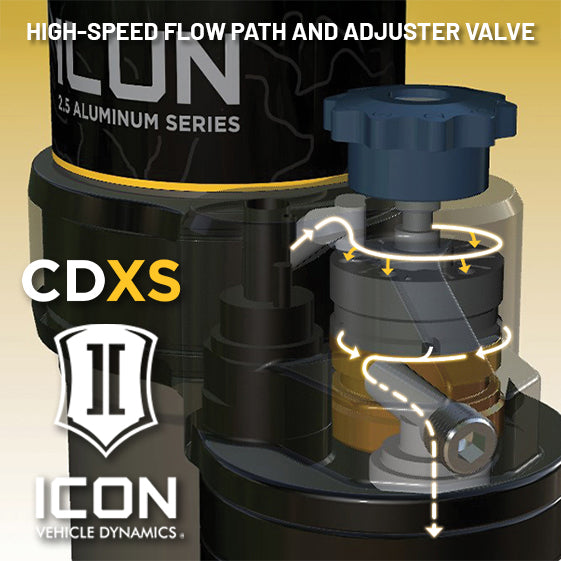

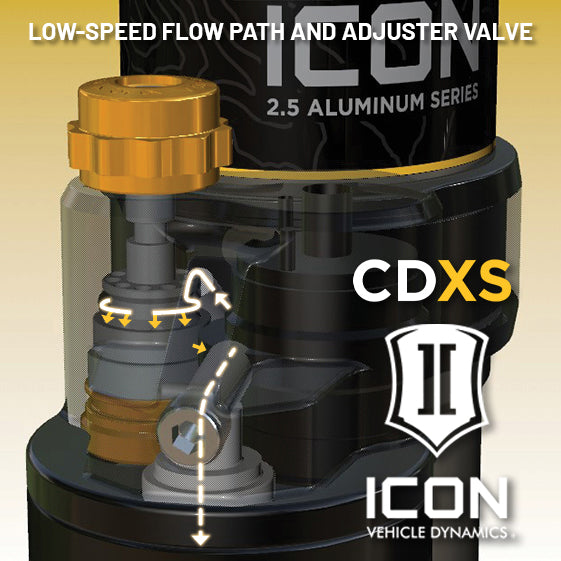

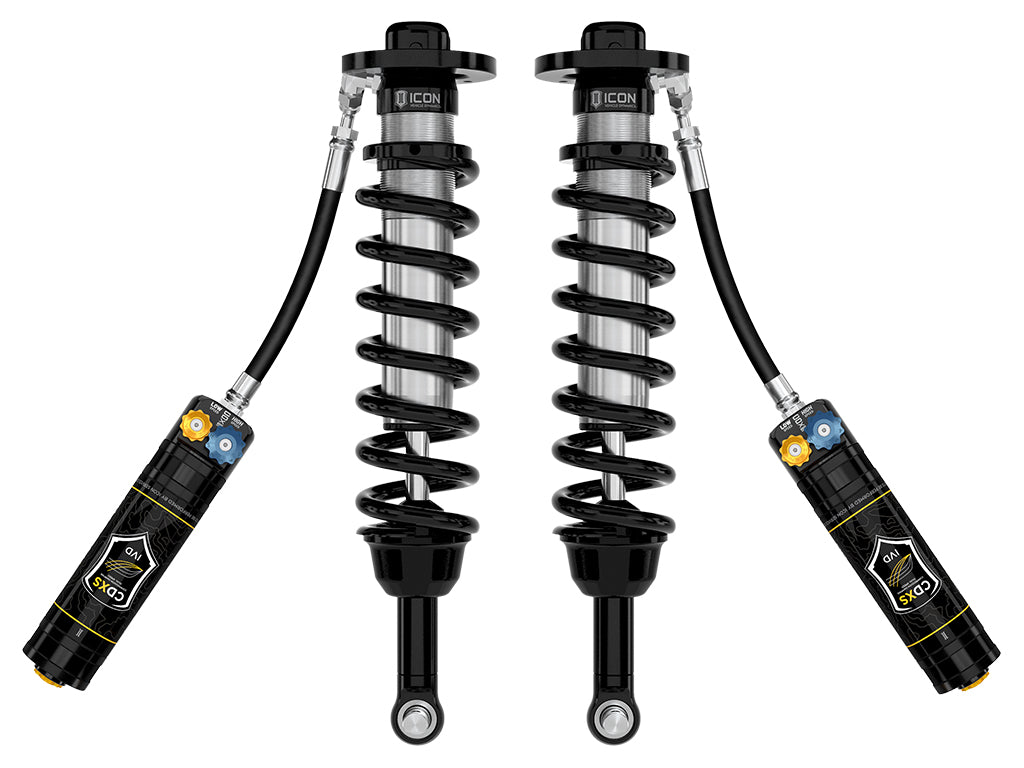

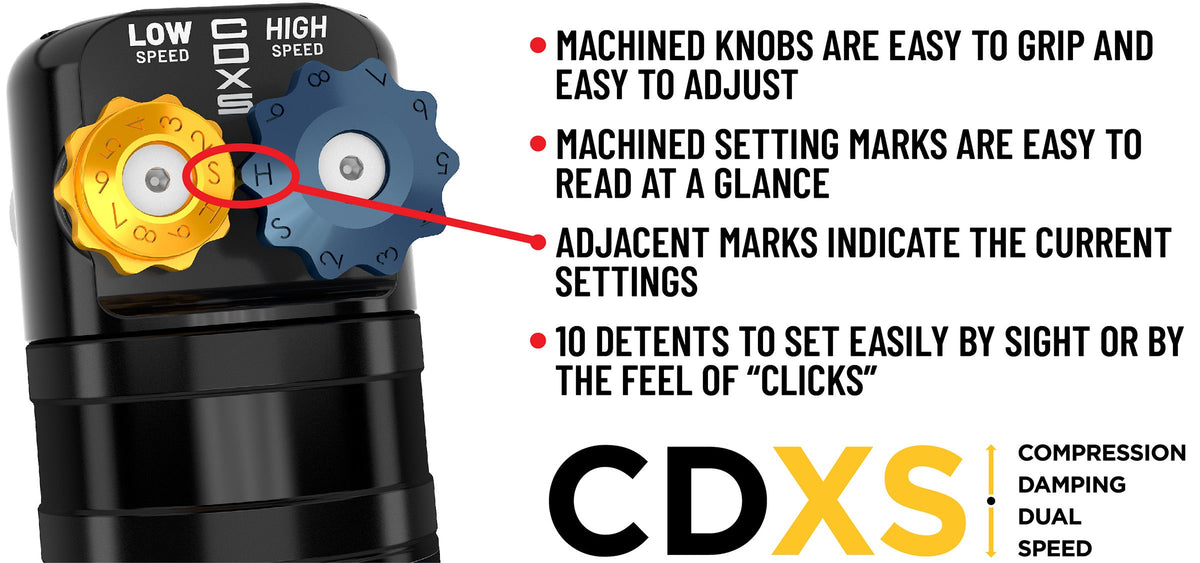

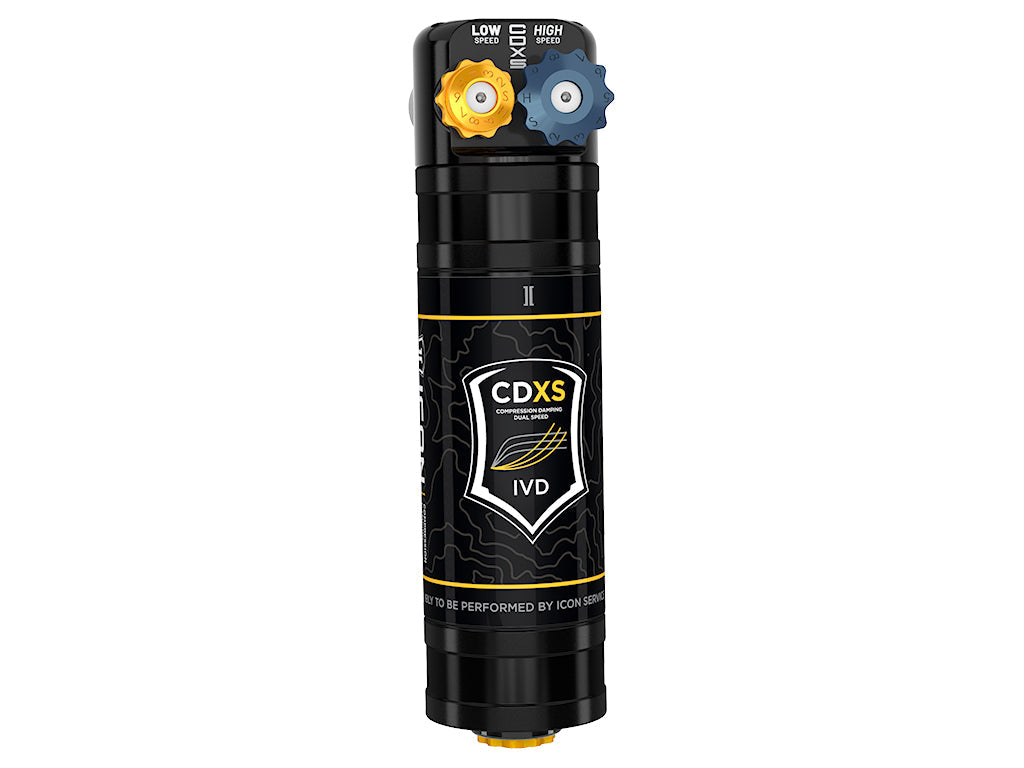

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDXS front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with 2.5 Aluminum Series CDXS rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.
Specifications:
- Lift height: 1.25-3"
- Position: Front
- Shock series: 2.5 Series
- Extended length: 24.85"
- Material: Steel, Aluminum
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use Up To 33" x 11.50" Tires
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 40 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2025-2026 Toyota 4Runner: SR5, TRD Sport, TRD Sport Premium (4WD, Front) — ICON Front Upper Control Arm Part Number 58452DJ, 58552DJ or 58552GDJ Are Recommended Above 2 in of Lift; Also Requires Part Number 55160; Raises Front 1.75" - 3"
- 2025-2026 Toyota 4Runner: SR5, TRD Sport, TRD Sport Premium (RWD, Front) — ICON Front Upper Control Arm Part Number 58452DJ, 58552DJ or 58552GDJ Are Recommended Above 2 in of Lift; Raises Front 1.75" - 3"
- 2025-2026 Toyota 4Runner: Trailhunter, TRD Pro (Front) — ICON Front Upper Control Arm Part Number 58452DJ, 58552DJ or 58552GDJ Are Recommended Above 1 in of Lift; Also Requires Part Number 55160; Raises Front .75" - 2"
- 2025-2026 Toyota 4Runner: TRD Off-Road, TRD Off-Road Premium (Front) — ICON Front Upper Control Arm Part Number 58452DJ, 58552DJ or 58552GDJ Are Recommended Above 2 in of Lift; Also Requires Part Number 55160; Raises Front 1.75" - 3"
Part #: 58795X
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
