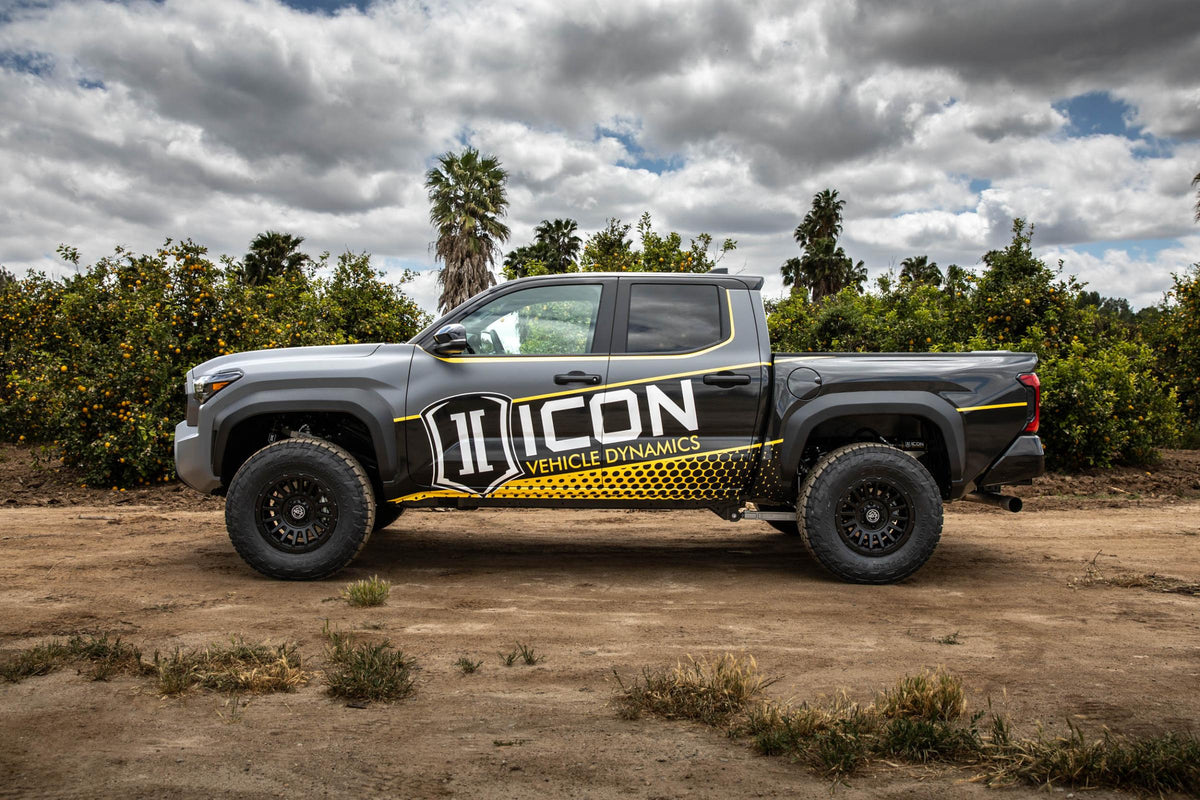

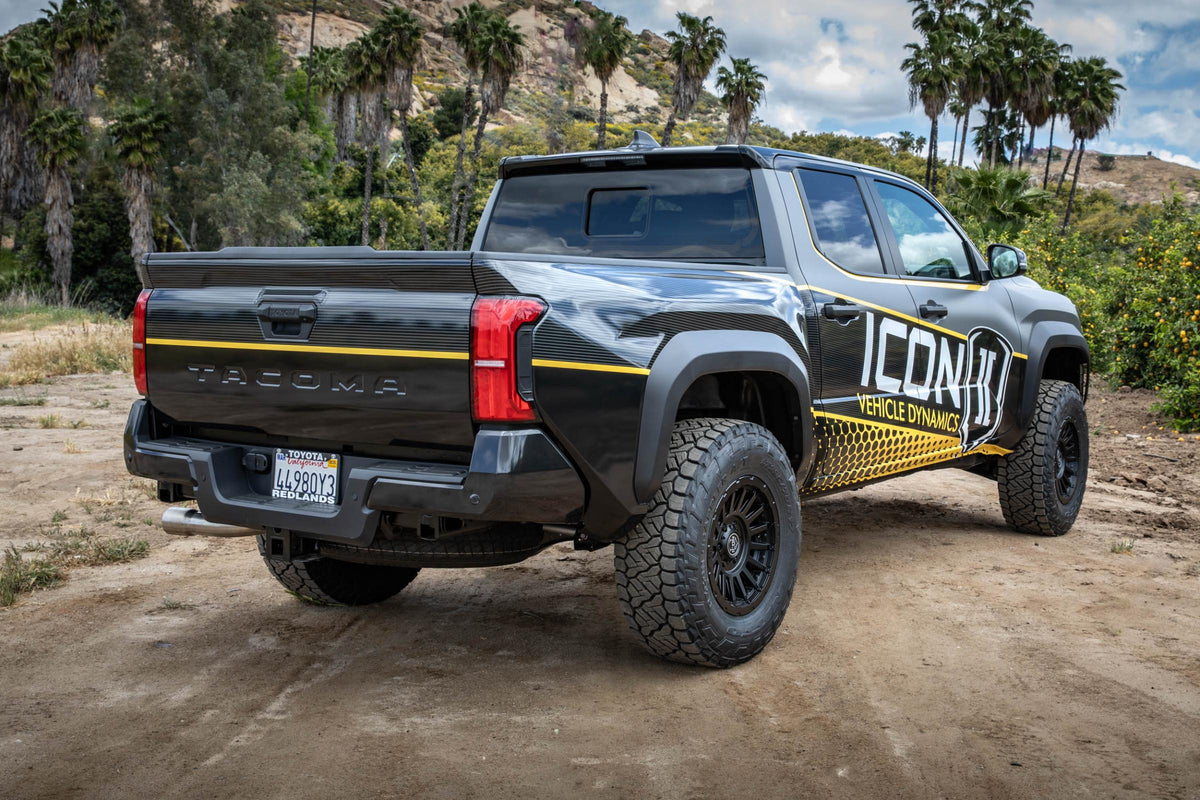

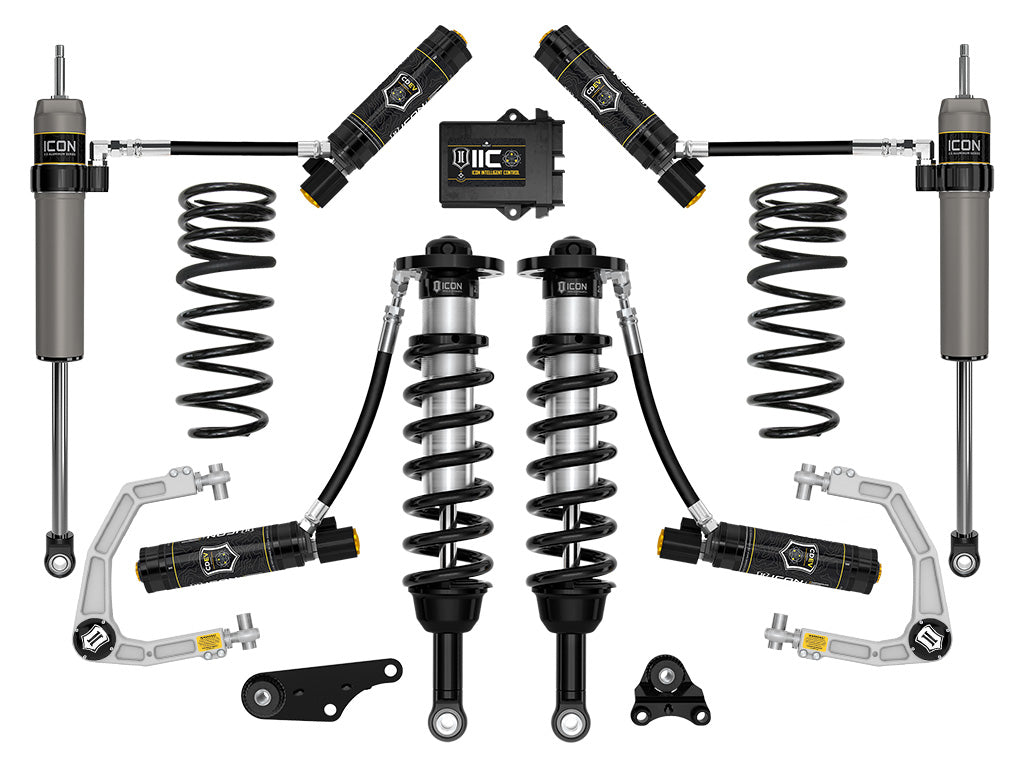

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

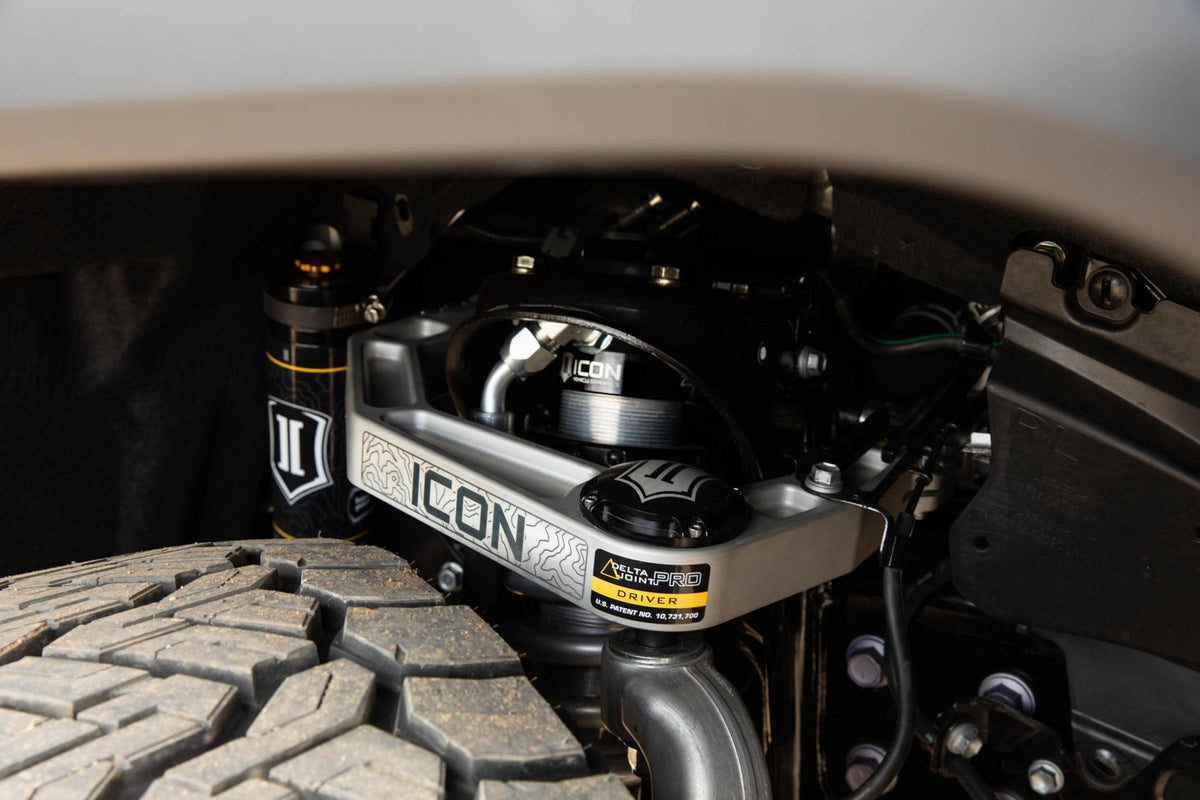

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
- Lift height: 1.25-3"
- Front lift: 1.25" - 3"
- Rear lift: .5"
- Position: Front and Rear
Installation notes:
- Use Up To 33" x 11.50" Tires
- Requires iOS operated device to run ICON Intelligent Control App
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Rear .5"
- Raises Front 1.25" - 3"
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2024 Toyota Tacoma: Limited (Front and Rear) — without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tacoma: SR5 (4WD, Coil rear springs, Front and Rear)
- 2024-2026 Toyota Tacoma: TRD Off-Road (Front and Rear)
- 2026 Toyota Tacoma: TRD Offroad (Front and Rear)
- 2024, 2026 Toyota Tacoma: TRD Sport (4WD, Front and Rear)
- 2025 Toyota Tacoma: TRD Sport (4WD, Coil rear springs, Front and Rear)
- 2025-2026 Toyota Tacoma: TRD Sport Premium (Front and Rear)
Part #: K53296S
