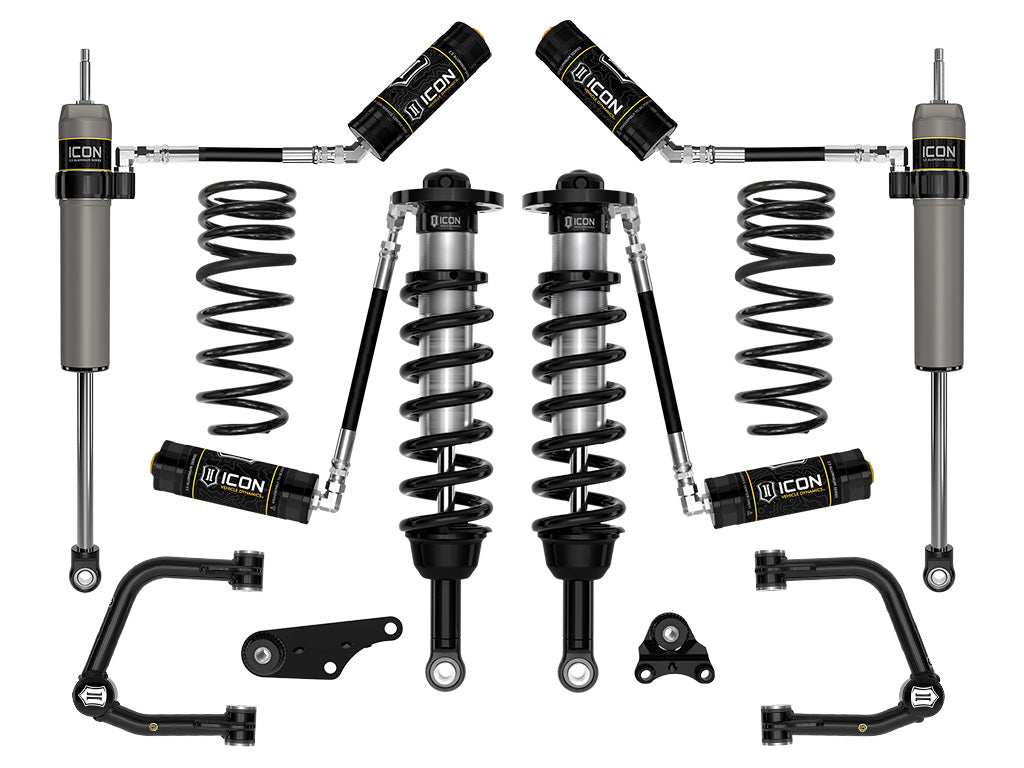

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

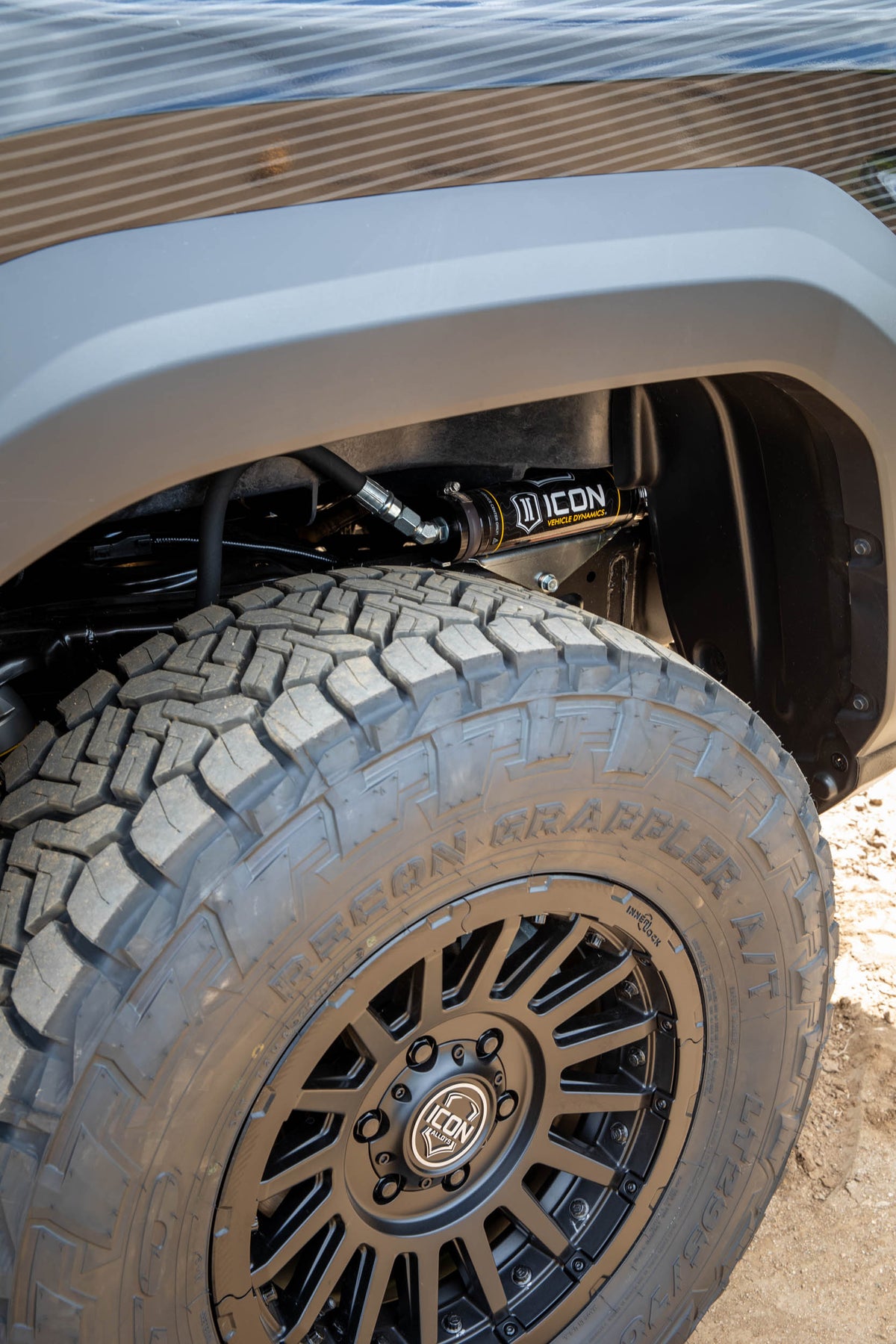

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2026 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These rear springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
- Lift height: 1.25-3"
- Front lift: 1.25" - 3"
- Rear lift: .5"
- Position: Front and Rear
Installation notes:
- Use Up To 33" x 11.50" Tires
- with Approximately 600 lbs Additional Weight Added to Rear of Vehicle
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Rear .5"
- Raises Front 1.25" - 3"
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2024 Toyota Tacoma: Limited (Front and Rear) — without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tacoma: SR5 (4WD, Coil rear springs, Front and Rear)
- 2024-2026 Toyota Tacoma: TRD Off-Road (Front and Rear)
- 2026 Toyota Tacoma: TRD Offroad (Front and Rear)
- 2024, 2026 Toyota Tacoma: TRD Sport (4WD, Front and Rear)
- 2025 Toyota Tacoma: TRD Sport (4WD, Coil rear springs, Front and Rear)
- 2025-2026 Toyota Tacoma: TRD Sport Premium (Front and Rear)
Part #: K53294TX
