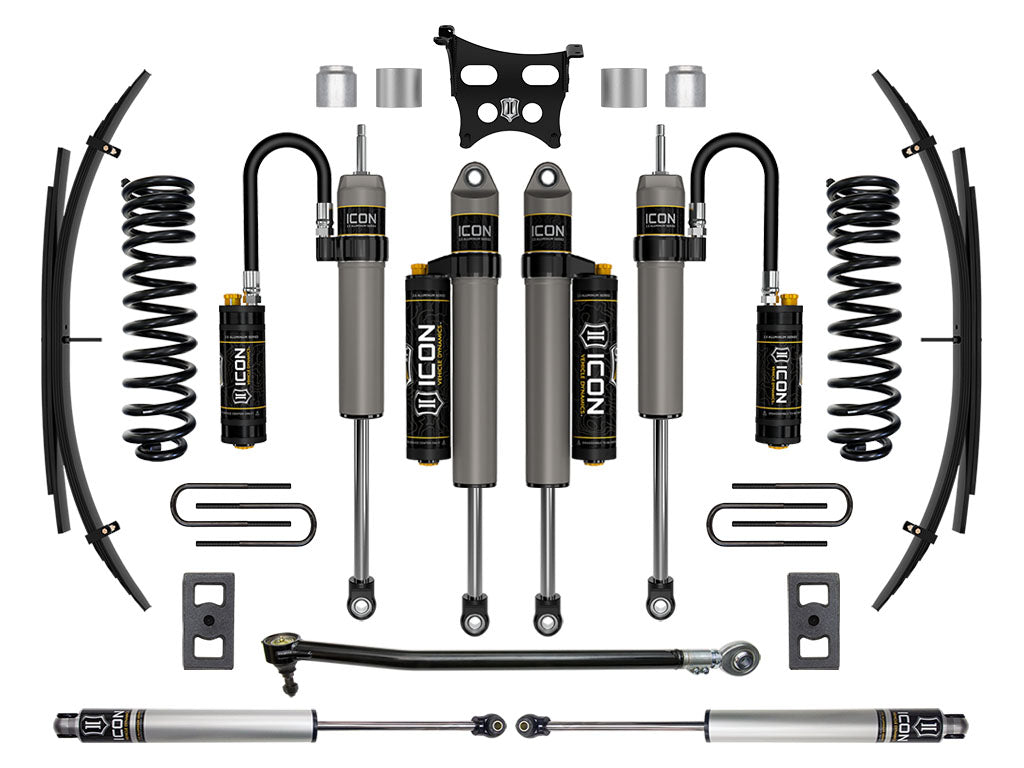

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use with Extended Brake Line Kit Part Number 61111
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Use with Track Bar Bracket Part Number 64039
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Also Requires Part Number 611081; Raises Front 1.5"; Raises Rear .5"; with Tremor Package
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Also Requires Part Number 611081; Raises Front 2.5"; Raises Rear .5"; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — Raises Front 1.5"; Raises Rear .5"; without Onboard Scales System; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — Raises Front 2.5"; Raises Rear .5"; without Onboard Scales System; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Front 1.5"; Raises Rear .5"; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Front 2.5"; Raises Rear .5"; without Tremor Package
- 2023 Ford F-250 Super Duty: XL (4WD, 6.8L GAS, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-250 Super Duty: XL (4WD, 7.3L GAS, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-250 Super Duty: XLT (7.3L GAS, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 1.5"; without Onboard Scales System; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 1.5"; without Onboard Scales System; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System; without Tremor Package
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
Part #: K62595L
