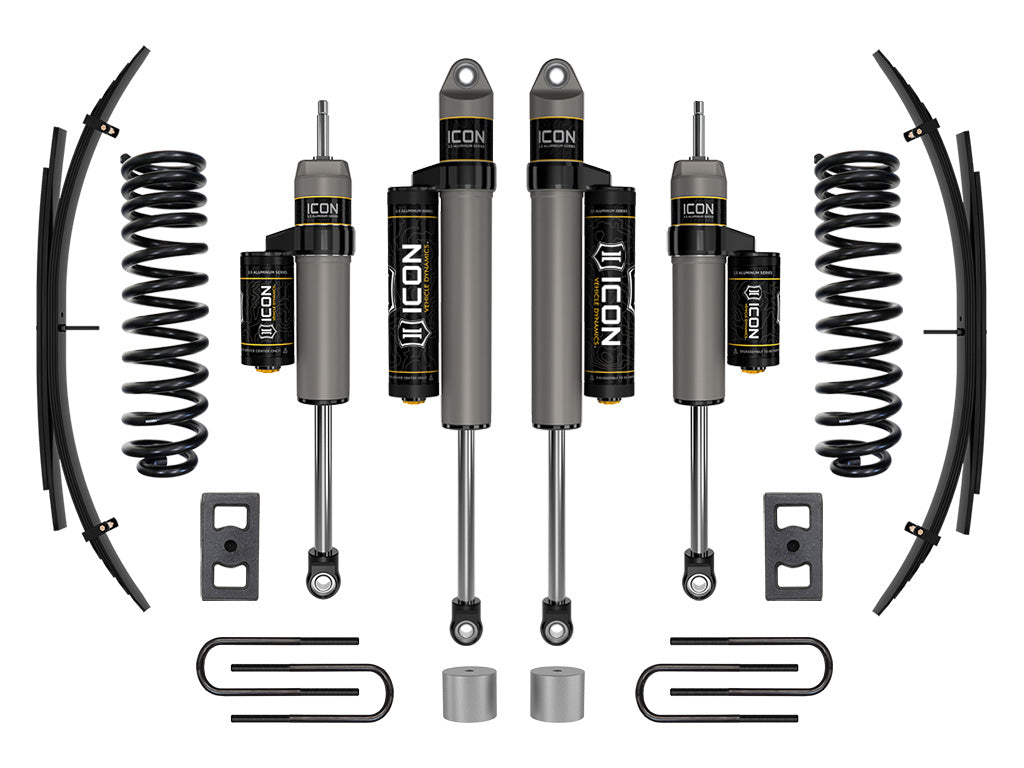

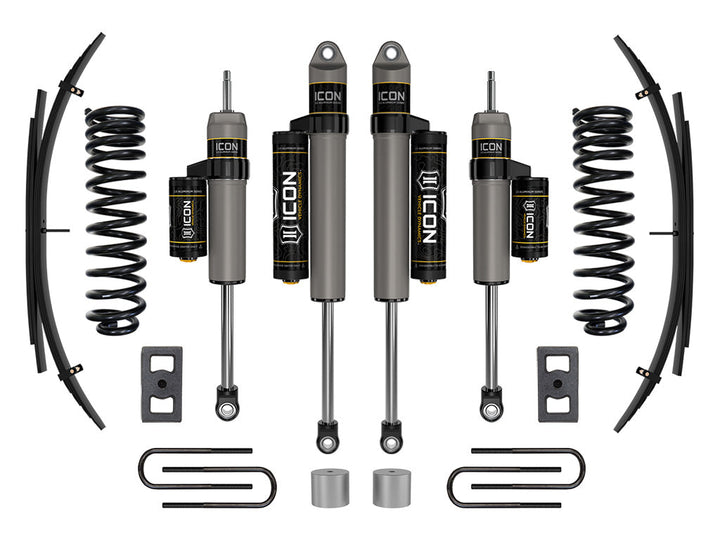

The ICON 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, 2.5 Aluminum Series piggyback reservoir front and rear shocks, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5" piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use with Extended Brake Line Kit Part Number 61111
- with Aftermarket Wheels
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Use with Track Bar Bracket Part Number 64039
- Use with 64038 Adjustable Track Bar
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Front 1.5"; Raises Rear .5"; with Tremor Package
- 2023 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Front 2.5"; Raises Rear .5"; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Front 1.5"; Raises Rear .5"; without Onboard Scales System; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"; without Onboard Scales System; without Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Front 1.5"; Raises Rear .5"; with Tremor Package
- 2023 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Front 2.5"; Raises Rear .5"; without Tremor Package
- 2023 Ford F-250 Super Duty: Limited (Front and Rear) — Also Requires Part Number 611081; Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 1.5"; without Onboard Scales System; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5"; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"; without Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 1.5"; without Onboard Scales System; with Tremor Package
- 2023 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System; without Tremor Package
- 2023 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
Part #: K62562L
