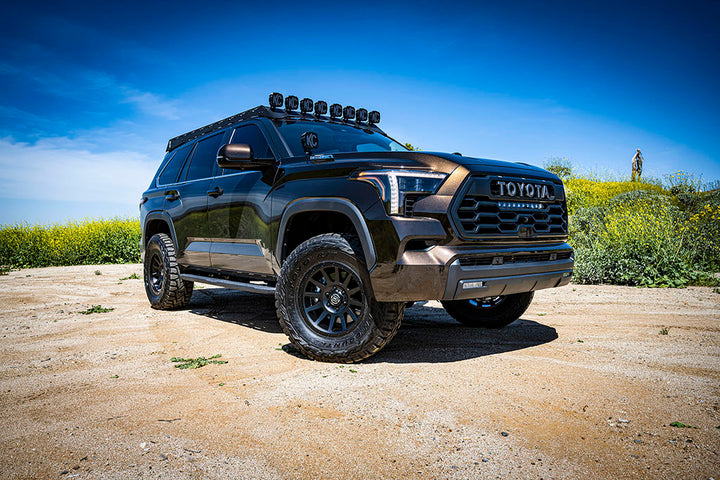

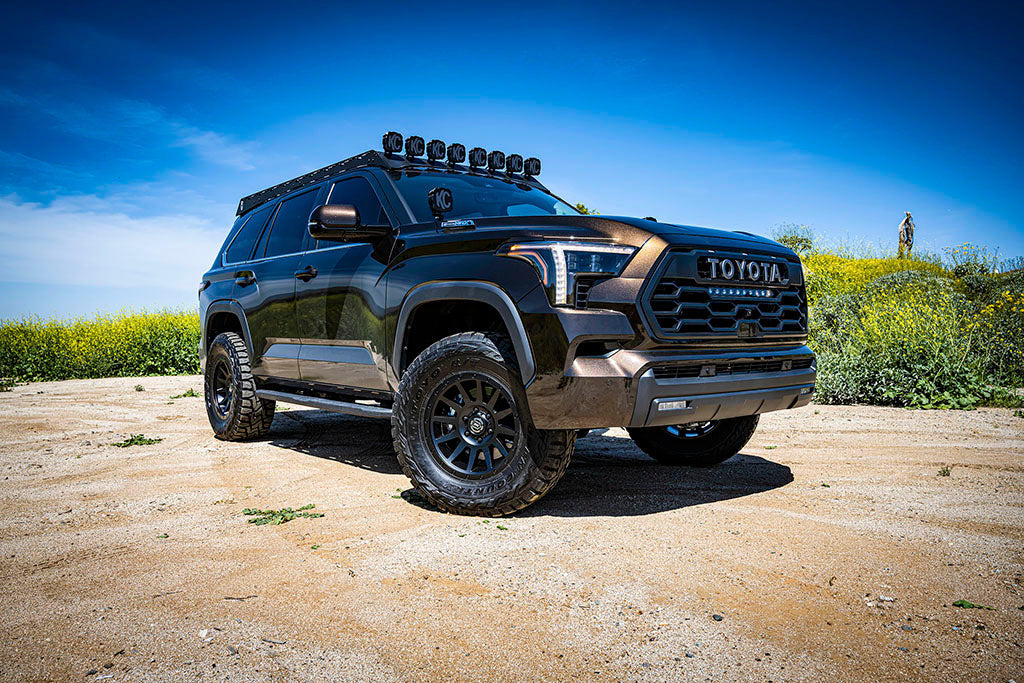

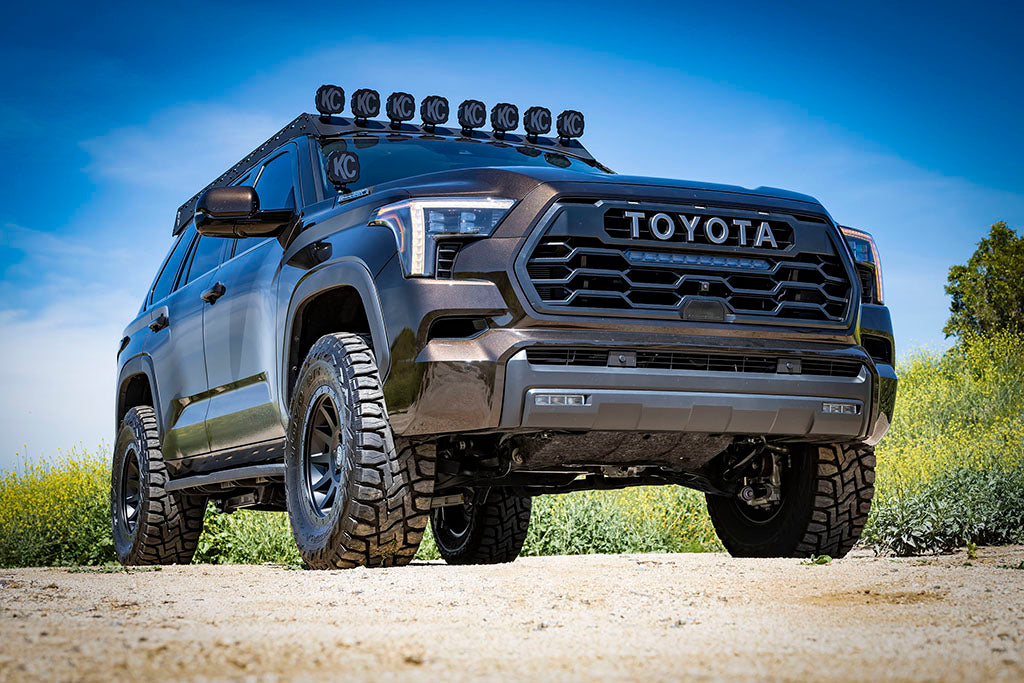

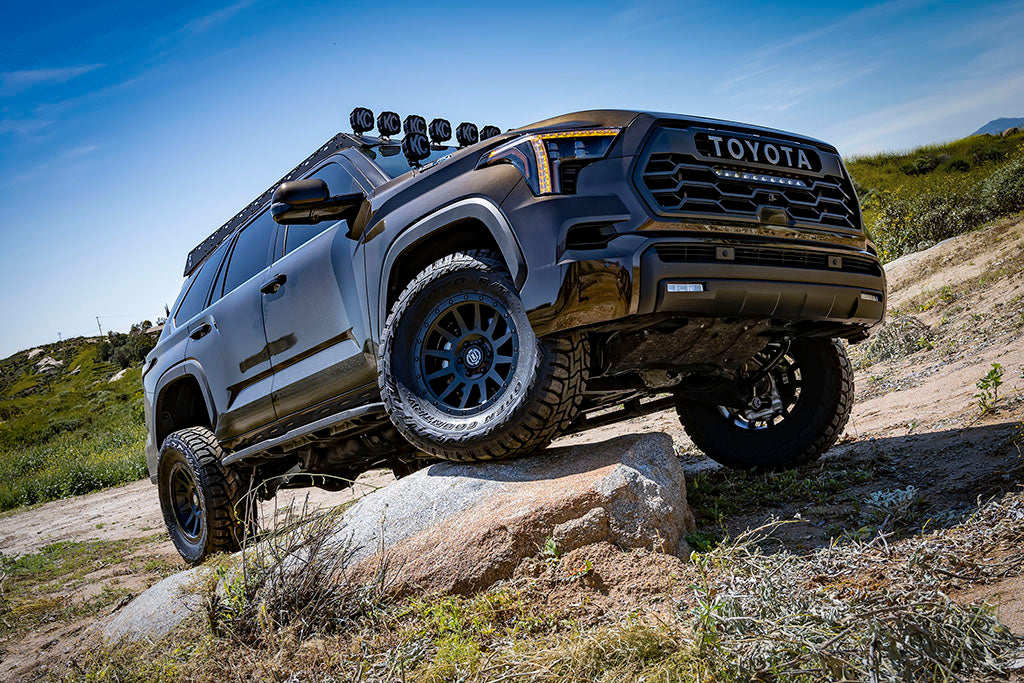

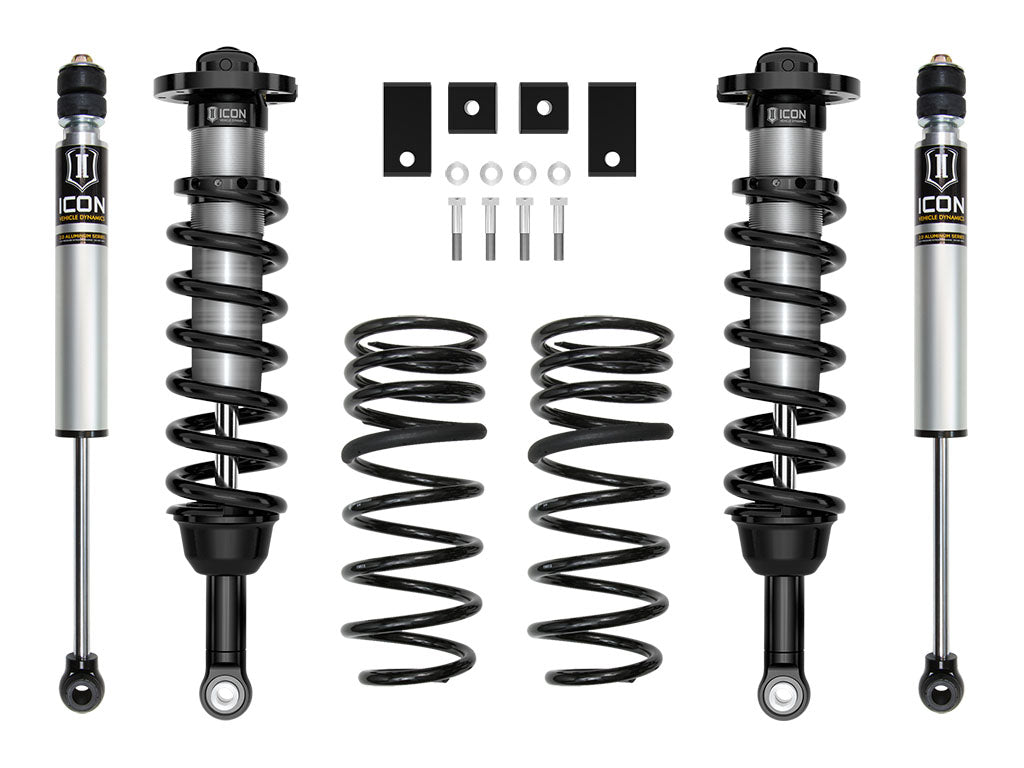

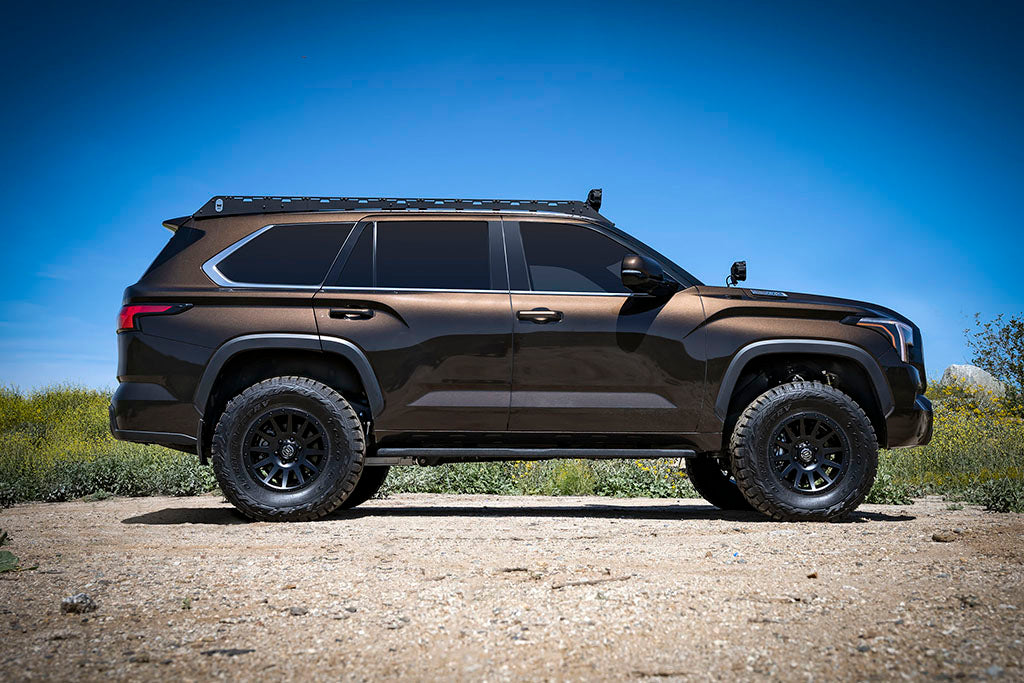

The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2023-2026 Toyota Sequoia is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
This Stage 3 system features the 2023-2026 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2” of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.

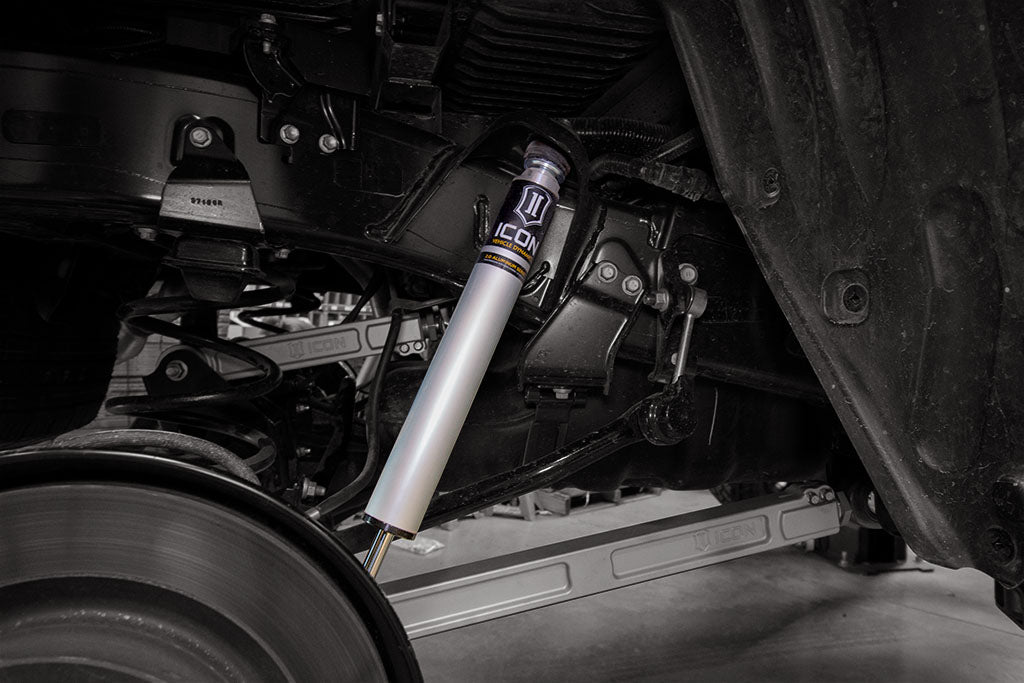

Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2026 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Specifications:
- Lift height: 3-3.75"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Front and Rear) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55164; Raises Rear 2"; Raises Front 1" - 1.75"; with TRD Off Road Package
- 2025-2026 Toyota Sequoia: 1794 Edition (Coil rear springs, Front and Rear) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55156; Raises Rear 4"; Raises Front 3" - 3.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Capstone (4WD, Coil rear springs, Front and Rear) — Also Requires Part Number 55156; Raises Rear 4"; Raises Front 3" - 3.75"; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Capstone (RWD, Coil rear springs, Front and Rear) — Raises Rear 4"; Raises Front 3" - 3.75"; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front and Rear) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55164; Raises Rear 2"; Raises Front 1" - 1.75"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front and Rear) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55156; Raises Rear 4"; Raises Front 3" - 3.75"; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Front and Rear) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Raises Rear 4"; Raises Front 3" - 3.75"
- 2024-2026 Toyota Sequoia: Platinum (4WD, Coil rear springs, Front and Rear) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55164; Raises Rear 2"; Raises Front 1" - 1.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023 Toyota Sequoia: Platinum (4WD, Coil rear springs, Front and Rear) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55156; Raises Rear 4"; Raises Front 3" - 3.75"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Coil rear springs, Front and Rear) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55156; Raises Rear 4"; Raises Front 3" - 3.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Platinum (RWD, Coil rear springs, Front and Rear) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Raises Rear 4"; Raises Front 3" - 3.75"; without Adaptive Variable Suspension (AVS)
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Front and Rear) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55164; Raises Rear 2"; Raises Front 1" - 1.75"
- 2023 Toyota Sequoia: TRD Off-Road (Front and Rear) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55164; Raises Rear 2"; Raises Front 1" - 1.75"
- 2023-2026 Toyota Sequoia: TRD Pro (Front and Rear) — Also Requires Part Number 55164 and Number 58461DJ or 58561DJ; Raises Rear 2"; Raises Front 1" - 1.75"
Part #: K53233S
