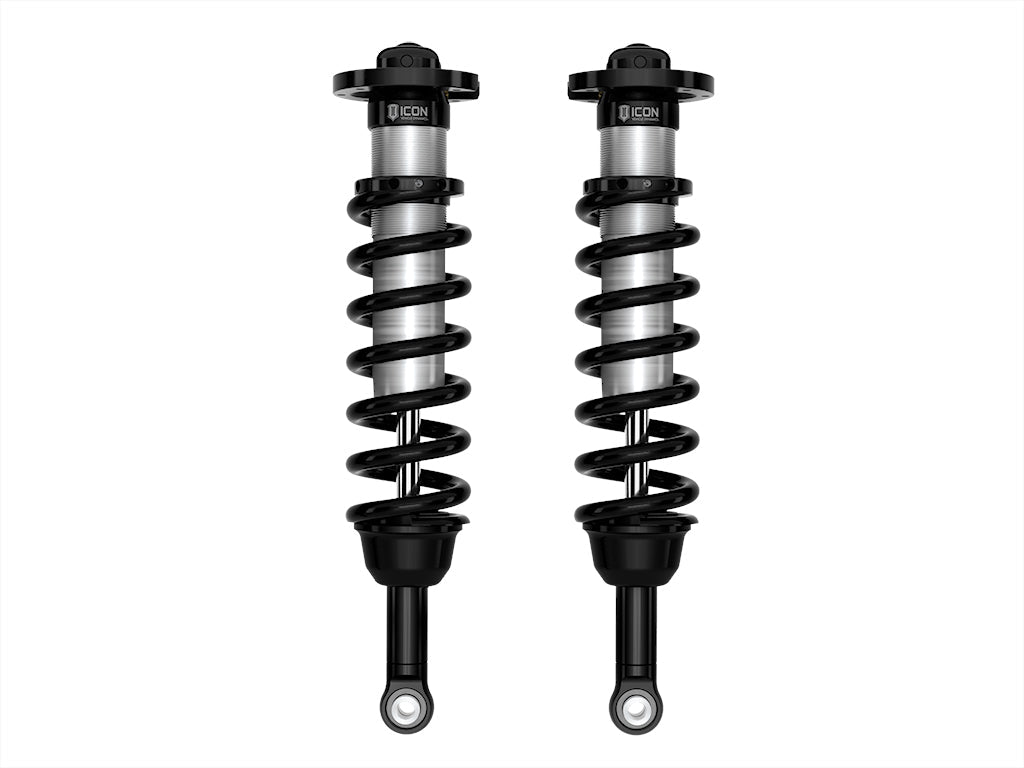

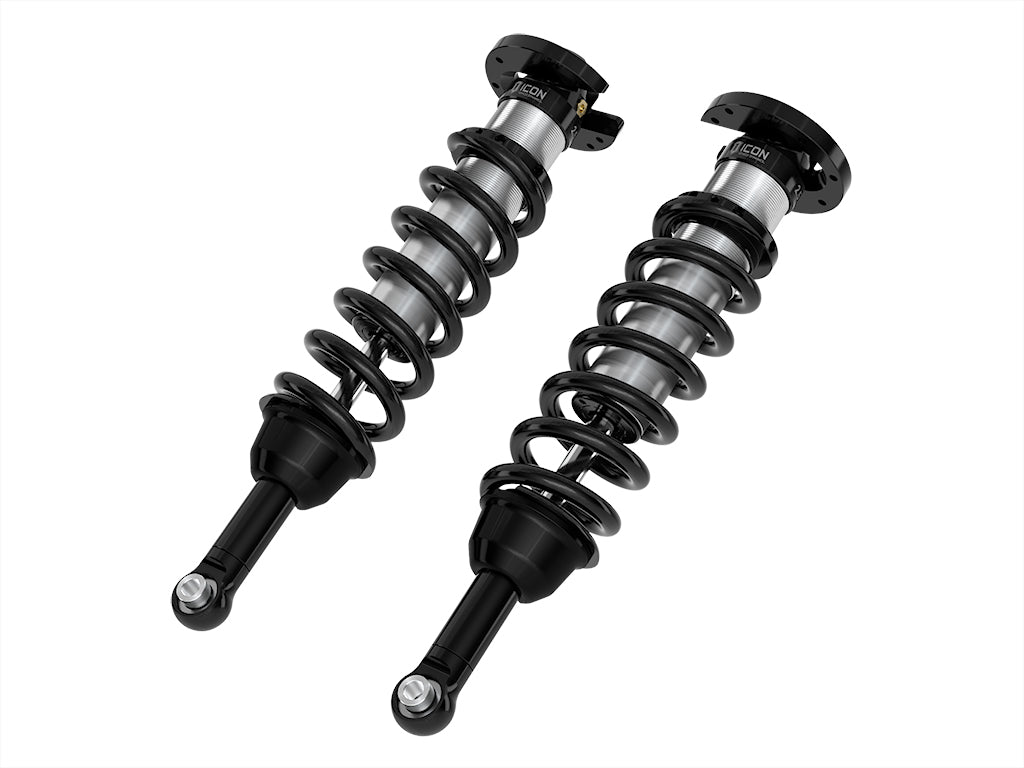

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2026 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Specifications:
- Lift height: 1-2.5"
- Front lift: 1" - 2.5"
- Position: Front
- Shock series: 2.5 Series
- Extended length: 21.68"
- Material: Aluminum, Steel
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Raises Front 1" - 2.5"
- 25 (mm) Offset Aftermarket Wheels Recommended
- Designed for use with OE Red TRD Billet Upper Control Arms Only
Fits:
- 2023-2026 Toyota Sequoia: TRD Pro (Front) — with ICON Front Differential Drop Brackets; Also Requires Part Number 55164
- 2023-2026 Toyota Sequoia: TRD Pro (Front) — with OE Front Differential Brackets
Part #: 58673
