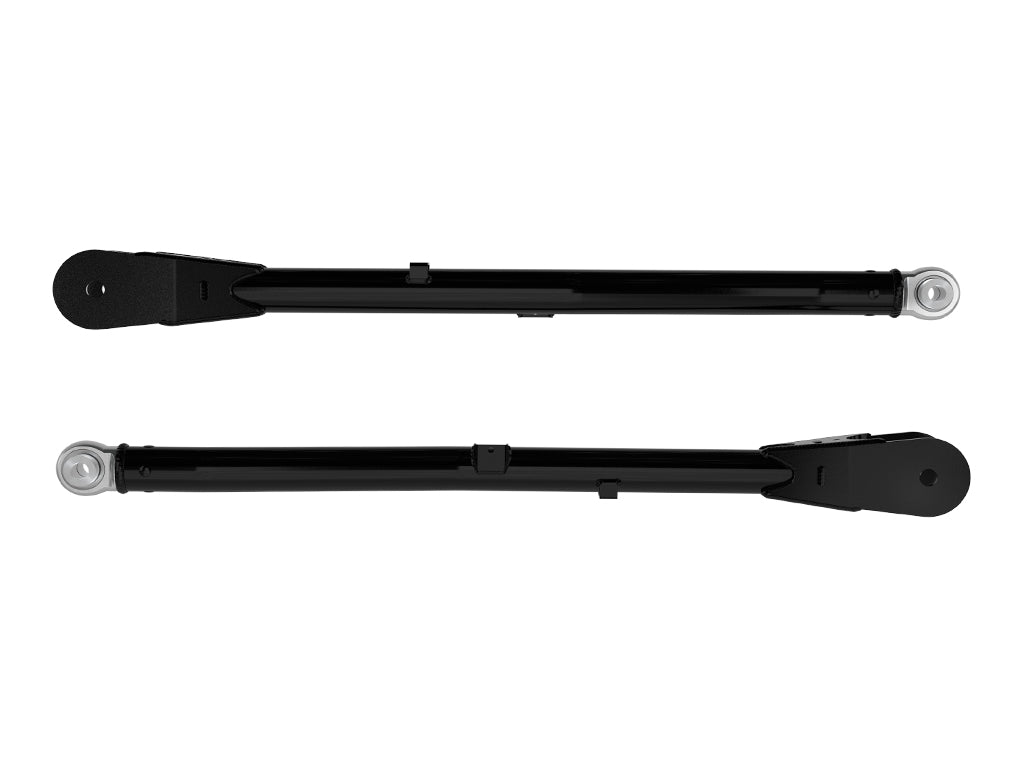

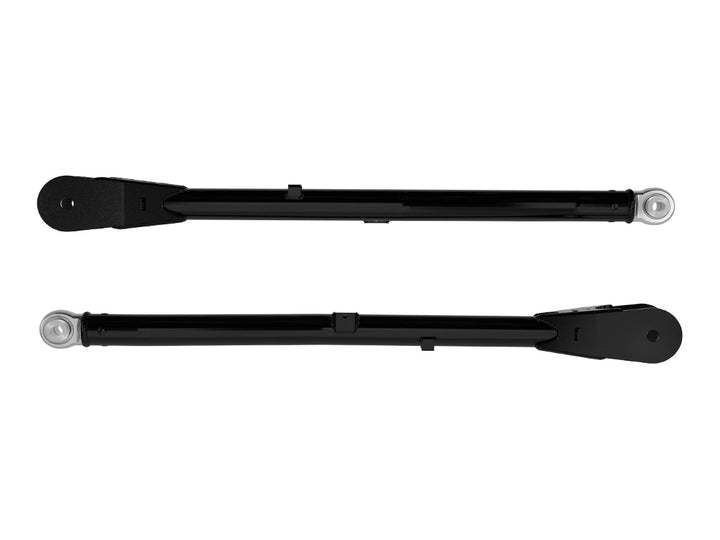

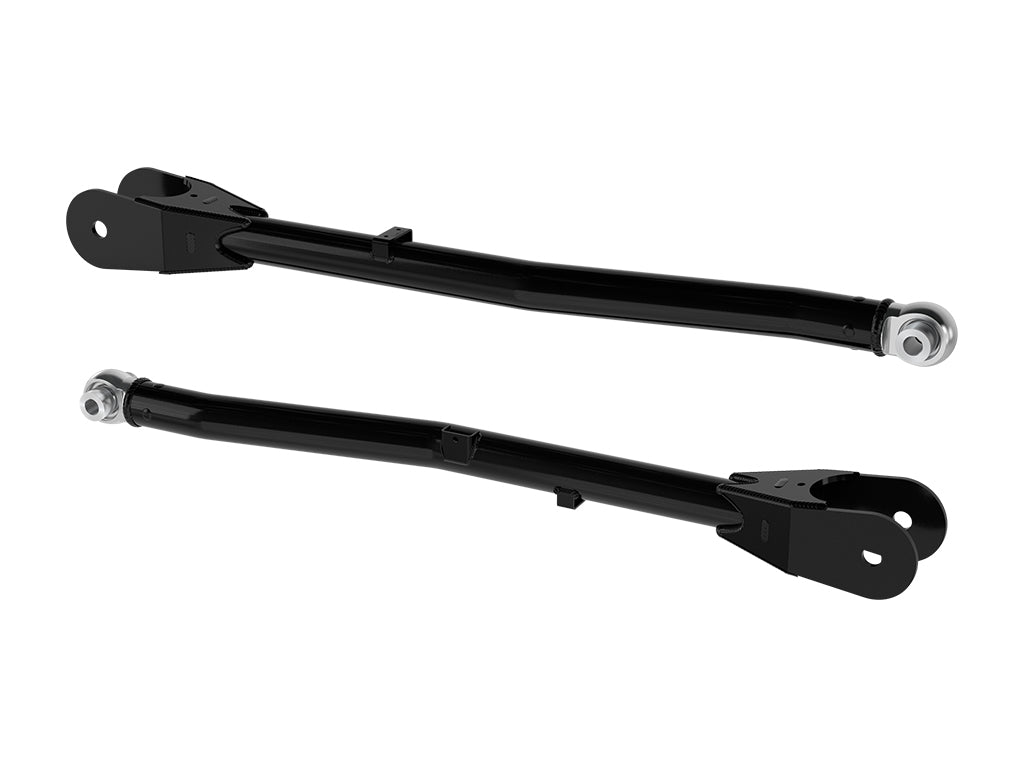

These upper links are an essential component of the ICON 2023-2026 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Specifications:
- Position: Front Upper
- Material: Dom Steel
Required to install (sold separately):
- Also Requires Part Number 164502 and Number 64053
Installation notes:
- Use Up To 37" x 12.50" Tires
- with 2.5" - 7" Suspension Lift
Fits:
- 2023-2026 Ford F-250 Super Duty (4WD, Front Upper) — 6 (mm) Offset Wheels Recommended
- 2023-2026 Ford F-350 Super Duty (Front Upper) — with Dual Rear Wheels (DRW)
- 2023-2026 Ford F-350 Super Duty (4WD, Front Upper) — with Single Rear Wheels (SRW); 6 (mm) Offset Wheels Recommended
Part #: 64052
