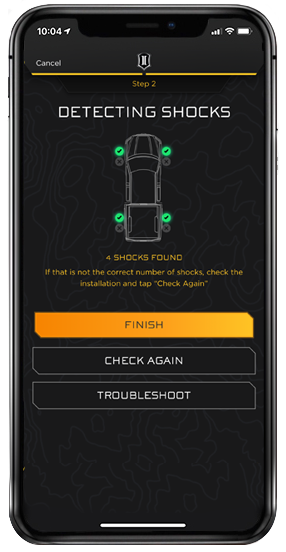

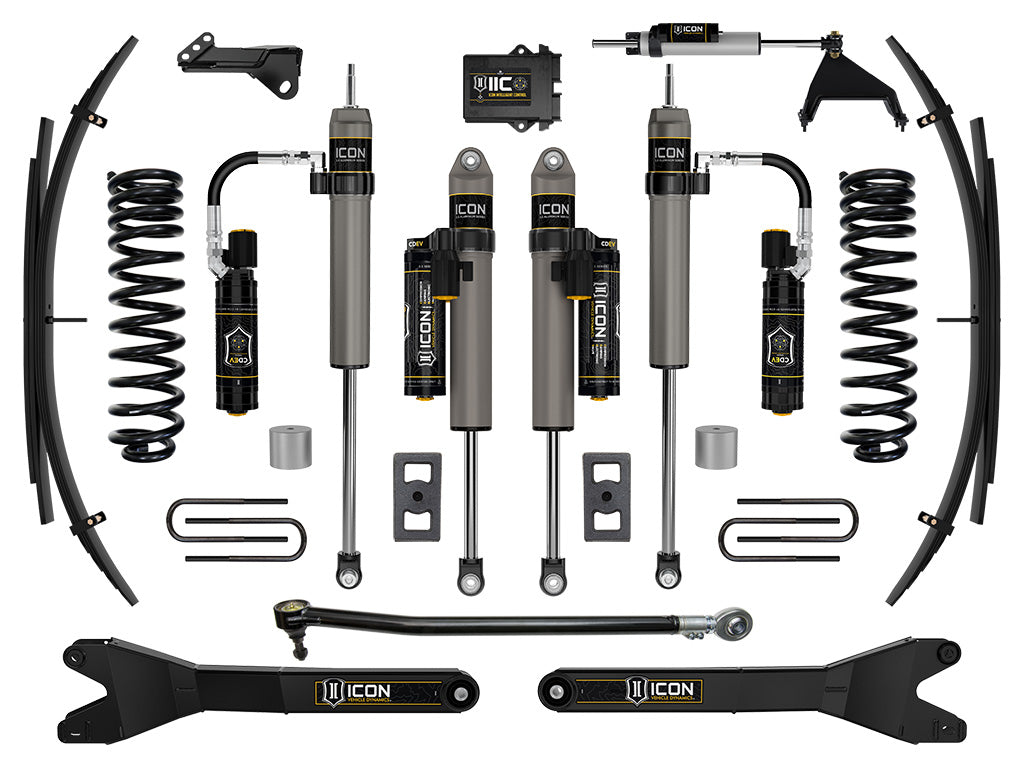

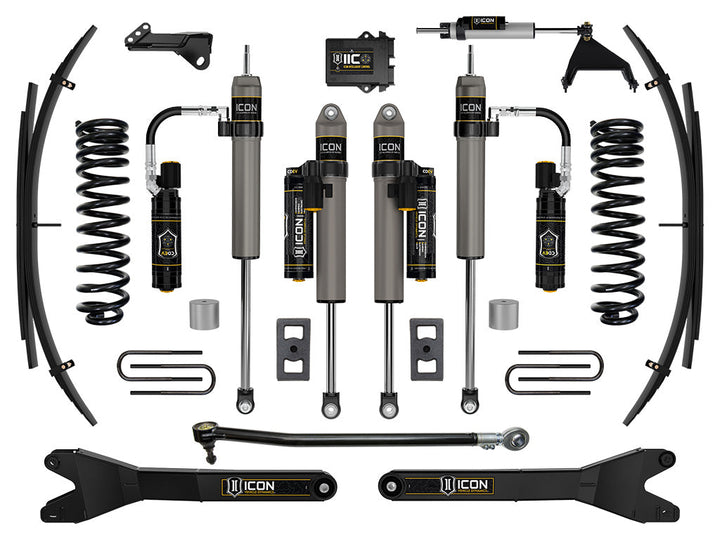

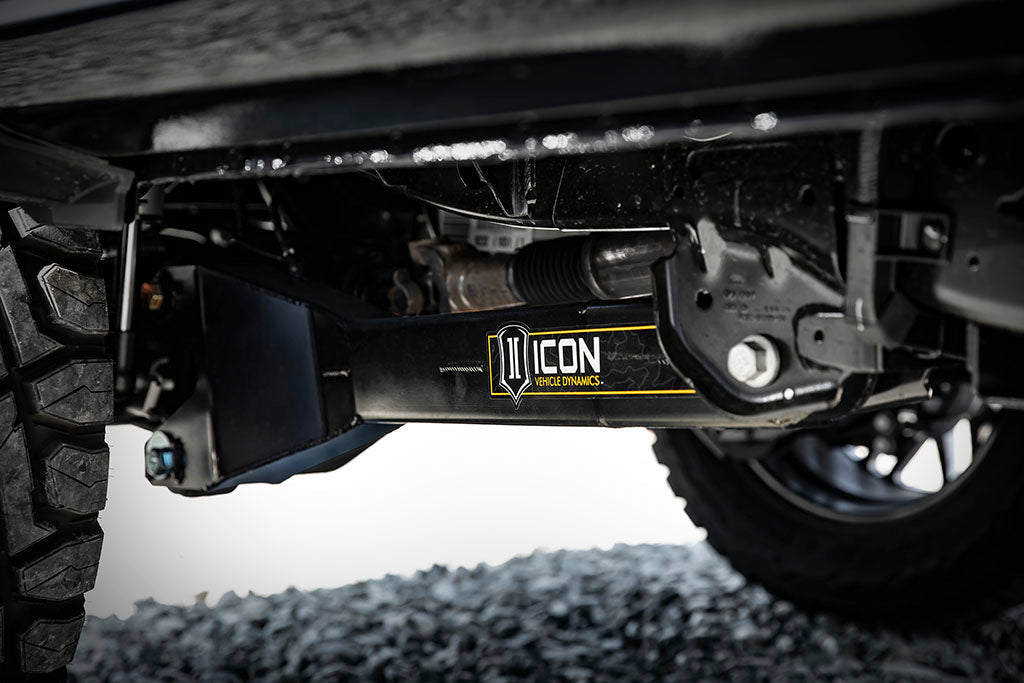

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2026 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 6 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, ICON 2.5" Centerline Steering Stabilizer, on-vehicle adjustable front track bar, bump steer correcting track bar bracket, fabricated radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDEV remote reservoir front and CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use with Extended Brake Line Kit Part Number 61111
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Requires iOS operated device to run ICON Intelligent Control App
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 66203 and Number 611081; Raises Front 1.5"; Raises Rear .5"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; Raises Rear .5"; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Front 1.5"; Raises Rear .5"; without Onboard Scales System; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"; without Onboard Scales System; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 66203 and Number 611081; Raises Front 1.5"; Raises Rear .5"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; Raises Rear .5"; without Tremor Package
- 2023-2024 Ford F-250 Super Duty: Limited (Front and Rear) — Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; Raises Rear .5"
- 2025-2026 Ford F-250 Super Duty: Platinum Plus (Front and Rear) — Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; Raises Rear .5"
- 2023 Ford F-250 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"; without Onboard Scales System
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; Raises Rear .5"
- 2024-2026 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"; without Onboard Scales System
- 2024-2026 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; Raises Rear .5"
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 1.5"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 1.5"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 1.5"; without Onboard Scales System; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 1.5"; with Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 1.5"; without Onboard Scales System; with Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203 and Number 611081; Raises Front 2.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"; without Onboard Scales System
Part #: K65918RL
