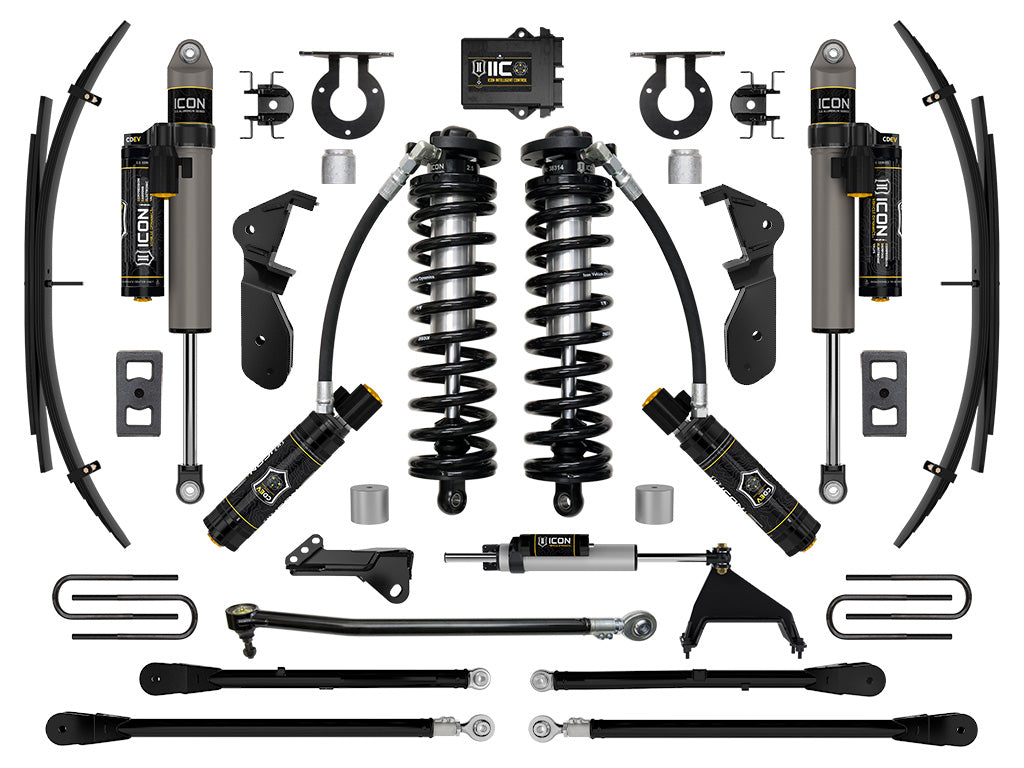

This ICON Vehicle Dynamics 2.5-3” coilover system is a great way to lift your 4WD 2023-2026 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON's Stage 6 System is comprised of ICON 2.5 Series CDEV remote reservoir coilovers with adjustable ride height, ICON 2.5 Centerline Steering Stabilizer, on vehicle adjustable track bar, bump steer correcting track bar drop bracket, fabricated radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.
This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improving performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5-3"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use with Extended Brake Line Kit Part Number 61111
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Requires removal of the coil centering cup in factory coil bucket

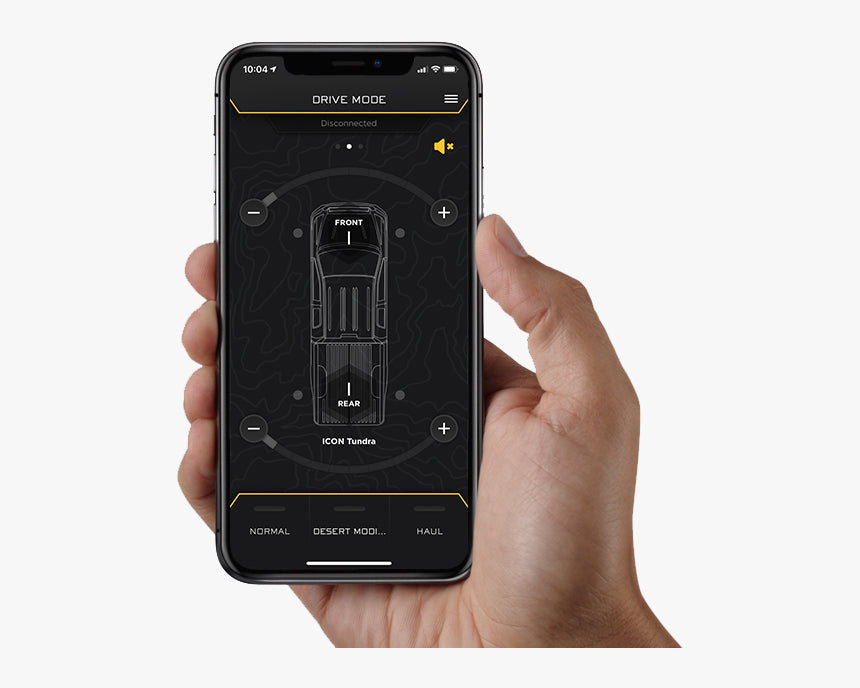

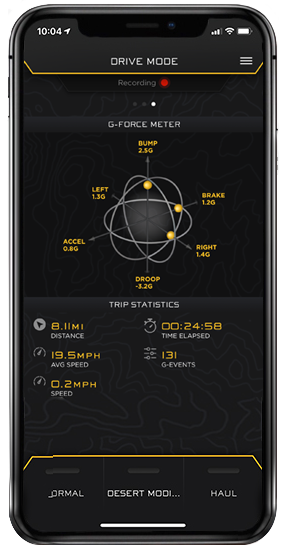

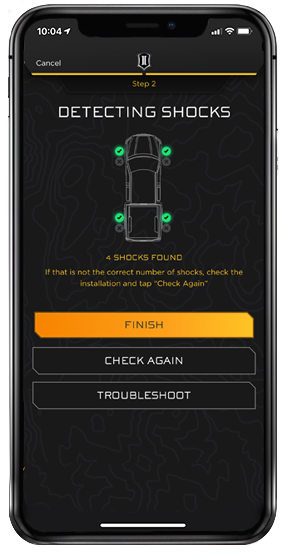

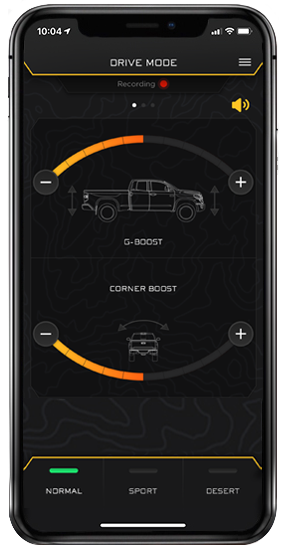

- Requires iOS operated device to run ICON Intelligent Control App
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2023-2026 Ford F-250 Super Duty: King Ranch (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 1.5" - 3"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 1.5" - 2"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2.5" - 3"; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 1.5" - 2"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"; without Tremor Package
- 2025-2026 Ford F-250 Super Duty: Lariat (6.8L FLEX, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2025-2026 Ford F-250 Super Duty: Lariat (6.8L FLEX, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2025-2026 Ford F-250 Super Duty: Lariat (6.8L FLEX, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2" - 2.5"; with Tremor Package
- 2025-2026 Ford F-250 Super Duty: Lariat (6.8L FLEX, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2024 Ford F-250 Super Duty: Limited (Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"
- 2023-2026 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 1.5" - 2"; with Tremor Package
- 2025-2026 Ford F-250 Super Duty: Platinum Plus (Front and Rear) — Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"
- 2023 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2.5" - 3"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.8L FLEX, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.8L FLEX, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"
- 2023 Ford F-250 Super Duty: XL (4WD, 6.8L GAS, Front and Rear) — Raises Rear .5"; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.8L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 6.8L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"
- 2023 Ford F-250 Super Duty: XL (4WD, 7.3L GAS, Front and Rear) — Raises Rear .5"; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 7.3L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XL (4WD, 7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"
- 2023 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — Raises Rear .5"; Raises Front 2.5" - 3"
- 2024-2026 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 2.5" - 3"
- 2024-2026 Ford F-250 Super Duty: XLT (6.7L DIESEL, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 2.5" - 3"
- 2025-2026 Ford F-250 Super Duty: XLT (6.8L FLEX, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"
- 2025-2026 Ford F-250 Super Duty: XLT (6.8L FLEX, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"
- 2023 Ford F-250 Super Duty: XLT (7.3L GAS, Front and Rear) — Raises Rear .5"; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XLT (7.3L GAS, Front and Rear) — Raises Rear .5"; without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-250 Super Duty: XLT (7.3L GAS, Front and Rear) — with Onboard Scales System; Also Requires Part Number 611081; Raises Rear .5"; Raises Front 3" - 3.5"
- 2023-2026 Ford F-350 Super Duty: King Ranch (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 3"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (7.3L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 2"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 1.5" - 2"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 2"; with Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 1.5" - 2"; with Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"; without Tremor Package
- 2025-2026 Ford F-350 Super Duty: Lariat (4WD, 6.8L GAS, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2025-2026 Ford F-350 Super Duty: Lariat (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2025-2026 Ford F-350 Super Duty: Lariat (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2025-2026 Ford F-350 Super Duty: Lariat (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2" - 2.5"; with Tremor Package
- 2023-2024 Ford F-350 Super Duty: Lariat (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2023-2026 Ford F-350 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 1.5" - 2"; with Tremor Package
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 2.5" - 3"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5" - 3"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 2.5" - 3"
- 2024-2026 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 3" - 3.5"
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, 7.3L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2025-2026 Ford F-350 Super Duty: XLT (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2025-2026 Ford F-350 Super Duty: XLT (4WD, 6.8L GAS, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2025-2026 Ford F-350 Super Duty: XLT (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2025-2026 Ford F-350 Super Duty: XLT (4WD, 6.8L GAS, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
- 2025-2026 Ford F-350 Super Duty: XLT (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 611081; Raises Front 3" - 3.5"
- 2025-2026 Ford F-350 Super Duty: XLT (4WD, 6.8L GAS, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); without Onboard Scales System; Raises Front 3" - 3.5"
Part #: K63206L
