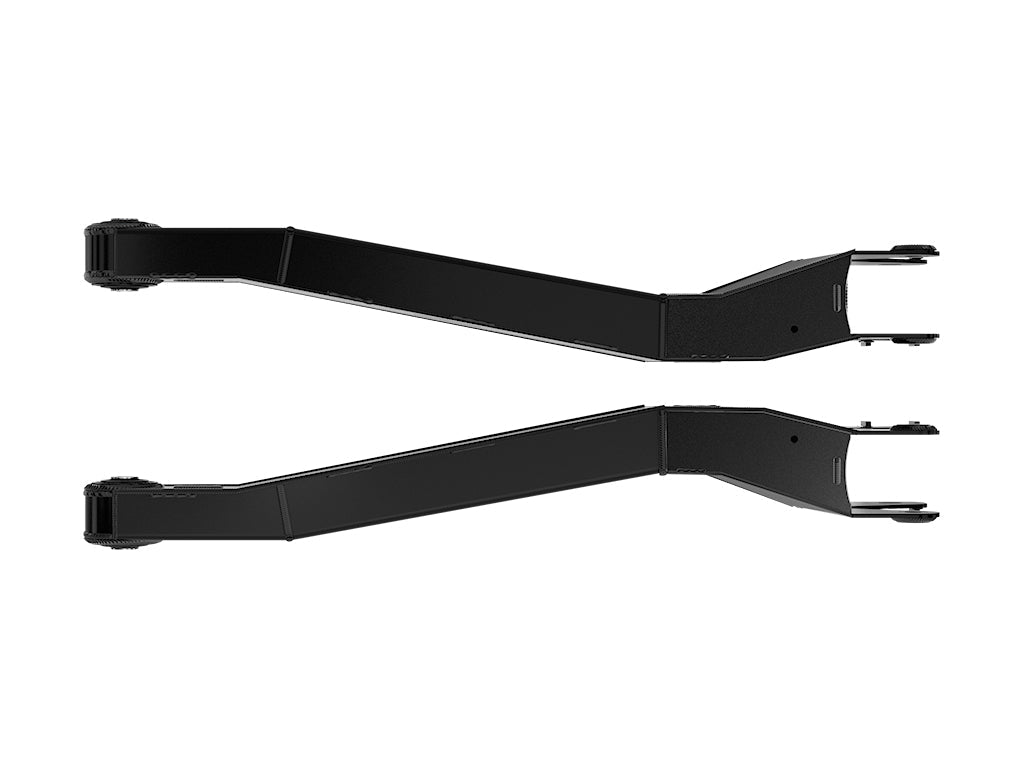

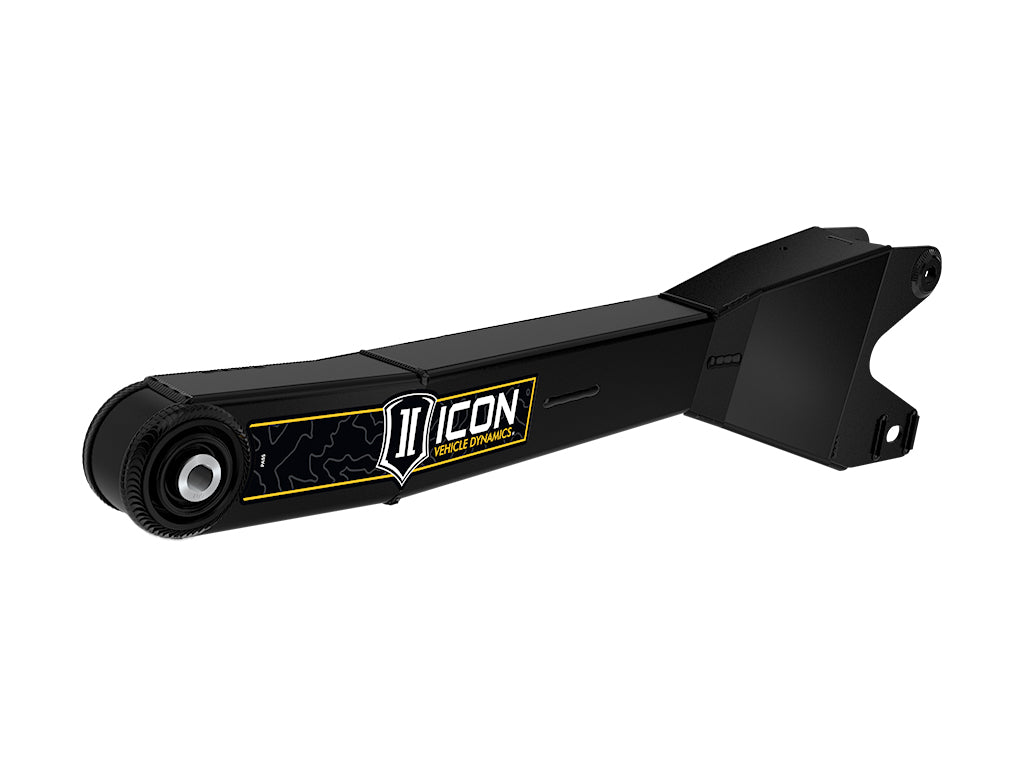

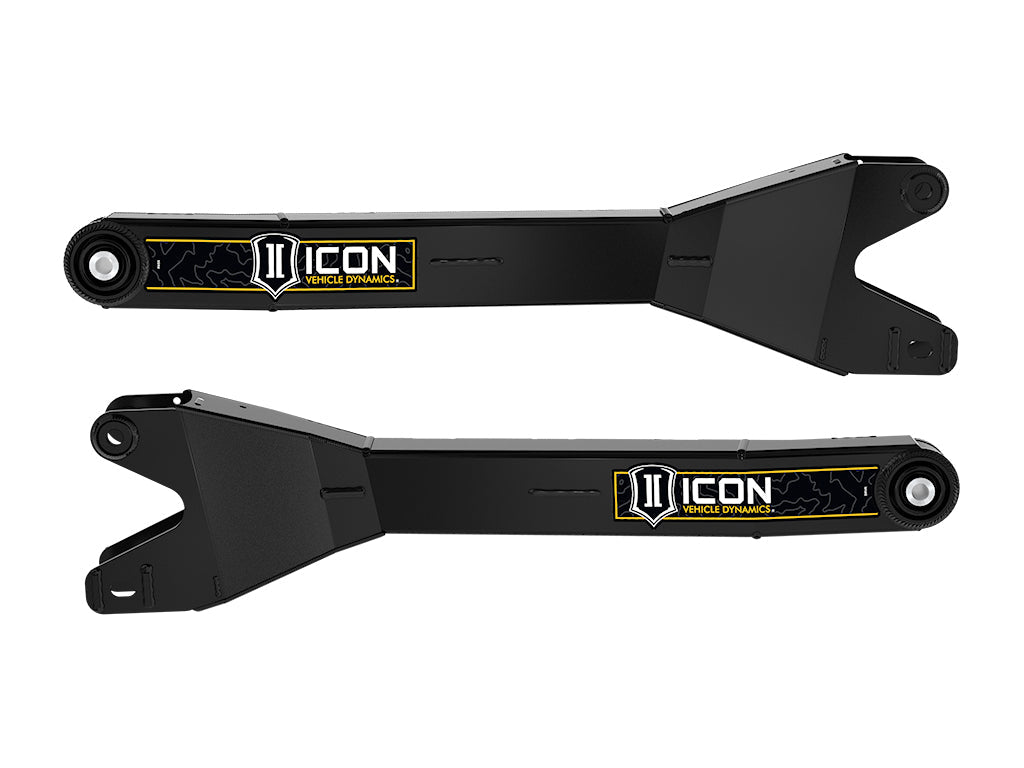

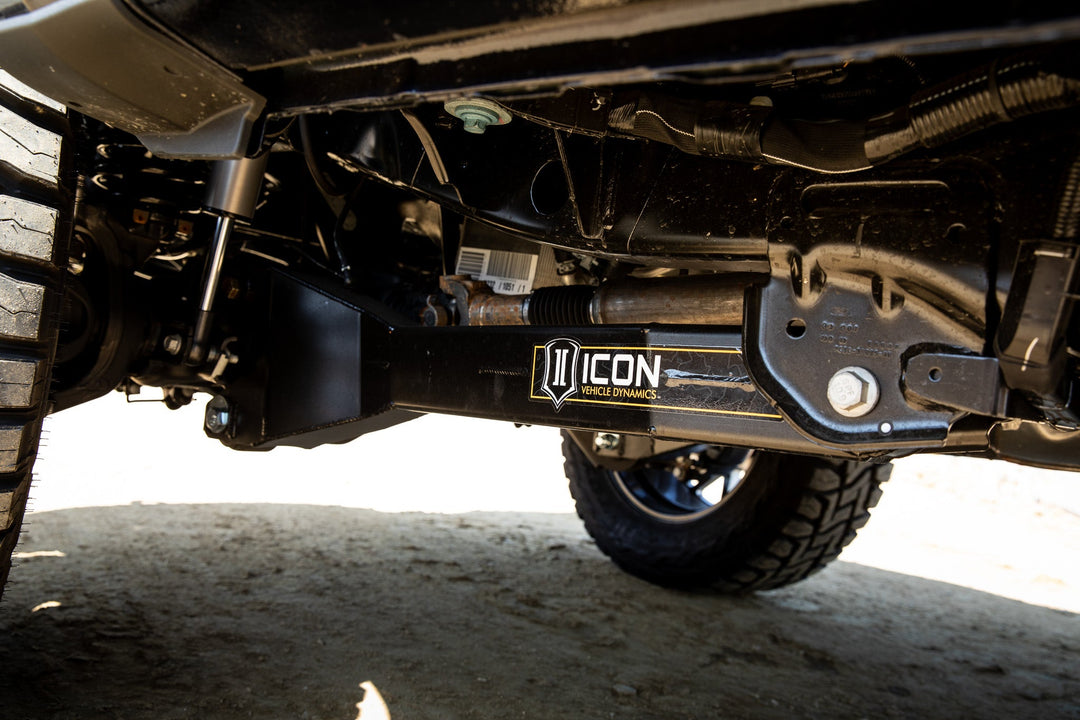

The ICON Vehicle Dynamics Ford 2023-2026 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams allowing fine tuning of caster angle for optimum drivability. Their added caster allows for use with 2-6” of front lift over stock with the radius arm installed in the factory pivot, eliminating the need for caster bushings or radius arm drop brackets. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. For trucks equipped with OnBoard Scales ICON also offers sensor linkage brackets for specific height ranges that allows attachment of the OE sensor linkages to the ICON radius arm, ensuring proper function of that system.
Specifications:
- Lift height: 2-5.5"
- Position: Front
- Material: Steel
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Use Up To 37" x 12.50" Tires
Fits:
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (Front) — Also Requires Part Number 66203; with 1" - 2.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (Front) — Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (Front) — Also Requires Part Number 66204; with 3" - 5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: King Ranch, Platinum (Front) — Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (Front) — with 1" - 5" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (Front) — with 2" - 6" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (Front) — with OnBoard Scales; Also Requires Part Number 66203; with 1" - 2.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (Front) — with OnBoard Scales; Also Requires Part Number 66204; with 3" - 5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (Front) — with Onboard Scales System; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-250 Super Duty: Lariat (Front) — with Onboard Scales System; Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2024 Ford F-250 Super Duty: Limited (Front) — Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford F-250 Super Duty: Limited (Front) — Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023 Ford F-250 Super Duty: XL (4WD, Front) — with 2" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-250 Super Duty: XL (4WD, Front) — with 2" - 6" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-250 Super Duty: XL (4WD, Front) — with OnBoard Scales; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-250 Super Duty: XL (4WD, Front) — with OnBoard Scales; Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023 Ford F-250 Super Duty: XLT (Front) — with 2" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-250 Super Duty: XLT (Front) — with 2" - 6" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-250 Super Duty: XLT (Front) — with OnBoard Scales; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-250 Super Duty: XLT (Front) — with OnBoard Scales; Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (Front) — with Dual Rear Wheels (DRW); Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2023-2026 Ford F-350 Super Duty: King Ranch (Front) — with Dual Rear Wheels (DRW); Also Requires Part Number 66203; with 4" - 6" Suspension Lift
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (Front) — with Single Rear Wheels (SRW); Also Requires Part Number 66203; with 1" - 2.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (Front) — with Single Rear Wheels (SRW); Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (Front) — with Single Rear Wheels (SRW); Also Requires Part Number 66204; with 3" - 5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: King Ranch, Platinum (Front) — with Single Rear Wheels (SRW); Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Dual Rear Wheels (DRW); with 2" - 6" Suspension Lift; without Onboard Scales System
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Dual Rear Wheels (DRW); with OnBoard Scales; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Dual Rear Wheels (DRW); with OnBoard Scales; Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with OnBoard Scales; with Single Rear Wheels (SRW); Also Requires Part Number 66203; with 1" - 2.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with OnBoard Scales; with Single Rear Wheels (SRW); Also Requires Part Number 66204; with 3" - 5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Onboard Scales System; with Single Rear Wheels (SRW); Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Single Rear Wheels (SRW); with 1" - 5" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended; with Tremor Package
- 2023-2026 Ford F-350 Super Duty: Lariat (4WD, Front) — with Single Rear Wheels (SRW); with 2" - 6" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended; without Tremor Package
- 2023-2024 Ford F-350 Super Duty: Limited (Front) — with Dual Rear Wheels (DRW); Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2023-2024 Ford F-350 Super Duty: Limited (Front) — with Dual Rear Wheels (DRW); Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2023 Ford F-350 Super Duty: Limited (Front) — with Single Rear Wheels (SRW); Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford F-350 Super Duty: Limited (Front) — with Single Rear Wheels (SRW); Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford F-350 Super Duty: Platinum (Front) — with Dual Rear Wheels (DRW); Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with Dual Rear Wheels (DRW); with 2" - 6" Suspension Lift
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with Dual Rear Wheels (DRW); with 2" - 6" Suspension Lift; without Onboard Scales System
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with Dual Rear Wheels (DRW); with OnBoard Scales; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with Dual Rear Wheels (DRW); with OnBoard Scales; Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with OnBoard Scales; with Single Rear Wheels (SRW); Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with OnBoard Scales; with Single Rear Wheels (SRW); Also Requires Part Number 66204; with 4" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with Single Rear Wheels (SRW); with 2" - 6" Suspension Lift; 6 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Ford F-350 Super Duty: XL, XLT (4WD, Front) — with Single Rear Wheels (SRW); with 2" - 6" Suspension Lift; without Onboard Scales System; 6 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford F-450 Super Duty: King Ranch, Platinum (Front) — Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2023-2026 Ford F-450 Super Duty: King Ranch (Front) — Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2023-2026 Ford F-450 Super Duty: Lariat (4 X 4, Front) — with 2" - 6" Suspension Lift; without Onboard Scales System
- 2023-2026 Ford F-450 Super Duty: Lariat (4 X 4, Front) — with OnBoard Scales; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2023-2026 Ford F-450 Super Duty: Lariat (4 X 4, Front) — with OnBoard Scales; Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2023-2024 Ford F-450 Super Duty: Limited (Front) — Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2023-2024 Ford F-450 Super Duty: Limited (Front) — Also Requires Part Number 66204; with 4" - 6" Suspension Lift
- 2023-2026 Ford F-450 Super Duty: Platinum (Front) — Also Requires Part Number 66204; with 4" - 6 Suspension Lift
- 2023 Ford F-450 Super Duty: XL, XLT (4 X 4, Front) — with 2" - 6" Suspension Lift
- 2024-2026 Ford F-450 Super Duty: XL, XLT (4 X 4, Front) — with 2" - 6" Suspension Lift; without Onboard Scales System
- 2024-2026 Ford F-450 Super Duty: XL, XLT (4 X 4, Front) — with OnBoard Scales; Also Requires Part Number 66203; with 2" - 3.5" Suspension Lift
- 2024-2026 Ford F-450 Super Duty: XL, XLT (4 X 4, Front) — with OnBoard Scales; Also Requires Part Number 66204; with 4" - 6" Suspension Lift
Part #: 64043
