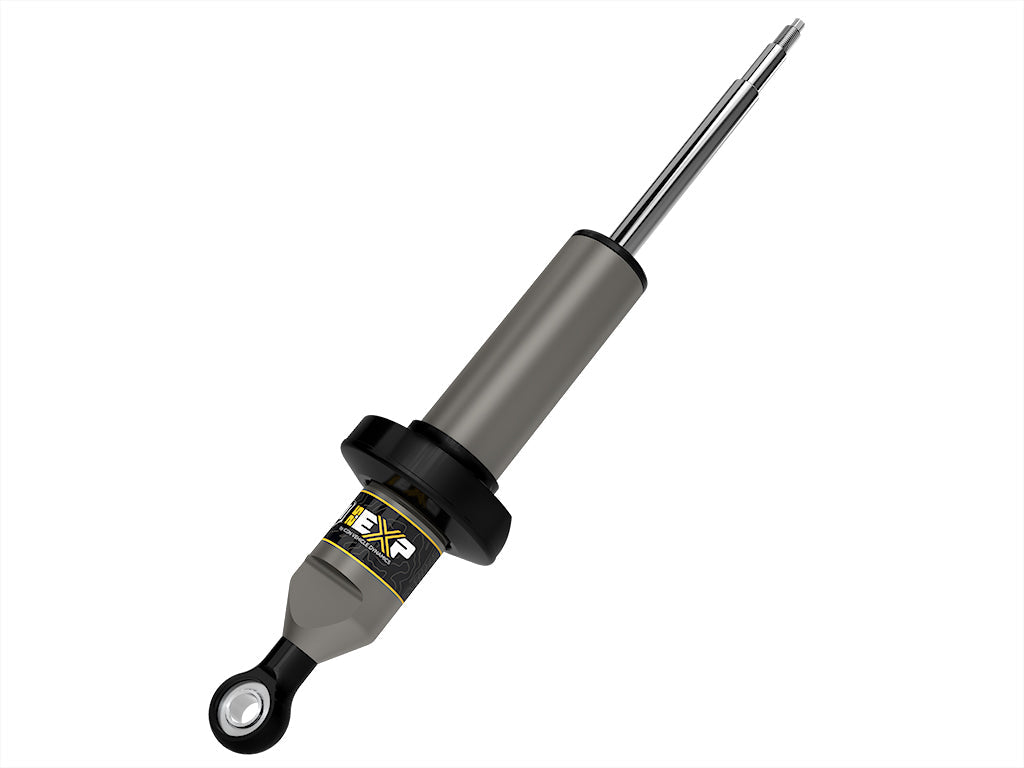

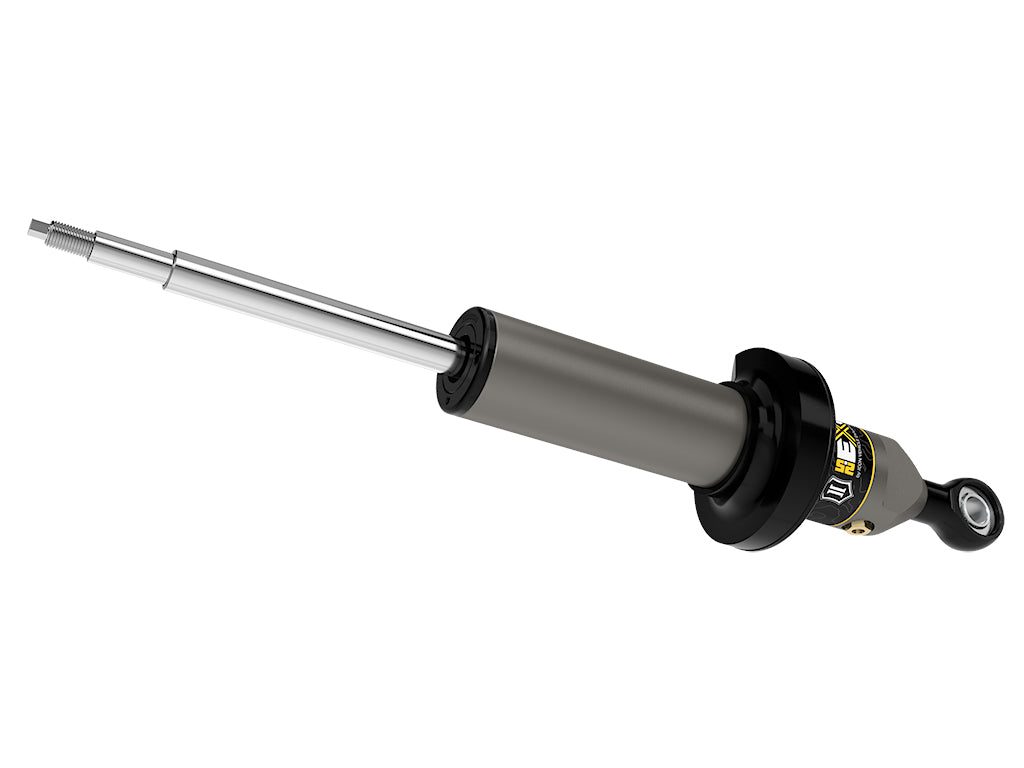

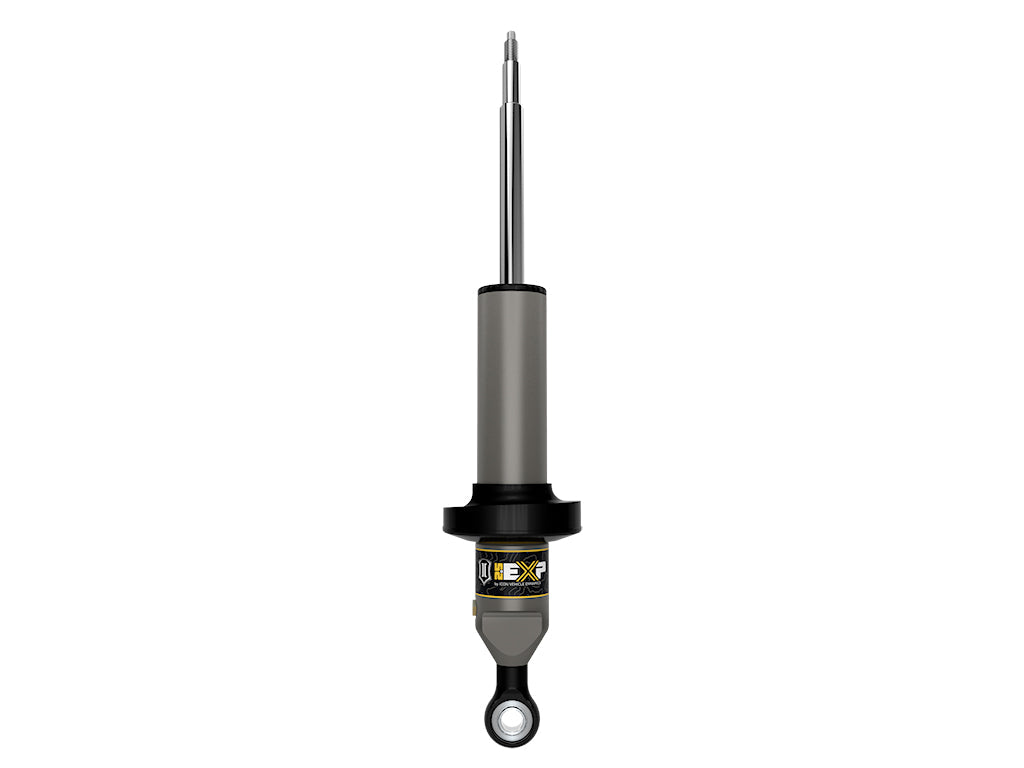

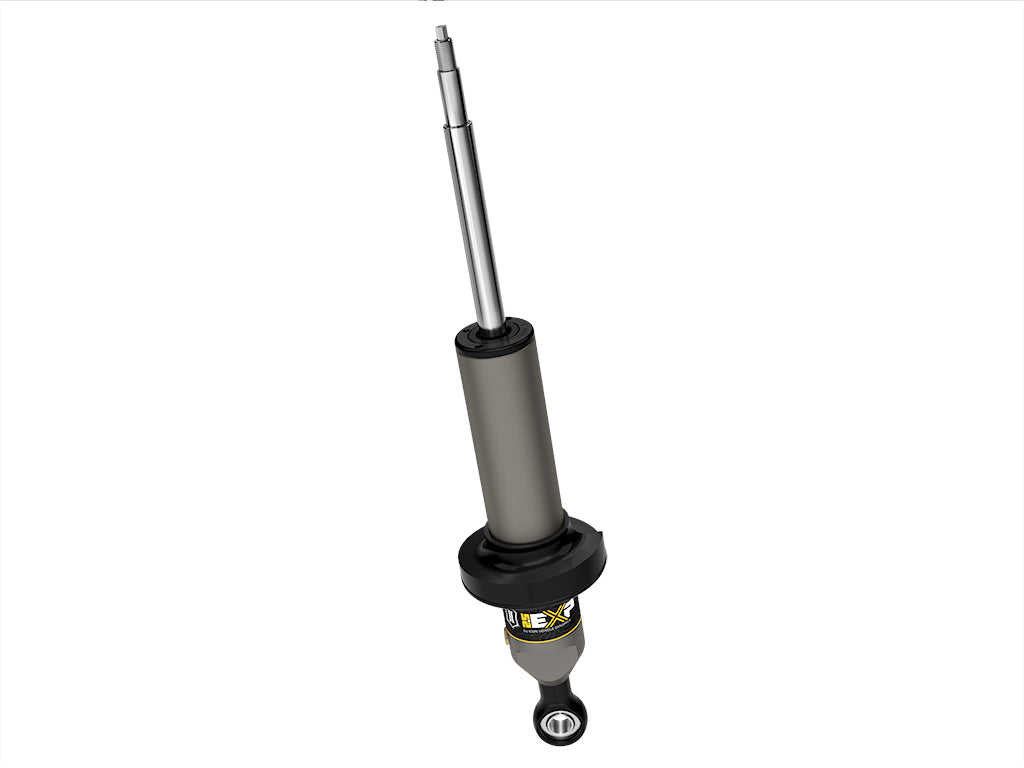

The 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle’s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3” of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Specifications:
- Position: Front
- Extended length: 21.21"
- Material: Aluminum, Steel
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 0" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2025-2026 Toyota Sequoia: 1794 Edition (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Capstone (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 0" - 3"; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Capstone, Platinum (RWD, Front) — Also Requires Part Number 55154; Raises Front 0" - 3"; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 0" - 3"; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Front) — Also Requires Part Number 55154; Raises Front 0" - 3"
- 2023 Toyota Sequoia: Platinum (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 0" - 3"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 0" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1"; with TRD Off Road Package
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1"
- 2023 Toyota Sequoia: TRD Off-Road (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1"
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road, SR5 TRD Off-Road (Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"
- 2022-2023 Toyota Tundra: Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2023 Toyota Tundra: Platinum (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2023 Toyota Tundra: Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2023 Toyota Tundra: Platinum (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Tundra: Platinum (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition (Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (4WD, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"
- 2022-2026 Toyota Tundra: SR (RWD, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"
- 2022-2024 Toyota Tundra: SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package; without TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 3.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 3.25 in over stock; Raises Front 1" - 4"; with TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (4WD, Front) — with TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"
- 2025-2026 Toyota Tundra: SR5 (4WD, Front) — without TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package; without TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 3.25 in over stock; Also Requires Part Number 55154 for lift heights above 3.25 in over stock; Raises Front 1" - 4"; with TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (RWD, Front) — with TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"
- 2025-2026 Toyota Tundra: SR5 (RWD, Front) — without TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 3"; without TRD Off Road Package
- 2024-2025 Toyota Tundra: TRD Off-Road (Front) — Requires ICON front upper control arms for lift heights above 2.25 in over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25 in over stock; Raises Front 0" - 2.5"
Part #: 58671
