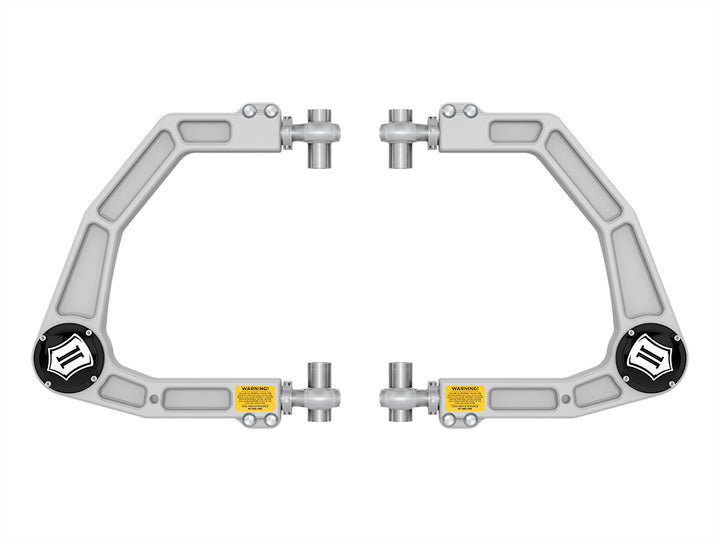

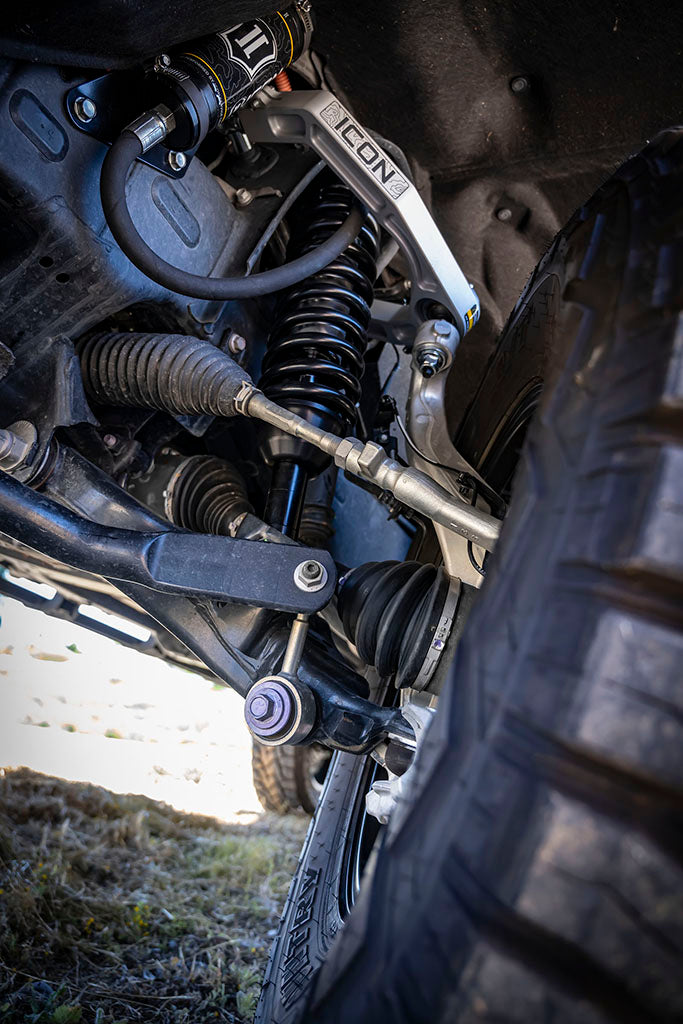

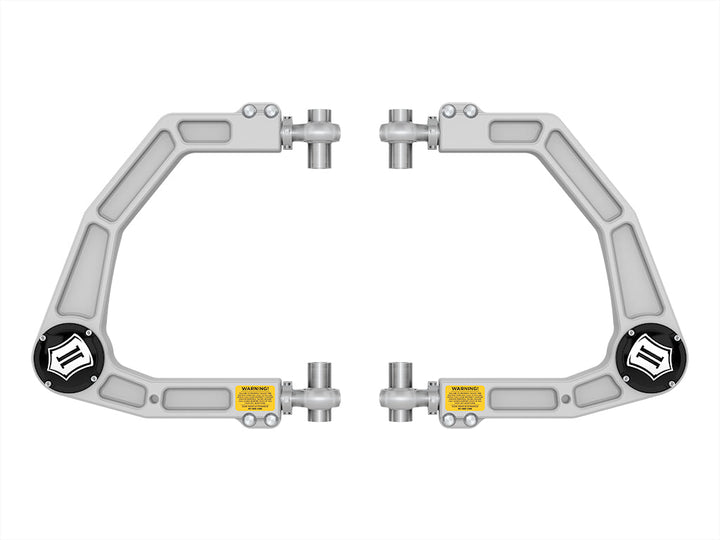

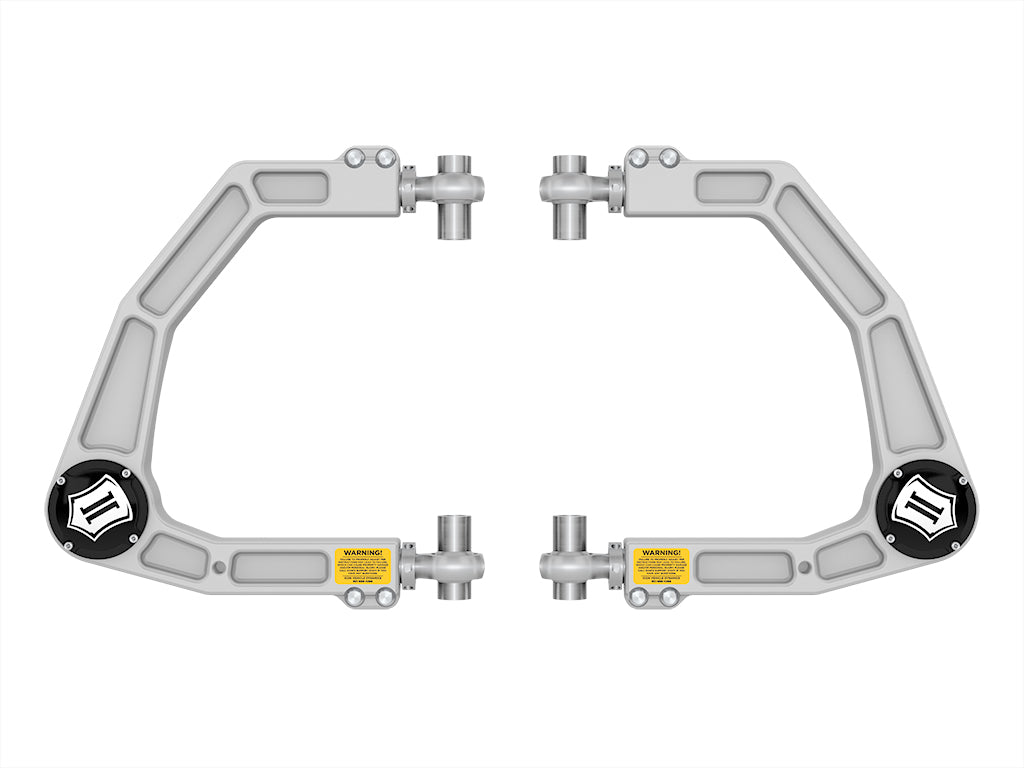

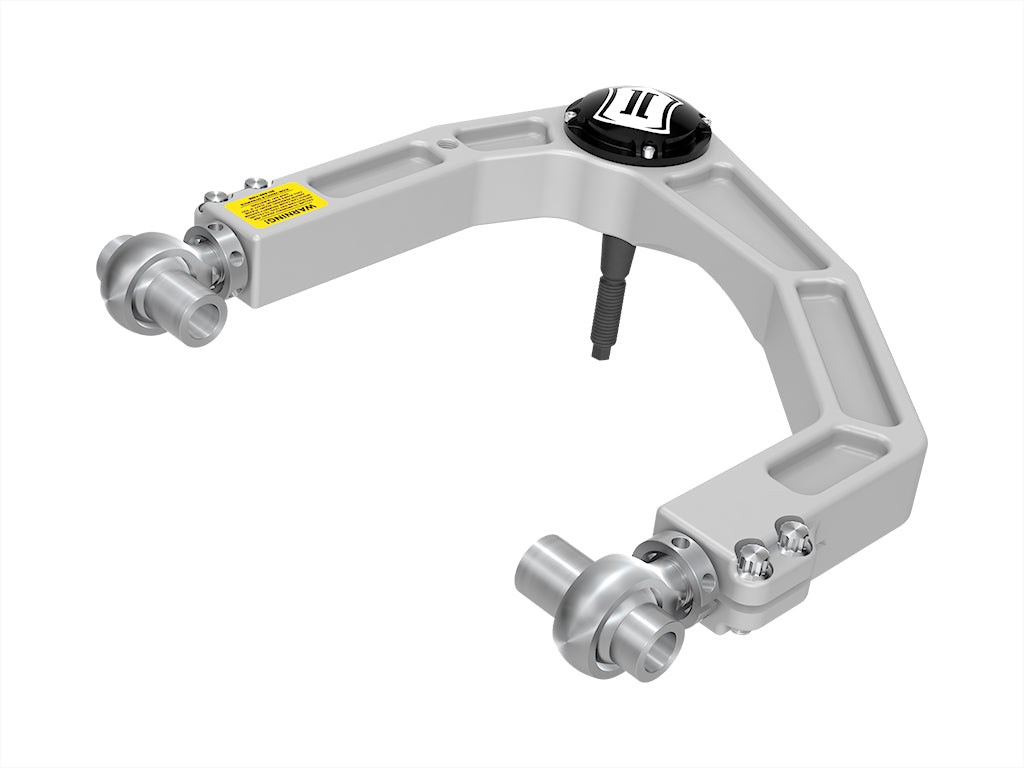

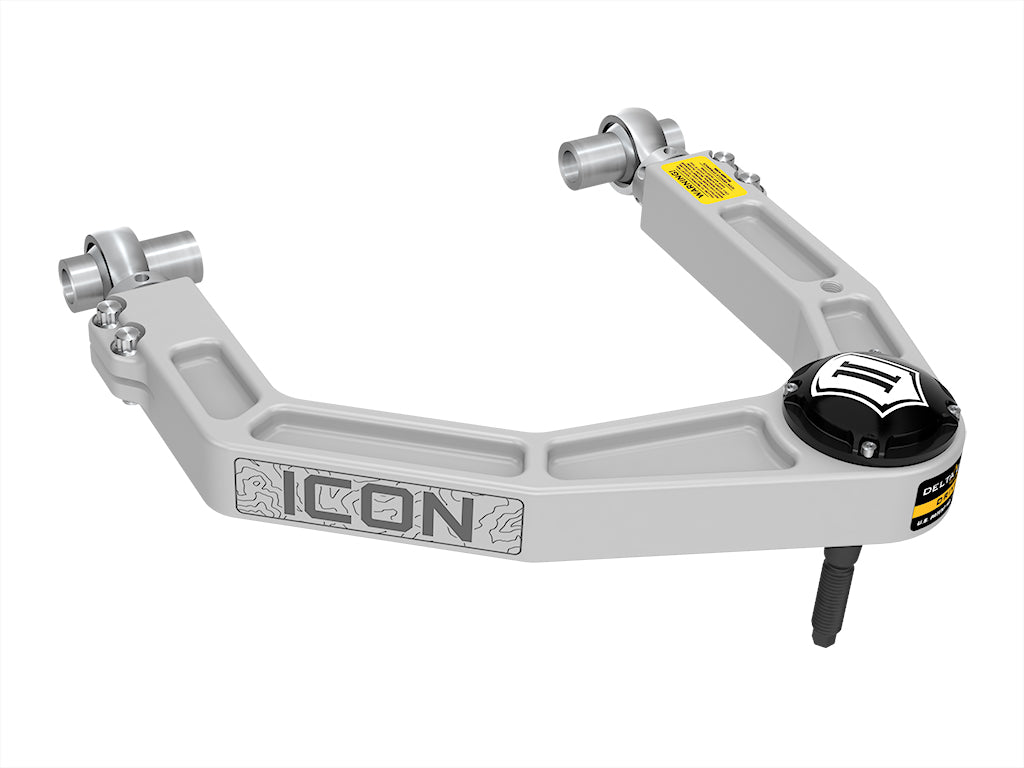

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia.
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Specifications:
- Position: Front Upper
- Finish: Anodized
- Material: Aluminum, Steel
Fits:
- 2025 Toyota Sequoia: 1794 Edition (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 2.5" Suspension Lift; with TRD Off Road Package; 25 (mm) Offset Aftermarket Wheels Recommended
- 2025 Toyota Sequoia: 1794 Edition (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; without TRD Off Road Package; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Toyota Sequoia: Capstone (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 2.5" Suspension Lift; with TRD Off Road Package; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; without TRD Off Road Package; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 2.5" Suspension Lift; with TRD Off Road Package; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023 Toyota Sequoia: Platinum (4WD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; without TRD Off Road Package; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023-2025 Toyota Sequoia: Platinum (RWD, Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023 Toyota Sequoia: TRD Off-Road (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 2.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Toyota Sequoia: TRD Pro (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 2.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2026 Toyota Tundra: 1794 Edition, Capstone, Limited, Platinum, SR (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 3.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2026 Toyota Tundra: 1794 Edition, Limited, Platinum, SR, SR5 (Coil rear springs, Front Upper) — Use Up To 37" x 12.50" Tires; Cannot be Used with Any Wheel with a Diameter Less than 20"; with ICON 6 in Lift Performance Suspension System; 16 (mm) Offset Aftermarket Wheels Recommended
- 2022-2026 Toyota Tundra: Capstone, TRD Pro (Front Upper) — Use Up To 37" x 12.50" Tires; Cannot be Used with Any Wheel with a Diameter Less than 20"; with ICON 6 in Lift Performance Suspension System; 16 (mm) Offset Aftermarket Wheels Recommended
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road, SR5 TRD Off-Road (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 3.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front Upper) — Use Up To 37" x 12.50" Tires; Cannot be Used with Any Wheel with a Diameter Less than 20"; with ICON 6 in Lift Performance Suspension System; 16 (mm) Offset Aftermarket Wheels Recommended
- 2022 Toyota Tundra: Platinum 1794 Edition (Front Upper) — Up to 25 (mm) Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 3.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022 Toyota Tundra: Platinum 1794 Edition, SR5 TRD Off-Road (Front Upper) — Use Up To 37" x 12.50" Tires; Cannot be Used with Any Wheel with a Diameter Less than 20"; with ICON 6 in Lift Performance Suspension System; 16 (mm) Offset Aftermarket Wheels Recommended
- 2025-2026 Toyota Tundra: SR5 (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 3.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2024 Toyota Tundra: SR5 (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 3.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended; without TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 4.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended; with TRD Sport Package
- 2024-2025 Toyota Tundra: TRD Off-Road (Front Upper) — Up to 35x12.50" Tire with Minor Fender Trimming; with OE Steering Knuckles; with 0" - 3.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2026 Toyota Tundra: TRD Pro (Front Upper) — Use Up To 35" x 12.50" Tires; with OE Steering Knuckles; with 0" - 1.5" Suspension Lift; 25 (mm) Offset Aftermarket Wheels Recommended
Part #: 58561DJ
