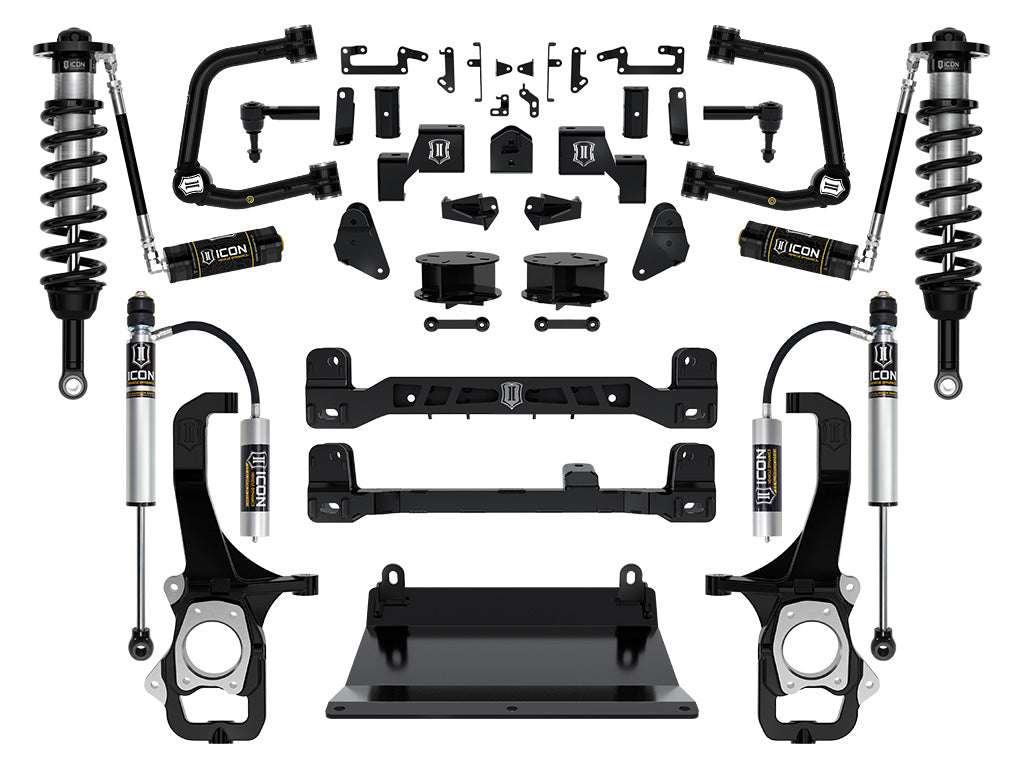

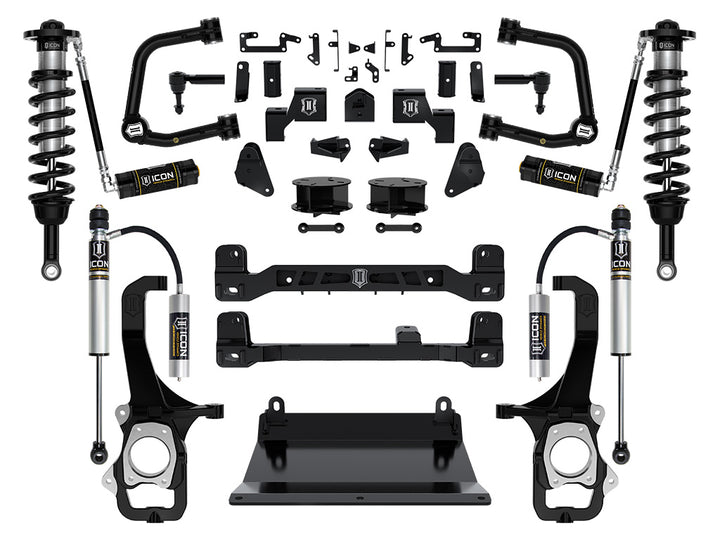

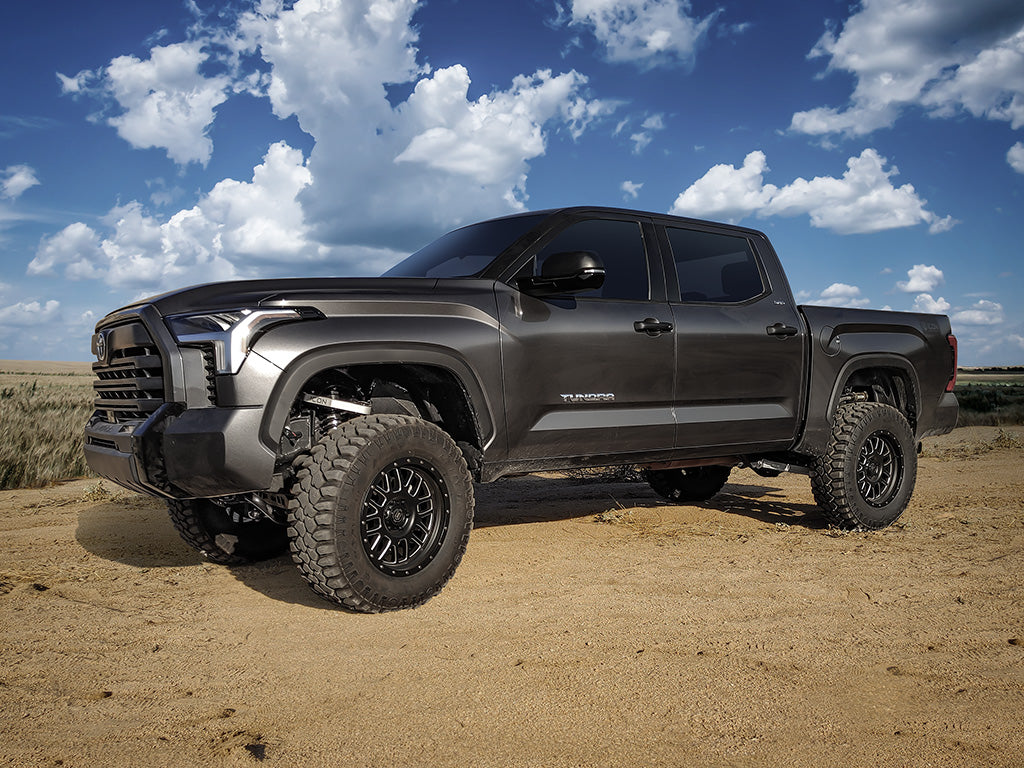

The ICON Vehicle Dynamics Stage 3 6" Suspension System is engineered to maximize the capability of the 2022-2026 Toyota Tundra, delivering exceptional ride quality, increased wheel travel, and the durability required for serious off-road use. Vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs provide outstanding damping performance while increasing fluid capacity and improving heat dissipation for consistent performance during extended off-road driving. The system delivers up to a 40% increase in front wheel travel over stock without overstressing OE suspension components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, preserving ground clearance while minimizing CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate deliver the strength and protection needed for demanding off-road use. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. Completing the package are ICON 2.0 Aluminum Series rear shocks with remote reservoirs, providing a balanced rear suspension tune along with increased fluid volume and improved cooling to maintain consistent damping under sustained abuse, while the rear coil spring spacer kit retains the factory rear springs for a cost-effective lift solution. The result is a complete, vehicle-specific suspension system that delivers outstanding on-road comfort, confident handling, and uncompromising off-road performance with the clearance to fit 37-inch tires at full articulation.
Specifications:
- Lift height: 6"
- Rear lift: 3"
- Position: Front and Rear
Installation notes:
- Use Up To 37" x 12.50" Tires
- Cannot be Used with Any Wheel with a Diameter Less than 20"
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Rear 3"
- 16 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2026 Toyota Tundra: 1794 Edition, Limited (3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — Raises Front 4.5" - 5.5"
- 2022-2026 Toyota Tundra: 1794 Edition, Limited (3.4L GAS, Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2022-2026 Toyota Tundra: Platinum (3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — Raises Front 4.5" - 5.5"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (3.4L GAS, Coil rear springs, Front and Rear) — Raises Front 5" - 6"; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition, SR5 TRD Off-Road (Front and Rear) — Raises Front 5" - 6"
- 2022-2026 Toyota Tundra: SR (Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — Raises Front 5" - 6"; without TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — Raises Front 6" - 7"; with TRD Sport Package
- 2025 Toyota Tundra: TRD Off-Road (Front and Rear) — Raises Front 4.5" - 5.5"
- 2022-2026 Toyota Tundra: TRD Pro (Front and Rear) — Raises Front 3.25" - 4.25"
Part #: K53273T
