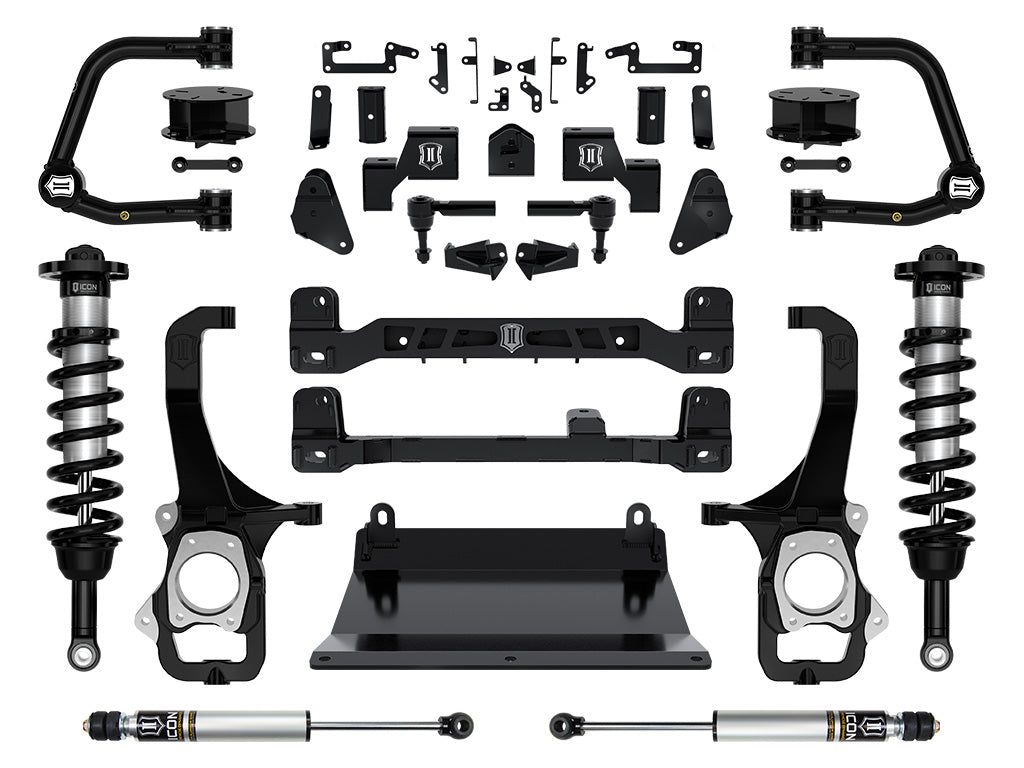

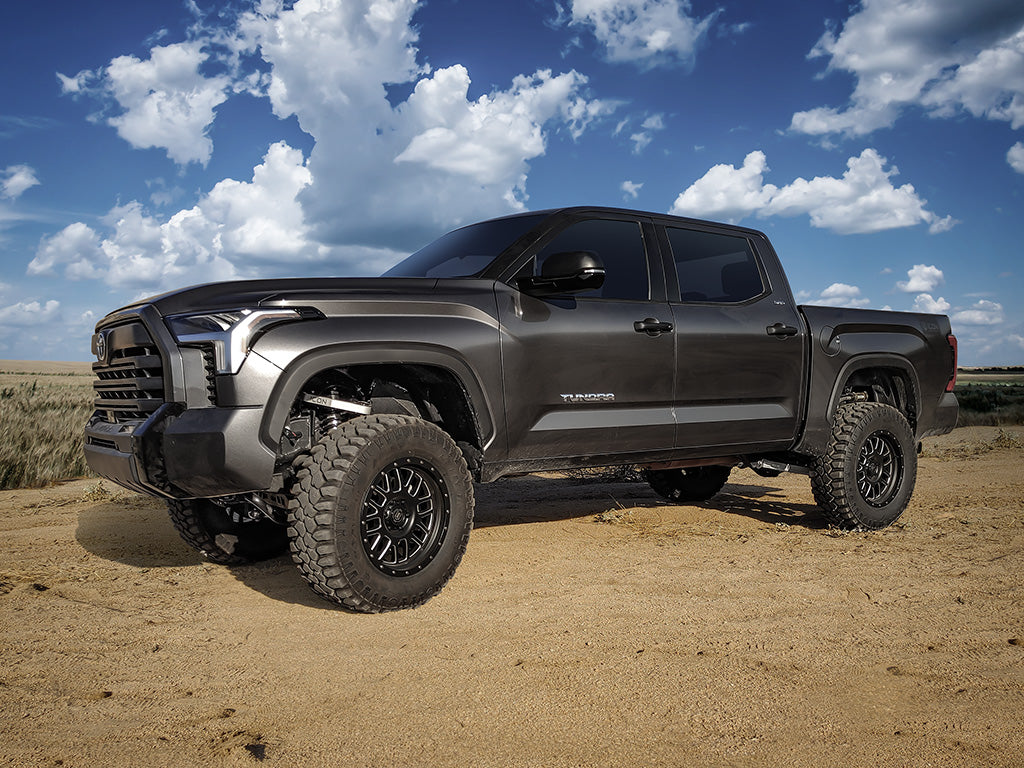

The ICON Vehicle Dynamics Stage 2 6" Suspension System is engineered to transform the 2022-2026 Toyota Tundra into a highly capable on- and off-road performer while providing the clearance to run 37-inch tires at full articulation. Vehicle-specific tuned 2.5 Series front coilovers with internal reservoirs deliver exceptional damping performance, improved vehicle control, and up to a 40% increase in front wheel travel over stock without overstressing OE suspension components. Adjustable ride height provides 5-6 inches of front lift, while the system's innovative design achieves a full 6 inches of lift with only 4 inches of crossmember drop to maximize ground clearance and minimize CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer characteristic of stock Tundras.
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate deliver the strength and protection needed for aggressive off-road use. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket maintain proper suspension geometry and reduce bind throughout the suspension's travel. Completing the package are ICON 2.0 Aluminum Series rear shocks and a rear coil spring spacer kit that retains the factory rear springs while providing a balanced rear suspension tune to complement the front coilovers. The result is a complete suspension system that delivers outstanding ride quality, precise handling, and uncompromising performance both on the highway and on the trail.
Specifications:
- Lift height: 6"
- Rear lift: 3"
- Position: Front and Rear
Installation notes:
- Use Up To 37" x 12.50" Tires
- Cannot be Used with Any Wheel with a Diameter Less than 20"
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Rear 3"
- 16 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2026 Toyota Tundra: 1794 Edition, Limited (3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — Raises Front 4.5" - 5.5"
- 2022-2026 Toyota Tundra: 1794 Edition, Limited (3.4L GAS, Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2022-2026 Toyota Tundra: Platinum (3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — Raises Front 4.5" - 5.5"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (3.4L GAS, Coil rear springs, Front and Rear) — Raises Front 5" - 6"; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition, SR5 TRD Off-Road (Front and Rear) — Raises Front 5" - 6"
- 2022-2026 Toyota Tundra: SR (Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — Raises Front 5" - 6"
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — Raises Front 5" - 6"; without TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — Raises Front 6" - 7"; with TRD Sport Package
- 2025 Toyota Tundra: TRD Off-Road (Front and Rear) — Raises Front 4.5" - 5.5"
- 2022-2026 Toyota Tundra: TRD Pro (Front and Rear) — Raises Front 3.25" - 4.25"
Part #: K53272T
