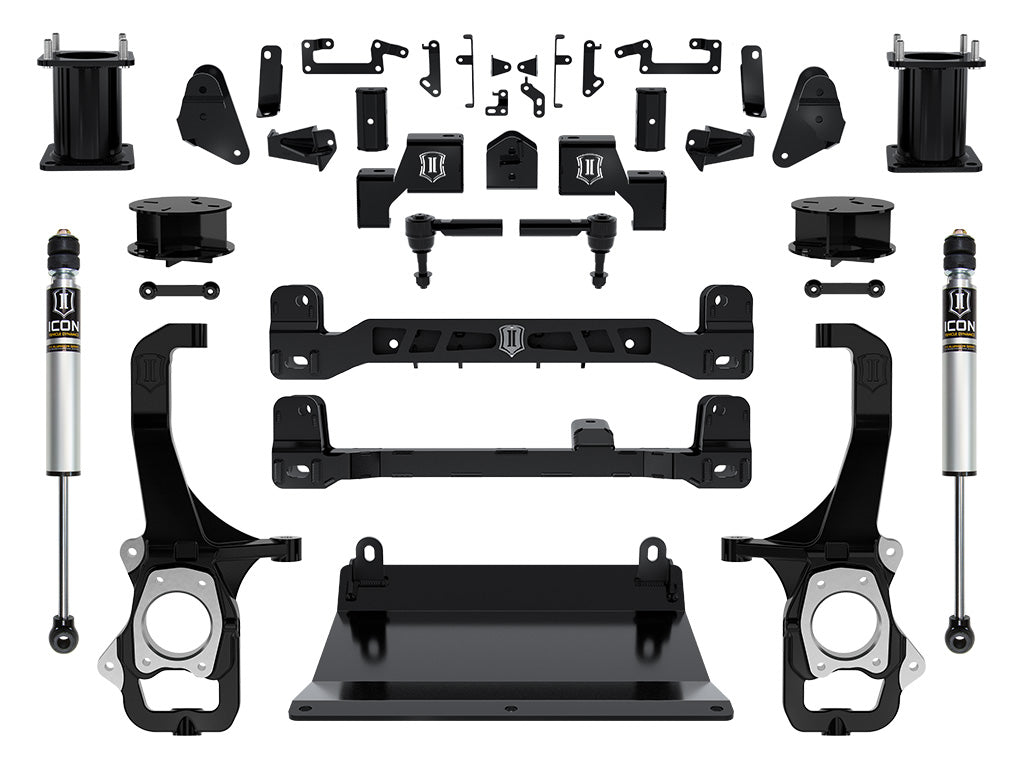

The ICON Vehicle Dynamics Stage 1 6" Suspension System is the ideal entry point into ICON's premium suspension lineup for the 2022-2026 Toyota Tundra, delivering the clearance, strength, and suspension geometry needed to fit 37-inch tires while maintaining outstanding on- and off-road performance. Designed to preserve factory track width and optimize steering geometry, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, minimizing CV joint angles while maximizing ground clearance and suspension travel. Heavy-duty steel front coilover spacers work with the factory front coilovers, while a rear coil spring spacer kit retains the OE rear springs for an economical, well-balanced lift. High-strength, one-piece ductile iron steering knuckles, high-clearance 1/4-inch CNC laser-cut and brake-formed steel crossmembers, and an integrated front skid plate provide exceptional durability for demanding off-road use. Included sway bar drop brackets, front and rear heavy-duty bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to reduce suspension bind and maintain proper geometry throughout suspension travel. High-angle outer tie rods with greaseable metal-on-metal rod ends improve steering durability and articulation, while ICON 2.0 Aluminum Series rear shocks deliver enhanced damping performance and control over stock. As with every ICON 6" Tundra Suspension System, Stage 1 is engineered as a complete, vehicle-specific package that delivers excellent ride quality, confident handling, and uncompromising off-road capability.
Specifications:
- Lift height: 6"
- Front lift: 6"
- Rear lift: 3"
- Position: Front and Rear
Installation notes:
- Use Up To 37" x 12.50" Tires
- Cannot be Used with Any Wheel with a Diameter Less than 20"
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Front 6"
- Raises Rear 3"
- 16 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2026 Toyota Tundra: 1794 Edition, Limited, SR (Coil rear springs, Front and Rear)
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front and Rear)
- 2022-2026 Toyota Tundra: Platinum (Coil rear springs, Front and Rear) — without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition, SR5 TRD Off-Road (Front and Rear)
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs, Front and Rear)
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs, Front and Rear) — without TRD Sport Package
- 2025 Toyota Tundra: TRD Off-Road (Front and Rear)
Part #: K53271
