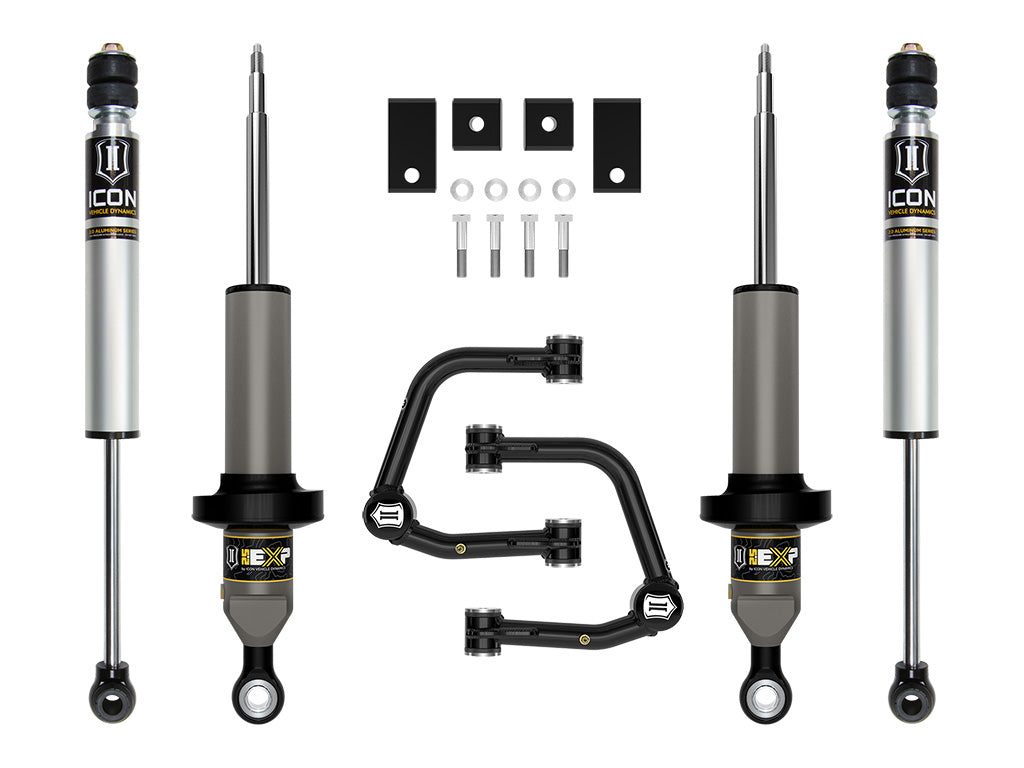

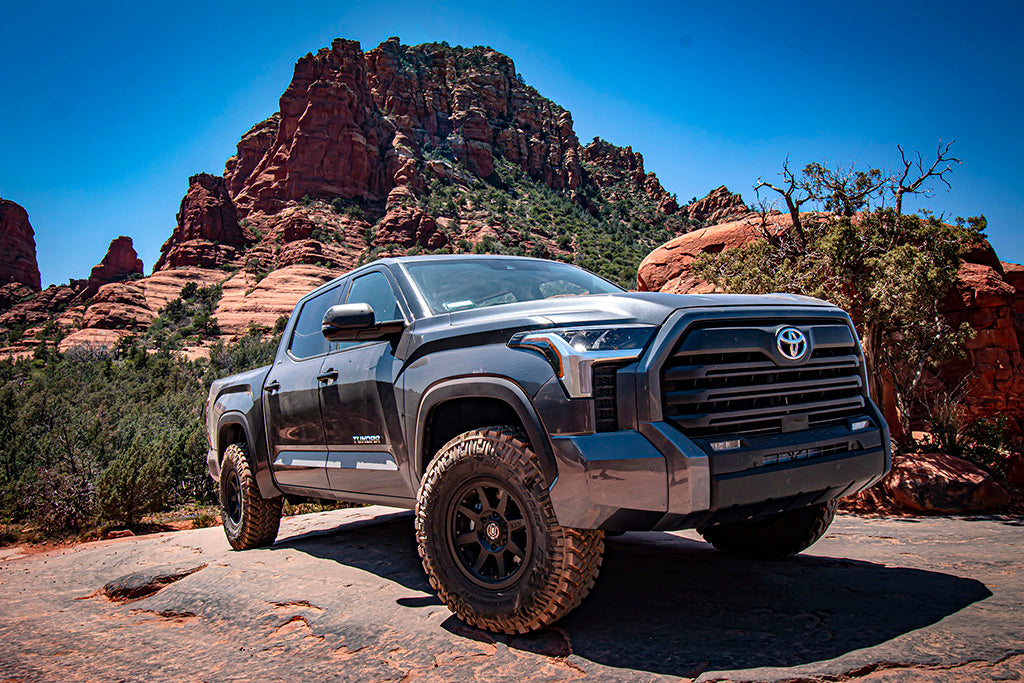

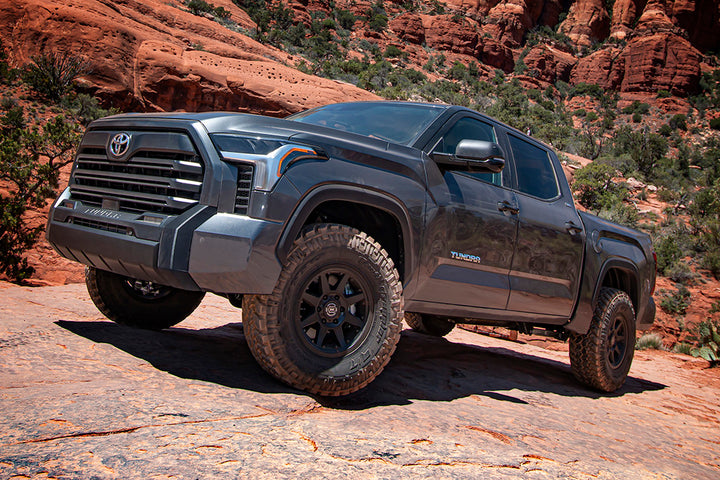

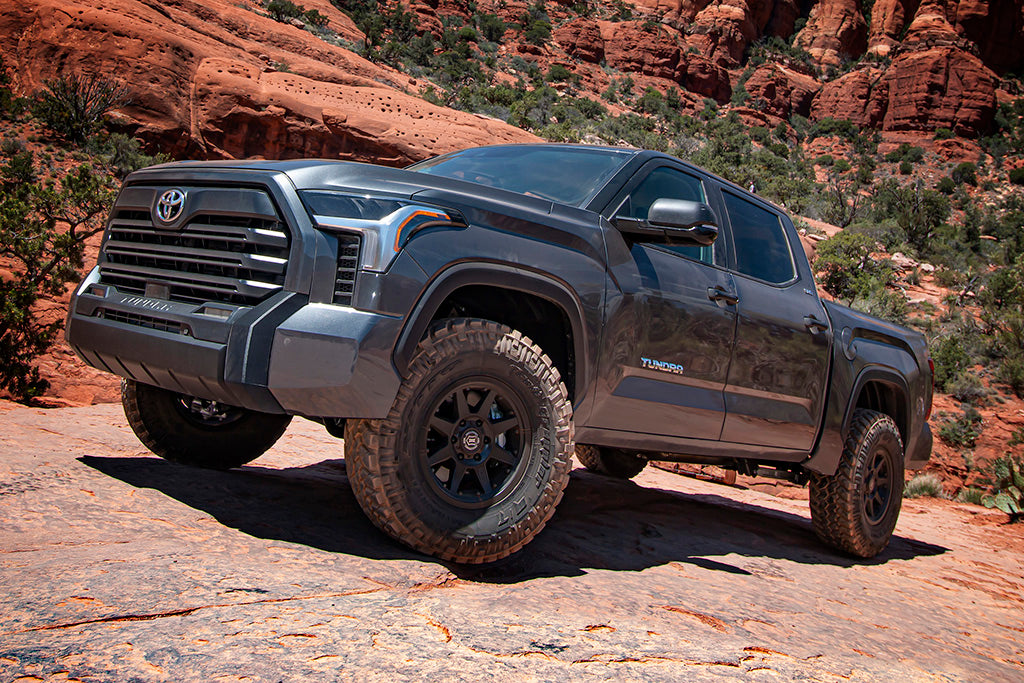

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-2026 Toyota Tundra builds on ICON's 2.5 EXP Shock Kit with the addition of tubular front upper control arms, providing proper alignment at taller ride heights, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
This Stage 2 system features the 2022-2026 Toyota Tundra EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tundra’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2026 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2026 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Specifications:
- Lift height: 2-3"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 2" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited, SR5 (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited, SR5 (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 2" - 3"; without TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"
- 2022 Toyota Tundra: Platinum 1794 Edition (Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"
- 2022-2026 Toyota Tundra: SR (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 2" - 3"
- 2022-2024 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 3" - 4"; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with TRD Rally Package; with 1" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"
- 2025-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3"; without TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Raises Front 3" - 4"; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 2" - 3"; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with TRD Rally Package; with 1" Maximum Lift Rear; Raises Front 2" - 3"
- 2025-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Raises Front 2" - 3"; without TRD Off Road Package
- 2022 Toyota Tundra: SR5 TRD Off-Road (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"
- 2025 Toyota Tundra: TRD Off-Road (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3"
Part #: K53192T
