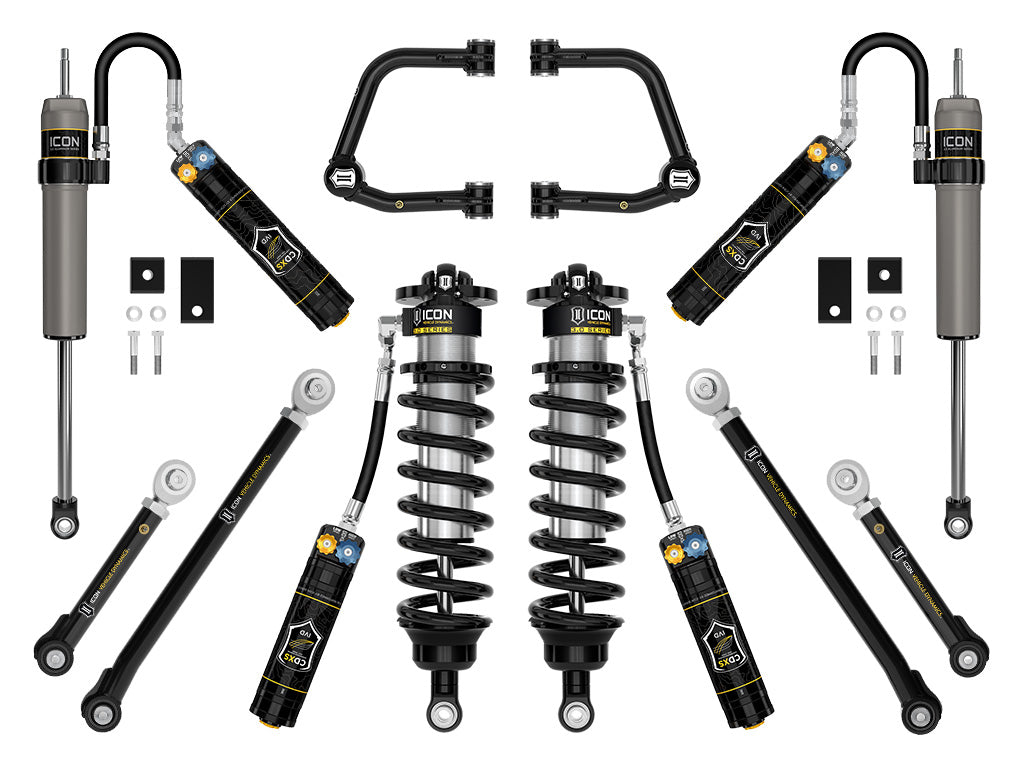

The ICON Vehicle Dynamics Stage 1 3.0 complete suspension system for the 2022-2026 Toyota Tundra builds upon the Stage 10 2.5 suspension system with the upgrade to 3.0 Series front coilovers. To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDXS rear remote reservoir shocks are included along with tubular front upper control arms, a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

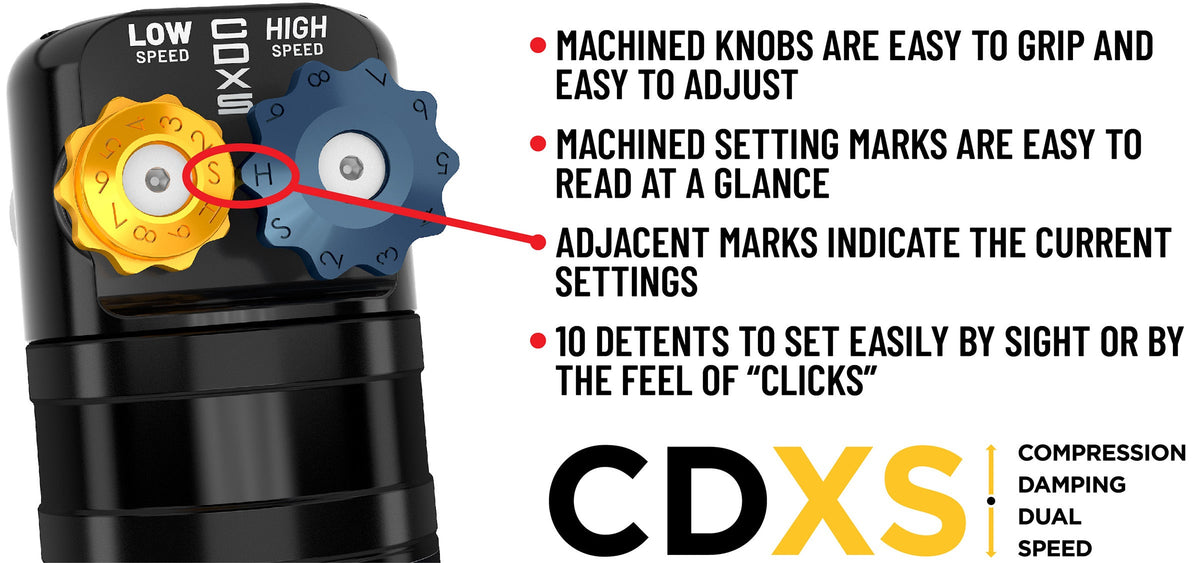

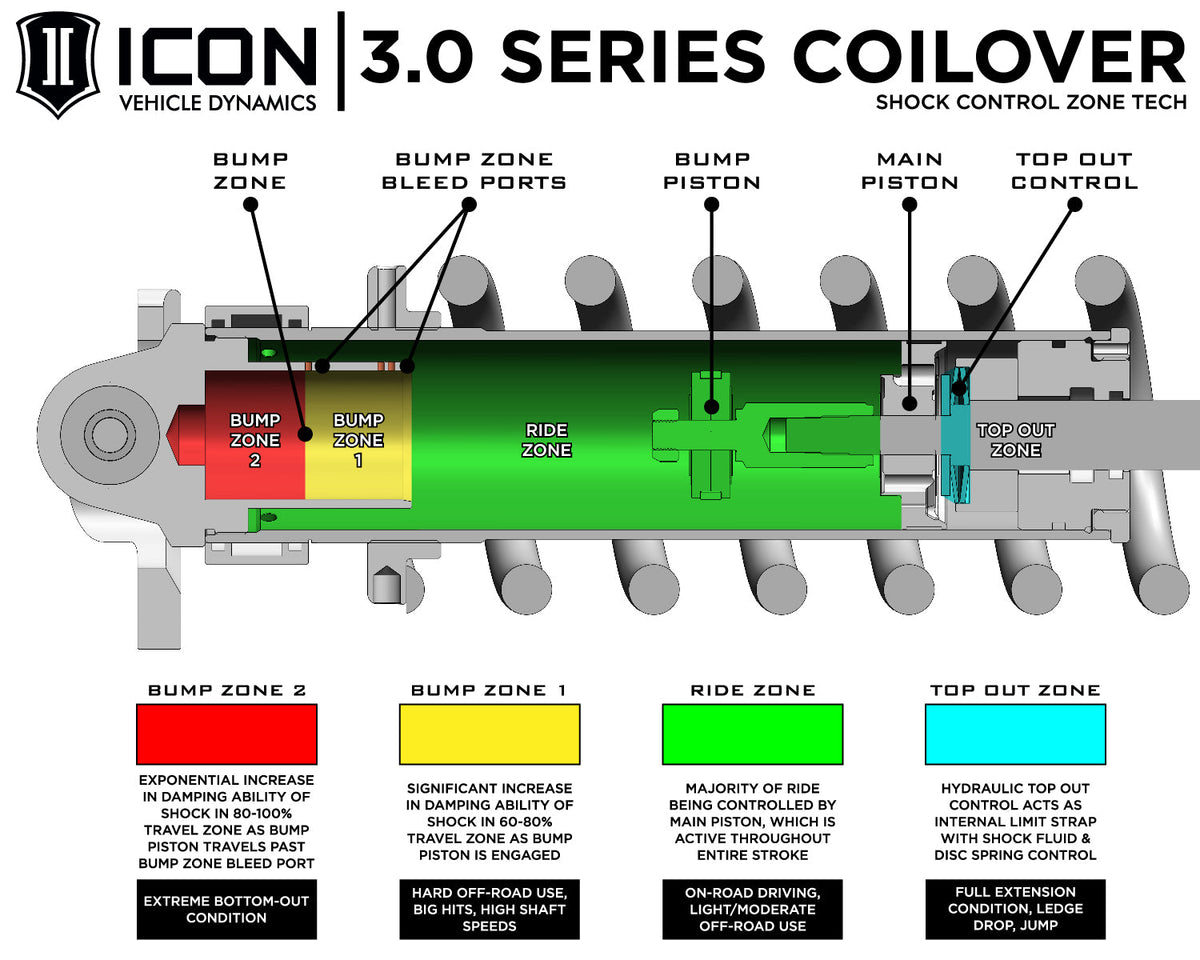

This Stage 1 system features the 2022-2026 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDXS. These adjustable coilovers allow up to 2-3.25” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. These coilovers also feature ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2026 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
ICON tubular steel adjustable rear upper and lower links are made from 1-3/4 x .313 wall DOM tubing and a multi-stage black powder coat finish for corrosion resistance. These rear link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and link arm length adjustability. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance.
Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2026 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDXS, these offer 10 settings of low and high speed compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDXS front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Specifications:
- Lift height: 2-3.25"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156 and Number 55153; Raises Front 2" - 2.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 3.25"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156 and Number 55153; Raises Front 2" - 3.25"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55153; Raises Front 2" - 2.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 3.25"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55153; Raises Front 2" - 3.25"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 2.75"; with Auto-Leveling Headlights; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; without Auto-Leveling Headlights; Also Requires Part Number 55164; Raises Front 2" - 2.75"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156 and Number 55153; Raises Front 2" - 2.75"; with Auto-Leveling Headlights; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; without Auto-Leveling Headlights; Also Requires Part Number 55156; Raises Front 2" - 2.75"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 3.5"; with Auto-Leveling Headlights; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; without Auto-Leveling Headlights; Also Requires Part Number 55164; Raises Front 2" - 3.25"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156 and Number 55153; Raises Front 2" - 3.5"; with Auto-Leveling Headlights; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; without Auto-Leveling Headlights; Also Requires Part Number 55156; Raises Front 2" - 3.25"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 2.75"; with Auto-Leveling Headlights; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; without Auto-Leveling Headlights; Also Requires Part Number 55164; Raises Front 2" - 2.75"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55153; Raises Front 2" - 2.75"; with Auto-Leveling Headlights; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; without Auto-Leveling Headlights; Raises Front 2" - 2.75"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 2" - 3.5"; with Auto-Leveling Headlights; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; without Auto-Leveling Headlights; Also Requires Part Number 55164; Raises Front 2" - 3.25"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55153; Raises Front 2" - 3.5"; with Auto-Leveling Headlights; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; without Auto-Leveling Headlights; Raises Front 2" - 3.25"; without TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3.25"
- 2022 Toyota Tundra: Platinum 1794 Edition (Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156 and Number 55153; Raises Front 2" - 3.25"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156"; Raises Front 2" - 3.25"
- 2022-2026 Toyota Tundra: SR (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 2" - 3.25"
- 2022-2024 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 3" - 4.25"; with TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3.25"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3.25"; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with TRD Rally Package; with 1" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3.25"
- 2025-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2" - 3.25"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3.25"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Raises Front 3" - 4.25"; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 2" - 3.25"; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with TRD Rally Package; with 1" Maximum Lift Rear; Raises Front 2" - 3.25"
- 2025-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Raises Front 2" - 3.25"; without TRD Off Road Package
- 2022 Toyota Tundra: SR5 TRD Off-Road (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 3.25"
- 2025 Toyota Tundra: TRD Off-Road (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 2" - 2.75"
- 2022-2026 Toyota Tundra: TRD Pro (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55153 and Number 55164; Raises Front 0" - 1.25"
Part #: K53211TD
