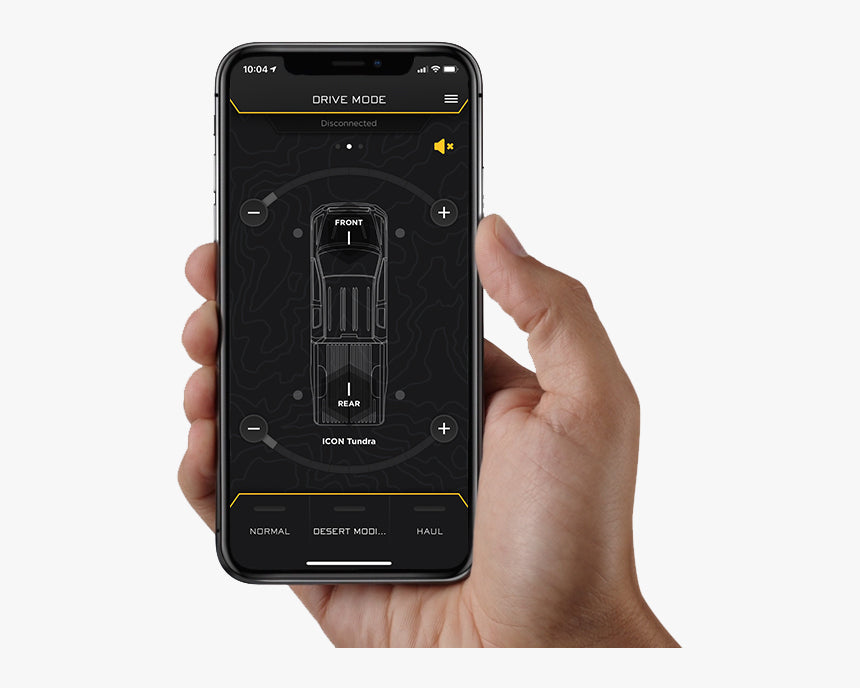

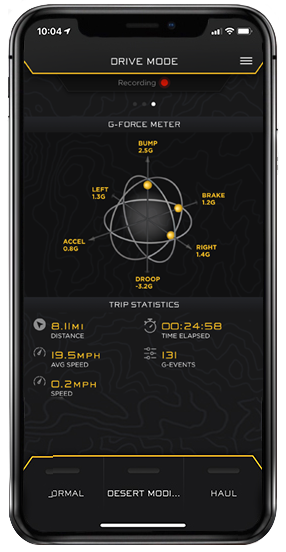

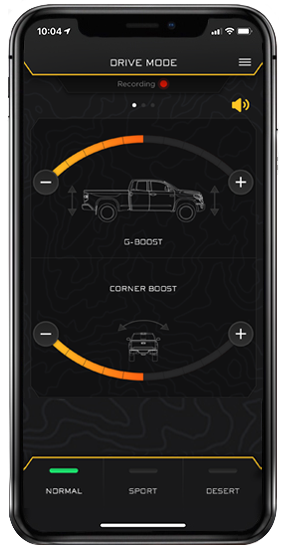

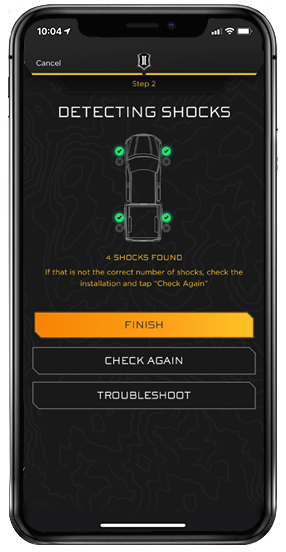

The ICON Vehicle Dynamics Stage 12 complete suspension system for the 2022-2026 Toyota Tundra Is the first stage to include CDEV equipped 2.5 Series coilovers and rear shocks. This system offers improved on- and off-road performance, with active electronic shock damping adjustment, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

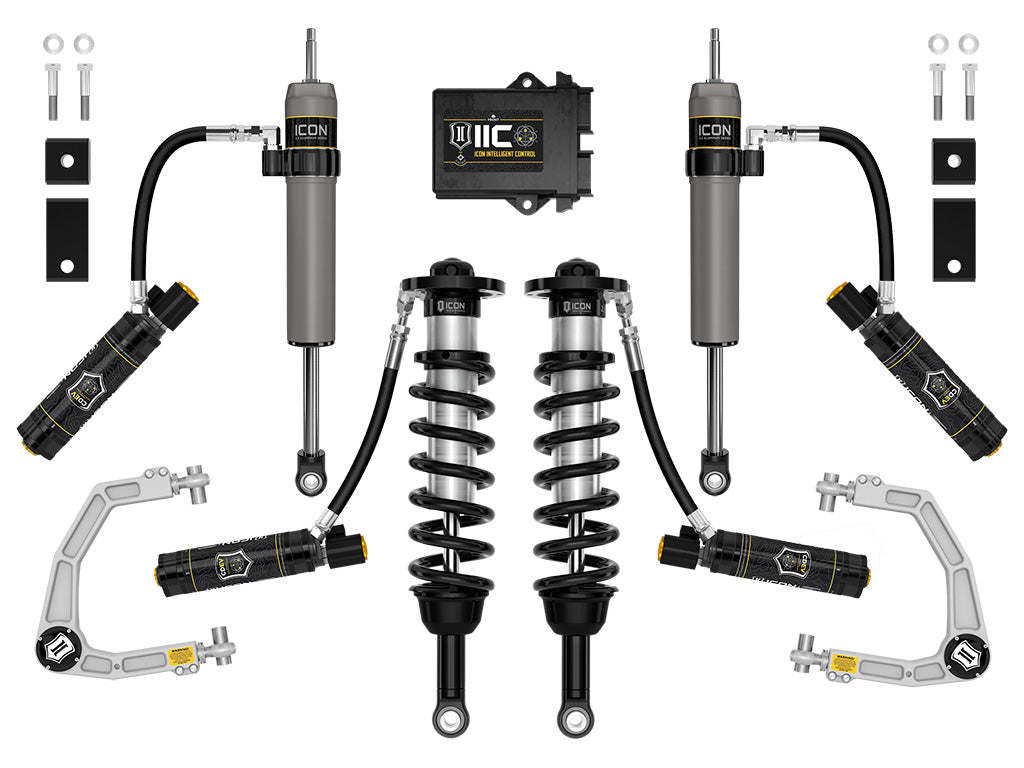

This Stage 12 system features the 2022-2026 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDEV. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet aluminum front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2022-2026 Toyota Tundra with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
Rounding out the Stage 12 suspension system are 2.5 Aluminum Series rear remote reservoir shocks with CDEV specially tailored for the 2022-2026 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Specifications:
- Lift height: 1.25-3.5"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires iOS operated device to run ICON Intelligent Control App
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front .75" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front .75" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front .75" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front .75" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front .75" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front .75" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front .75" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front .75" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"
- 2022 Toyota Tundra: Platinum 1794 Edition (Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"
- 2022-2026 Toyota Tundra: SR (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 1.25" - 3.5"
- 2022-2024 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 2.25" - 4.5"; with TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — with TRD Rally Package; with 1" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"
- 2025-2026 Toyota Tundra: SR5 (4WD, Coil rear springs, Front and Rear) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1" Maximum Lift Rear; Raises Front 2.25" - 4.5"; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — with TRD Rally Package; with 1" Maximum Lift Rear; Raises Front 1.25" - 3.5"
- 2025-2026 Toyota Tundra: SR5 (RWD, Coil rear springs, Front and Rear) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022 Toyota Tundra: SR5 TRD Off-Road (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 1.25" - 3.5"
- 2025 Toyota Tundra: TRD Off-Road (Front and Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front .75" - 3"
- 2022-2026 Toyota Tundra: TRD Pro (Front and Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 55164; Raises Front 0" - 1.5"
Part #: K53202
