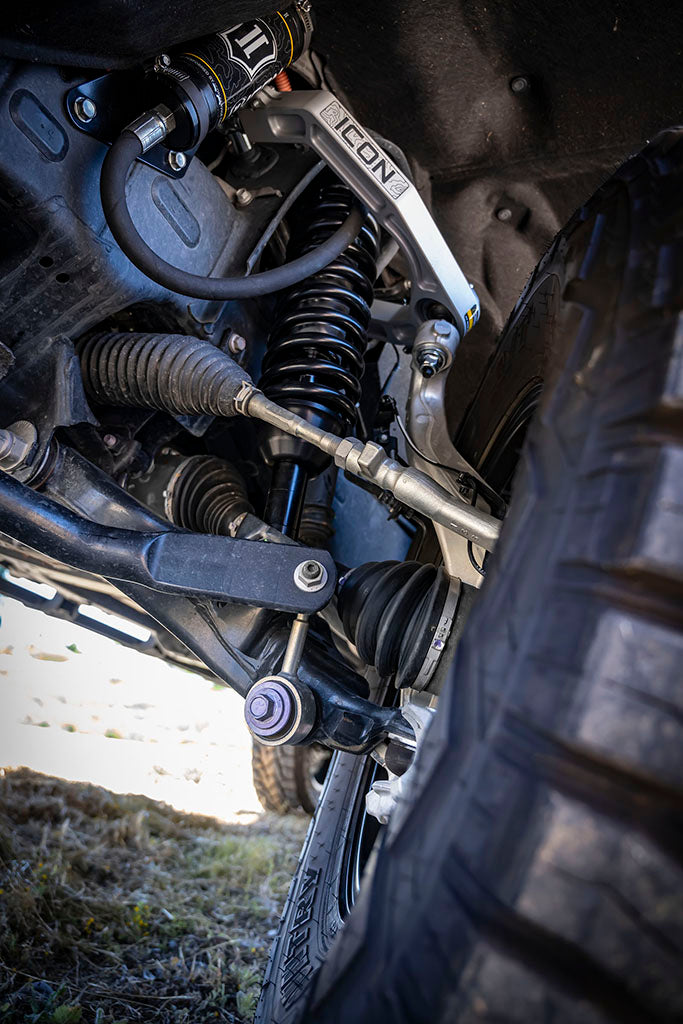

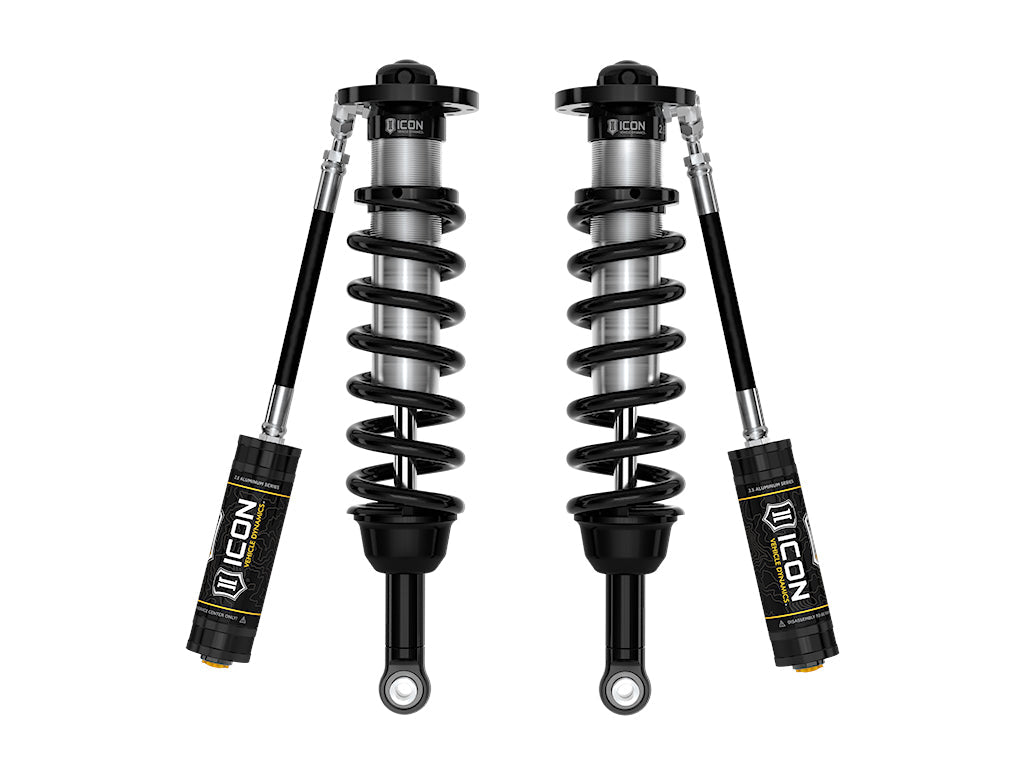

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Specifications:
- Lift height: 1.25-3.5"
- Position: Front
- Shock series: 2.5 Series
- Extended length: 22.08"
- Material: Aluminum, Steel
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Front) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.5"; with TRD Off Road Package
- 2025-2026 Toyota Sequoia: 1794 Edition (Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Capstone (4WD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.5"; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Capstone (RWD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154; Raises Front 3" - 4.5"; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.5"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.5"; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154; Raises Front 3" - 4.5"
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.5"; with TRD Off Road Package
- 2023 Toyota Sequoia: Platinum (4WD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154" and Number 55156; Raises Front 3" - 4.5"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2024 Toyota Sequoia: Platinum (RWD, Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154; Raises Front 3" - 4.5"; without Adaptive Variable Suspension (AVS)
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Front) — Requires ICON front upper control arms for lift heights above 1.75" over stock; Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.5"
- 2023 Toyota Sequoia: TRD Off-Road (Front) — Requires ICON front upper control arms for lift heights above 3.75" over stock; Also Requires Part Number 55154 and Number 55164; Raises Front 3" - 4.5"
- 2024-2026 Toyota Sequoia: TRD Pro (Front) — Also Requires Part Number 55154 , Number 55164 and Number 58461DJ or 58561DJ; Raises Front 1" - 2.5"
- 2023 Toyota Sequoia: TRD Pro (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.5"
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road, SR5 TRD Off-Road (Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"
- 2022-2026 Toyota Tundra: Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 3"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (4WD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (RWD, 3.4L GAS, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition (Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (4WD, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"
- 2022-2026 Toyota Tundra: SR (RWD, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"
- 2022-2024 Toyota Tundra: SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (4WD, Front) — Requires ICON front upper control arms for lift heights above 3.25" over stock; Also Requires Part Number 55154 for lift heights above 3.25" over stock; Raises Front 2.25" - 4.5"; with TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (4WD, Front) — with TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156
- 2025-2026 Toyota Tundra: SR5 (4WD, Front) — without TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; without TRD Off Road Package; without TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Front) — Requires ICON front upper control arms for lift heights above 3.25" over stock; Also Requires Part Number 55154 for lift heights above 3.25" over stock; Raises Front 2.25" - 4.5"; with TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (RWD, Front) — with TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"
- 2025-2026 Toyota Tundra: SR5 (RWD, Front) — without TRD Rally Package; Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; without TRD Off Road Package
- 2024-2025 Toyota Tundra: TRD Off-Road (Front) — Requires ICON front upper control arms for lift heights above 2.25" over stock; Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 3"
- 2024-2026 Toyota Tundra: TRD Pro (Front) — Also Requires Part Number 55154 , Number 55164 and Number 58461DJ or 58561DJ; Raises Front 0" - 1.5"
- 2022-2023 Toyota Tundra: TRD Pro (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1.5"
Part #: 58770
