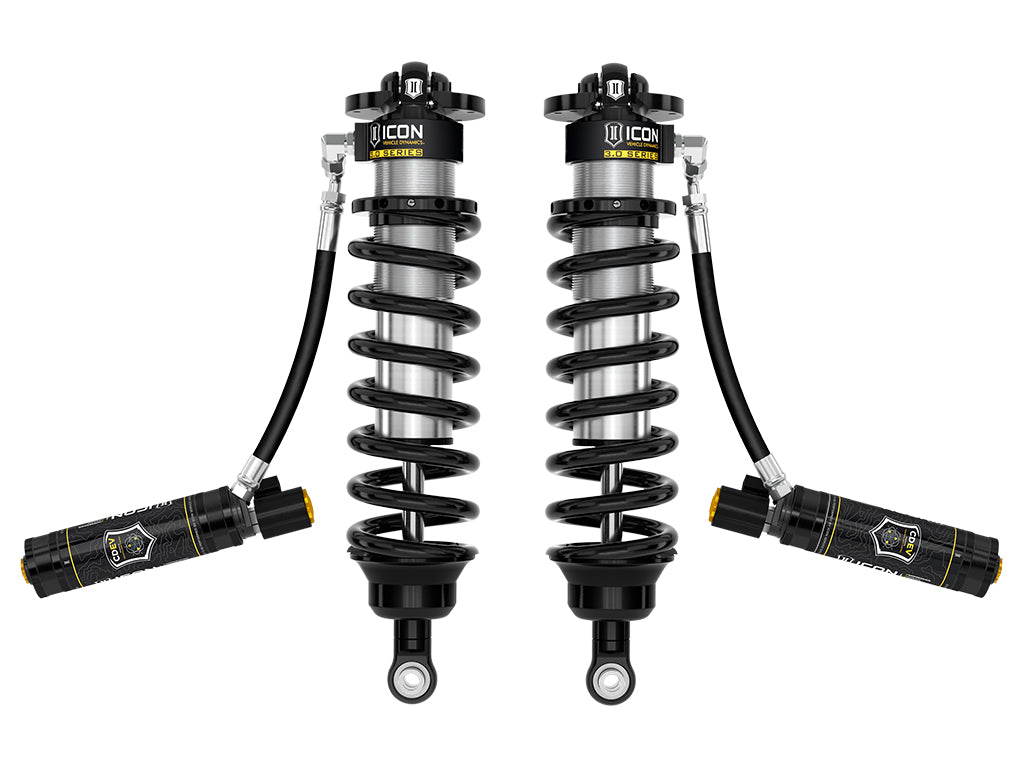

ICON's 3.0 Series Coilovers with CDEV for 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

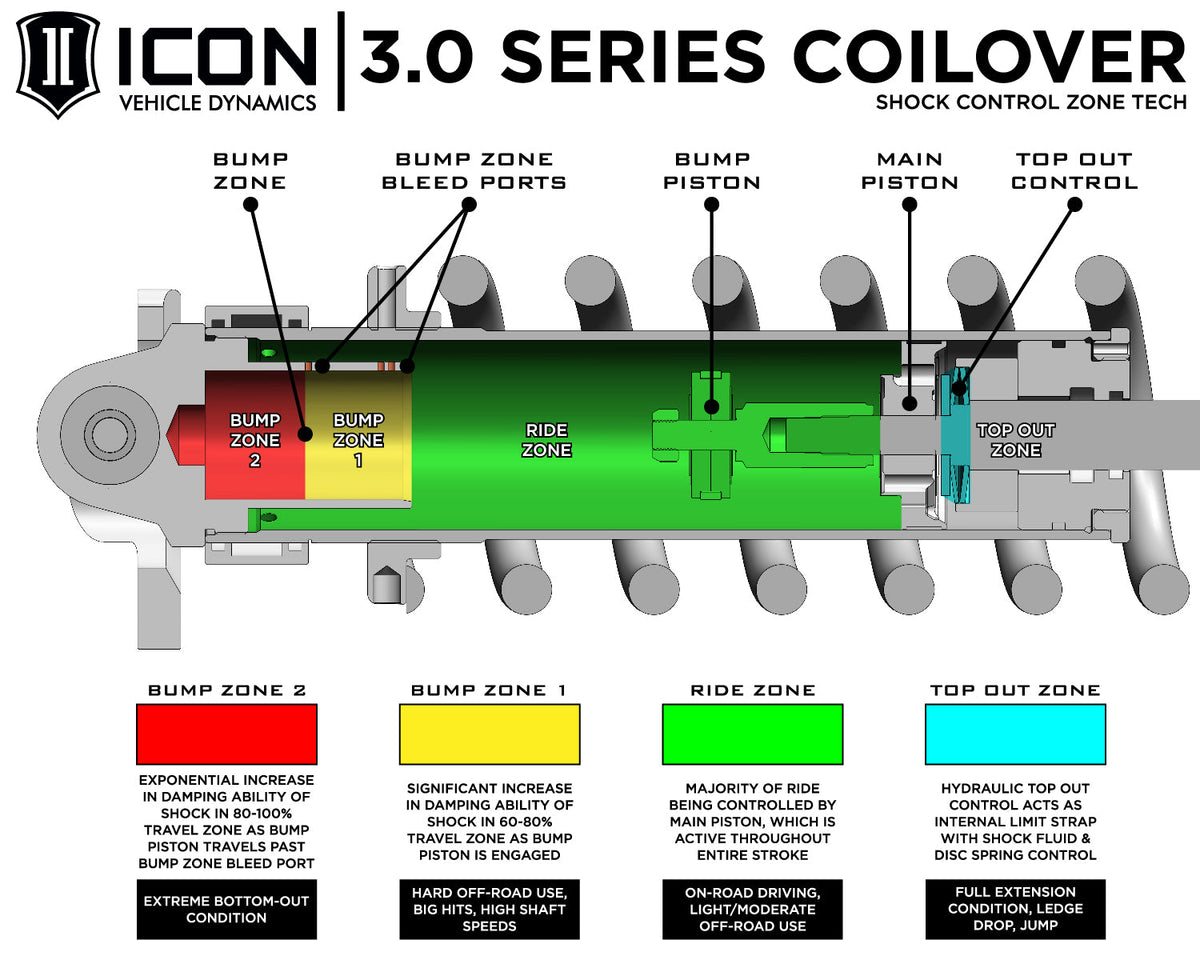

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of front lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
Specifications:
- Lift height: 1.25-3.25"
- Position: Front
- Shock series: 3.0 Series
- Extended length: 22.04"
- Material: Aluminum, Steel
Required to install (sold separately):
- Also Requires Part Number 58461DJ or 58561DJ
- Also Requires Part Number 53508 and Number 57840EP or 57845EP
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires iOS operated device to run ICON Intelligent Control App
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.25"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2025-2026 Toyota Sequoia: 1794 Edition (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.25"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Capstone (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.25"; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Capstone, Platinum (RWD, Front) — Also Requires Part Number 55154; Raises Front 3" - 4.25"; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.25"; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.25"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Front) — Also Requires Part Number 55154; Raises Front 3" - 4.25"
- 2023 Toyota Sequoia: Platinum (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.25"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front) — Also Requires Part Number 55154 and Number 55156; Raises Front 3" - 4.25"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.25"; with TRD Off Road Package
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.25"
- 2023 Toyota Sequoia: TRD Off-Road (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.25"
- 2023-2026 Toyota Sequoia: TRD Pro (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 1" - 2.25"
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 2.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (4WD, 3.4L GAS, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.25"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (4WD, 3.4L GAS, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (RWD, 3.4L GAS, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (RWD, 3.4L GAS, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Air rear springs, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 2.75"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Air rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 2.75"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.25"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (4WD, 3.4L GAS, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Air rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; without TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (RWD, 3.4L GAS, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; with TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road, SR5 TRD Off-Road (Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"
- 2022-2026 Toyota Tundra: Platinum (4WD, Air rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (4WD, Coil rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Air rear springs, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 2.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (4WD, 3.4L FULL HYBRID EV-GAS (FHEV), Coil rear springs, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front .75" - 2.75"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (4WD, 3.4L GAS, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (RWD, Air rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (RWD, Coil rear springs, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Platinum (RWD, 3.4L GAS, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.5"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition (Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.25"; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (4WD, Front) — Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"
- 2022-2026 Toyota Tundra: SR (RWD, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"
- 2022-2024 Toyota Tundra: SR5 (4WD, Front) — Also Requires Part Number 55154 for lift heights above 3.25" over stock; Also Requires Part Number 55156; Raises Front 2.25" - 4.25"; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (4WD, Front) — Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; without TRD Off Road Package; without TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (4WD, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; with TRD Off Road Package
- 2025-2026 Toyota Tundra: SR5 (4WD, Front) — with TRD Rally Package; Also Requires Part Number 55156; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"
- 2025-2026 Toyota Tundra: SR5 (4WD, Front) — without TRD Rally Package; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Also Requires Part Number 55156; Raises Front 1.25" - 3.25"; without TRD Off Road Package
- 2023-2024 Toyota Tundra: SR5 (RWD, Front) — Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; without TRD Off Road Package; without TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (RWD, Front) — Also Requires Part Number 55154 for lift heights above 3.25" over stock; Raises Front 2.25" - 4.25"; with TRD Sport Package
- 2022-2026 Toyota Tundra: SR5 (RWD, Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; with TRD Off Road Package
- 2025-2026 Toyota Tundra: SR5 (RWD, Front) — with TRD Rally Package; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"
- 2025-2026 Toyota Tundra: SR5 (RWD, Front) — without TRD Rally Package; Also Requires Part Number 55154 for lift heights above 2.25" over stock; Raises Front 1.25" - 3.25"; without TRD Off Road Package
- 2024-2025 Toyota Tundra: TRD Off-Road (Front) — Also Requires Part Number 55164 and Number 55154 for lift heights above 2.25" over stock; Raises Front .75" - 2.75"
- 2022-2026 Toyota Tundra: TRD Pro (Front) — Also Requires Part Number 55154 and Number 55164; Raises Front 0" - 1.25"
Part #: 58775E
