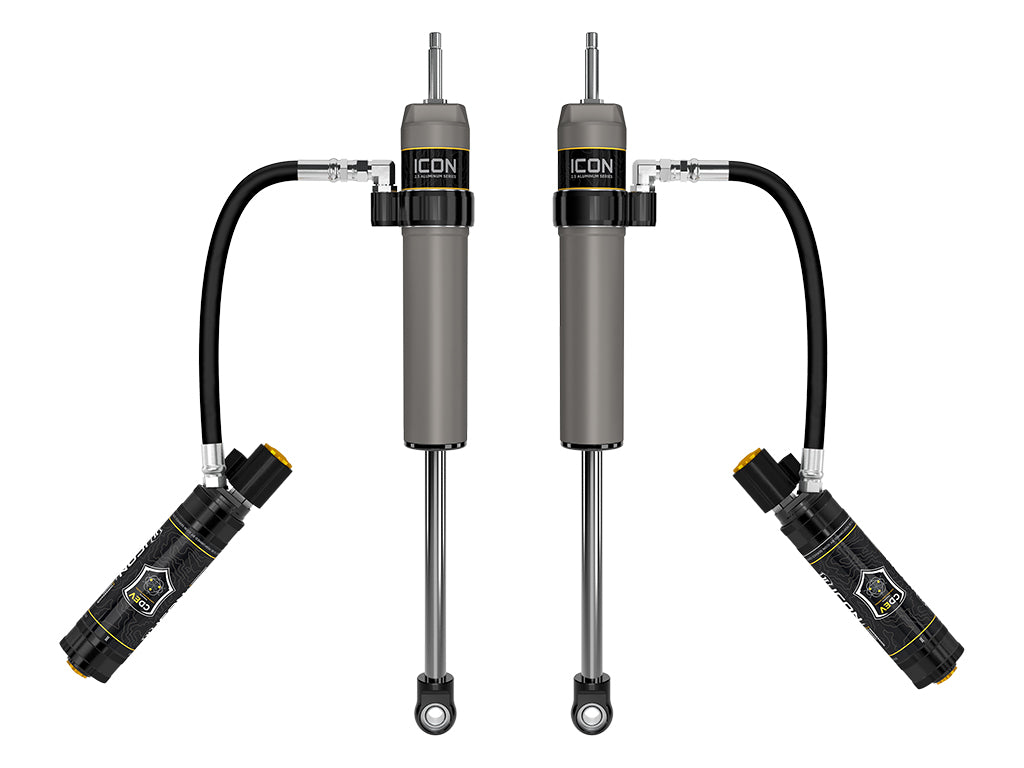

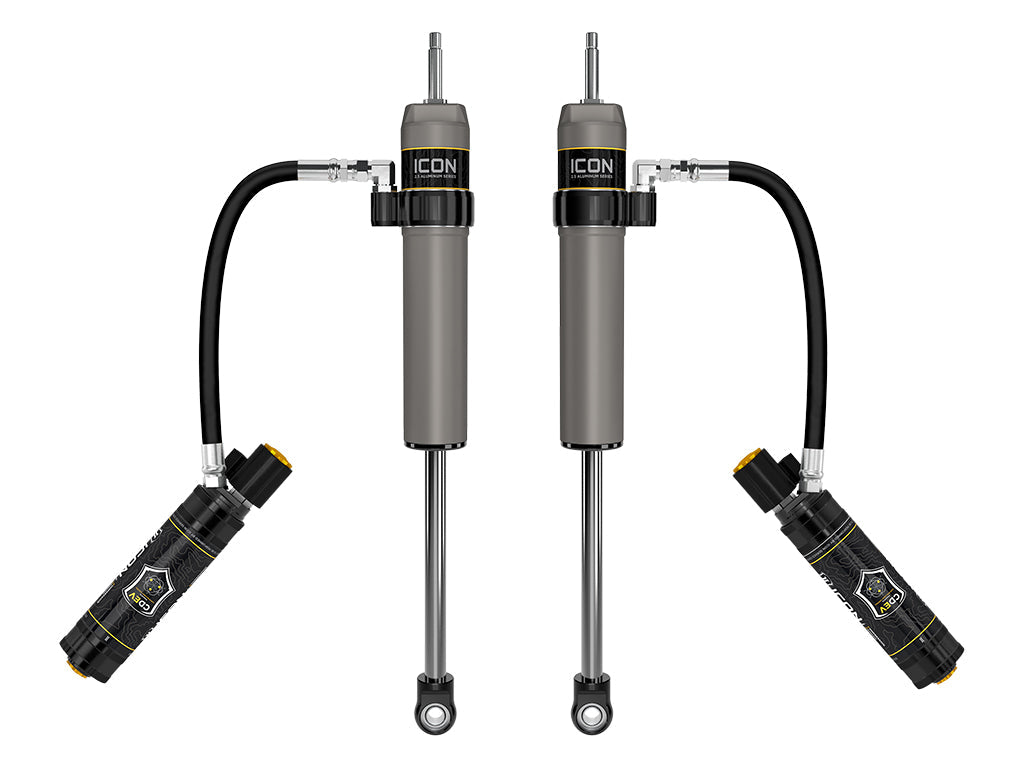

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Specifications:
- Lift height: 0-1.5"
- Position: Rear
- Shock series: 2.5 Series
Required to install (sold separately):
- Also Requires Part Number 53508
Installation notes:

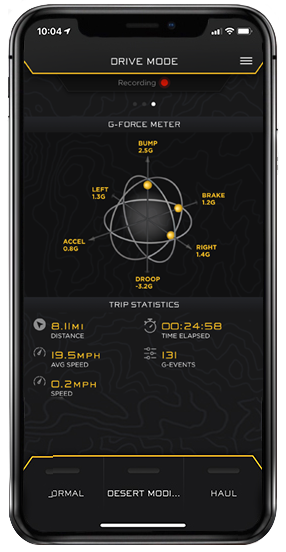

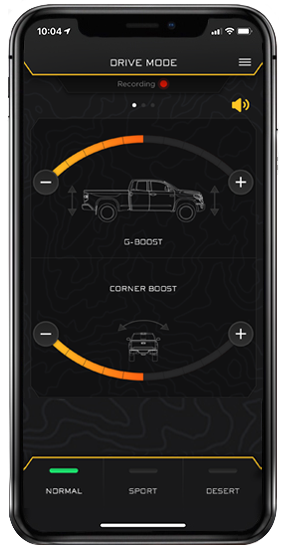

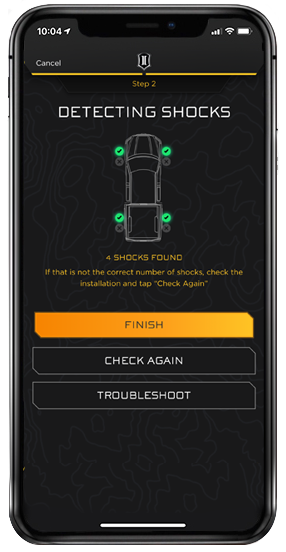

- Requires iOS operated device to run ICON Intelligent Control App
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package
- 2025-2026 Toyota Sequoia: 1794 Edition (Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Capstone (Coil rear springs) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2024-2026 Toyota Sequoia: Platinum (4WD, Coil rear springs) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023 Toyota Sequoia: Platinum (4WD, Coil rear springs) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Coil rear springs) — with 4 Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Platinum (RWD, Coil rear springs) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2023 Toyota Sequoia: TRD Off-Road (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2023-2026 Toyota Sequoia: TRD Pro (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E, 58772E, or 58775E
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (Air rear springs) — with 3.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (Coil rear springs) — with 1.5" Suspension Lift; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited, SR (Air rear springs) — with 3.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2026 Toyota Tundra: Limited, SR5 (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Air rear springs) — with 3" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2026 Toyota Tundra: Platinum (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2025 Toyota Tundra: SR5 (Air rear springs) — with 3.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs) — with TRD Rally Package; with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package
- 2022 Toyota Tundra: SR5 TRD Off-Road (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2025 Toyota Tundra: TRD Off-Road (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2026 Toyota Tundra: TRD Pro (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
Part #: 57840EP
