The 300 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all the sophistication it is still a very capable vehicle that sees use both on and off-road worldwide. While the 300 Series has exceptional ride characteristics in stock form, the suspension needs a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and developed several suspension systems that drastically increase the overall ability of the 2022-2023 Toyota Land Cruiser 300 Series.

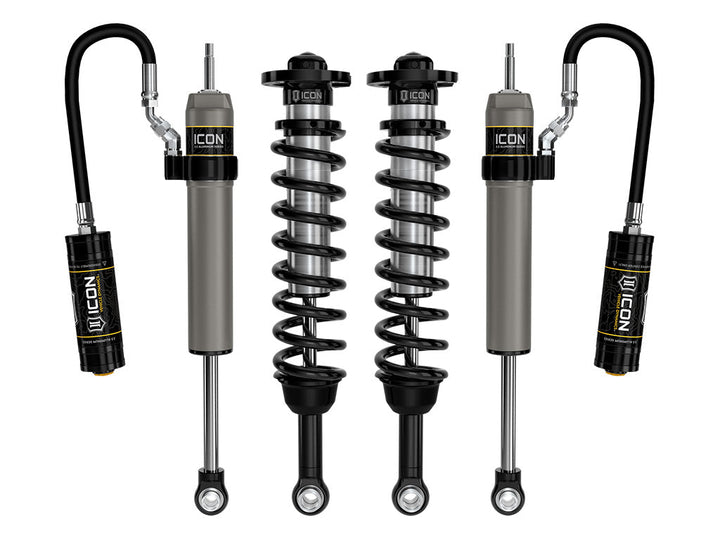

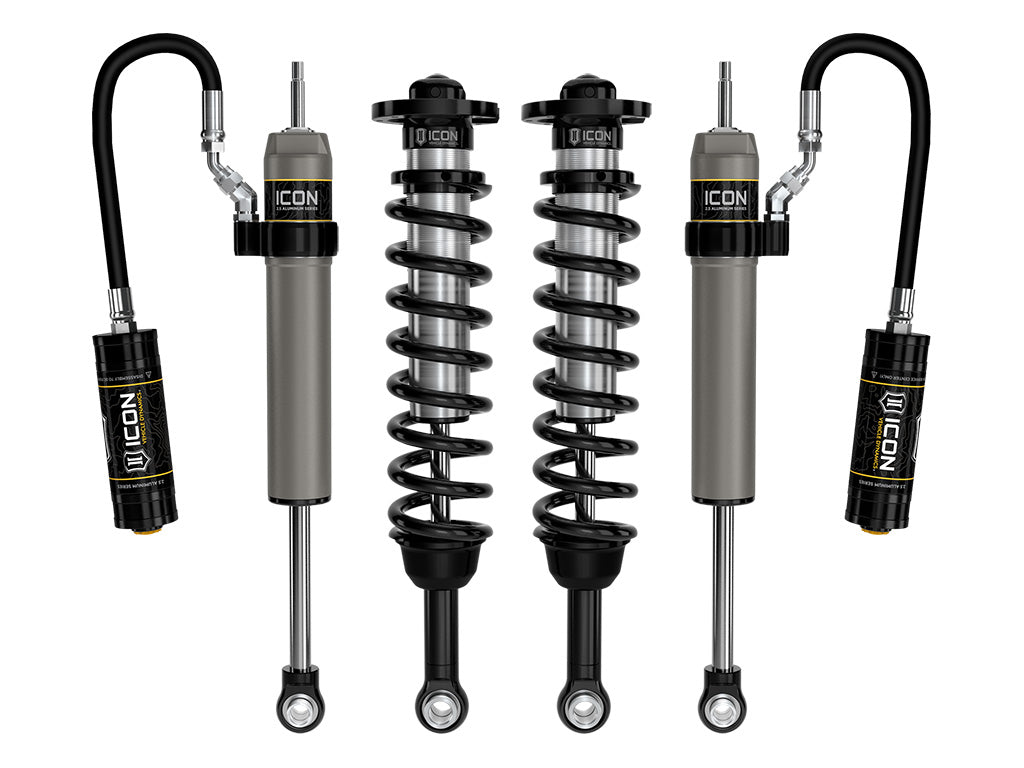

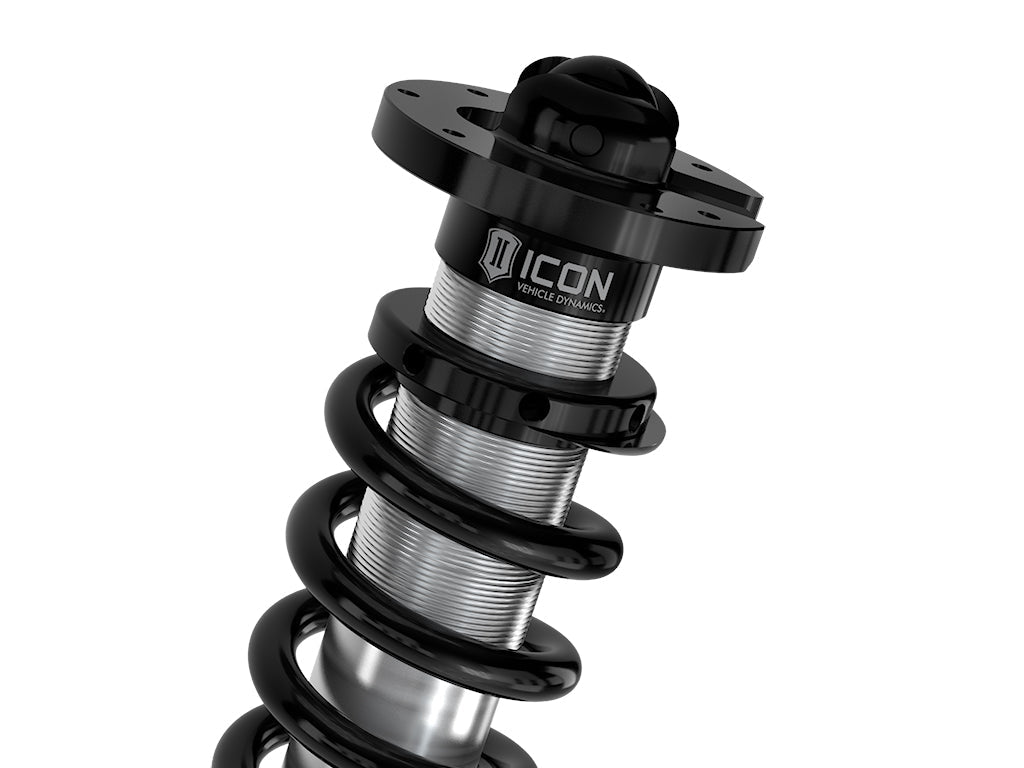

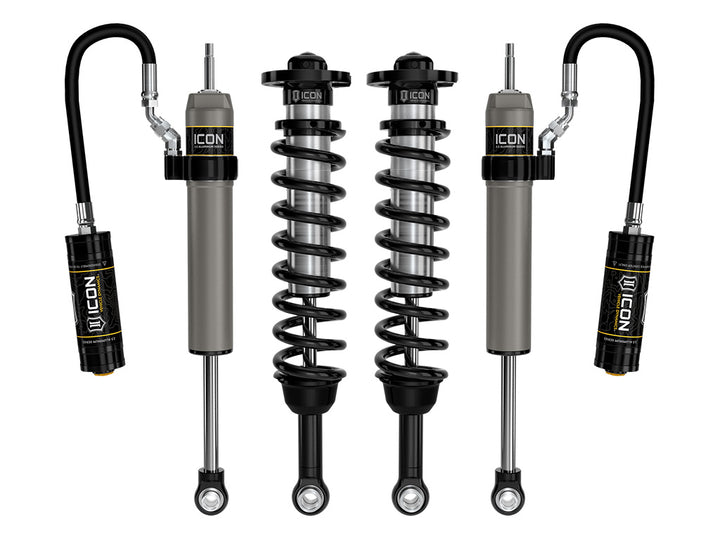

This Stage 1 system features the 2022-2023 Toyota Land Cruiser 300 Series VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1-3” of lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.

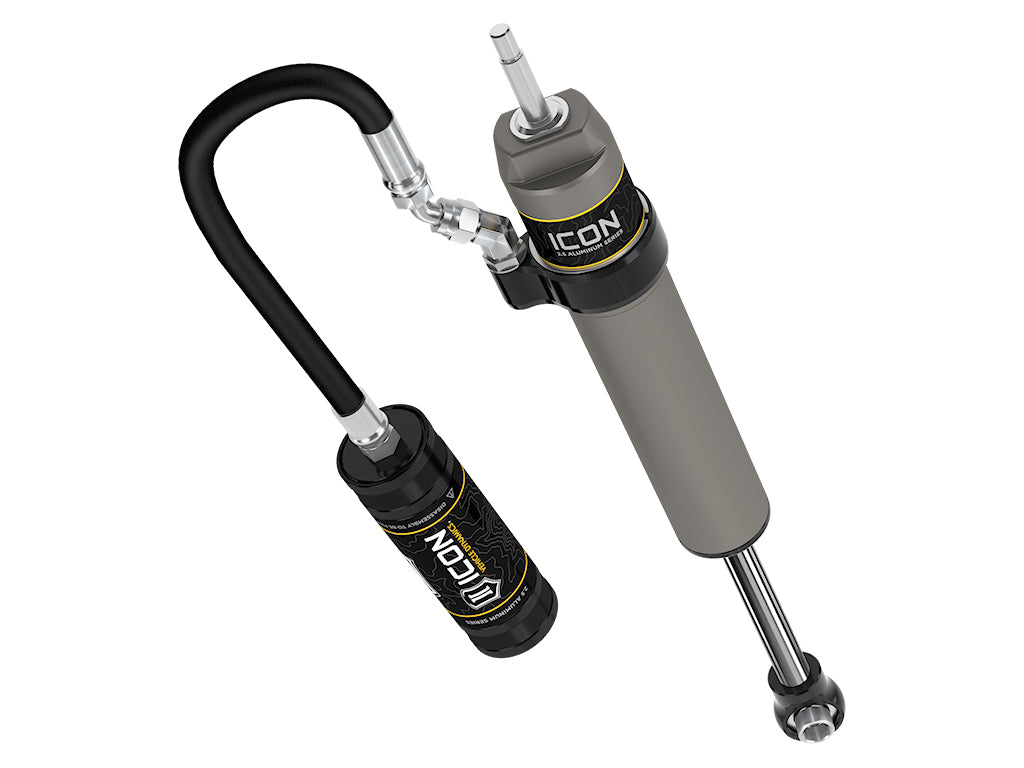

Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Land Cruiser 300 Series. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Land Cruiser.
Specifications:
- Lift height: 1-3"
- Front lift: 1" - 3"
- Position: Front and Rear
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset
- with 2" Maximum Lift Rear
- 300 Series
- Raises Front 1" - 3"
- Up to 35x12.50" Tire with Minor Fender Trimming
Fits:
- 2022-2023 Toyota Land Cruiser (Front and Rear)
Part #: K53261
