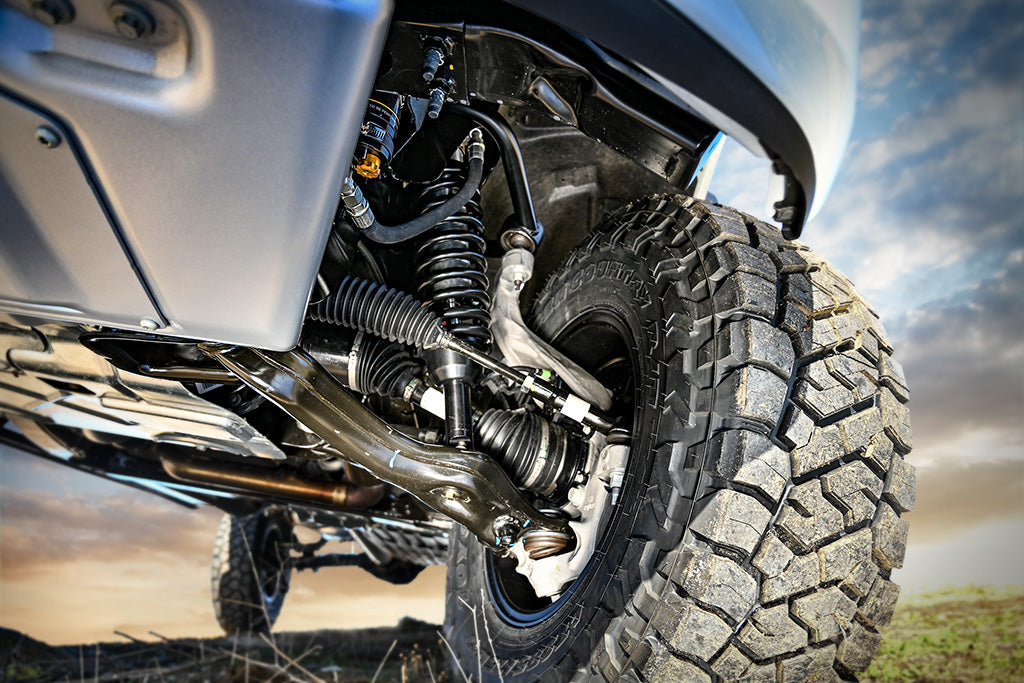

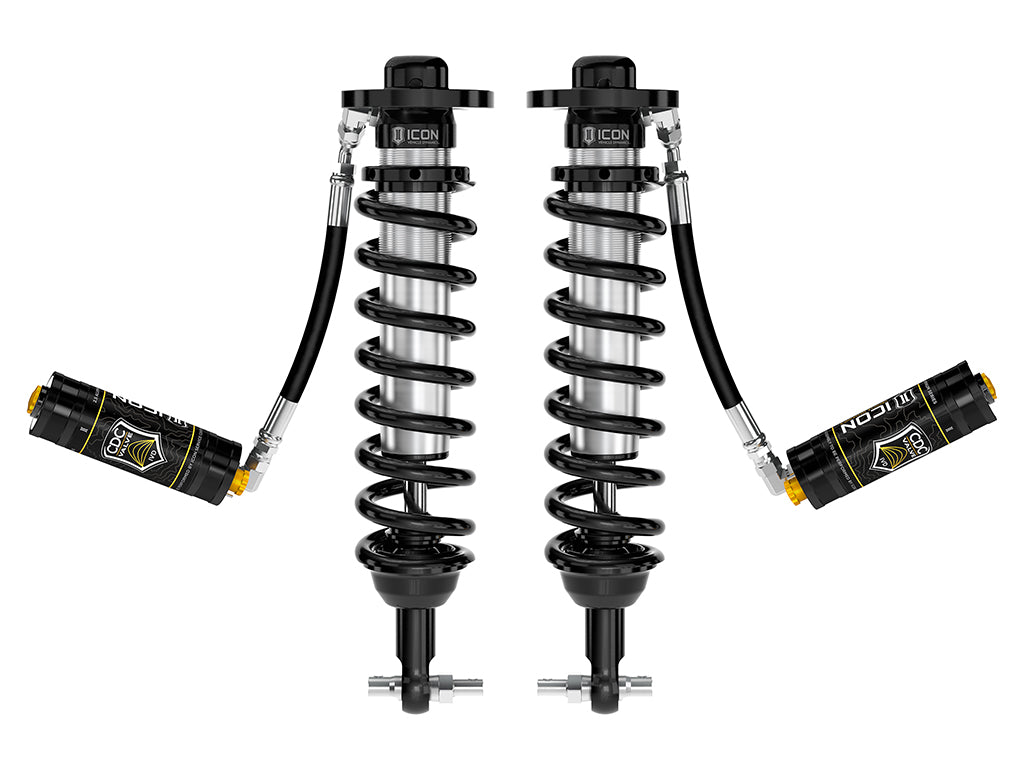

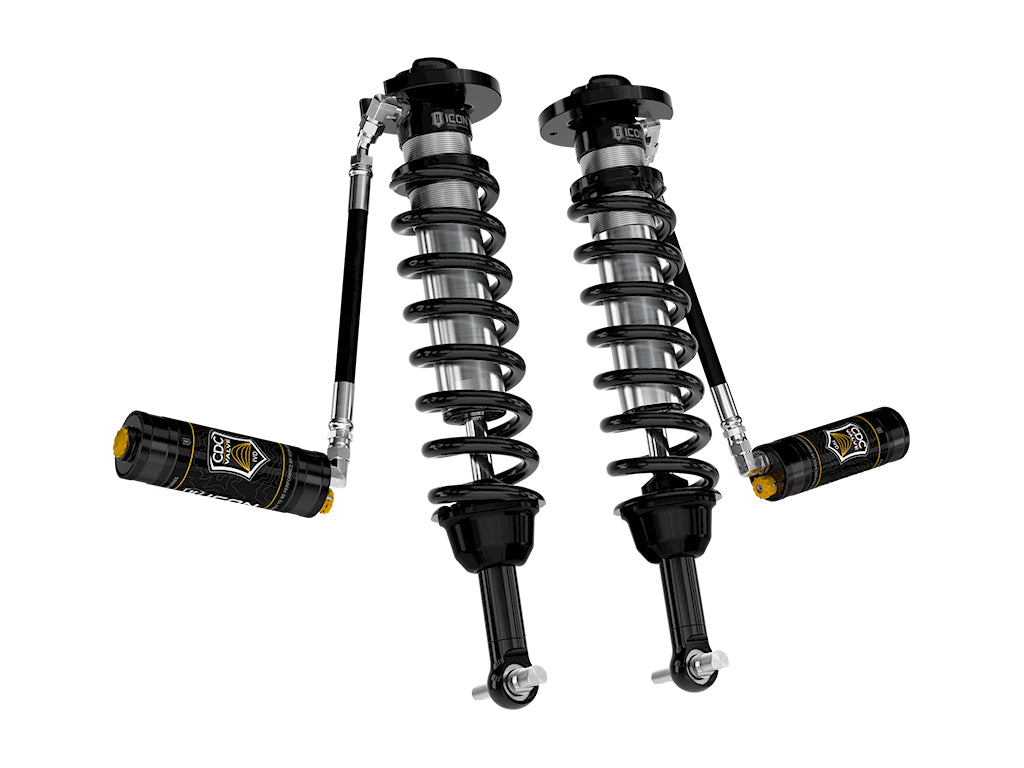

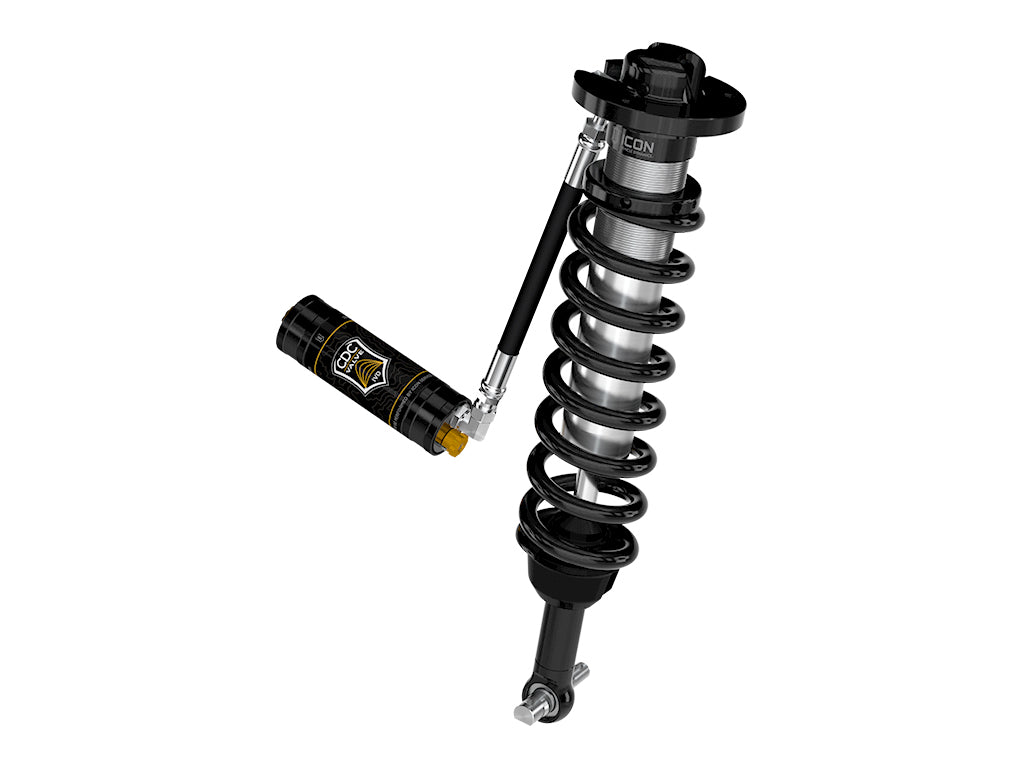

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2026 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.
Specifications:
- Lift height: 2.5-3"
- Position: Front
- Shock series: 2.5 Series
- Extended length: 24.03"
- Material: Aluminum, Steel
Required to install (sold separately):
- Also Requires Part Number 98522DJ or 98523DJ
Installation notes:
- Use Up To 34" x 12.50" Tires
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- with Aftermarket Wheels
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2024-2025 Ford F-150: King Ranch, Lariat, Platinum (3.5L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 94000; Raises Front 3.25" - 4.25"; without Continuous Controlled Damping Suspension
- 2024-2025 Ford F-150: King Ranch, Lariat, Platinum (3.5L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"; without Continuous Controlled Damping Suspension
- 2021 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.0L DIESEL, Front) — Also Requires Part Number 94000; Raises Front 3" - 4"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 94000; Raises Front 3.25" - 4.25"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.5L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"; without Continuous Controlled Damping Suspension
- 2021-2023 Ford F-150: King Ranch, Platinum (4WD, 5.0L FLEX, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"; without Continuous Controlled Damping Suspension
- 2024-2025 Ford F-150: Lariat (5.0L FLEX, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"; without Continuous Controlled Damping Suspension
- 2021-2023 Ford F-150: Lariat (4WD, 2.7L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: Lariat (4WD, 5.0L FLEX, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"; without Continuous Controlled Damping Suspension
- 2021-2026 Ford F-150: Police Responder (3.5L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2021-2026 Ford F-150: SSV (4WD, 3.5L GAS, Leaf rear springs, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2021-2026 Ford F-150: SSV (4WD, 5.0L FLEX, Leaf rear springs, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2024-2026 Ford F-150: STX (4WD, 2.7L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2024-2026 Ford F-150: STX (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 94000; Raises Front 3.25" - 4.25"
- 2024-2026 Ford F-150: STX (4WD, 5.0L FLEX, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2021-2026 Ford F-150: Tremor (3.5L GAS, Front) — Raises Front 2.5" - 3"
- 2023-2026 Ford F-150: Tremor (5.0L FLEX, Front) — Raises Front 2.5" - 3"
- 2021-2026 Ford F-150: XL, XLT (4WD, 2.7L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2021 Ford F-150: XL, XLT (4WD, 3.0L DIESEL, Front) — Also Requires Part Number 94000; Raises Front 3" - 4"
- 2021-2026 Ford F-150: XL, XLT (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front) — Also Requires Part Number 94000; Raises Front 3.25" - 4.25"
- 2021-2026 Ford F-150: XL, XLT (4WD, 3.5L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2021-2026 Ford F-150: XL, XLT (4WD, 5.0L FLEX, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2021-2024 Ford F-150: XL (4WD, 5.0L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
- 2024 Ford F-150: XLT (4WD, 5.0L GAS, Front) — Also Requires Part Number 94000; Raises Front 3.5" - 4.5"
Part #: 91824C
