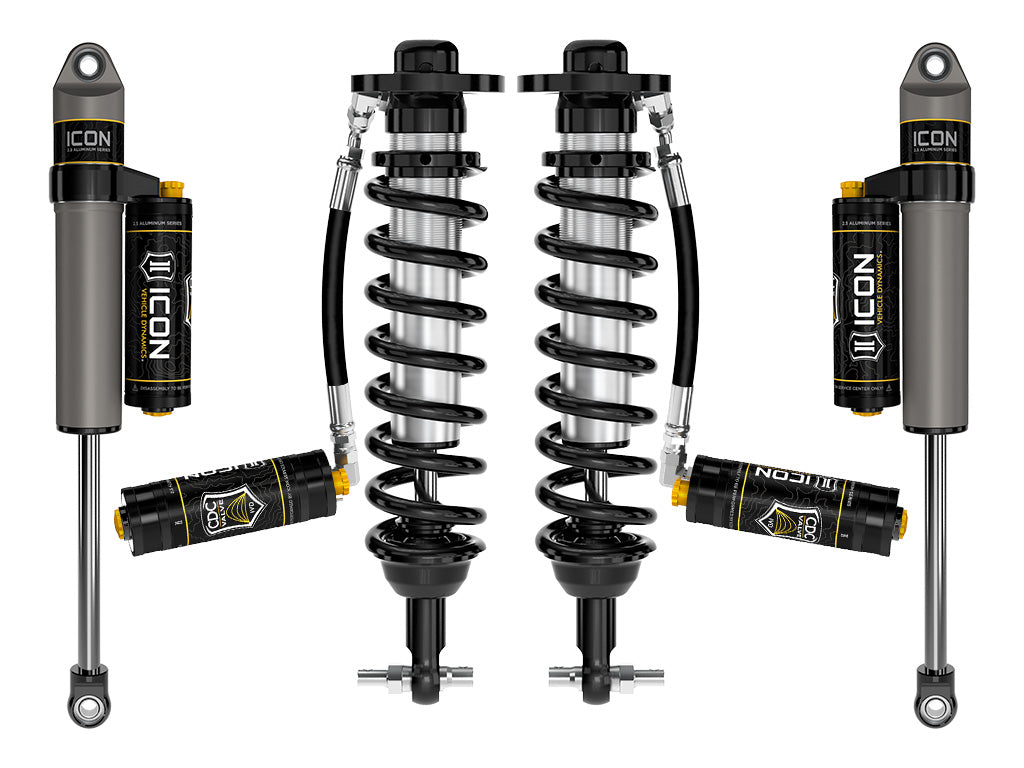

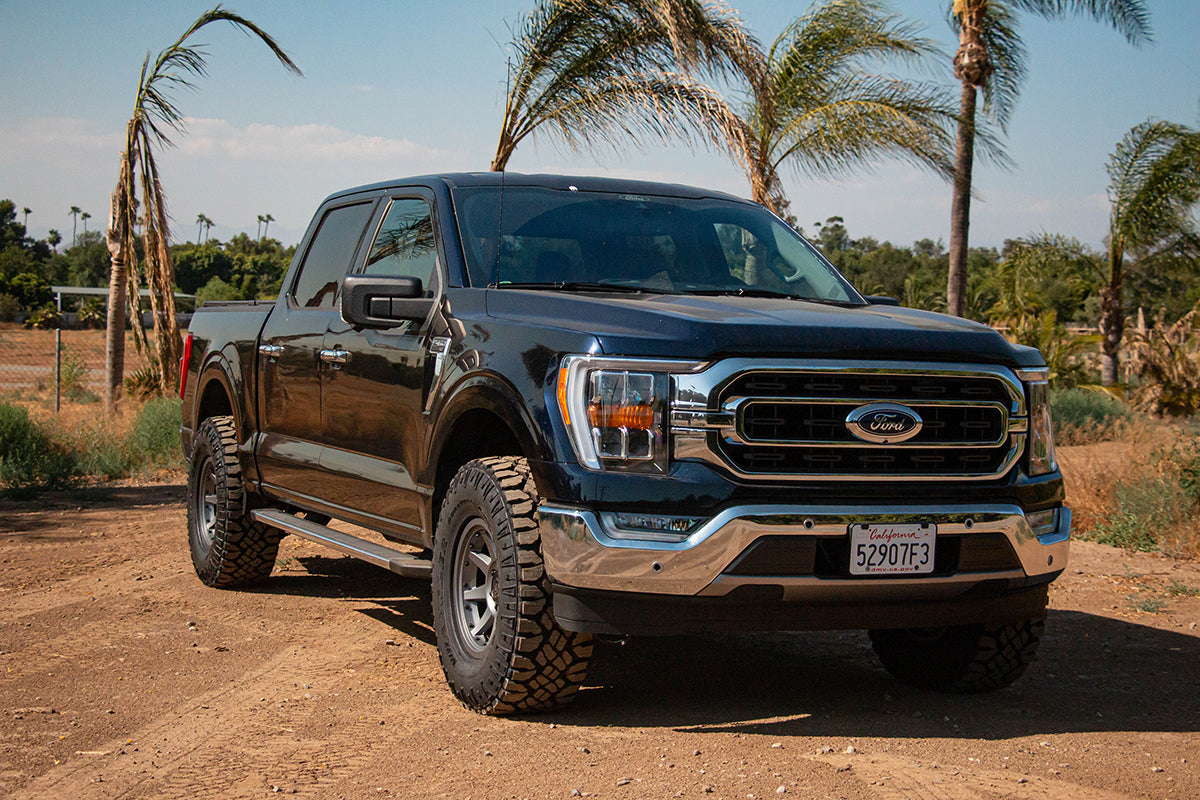

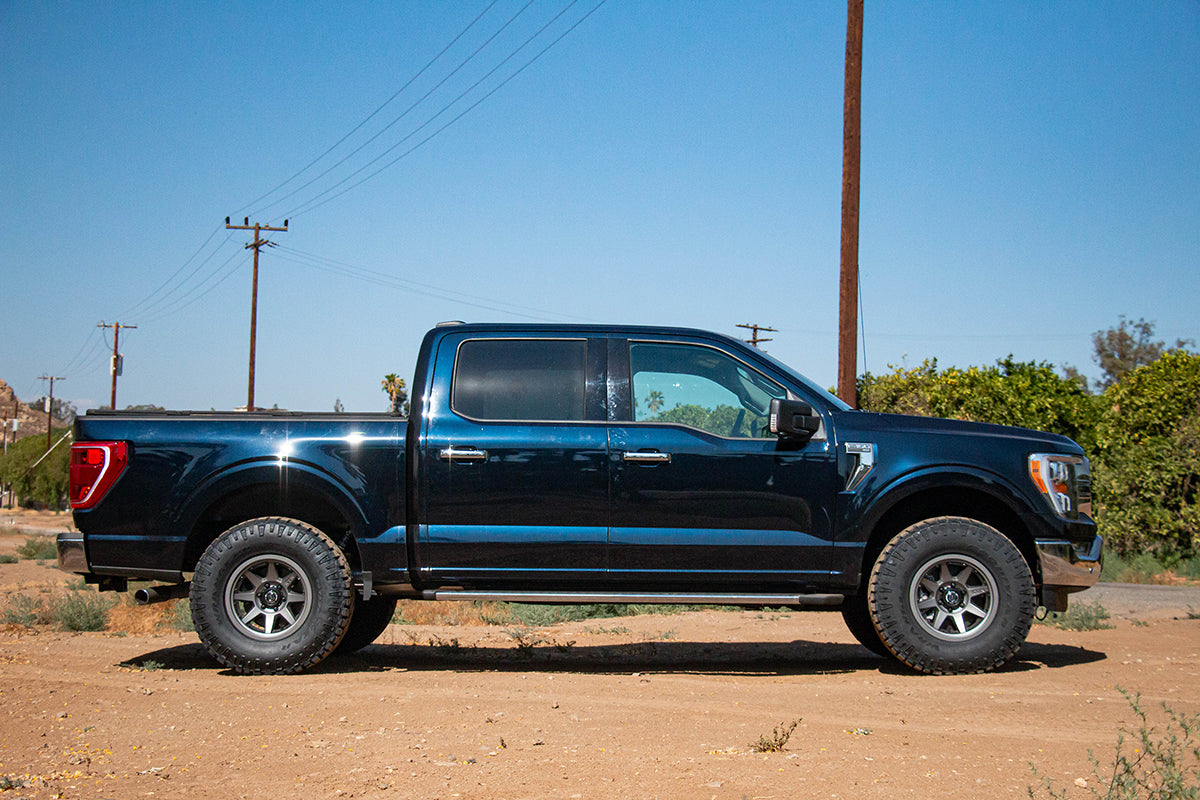

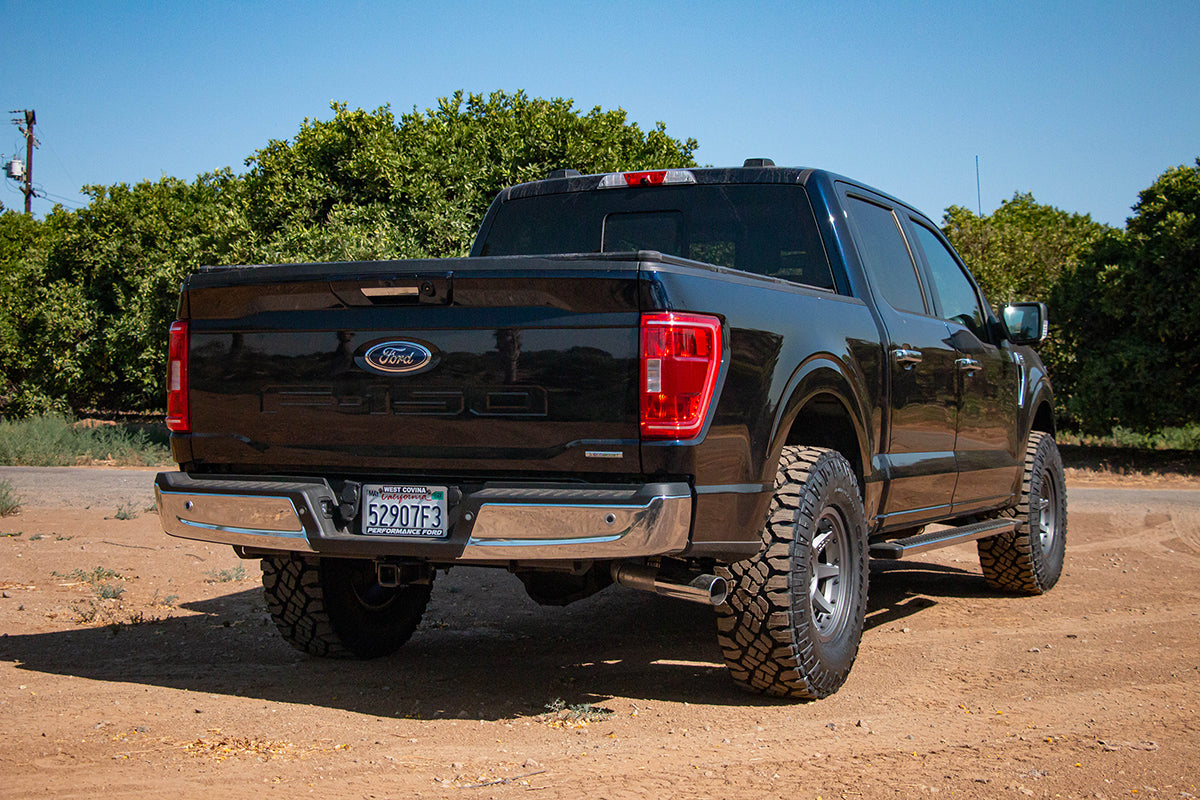

ICON Vehicle Dynamics 2021-2026 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2021-2026 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
- Lift height: 0-2.75"
- Position: Front and Rear
Installation notes:
- with 1" Maximum Lift Rear
- Use Up To 33" x 11.50" Tires
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 6 (mm) Offset Aftermarket Wheels Recommended
- Designed for use with OE Upper Control Arms Only
Fits:
- 2024-2025 Ford F-150: King Ranch, Lariat, Platinum (3.5L FULL HYBRID EV-GAS (FHEV), Front and Rear) — Raises Front 0" - 2.5"; without Continuous Controlled Damping Suspension
- 2024-2025 Ford F-150: King Ranch, Lariat, Platinum (3.5L GAS, Front and Rear) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.0L DIESEL, Front and Rear) — Raises Front 0" - 2.25"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front and Rear) — Raises Front 0" - 2.5"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.5L GAS, Front and Rear) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021-2023 Ford F-150: King Ranch, Platinum (4WD, 5.0L FLEX, Front and Rear) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2024-2025 Ford F-150: Lariat (5.0L FLEX, Front and Rear) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021-2023 Ford F-150: Lariat (4WD, 2.7L GAS, Front and Rear) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: Lariat (4WD, 5.0L FLEX, Front and Rear) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021-2026 Ford F-150: Police Responder (3.5L GAS, Front and Rear) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: SSV (4WD, 3.5L GAS, Leaf rear springs, Front and Rear) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: SSV (4WD, 5.0L FLEX, Leaf rear springs, Front and Rear) — Raises Front 0" - 2.75"
- 2024-2026 Ford F-150: STX (4WD, 2.7L GAS, Front and Rear) — Raises Front 0" - 2.75"
- 2024-2026 Ford F-150: STX (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front and Rear) — Raises Front 0" - 2.5"
- 2024-2026 Ford F-150: STX (4WD, 5.0L FLEX, Front and Rear) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: XL, XLT (4WD, 2.7L GAS, Front and Rear) — Raises Front 0" - 2.75"
- 2021 Ford F-150: XL, XLT (4WD, 3.0L DIESEL, Front and Rear) — Raises Front 0" - 2.25"
- 2021-2026 Ford F-150: XL, XLT (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front and Rear) — Raises Front 0" - 2.5"
- 2021-2026 Ford F-150: XL, XLT (4WD, 3.5L GAS, Front and Rear) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: XL, XLT (4WD, 5.0L FLEX, Front and Rear) — Raises Front 0" - 2.75"
- 2021-2024 Ford F-150: XL (4WD, 5.0L GAS, Front and Rear) — Raises Front 0" - 2.75"
- 2024 Ford F-150: XLT (4WD, 5.0L GAS, Front and Rear) — Raises Front 0" - 2.75"
Part #: K93114
