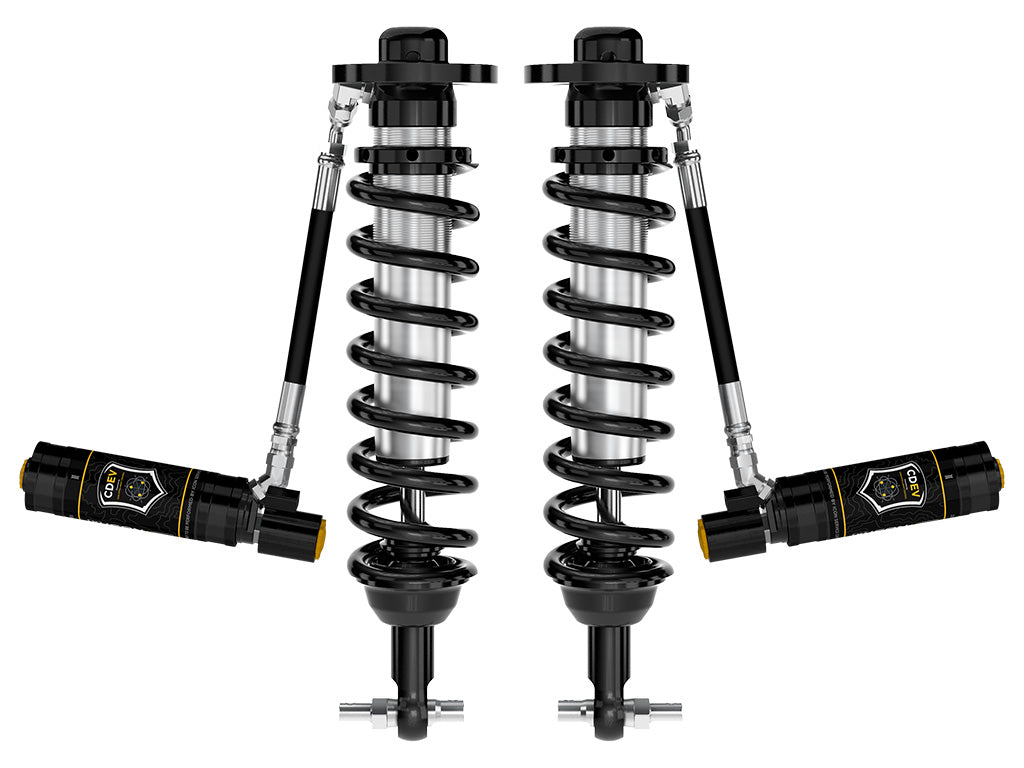

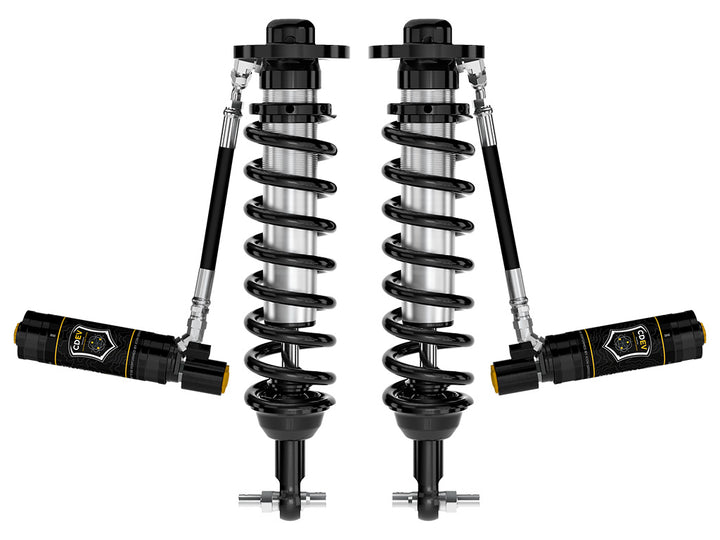

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2021-2026 Ford F-150 4WD truck. These adjustable coilovers allow up 0-2.75” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance, both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford F-150 4WD.
Specifications:
- Lift height: 0-2.75"
- Position: Front
- Shock series: 2.5 Series
- Travel: 7.00"
- Extended length: 23.46"
- Material: Aluminum, Steel
Required to install (sold separately):
- Also Requires Part Number 93500 and Number 97720EP
Installation notes:
- Use Up To 33" x 11.50" Tires
- Requires iOS operated device to run ICON Intelligent Control App
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- with Aftermarket Wheels
- 6 (mm) Offset Aftermarket Wheels Recommended
- Designed for use with OE Upper Control Arms Only
Fits:
- 2024-2025 Ford F-150: King Ranch, Lariat, Platinum (3.5L FULL HYBRID EV-GAS (FHEV), Front) — Raises Front 0" - 2.5"; without Continuous Controlled Damping Suspension
- 2024-2025 Ford F-150: King Ranch, Platinum (3.5L GAS, Front) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.0L DIESEL, Front) — Raises Front 0" - 2.25"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front) — Raises Front 0" - 2.5"; without Continuous Controlled Damping Suspension
- 2021-2023, 2026 Ford F-150: King Ranch, Lariat, Platinum (4WD, 3.5L GAS, Front) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021-2023 Ford F-150: King Ranch, Lariat, Platinum (4WD, 5.0L FLEX, Front) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2024-2025 Ford F-150: Lariat (3.5L GAS, Front) — Raises Front 0" - 2.75"
- 2021-2023 Ford F-150: Lariat (4WD, 2.7L GAS, Front) — Raises Front 0" - 2.75"; without Continuous Controlled Damping Suspension
- 2021-2025 Ford F-150: Police Responder (Front) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: SSV (4WD, 3.5L GAS, Leaf rear springs, Front) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: SSV (4WD, 5.0L FLEX, Leaf rear springs, Front) — Raises Front 0" - 2.75"
- 2024-2026 Ford F-150: STX (4WD, 2.7L GAS, Front) — Raises Front 0" - 2.75"
- 2024-2026 Ford F-150: STX (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front) — Raises Front 0" - 2.5"
- 2024-2026 Ford F-150: STX (4WD, 5.0L FLEX, Front) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: XL, XLT (4WD, 2.7L GAS, Front) — Raises Front 0" - 2.75"
- 2021 Ford F-150: XL, XLT (4WD, 3.0L DIESEL, Front) — Raises Front 0" - 2.25"
- 2021-2026 Ford F-150: XL, XLT (4WD, 3.5L FULL HYBRID EV-GAS (FHEV), Front) — Raises Front 0" - 2.5"
- 2021-2026 Ford F-150: XL, XLT (4WD, 3.5L GAS, Front) — Raises Front 0" - 2.75"
- 2021-2026 Ford F-150: XL, XLT (4WD, 5.0L FLEX, Front) — Raises Front 0" - 2.75"
- 2021-2024 Ford F-150: XL (4WD, 5.0L GAS, Front) — Raises Front 0" - 2.75"
- 2024 Ford F-150: XLT (4WD, 5.0L GAS, Front) — Raises Front 0" - 2.75"
Part #: 91823E
