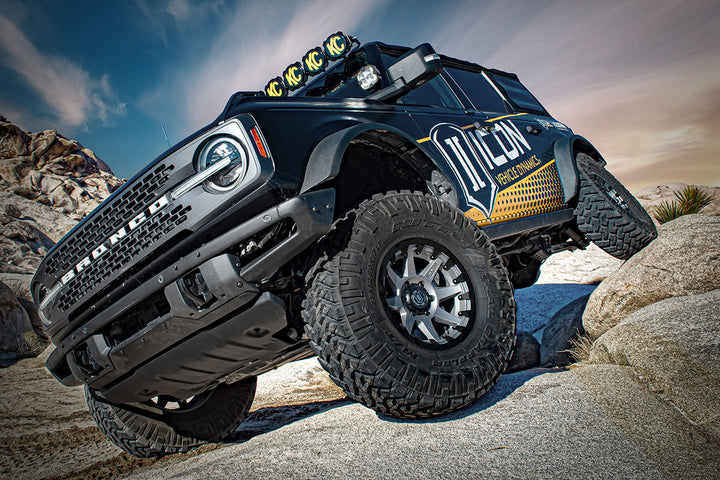

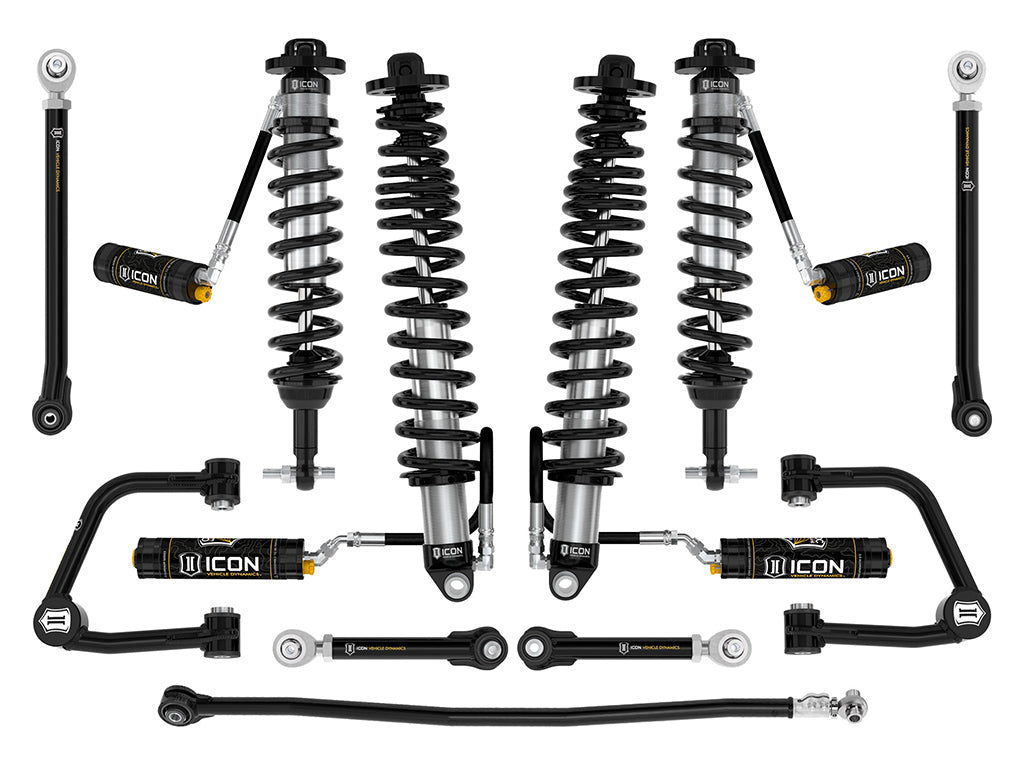

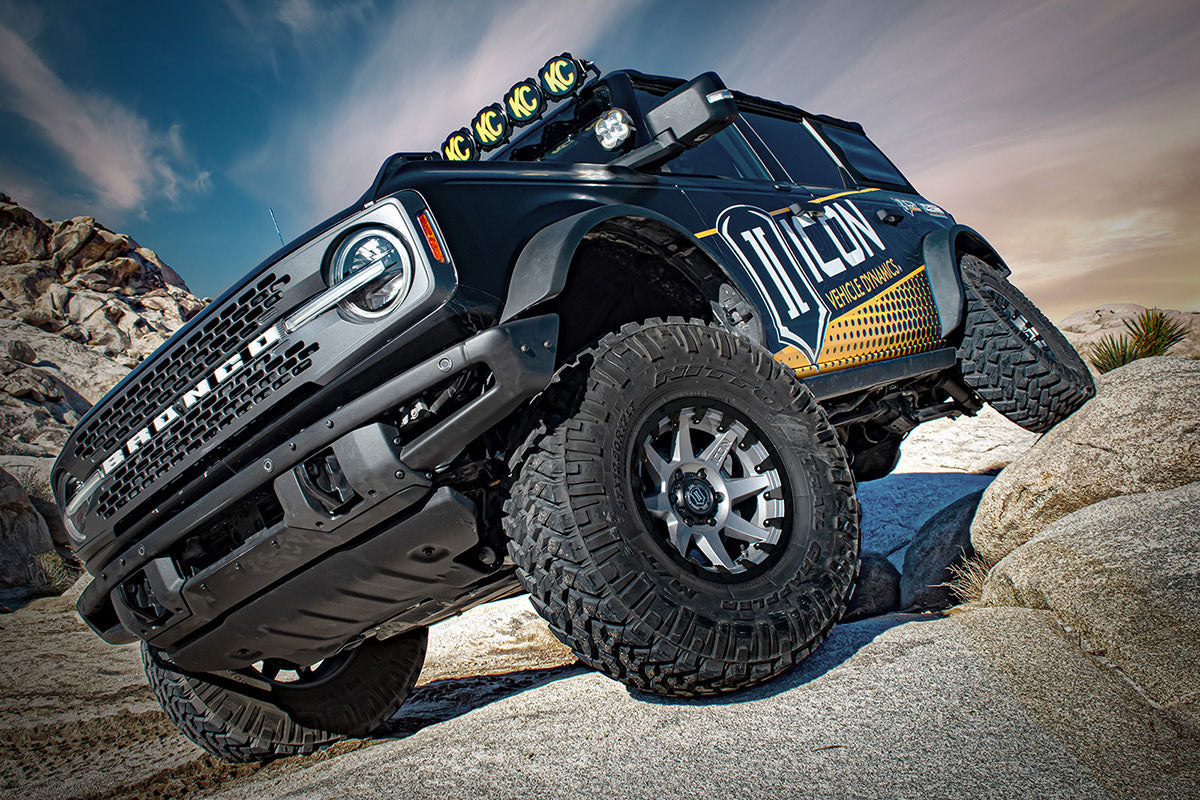

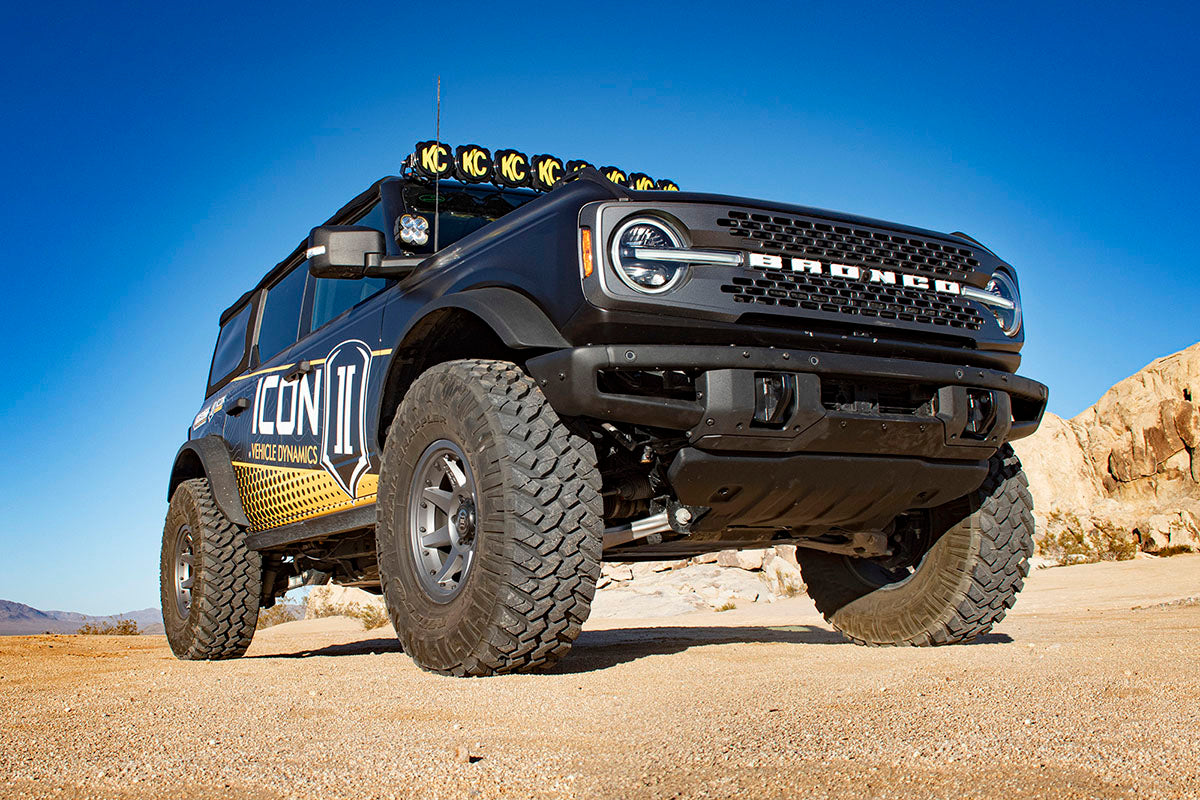

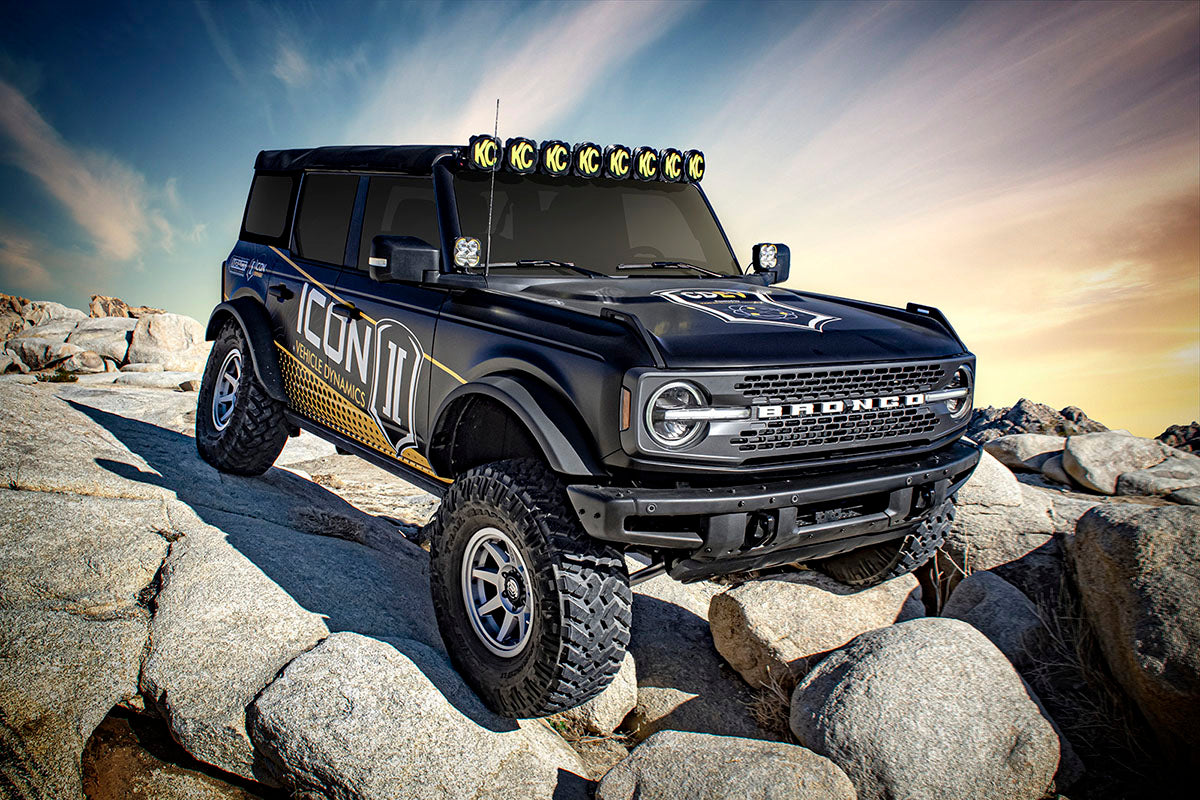

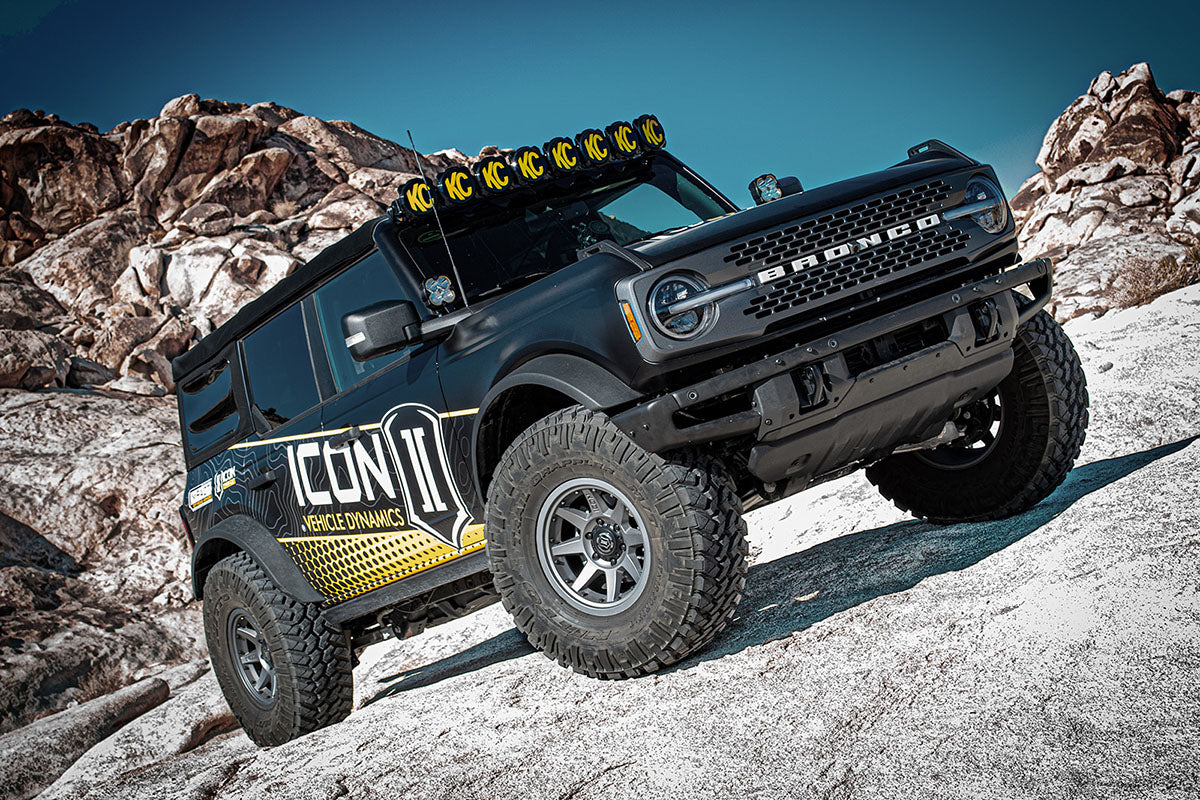

The ICON Vehicle Dynamics Stage 7 Suspension System for the 2021-2026 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. The included CDC Valves control fluid flow under compression, allowing you to achieve the perfect shock tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 7 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 7 also includes the complete tubular rear link kit including upper links and ICON's Adjustable Rear Track Bar. The added upper links have been designed for clearance from the fuel tank during maximum articulation and feature greaseless bushings and massive FK rod ends just like the lower links. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible.
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).
Specifications:
- Lift height: 2-3"
- Position: Front and Rear
Installation notes:
- Rear Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required.
- Use Up To 35" x 12.50" Tires
- For 37x12.50" Tires Use Bump Stop Spacer Kit
- with ICON or OE Tie Rods
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2021-2026 Ford Bronco: Badlands (2-Door, Front and Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; Raises Front 2" - 3"
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; Raises Front 2" - 3"
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Front and Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; Raises Front 2" - 3"
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; Raises Front 2" - 3"
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Front and Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; Raises Front 2" - 3"
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; Raises Front 2" - 3"
- 2022-2025 Ford Bronco: Everglades (Front and Rear) — Raises Rear 1.25" - 2.25"; Raises Front 1.5" - 2.5"
- 2021 Ford Bronco: First Edition (2-Door, Front and Rear) — Raises Rear 1.75" - 2.75"; Raises Front 2" - 3"
- 2021 Ford Bronco: First Edition (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; Raises Front 2" - 3"
- 2023-2024 Ford Bronco: Heritage Edition, Heritage Limited Edition (2-Door, Front and Rear) — Raises Rear 1.75" - 2.75"; Raises Front 2" - 3"
- 2023-2026 Ford Bronco: Heritage Edition (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; Raises Front 2" - 3"
- 2023-2024 Ford Bronco: Heritage Limited Edition (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; Raises Front 2" - 3"
- 2026 Ford Bronco: Stroppe Edition (Front and Rear) — Raises Rear 1.25" - 2.25"; Raises Front 2" - 3"
- 2025 Ford Bronco: Stroppe Edition (Front and Rear) — Raises Rear 1.75" - 2.75"; Raises Front 2" - 3"
- 2021-2024 Ford Bronco: Wildtrak (2-Door, Front and Rear) — Raises Rear 1.75" - 2.75"; Raises Front 2" - 3"
- 2021-2024 Ford Bronco: Wildtrak (4-Door, Front and Rear) — Raises Rear 1.25" - 2.25"; Raises Front 2" - 3"
Part #: K40017T
