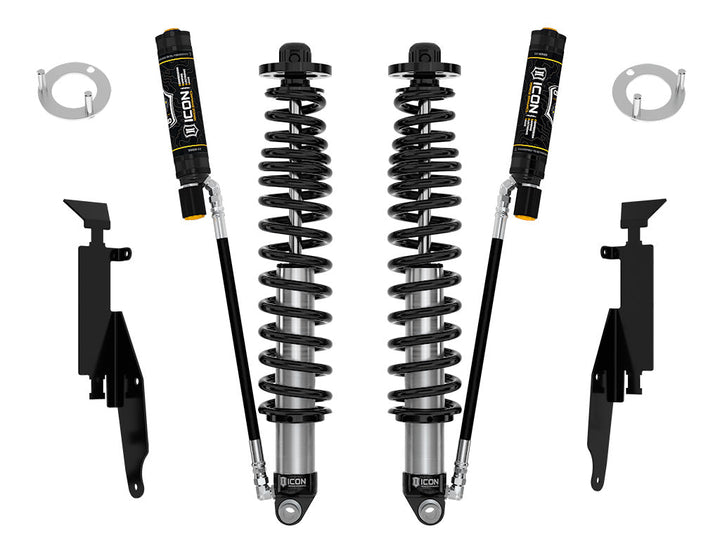

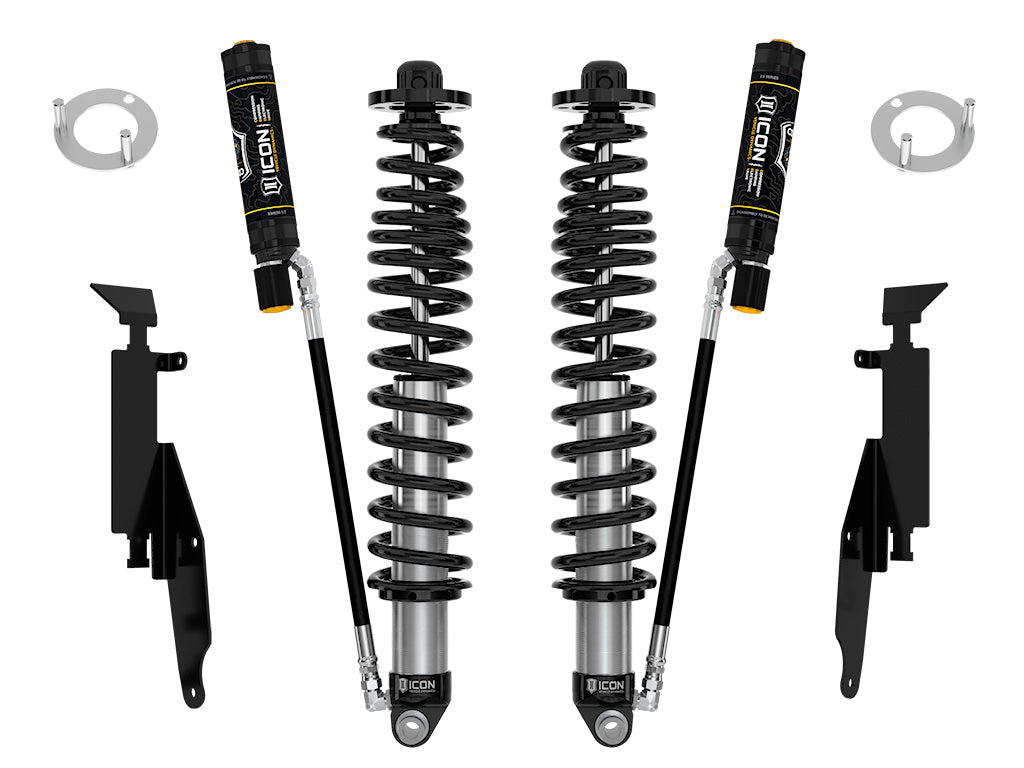

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

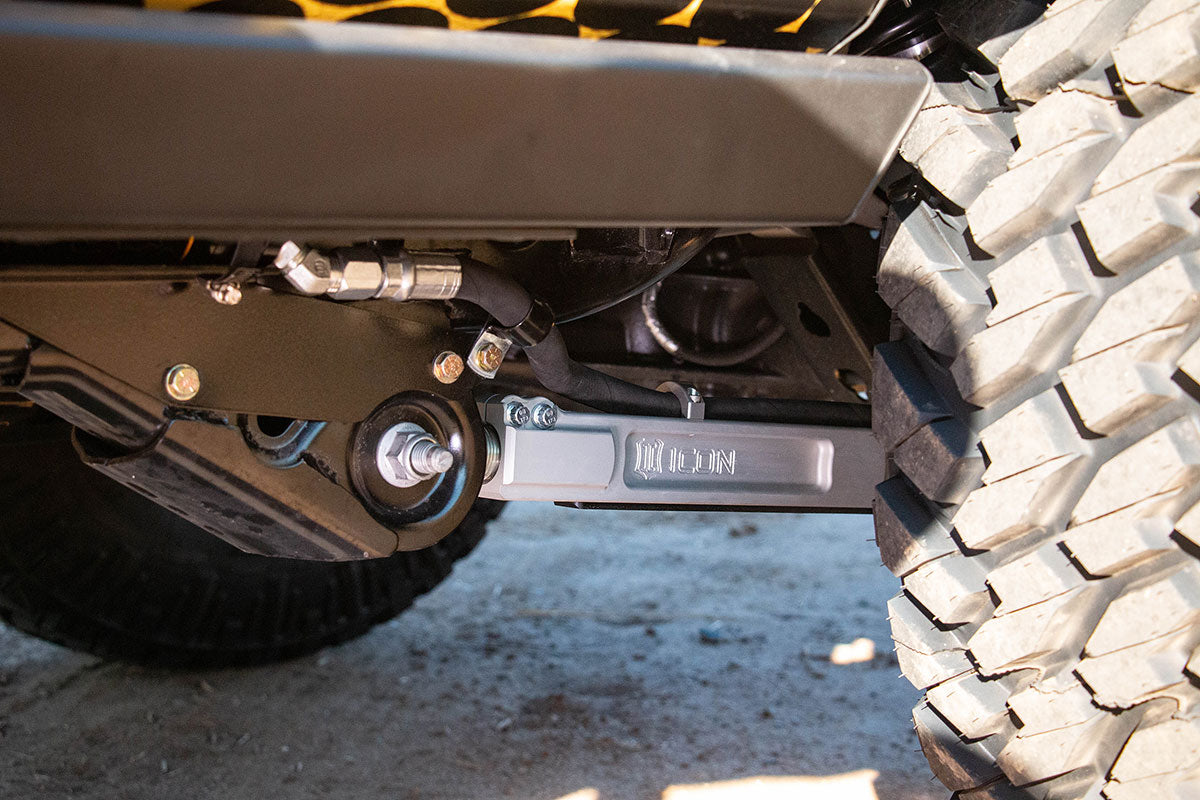

These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.
Specifications:
- Lift height: 1.25-3"
- Position: Rear
- Shock series: 2.5 Series
- Extended length: 29.21"
- Material: Steel, Aluminum
Required to install (sold separately):
- Also Requires Part Number 43501 and Number 48700E
Installation notes:
- Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required.
- Use Up To 35" x 12.50" Tires
- For 37x12.50" Tires Use Bump Stop Spacer Kit
- with Additional Weight Added to Rear End
- Requires iOS operated device to run ICON Intelligent Control App
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- May Require Part Number 611072 or 611073
Fits:
- 2021-2026 Ford Bronco: Badlands (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2025 Ford Bronco: Everglades (Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Edition, Heritage Limited Edition (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford Bronco: Heritage Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Limited Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2026 Ford Bronco: Stroppe Edition (Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2025 Ford Bronco: Stroppe Edition (Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
Part #: 48711E
