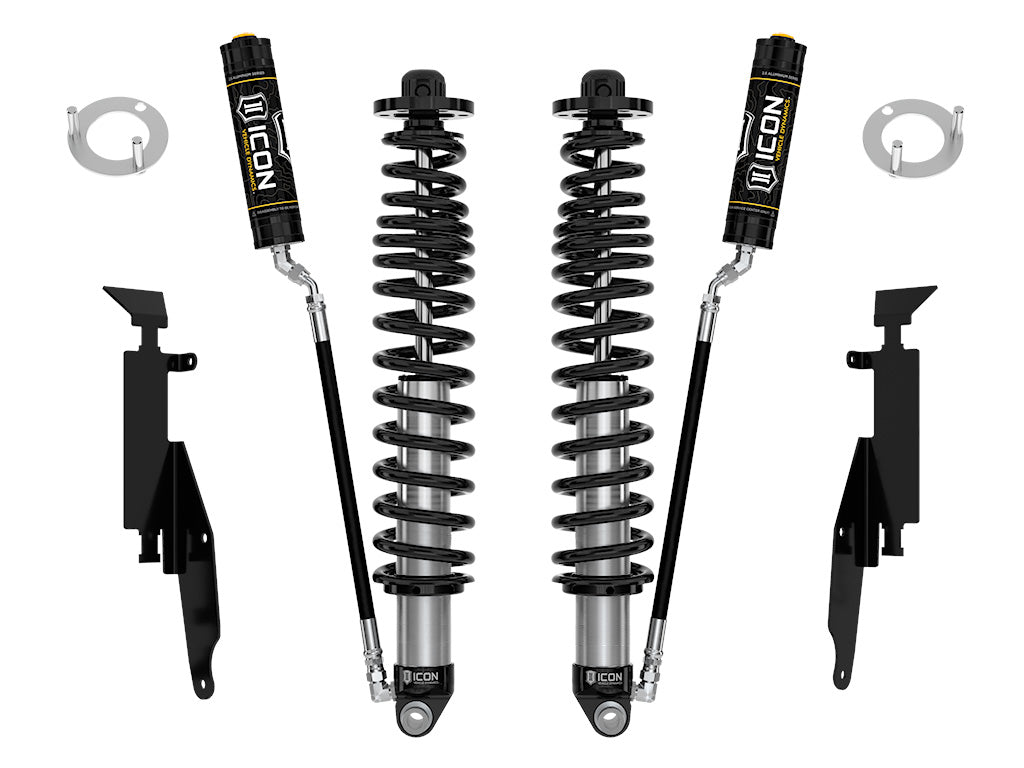

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Specifications:
- Lift height: 1.25-3"
- Position: Rear
- Shock series: 2.5 Series
- Extended length: 29.21"
- Material: Steel, Aluminum
Installation notes:
- Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required.
- Use Up To 35" x 12.50" Tires
- For 37x12.50" Tires Use Bump Stop Spacer Kit
- with Additional Weight Added to Rear End
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- May Require Part Number 611072 or 611073
Fits:
- 2021-2026 Ford Bronco: Badlands (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2025 Ford Bronco: Everglades (Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Edition, Heritage Limited Edition (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford Bronco: Heritage Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Limited Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2026 Ford Bronco: Stroppe Edition (Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2025 Ford Bronco: Stroppe Edition (Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
Part #: 48711
