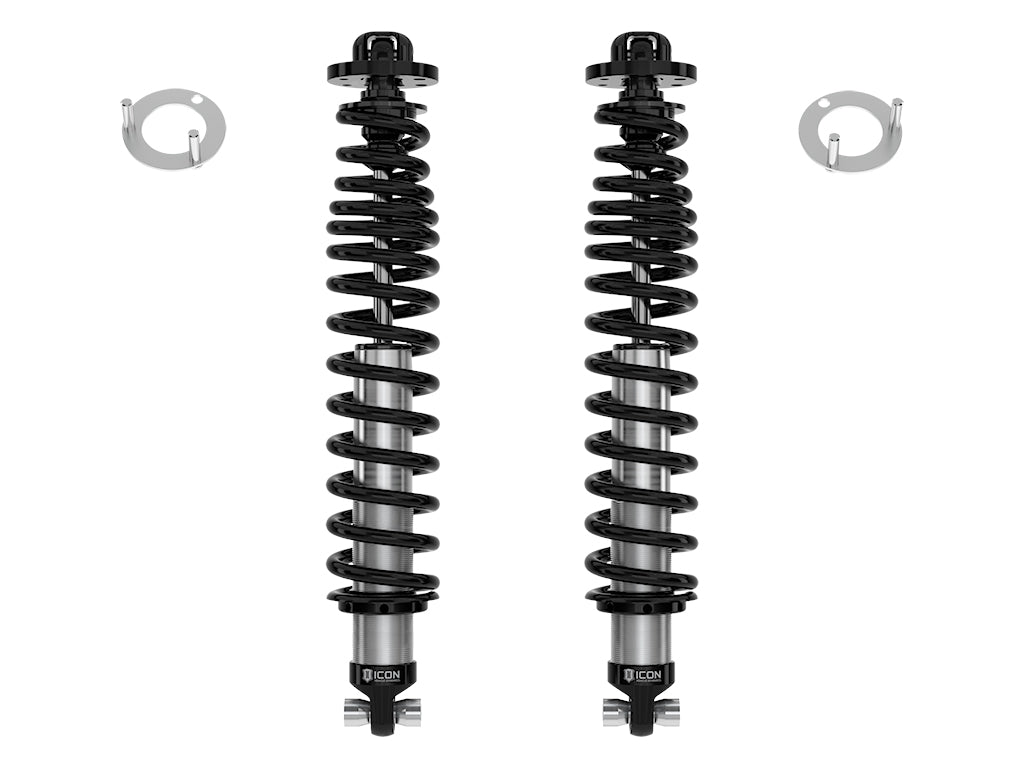

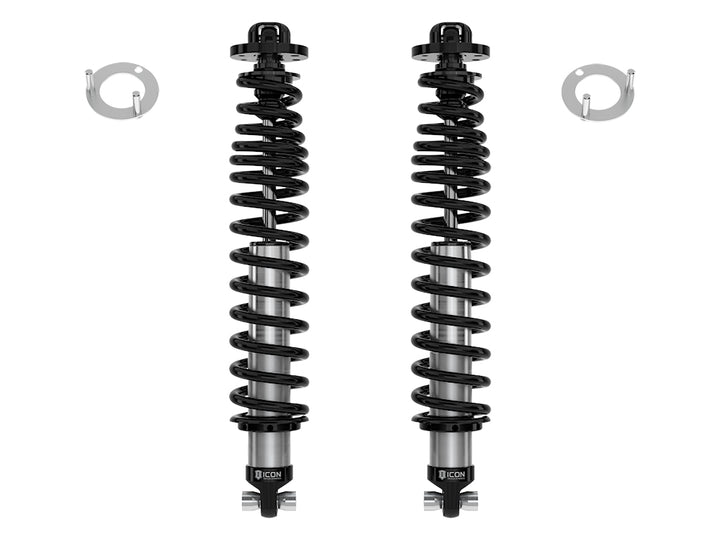

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Specifications:
- Lift height: 1.25-3"
- Position: Rear
- Shock series: 2.5 Series
- Material: Steel, Aluminum
Installation notes:
- Use Up To 35" x 12.50" Tires
- For 37" Tires Use Bump Stop Spacer Kit
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
Fits:
- 2021-2026 Ford Bronco: Badlands (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Rear) — Raises Rear 1.75" - 2.75"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Rear) — without Sasquatch Package; Raises Rear 2.5" - 3.5"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Rear) — Raises Rear 1.25" - 2.25"; with Sasquatch Package; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Rear) — without Sasquatch Package; Raises Rear 2" - 3"; 25 (mm) Offset Aftermarket Wheels Recommended
- 2022-2025 Ford Bronco: Everglades (Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Edition, Heritage Limited Edition (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford Bronco: Heritage Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Limited Edition (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2026 Ford Bronco: Stroppe Edition (Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2025 Ford Bronco: Stroppe Edition (Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (2-Door, Rear) — Raises Rear 1.75" - 2.75"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (4-Door, Rear) — Raises Rear 1.25" - 2.25"; 0 (mm) Offset Aftermarket Wheels Recommended
Part #: 48610
