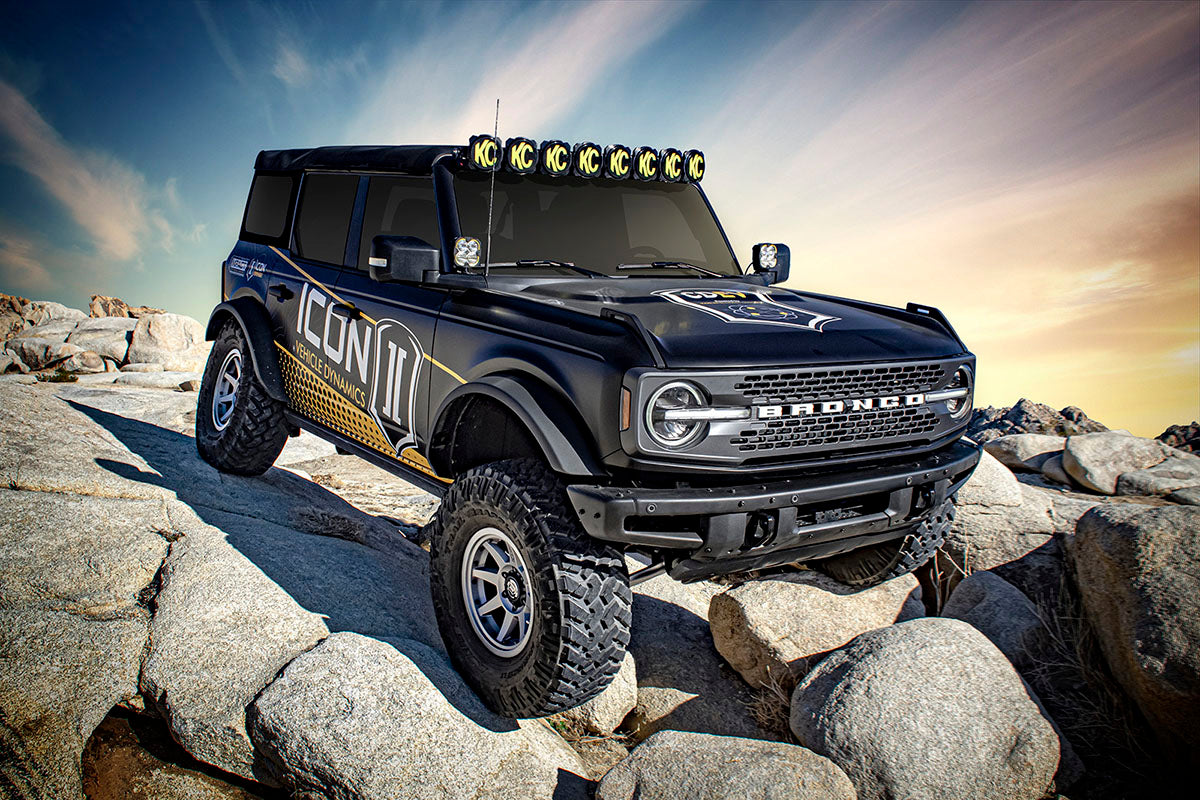

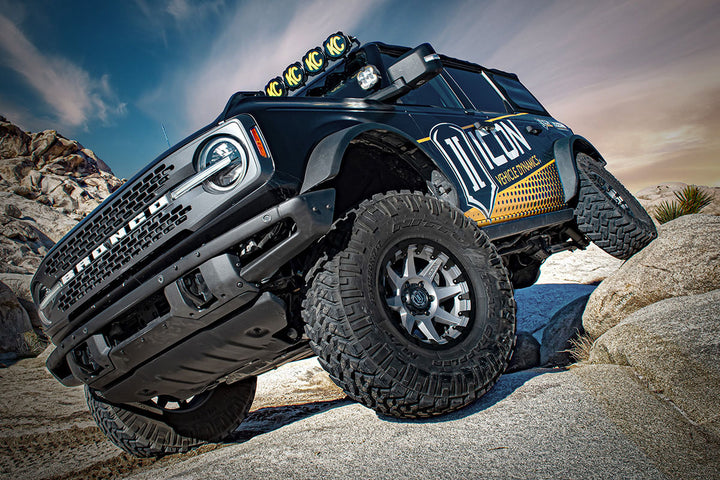

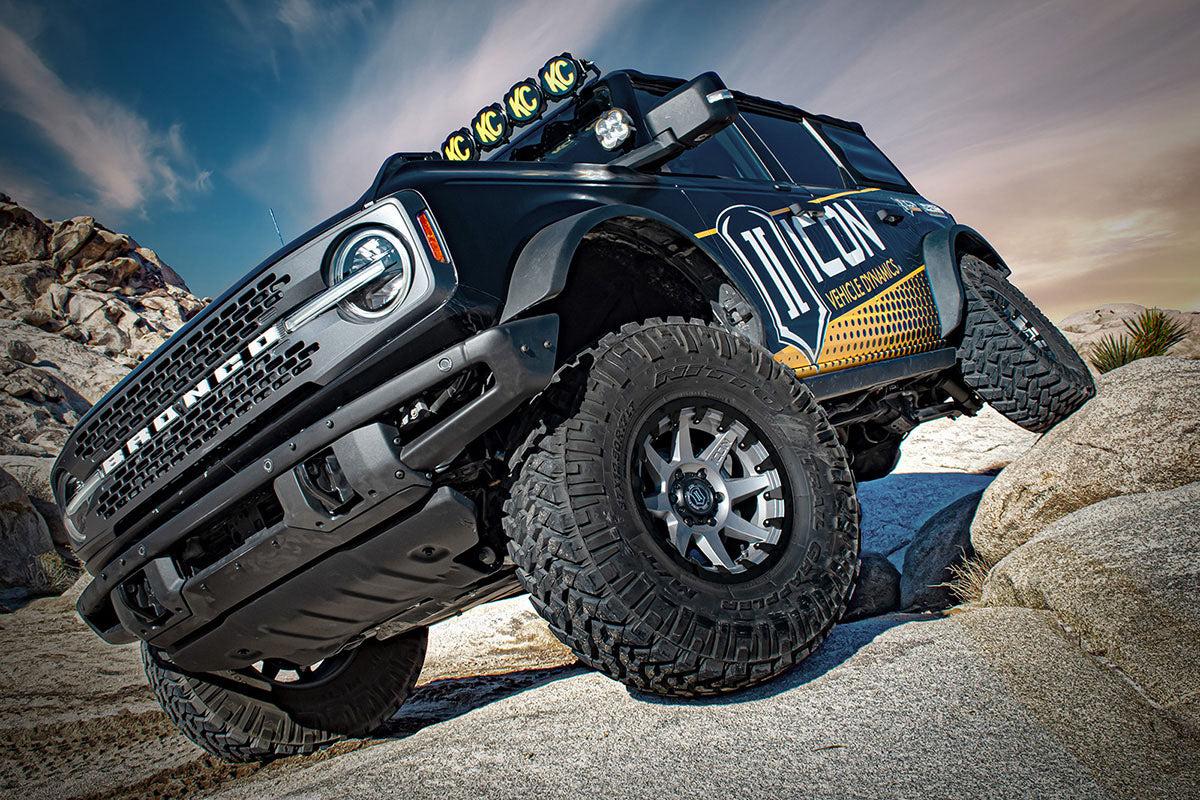

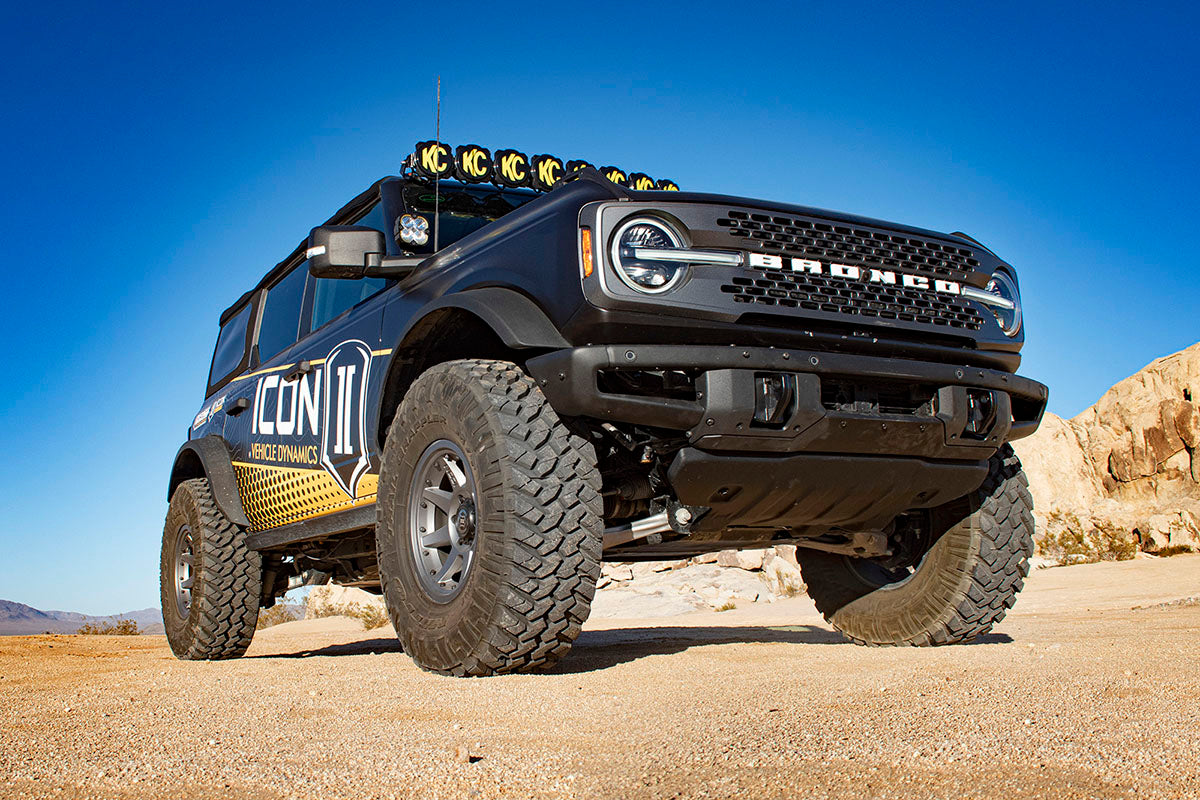

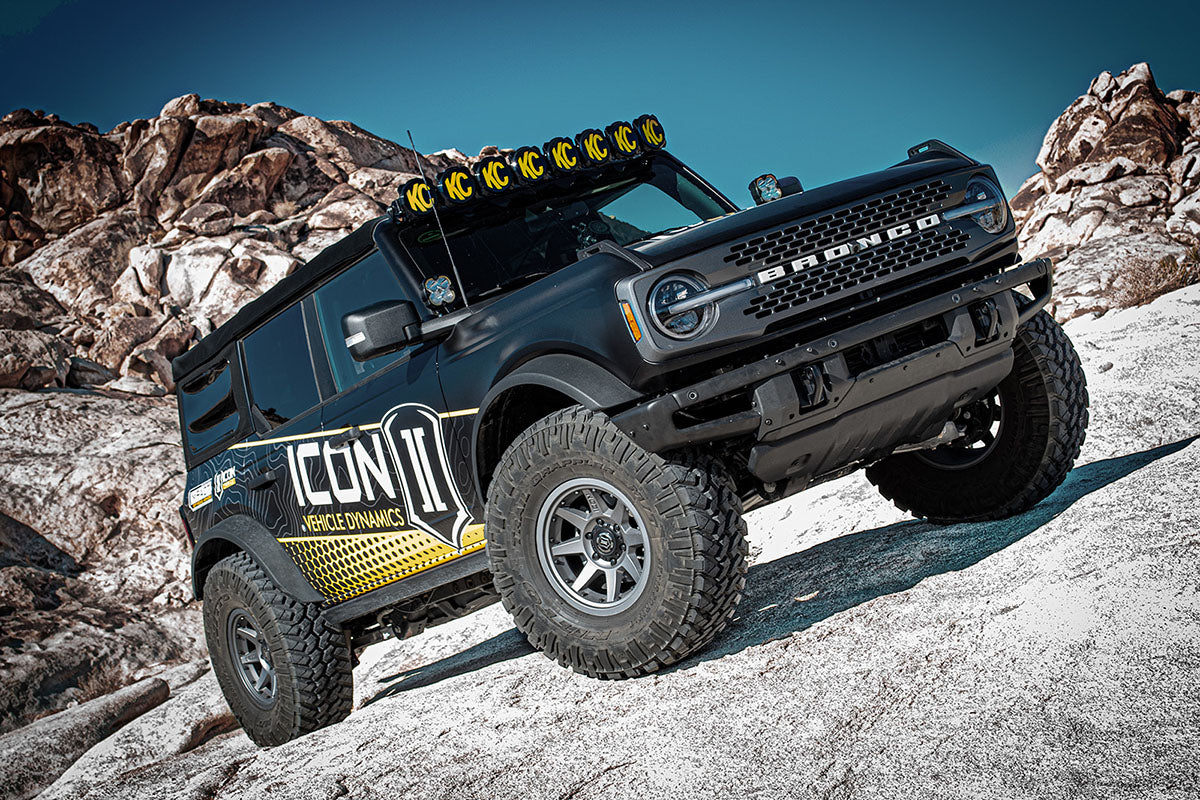

The ICON Vehicle Dynamics Stage 8 Suspension System for the 2021-2026 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDEV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear coilover shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. ICON's Top of The Range suspension system features lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

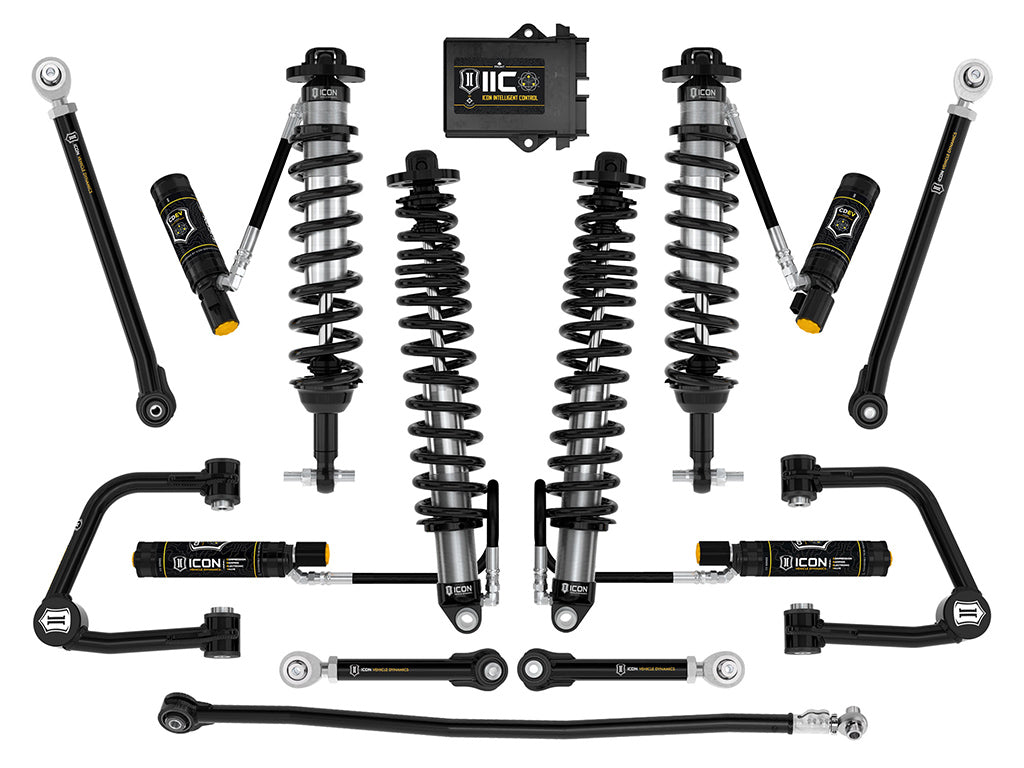

This Stage 8 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. The tubular rear links links have been designed to free up suspension bind, offer pinion angle adjustment, and optimize clearance from the fuel tank during maximum articulation and feature greaseless bushings and massive FK rod ends. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height.
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
Specifications:
- Lift height: 3-4"
- Front lift: 3" - 4"
- Position: Front and Rear
Installation notes:
- When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended
- When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended
- Rear Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required.
- Use Up To 35" x 12.50" Tires
- without Sasquatch Package
- For 37x12.50" Tires Use Bump Stop Spacer Kit
- with ICON or OE Tie Rods
- Requires iOS operated device to run ICON Intelligent Control App
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Front 3" - 4"
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2021-2026 Ford Bronco: Badlands (2-Door, Front and Rear) — Raises Rear 2.5" - 3.5"
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Front and Rear) — Raises Rear 2" - 3"
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Front and Rear) — Raises Rear 2.5" - 3.5"
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Front and Rear) — Raises Rear 2" - 3"
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Front and Rear) — Raises Rear 2.5" - 3.5"
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Front and Rear) — Raises Rear 2" - 3"
Part #: K40008T
