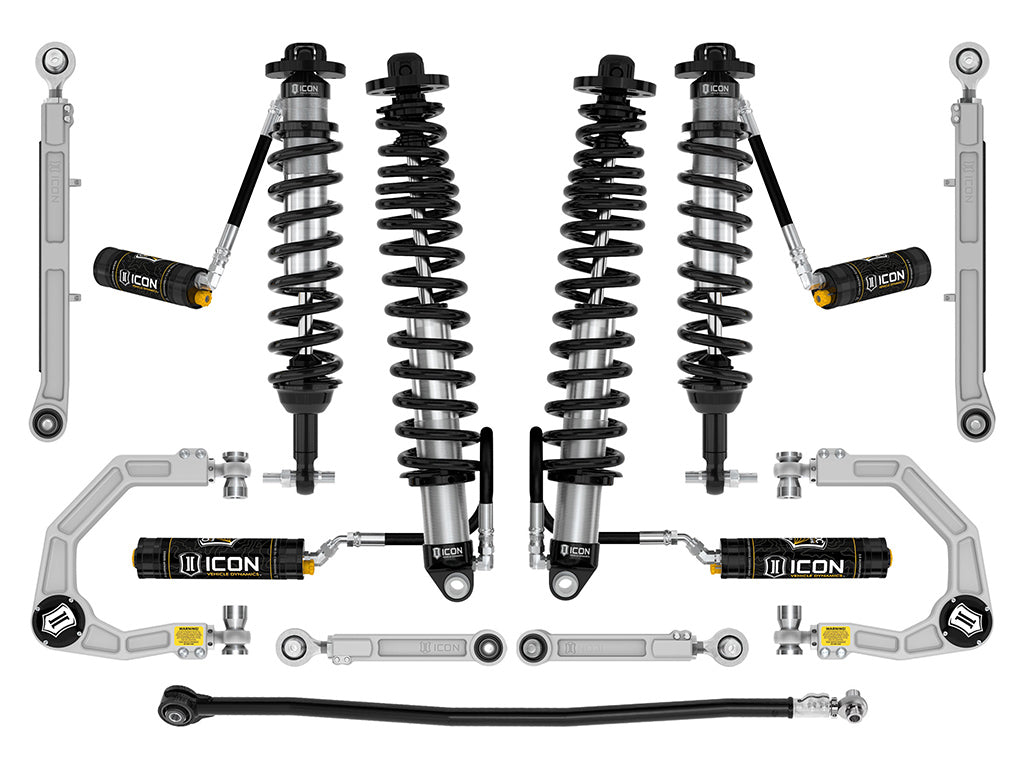

The ICON Vehicle Dynamics Stage 7 Suspension System for the 2021-2026 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. The included CDC Valves control fluid flow under compression, allowing you to achieve the perfect shock tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

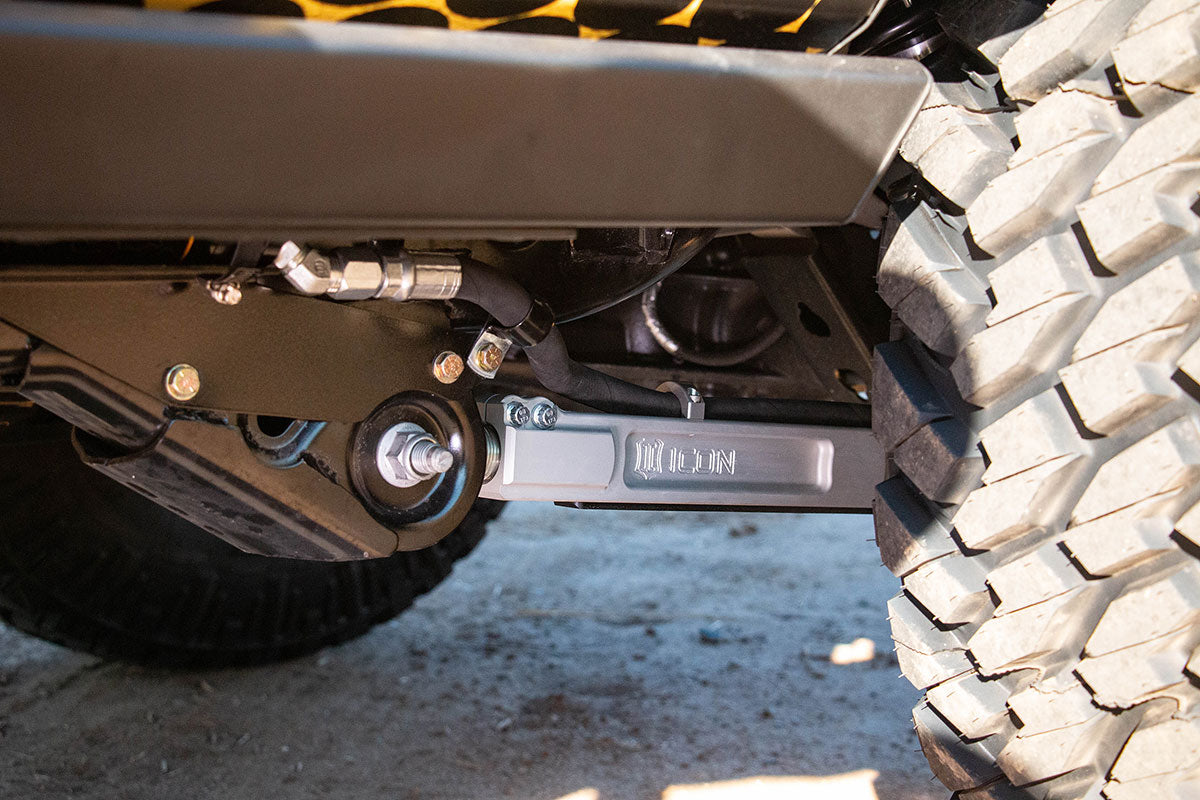

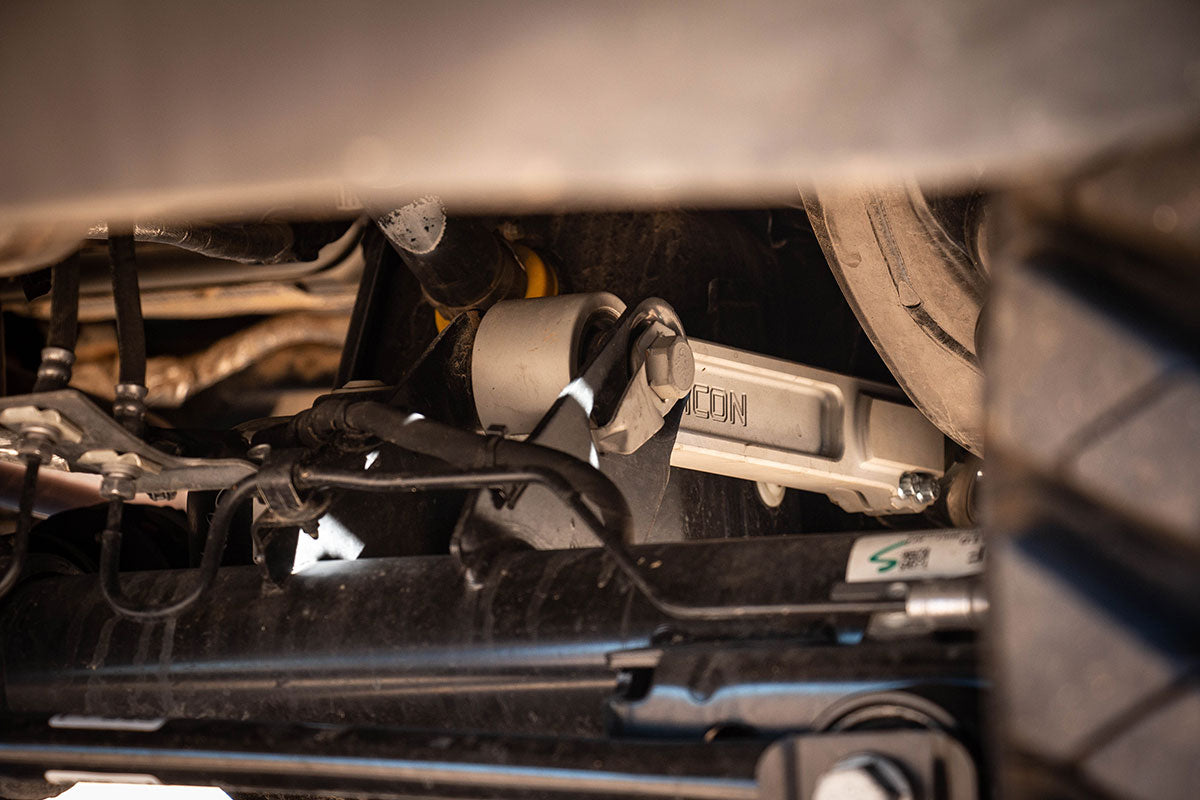

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 7 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 7 also includes the complete billet rear link kit including upper links and ICON's tubular Adjustable Rear Track Bar. The added upper links have been designed for clearance from the fuel tank during maximum articulation and feature greaseless bushings, massive FK rod ends, and on-vehicle adjustability just like the lower links. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height.
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
Specifications:
- Lift height: 3-4"
- Front lift: 3" - 4"
- Position: Front and Rear
Installation notes:
- When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended
- When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended
- Rear Reservoir Brackets May Not Fit with Some Aftermarket Steps or Rock Sliders. Modifications May be Required.
- Use Up To 35" x 12.50" Tires
- without Sasquatch Package
- For 37x12.50" Tires Use Bump Stop Spacer Kit
- with Additional Weight Added to Rear End
- with ICON or OE Tie Rods
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Raises Front 3" - 4"
- with Aftermarket Wheels
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2021-2026 Ford Bronco: Badlands (2-Door, Front and Rear) — Raises Rear 2.5" - 3.5"
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (4-Door, Front and Rear) — Raises Rear 2" - 3"
- 2021-2023, 2025-2026 Ford Bronco: Base (2-Door, Front and Rear) — Raises Rear 2.5" - 3.5"
- 2021-2023, 2025-2026 Ford Bronco: Base (4-Door, Front and Rear) — Raises Rear 2" - 3"
- 2021-2024 Ford Bronco: Big Bend, Black Diamond, Outer Banks (2-Door, Front and Rear) — Raises Rear 2.5" - 3.5"
- 2021-2024 Ford Bronco: Black Diamond (4-Door, Front and Rear) — Raises Rear 2" - 3"
Part #: K40007X
