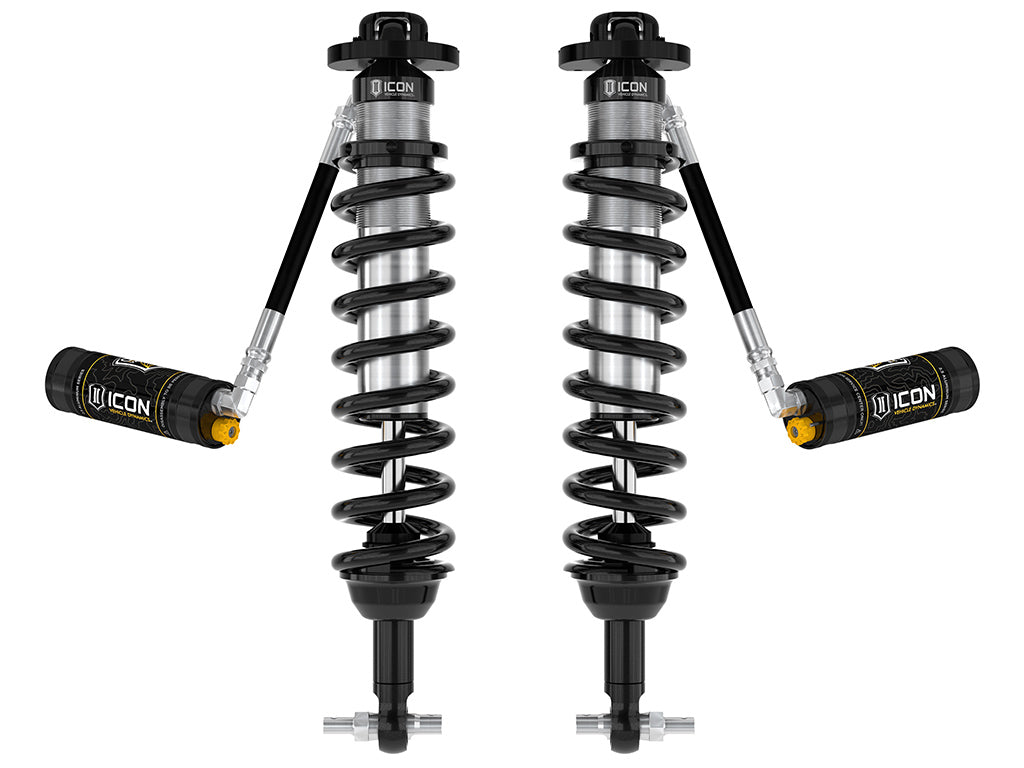

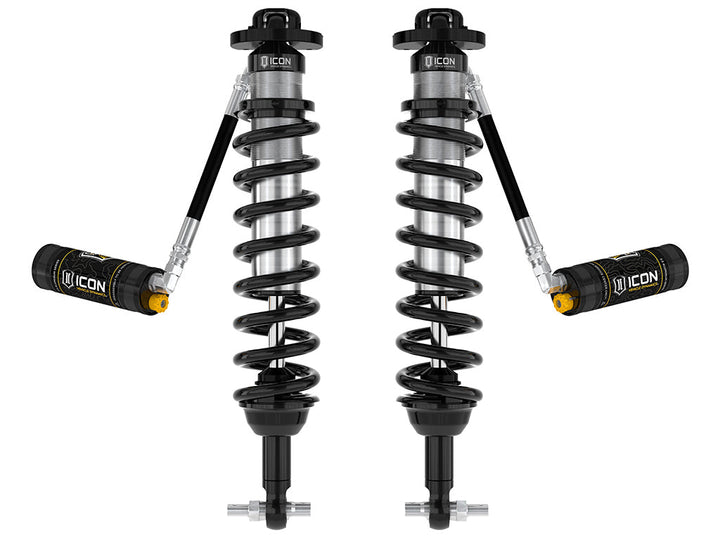

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Specifications:
- Lift height: 1.5-4"
- Position: Front
- Shock series: 2.5 Series
- Extended length: 24.53"
- Material: Steel, Aluminum
Installation notes:
- Use Up To 35" x 12.50" Tires
- For 37" Tires Use Bump Stop Spacer Kit
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- May Require Part Number 48400DJ or 48500DJ
Fits:
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (Front) — When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended; When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended; without Sasquatch Package; Raises Front 3" - 4"; with Aftermarket Wheels; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2026 Ford Bronco: Badlands, Big Bend, Outer Banks (Front) — with Sasquatch Package; Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (Front) — When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended; When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended; without Sasquatch Package; Raises Front 3" - 4"; with Aftermarket Wheels; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2023, 2025-2026 Ford Bronco: Base (Front) — with Sasquatch Package; Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (Front) — When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended; When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended; without Sasquatch Package; Raises Front 3" - 4"; with Aftermarket Wheels; 25 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Black Diamond (Front) — with Sasquatch Package; Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2022-2025 Ford Bronco: Everglades (Front) — Raises Front 1.5" - 2.5"; 0 (oz) Offset Aftermarket Wheels Recommended
- 2021 Ford Bronco: First Edition (Front) — Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2026 Ford Bronco: Heritage Edition (Front) — Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2023-2024 Ford Bronco: Heritage Limited Edition (Front) — Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2025-2026 Ford Bronco: Stroppe Edition (Front) — Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
- 2021-2024 Ford Bronco: Wildtrak (Front) — Raises Front 2" - 3"; 0 (mm) Offset Aftermarket Wheels Recommended
Part #: 48700C
