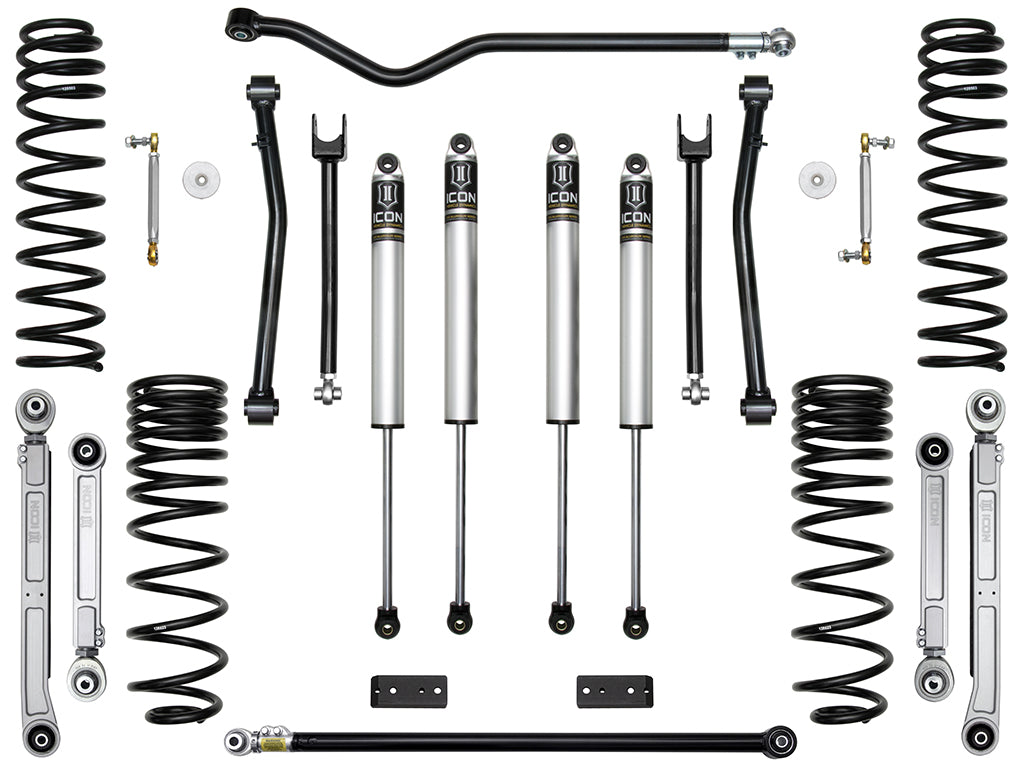

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset
- Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle.
- Use Up To 35" x 12.50" Tires
- For 37" Tires Use Bump Stop Spacer Kit
- Rear Raise Height 1.5"
Fits:
- 2021 Jeep Gladiator: 80th Anniversary (Front and Rear) — Front Raise Height 1.75"
- 2021 Jeep Gladiator: 80th Anniversary (Front and Rear) — Front Raise Height 2.5"
- 2020 Jeep Gladiator: Altitude, Launch Edition (Front and Rear) — Front Raise Height 2.5"
- 2021-2022 Jeep Gladiator: High Altitude, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport (Front and Rear) — Front Raise Height 1.75"
- 2021-2022 Jeep Gladiator: High Altitude, Willys, Willys Sport (Front and Rear) — Front Raise Height 2.5"
- 2020-2022 Jeep Gladiator: Overland, Rubicon, Sport, Sport S (Front and Rear) — Front Raise Height 2.5"
Part #: K22105
