The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020-2022 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.

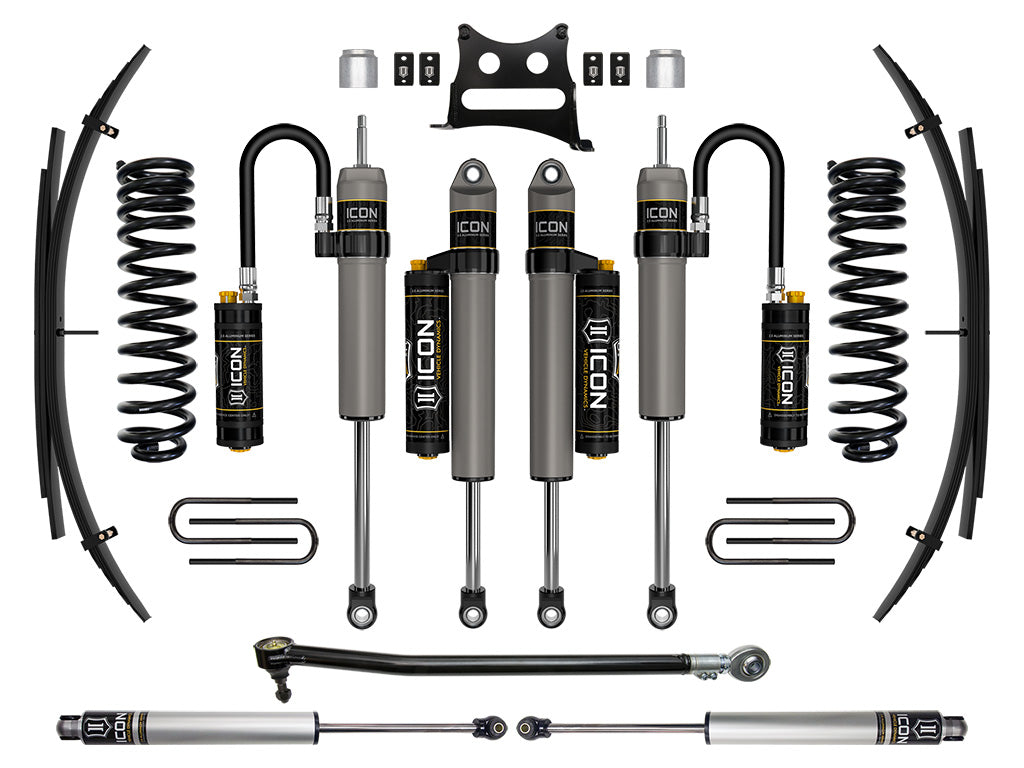

The ICON 2.5” suspension system is a great way to lift your 4WD 2020-2022 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5" remote reservoir and piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Installation notes:
- Use with Extended Brake Line Kit Part Number 61111
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Use with Track Bar Bracket Part Number 64039
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 1.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 1.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2022 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 1.5"; Raises Rear .5"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
Part #: K62525L
