The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020-2022 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.

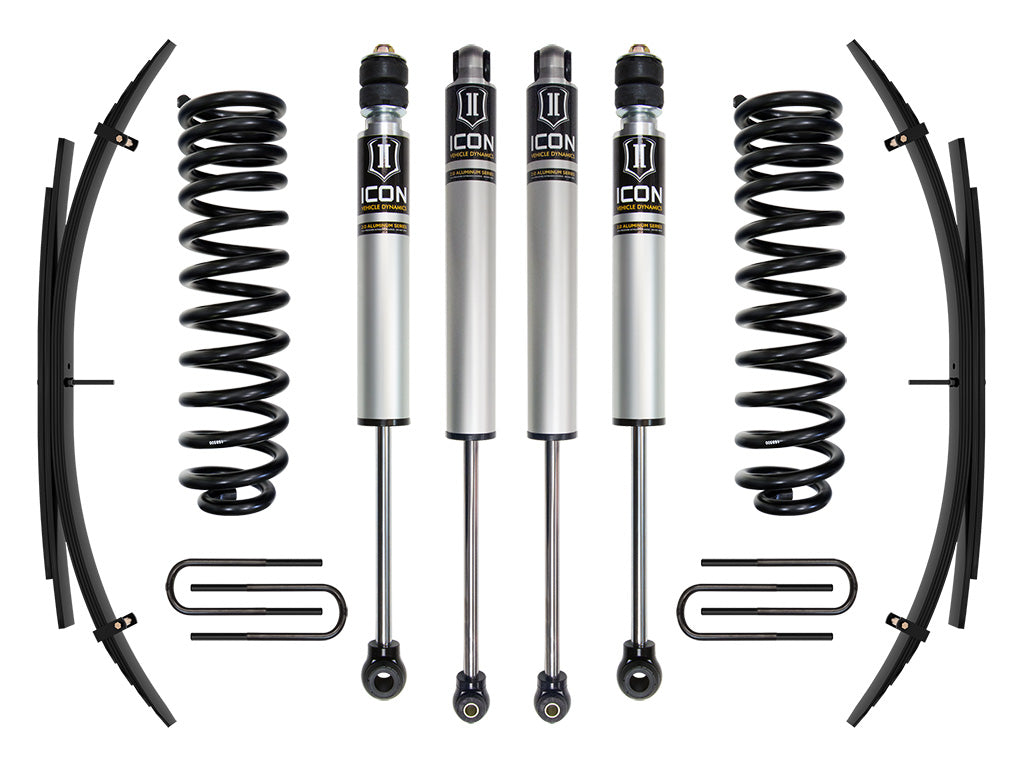

The ICON 2.5” suspension system is a great way to lift your 4WD 2020-2022 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of dual rate coil springs, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks front and rear. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Installation notes:
- Use with Extended Brake Line Kit Part Number 61111
- Use Up To 35" x 12.50" Tires
- Up to 37x12.50" Tire with Minor Fender Trimming
- Use with Track Bar Bracket Part Number 64039
- Use with 64038 Adjustable Track Bar
- 6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 1.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: King Ranch, Lariat (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: Limited (Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 1.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: Platinum (6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-250 Super Duty: XL (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2022 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — Raises Front 2.5"; Raises Rear .5"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — with Tremor Package; Raises Front 1.5"; Raises Rear .5"
- 2020-2021 Ford F-250 Super Duty: XLT (4WD, 6.7L DIESEL, Front and Rear) — without Tremor Package; Raises Front 2.5"; Raises Rear .5"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2022 Ford F-350 Super Duty: King Ranch, Platinum (4WD, 6.7L DIESEL, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2022 Ford F-350 Super Duty: Lariat (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: Limited (Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2022 Ford F-350 Super Duty: XL (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Crew Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Extended Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2022 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Single Rear Wheels (SRW); Raises Front 2.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; with Tremor Package; with Single Rear Wheels (SRW); Raises Front 1.5"
- 2020-2021 Ford F-350 Super Duty: XLT (4WD, 6.7L DIESEL, Standard Cab Pickup, Front and Rear) — Lowers Rear .5 in; without Tremor Package; with Single Rear Wheels (SRW); Raises Front 2.5"
Part #: K62521L
