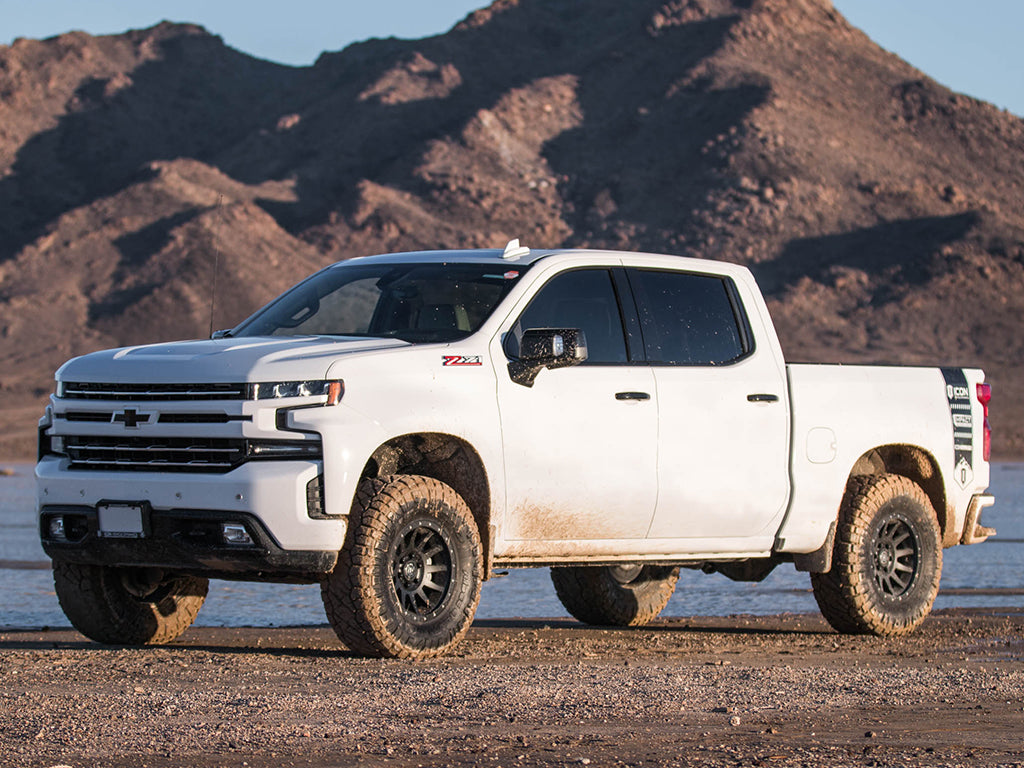

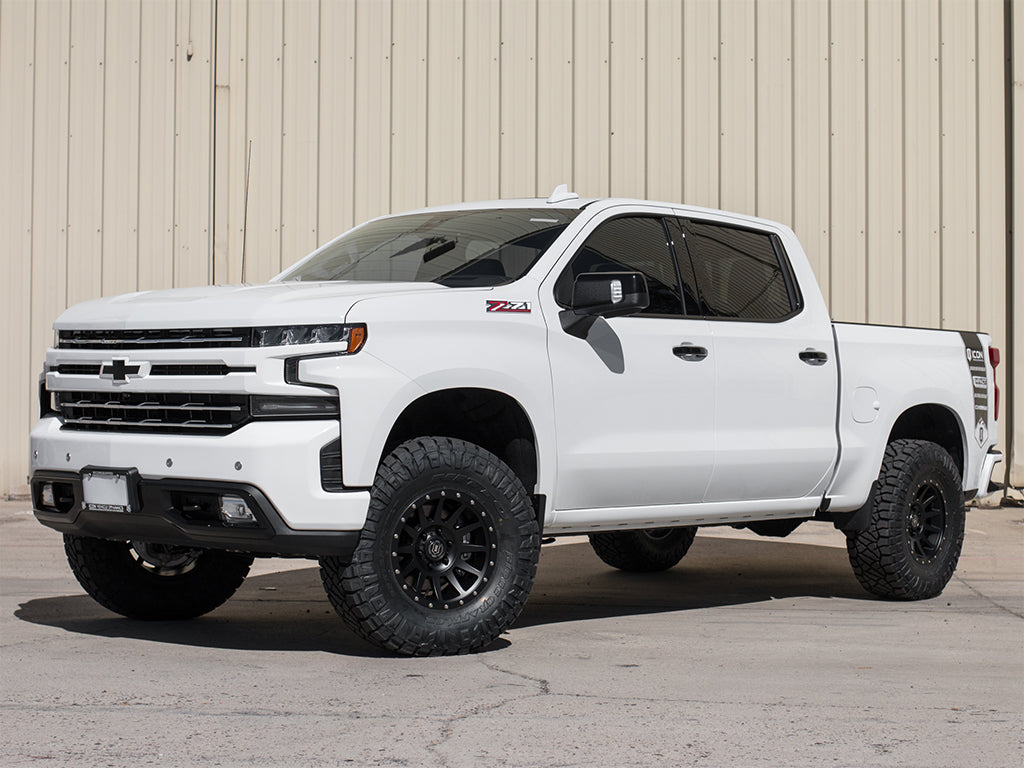

ICON Vehicle Dynamics 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-developed coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

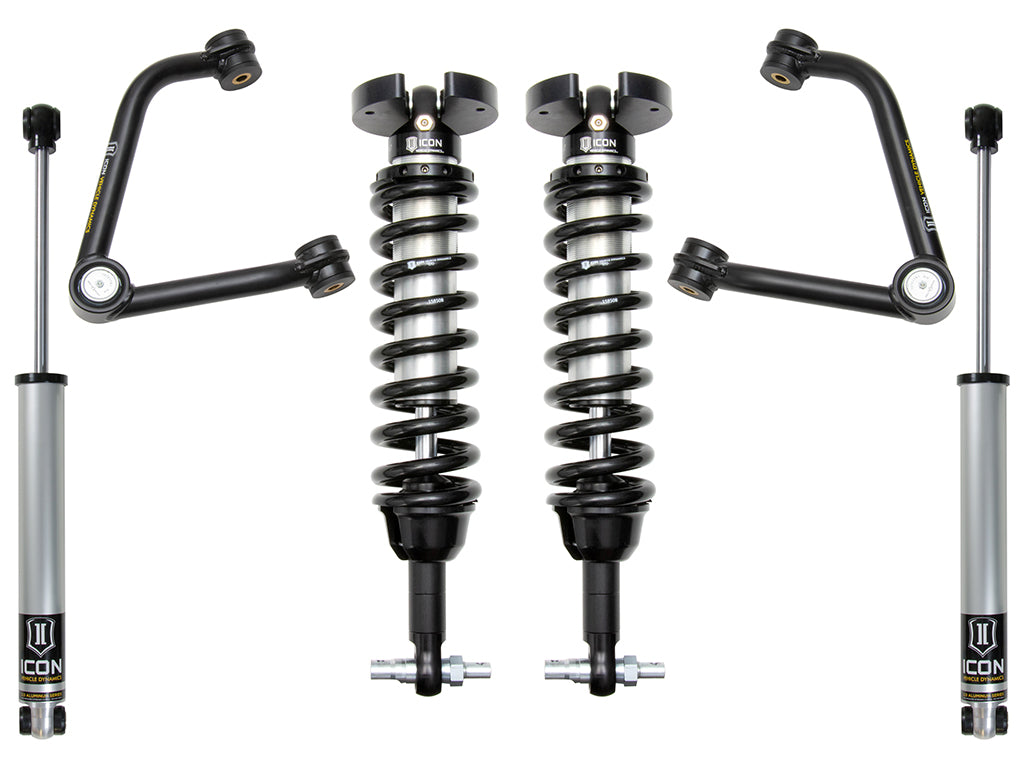

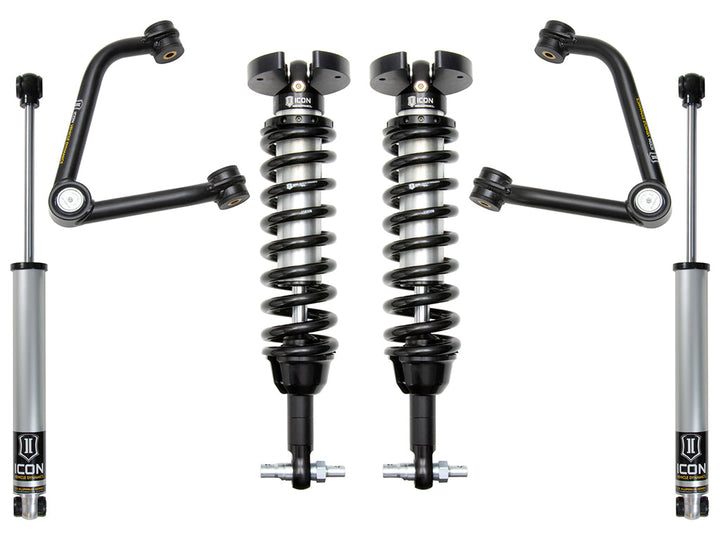

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Specifications:
- Lift height: 1.5-3.5"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Requires Slight Sanding of Rear Shock Mounts
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2019-2021 Chevrolet Silverado 1500: Custom, WT (4.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2020 Chevrolet Silverado 1500: Custom (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2021 Chevrolet Silverado 1500: Custom (5.3L FLEX, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2020 Chevrolet Silverado 1500: Custom, High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2021 Chevrolet Silverado 1500: Custom (5.3L GAS, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022-2026 Chevrolet Silverado 1500: Custom Trail Boss, LT Trail Boss (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1"
- 2019-2021 Chevrolet Silverado 1500: Custom Trail Boss (4.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2020-2021 Chevrolet Silverado 1500: Custom Trail Boss (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2019-2026 Chevrolet Silverado 1500: Custom Trail Boss, LT Trail Boss (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2020-2021 Chevrolet Silverado 1500: Custom Trail Boss (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2021-2026 Chevrolet Silverado 1500: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1" - 3"; with Adaptive Suspension
- 2020 Chevrolet Silverado 1500: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"
- 2021-2026 Chevrolet Silverado 1500: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"; without Adaptive Suspension
- 2021-2026 Chevrolet Silverado 1500: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"; with Adaptive Suspension
- 2021-2026 Chevrolet Silverado 1500: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"; without Adaptive Suspension
- 2021-2026 Chevrolet Silverado 1500: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"; with Adaptive Suspension
- 2019-2020 Chevrolet Silverado 1500: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2021-2026 Chevrolet Silverado 1500: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"; without Adaptive Suspension
- 2020-2026 Chevrolet Silverado 1500: LT, LTZ, RST (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"
- 2019-2026 Chevrolet Silverado 1500: LT, LTZ, RST (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2020-2026 Chevrolet Silverado 1500: LT Trail Boss (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2019-2026 Chevrolet Silverado 1500: LTZ (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2023-2026 Chevrolet Silverado 1500: PPV (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2020-2026 Chevrolet Silverado 1500: RST (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2021 Chevrolet Silverado 1500: SSV (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2021, 2025-2026 Chevrolet Silverado 1500: WT (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2023-2024 Chevrolet Silverado 1500: WT (5.3L FLEX, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2022, 2025-2026 Chevrolet Silverado 1500: WT (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2023-2024 Chevrolet Silverado 1500: WT (5.3L GAS, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2020 Chevrolet Silverado 1500: WT Cab Regular, WT Doble Cabina (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 Chevrolet Silverado 1500 LTD: Custom Trail Boss (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2022 Chevrolet Silverado 1500 LTD: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1" - 3"; with Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"; without Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"; with Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"; without Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"; with Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"; without Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: LT, LTZ, RST (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"
- 2022 Chevrolet Silverado 1500 LTD: LT, LTZ, RST, WT (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 Chevrolet Silverado 1500 LTD: LT Trail Boss (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1"
- 2022 Chevrolet Silverado 1500 LTD: LT Trail Boss (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2022 Chevrolet Silverado 1500 LTD: LT Trail Boss (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2022 Chevrolet Silverado 1500 LTD: LTZ, RST (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 Chevrolet Silverado 1500 LTD: SSV (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 Chevrolet Silverado 1500 LTD: WT (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2020-2026 GMC Sierra 1500: AT4 (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1"
- 2019-2021 GMC Sierra 1500: AT4 (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2019-2026 GMC Sierra 1500: AT4 (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2019-2021 GMC Sierra 1500: Base (4.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2021 GMC Sierra 1500: Base (5.3L FLEX, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2021 GMC Sierra 1500: Base (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2020-2026 GMC Sierra 1500: Denali (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1" - 3"
- 2019-2026 GMC Sierra 1500: Denali (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"
- 2019-2026 GMC Sierra 1500: Denali (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"
- 2022-2026 GMC Sierra 1500: Denali Ultimate (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1" - 3"
- 2022-2026 GMC Sierra 1500: Denali Ultimate (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"
- 2020-2026 GMC Sierra 1500: Elevation, SLE, SLT (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"
- 2019-2026 GMC Sierra 1500: Elevation, SLE, SLT (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2023-2026 GMC Sierra 1500: Pro (5.3L FLEX, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022-2026 GMC Sierra 1500: Pro (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2019-2026 GMC Sierra 1500: SLT (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 GMC Sierra 1500 Limited: AT4 (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1"
- 2022 GMC Sierra 1500 Limited: AT4 (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 0" Maximum Lift Rear; Raises Front 0" - 1.5"
- 2022 GMC Sierra 1500 Limited: Denali (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1" - 3"
- 2022 GMC Sierra 1500 Limited: Denali (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"
- 2022 GMC Sierra 1500 Limited: Denali (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Also Requires Part Number 71021 and Number 71022; Raises Front 1.5" - 3.5"
- 2022 GMC Sierra 1500 Limited: Elevation, SLE, SLT (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1" - 3"
- 2022 GMC Sierra 1500 Limited: Elevation, Pro, SLE, SLT (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 GMC Sierra 1500 Limited: Pro (5.3L FLEX, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
- 2022 GMC Sierra 1500 Limited: SLT (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; with 2" Maximum Lift Rear; Raises Front 1.5" - 3.5"
Part #: K73062T
