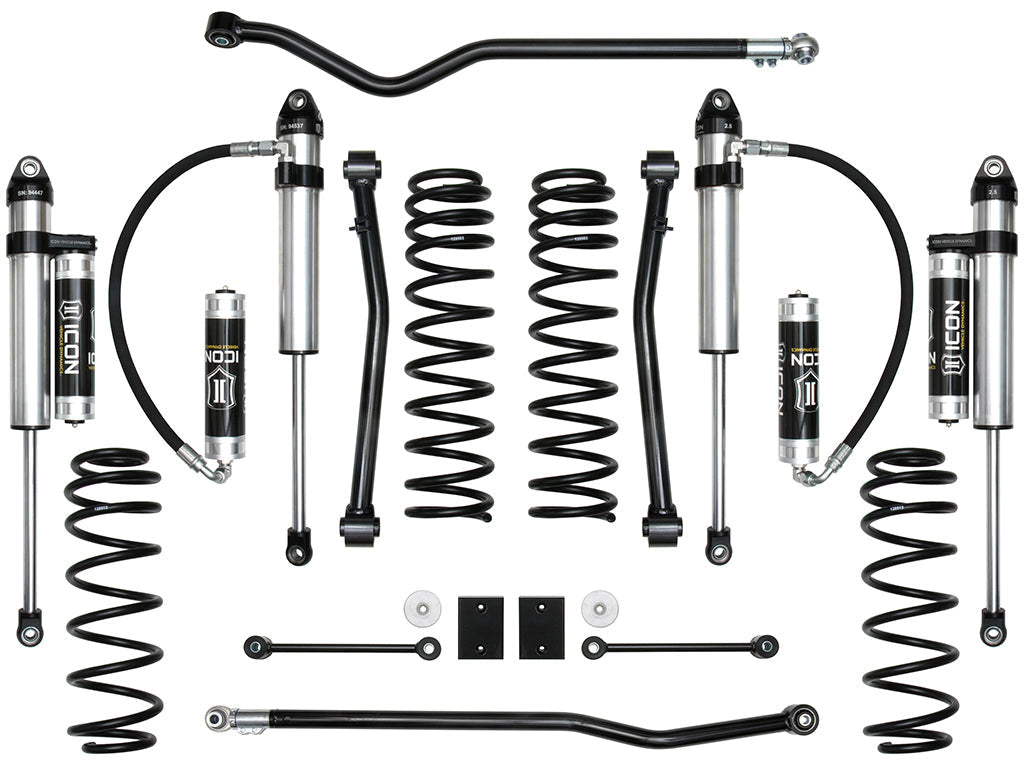

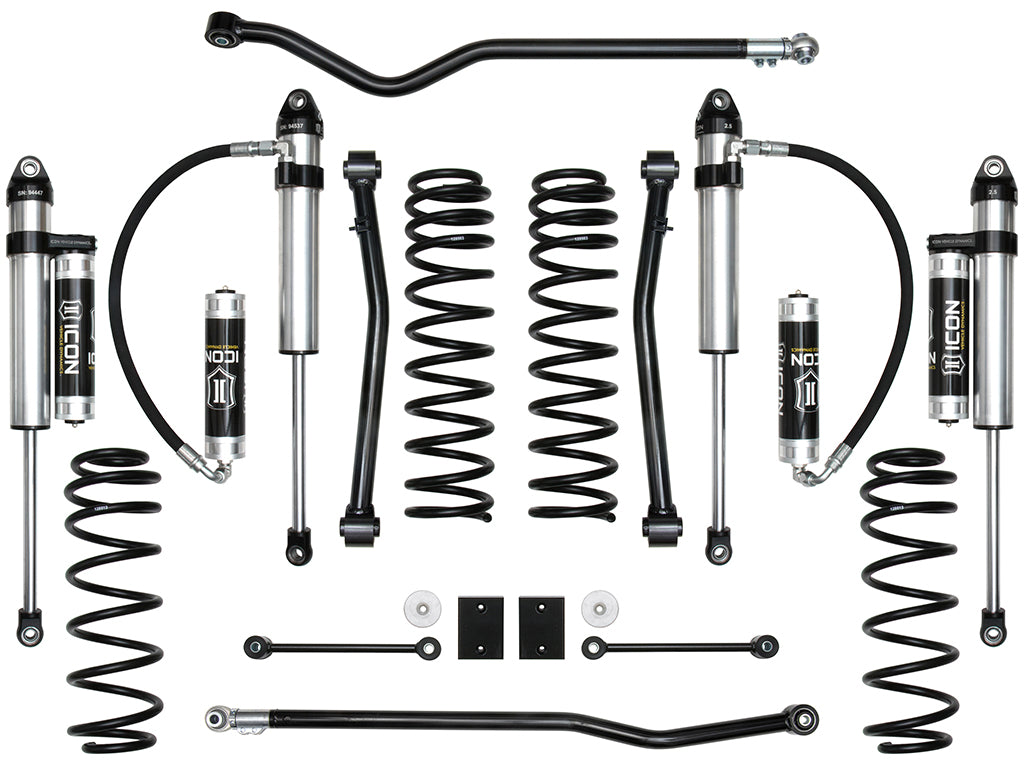

The ICON Vehicle Dynamics Stage 5 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 5 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series shocks with vehicle specific valving, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 5 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Installation notes:
- Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle.
- Use Up To 35" x 12.50" Tires
- For 37" Tires Use Bump Stop Spacer Kit
- -6 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2021 Jeep Wrangler: Freedom, Islander (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021 Jeep Wrangler: Freedom, Islander (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2018-2022 Jeep Wrangler: Rubicon (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021-2022 Jeep Wrangler: Rubicon (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2019-2020 Jeep Wrangler: Rubicon Deluxe (Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2018-2022 Jeep Wrangler: Sport, Sport S (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021-2022 Jeep Wrangler: Sport, Sport S, Willys, Willys Sport (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021 Jeep Wrangler: Unlimited Freedom, Unlimited Islander (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021 Jeep Wrangler: Unlimited Freedom, Unlimited Islander (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2018-2019 Jeep Wrangler: Unlimited Moab (Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2018-2022 Jeep Wrangler: Unlimited Rubicon (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Unlimited Rubicon (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020 Jeep Wrangler: Unlimited Rubicon Deluxe, Unlimited Rubicon Xtreme (Front and Rear) — Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2018-2022 Jeep Wrangler: Unlimited Sahara (3.6L GAS, Front and Rear) — Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020-2022 Jeep Wrangler: Unlimited Sahara (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Unlimited Sahara Altitude, Unlimited Sport Altitude, Unlimited Willys, Unlimited Willys Sport (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport (3.6L MILD HYBRID EV-GAS (MHEV), Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2018-2022 Jeep Wrangler: Unlimited Sport, Unlimited Sport S (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Willys, Willys Sport (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
Part #: K22015
