Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.

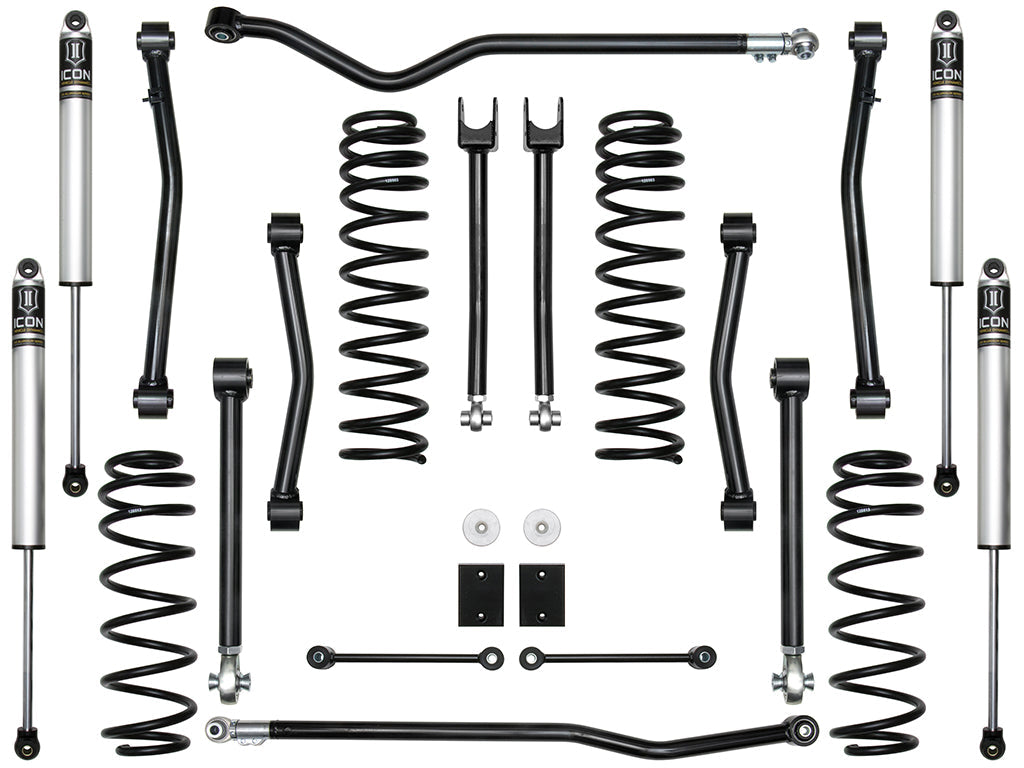

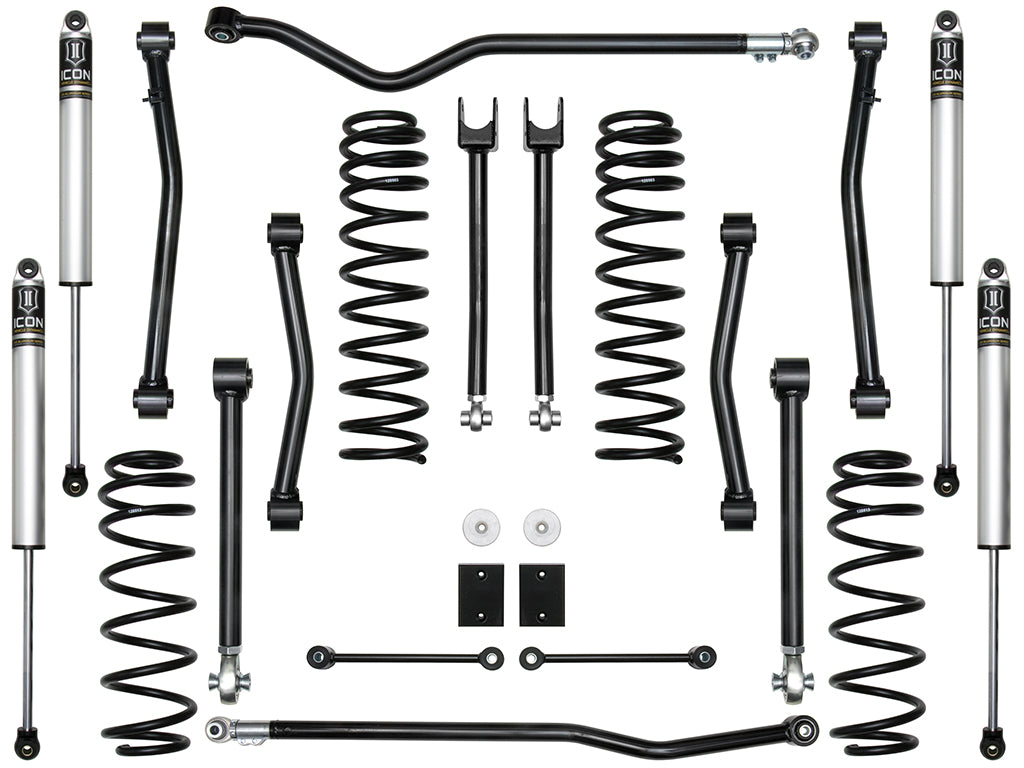

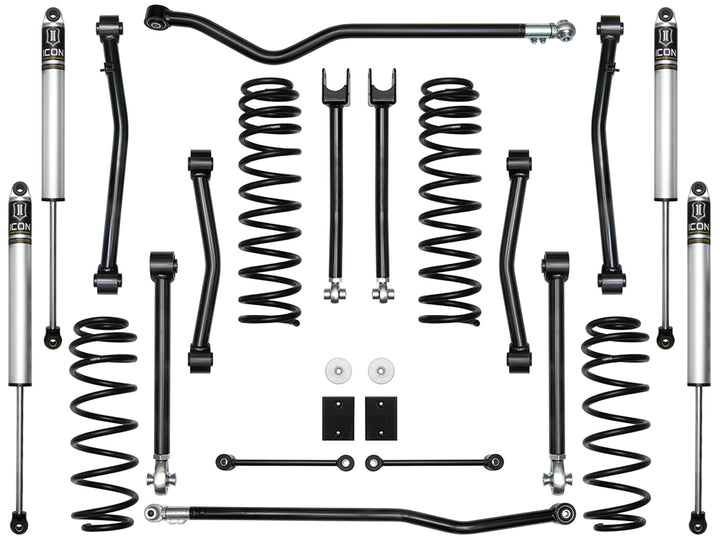

The ICON Vehicle Dynamics Stage 4 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 4 system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 4 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.
Specifications:
- Lift height: 2.5"
- Position: Front and Rear
Installation notes:
- Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle.
- Use Up To 35" x 12.50" Tires
- For 37" Tires Use Bump Stop Spacer Kit
Fits:
- 2021 Jeep Wrangler: 80th Anniversary, Freedom, Islander (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021 Jeep Wrangler: Freedom, Islander (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2020-2022 Jeep Wrangler: Rubicon (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2018-2022 Jeep Wrangler: Rubicon (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2019-2020 Jeep Wrangler: Rubicon Deluxe (Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2020-2022 Jeep Wrangler: Sport, Sport S (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2018-2022 Jeep Wrangler: Sport, Sport S (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021 Jeep Wrangler: Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited Islander (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021 Jeep Wrangler: Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited Islander (3.0L DIESEL, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 1.75"; Rear Raise Height 2.5"
- 2021 Jeep Wrangler: Unlimited Freedom, Unlimited Islander (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2018-2019 Jeep Wrangler: Unlimited Moab (Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020-2022 Jeep Wrangler: Unlimited Rubicon (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020-2022 Jeep Wrangler: Unlimited Rubicon (3.0L DIESEL, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 1.75"; Rear Raise Height 2.5"
- 2018-2022 Jeep Wrangler: Unlimited Rubicon (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020 Jeep Wrangler: Unlimited Rubicon Deluxe, Unlimited Rubicon Xtreme (Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.50” Backspace / -6mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020-2022 Jeep Wrangler: Unlimited Sahara, Unlimited Sport, Unlimited Sport S (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2020-2022 Jeep Wrangler: Unlimited Sahara, Unlimited Sport, Unlimited Sport S (3.0L DIESEL, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 1.75"; Rear Raise Height 2.5"
- 2018-2022 Jeep Wrangler: Unlimited Sahara, Unlimited Sport, Unlimited Sport S (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Unlimited Sahara Altitude, Unlimited Sahara High Altitude, Unlimited Sport Altitude, Unlimited Willys, Unlimited Willys Sport (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Unlimited Sahara Altitude, Unlimited Sahara High Altitude, Unlimited Sport Altitude, Unlimited Willys, Unlimited Willys Sport (3.0L DIESEL, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 1.75"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Unlimited Sahara Altitude, Unlimited Sport Altitude, Unlimited Willys, Unlimited Willys Sport (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 2.5"; Rear Raise Height 2.5"
- 2021-2022 Jeep Wrangler: Willys, Willys Sport (2.0L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
- 2021-2022 Jeep Wrangler: Willys, Willys Sport (3.6L GAS, Front and Rear) — Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Front Raise Height 3.0"; Rear Raise Height 3.0"
Part #: K22014
